4-in-1 Portable Air Conditioner 10,000 BTU - 230V

Who is this for

This portable air conditioner is used primarily by workshop owners, office managers, and facilities teams who need year-round climate control in a single repositionable unit rather than separate heating and cooling appliances. The 18m² coverage rating makes it suited to small-to-medium offices, single-bay workshops, garages, server rooms, and home studies where a fixed split-system installation is not practical or permitted. Procurement teams sourcing climate control for temporary or rented workspace will find the wheel-mounted design and standard 230V 13A supply particularly relevant, as the unit requires no installation and can be relocated between sites or buildings as needed.

Typical applications

Cooling a small office or home office during summer months, with the same unit switching to heating mode during winter to maintain a consistent working temperature throughout the year.

Workshop climate control where summer heat from machinery and direct sunlight makes working conditions uncomfortable, and where the dehumidifier mode addresses moisture and condensation during cooler months.

Garage and utility room dehumidifying where persistent condensation damages tools, vehicles, stored equipment, or building fabric, with the unit switching to fan or cooling mode during warmer periods.

Server room or IT equipment room spot-cooling where a portable unit supplements existing HVAC during periods of high equipment load or HVAC failure.

Temporary office or welfare facility climate control on construction sites and events where a permanent installation is not available and the unit needs to move between locations.

Home cooling during summer heatwaves in rooms where a fixed air conditioning unit is not installed, with the window adaptor providing a straightforward installation through any casement or sash window opening.

How to use

Step 1: Position the unit in the room with sufficient clearance around the air intake on the rear panel. Do not position against a wall or in an enclosed space that restricts airflow to the intake grille.

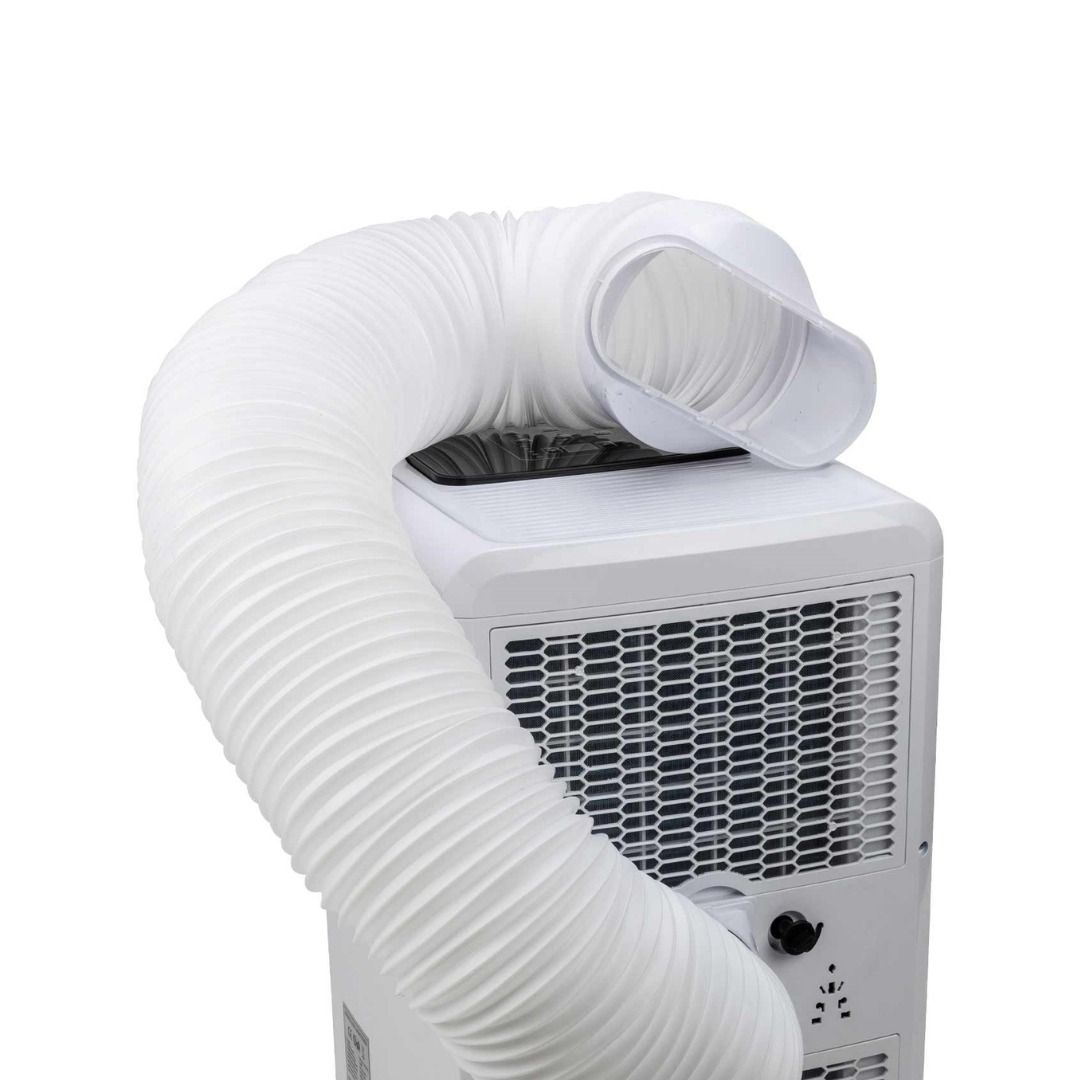

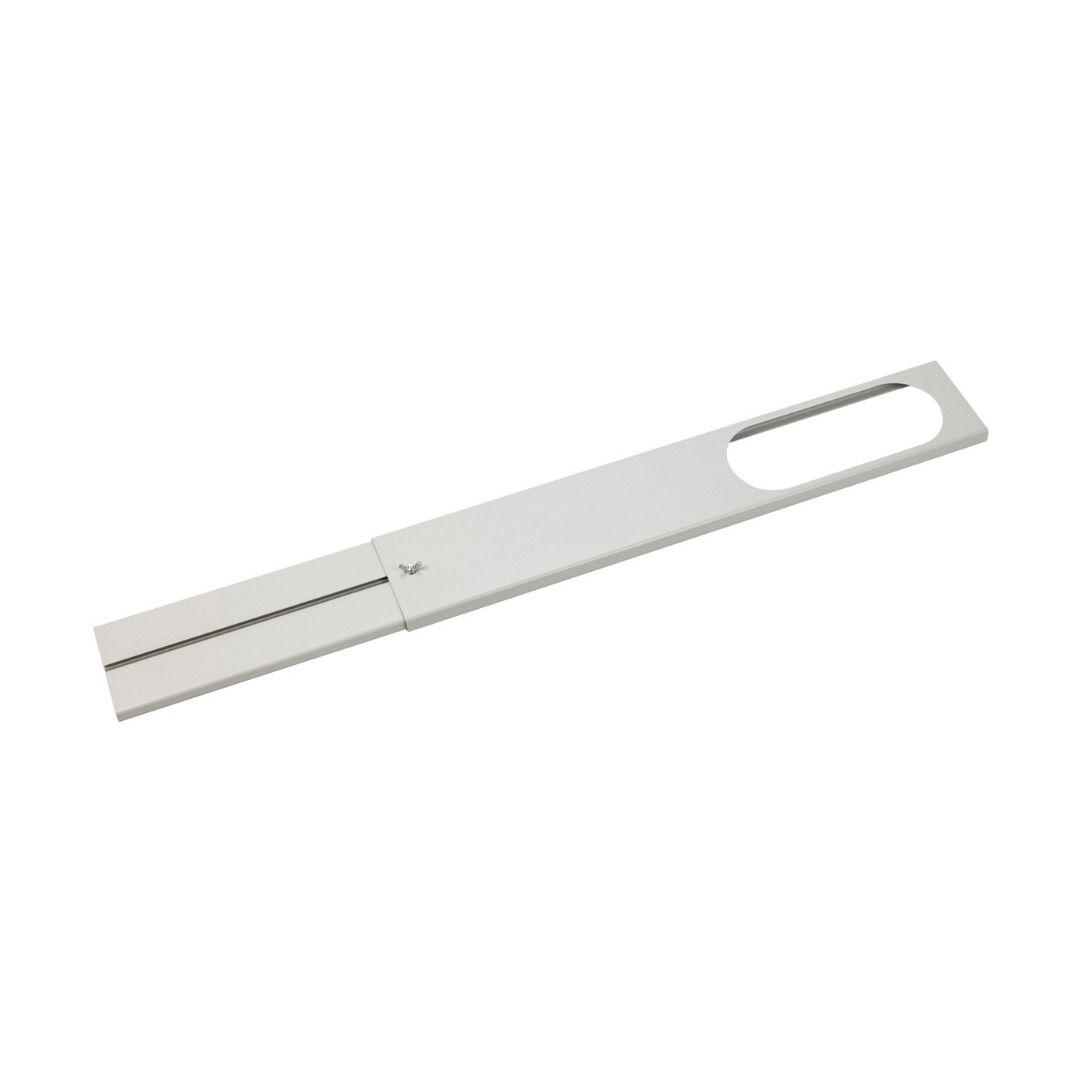

Step 2: Extend the 1.5m air duct and connect the fan tail to the exhaust port on the rear of the unit. Route the duct to a window or external opening and fit the window adaptor to seal the opening around the duct. Hot air must be vented outside during cooling mode for the unit to operate correctly.

Step 3: Connect to a standard 230V 13A mains socket. Do not use an extension lead unless it is rated for the unit's full current draw (4.6A cooling, 3.8A heating).

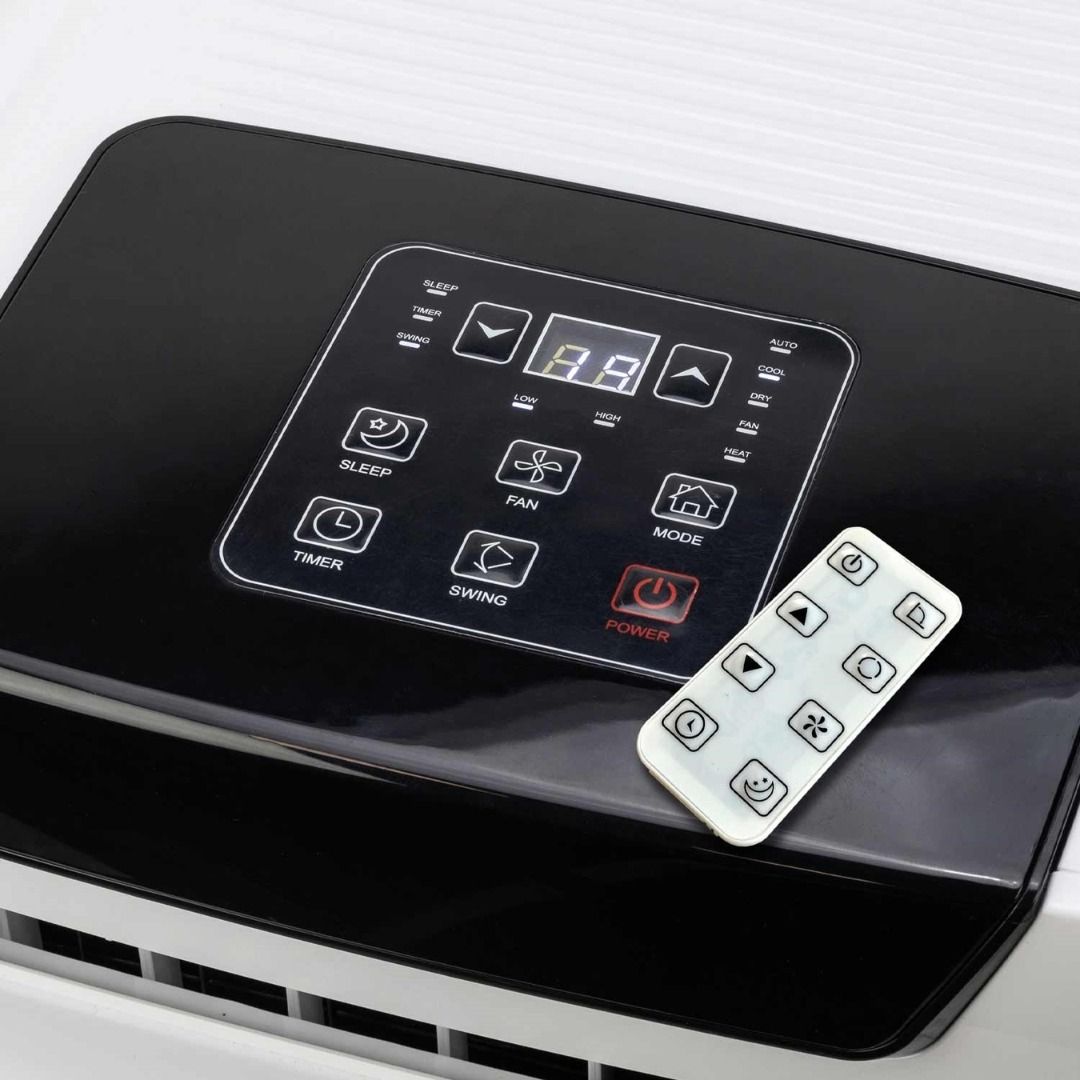

Step 4: Use the digital control panel or remote control to select the operating mode: cool, heat, dehumidify, or fan. Set the target temperature using the up and down buttons. The digital display shows the current room temperature and the set target.

Step 5: For hands-free operation, select Auto mode. The unit will automatically engage cool, heat, or fan functions to maintain the set temperature without manual mode switching.

Step 6: For overnight or quiet working use, select Sleep mode. The unit reduces operational noise and adjusts temperature management for quieter running.

Step 7: In dehumidifier mode, connect an external collection vessel or drain hose to the condensate outlet. The unit will not operate dehumidifier mode without a collection arrangement in place.

Common mistakes

Not venting the exhaust duct outside during cooling: The unit removes heat from the room and expels it through the exhaust duct. If the duct is not routed outside, the expelled heat re-enters the room and the unit cannot cool effectively. The window adaptor must seal the opening around the duct to prevent warm outside air re-entering.

Using an undersized extension lead: The unit draws 4.6A at full cooling load. A standard 10A extension lead is sufficient, but a 5A or low-rated lead will overheat at this current. Always check the extension lead's current rating before use.

Expecting 18m² performance in poorly insulated spaces: The 18m² coverage rating assumes a normally insulated room with standard heat gains. A poorly insulated room, a south-facing room with large windows in full sun, or a space with significant heat-generating equipment will require more cooling than the unit's rating provides.

Ignoring condensate drainage in dehumidifier mode: The unit produces liquid condensate in dehumidifier mode at up to 1.2 litres per hour. Without an external collection arrangement, the internal tank will fill and the unit will stop operating. Check and empty the collection vessel regularly during extended dehumidifier use.

Blocking the air intake grille: The rear intake grille must have clear space for air to circulate. Positioning the unit against a wall, in a cupboard, or in an alcove restricts intake airflow, reduces efficiency, and can cause the unit to overheat and shut down on thermal protection.

Safety

This unit uses R290 (propane) refrigerant. R290 is flammable. The unit must only be serviced by a qualified refrigeration engineer. Do not attempt to access, modify, or repair the refrigerant circuit. Do not use the unit in the presence of open flames, naked lights, or ignition sources. The unit is rated for indoor use on a standard 230V 13A supply only. Do not use outdoors or in wet conditions. The 13A plug is factory fitted and must not be replaced with a plug of a different rating. If the supply cable is damaged, do not use the unit and contact a qualified electrician. Keep the exhaust duct free from kinks and obstructions during operation to prevent heat build-up in the duct.

Maintenance

Clean the air filter monthly during regular use. The filter is accessible from the rear intake panel and should be rinsed in warm water, dried fully, and replaced before restarting the unit. A blocked filter reduces airflow and cooling efficiency and can cause the unit to shut down on thermal protection. Wipe the external casing with a damp cloth. Do not use solvents or abrasive cleaners. At the end of the cooling season, run the unit in fan-only mode for one hour before storage to dry the internal components and prevent mould growth. Store upright in a dry location. Inspect the exhaust duct for splits or damage before each season. Replace if the duct is cracked or the connections are loose.
