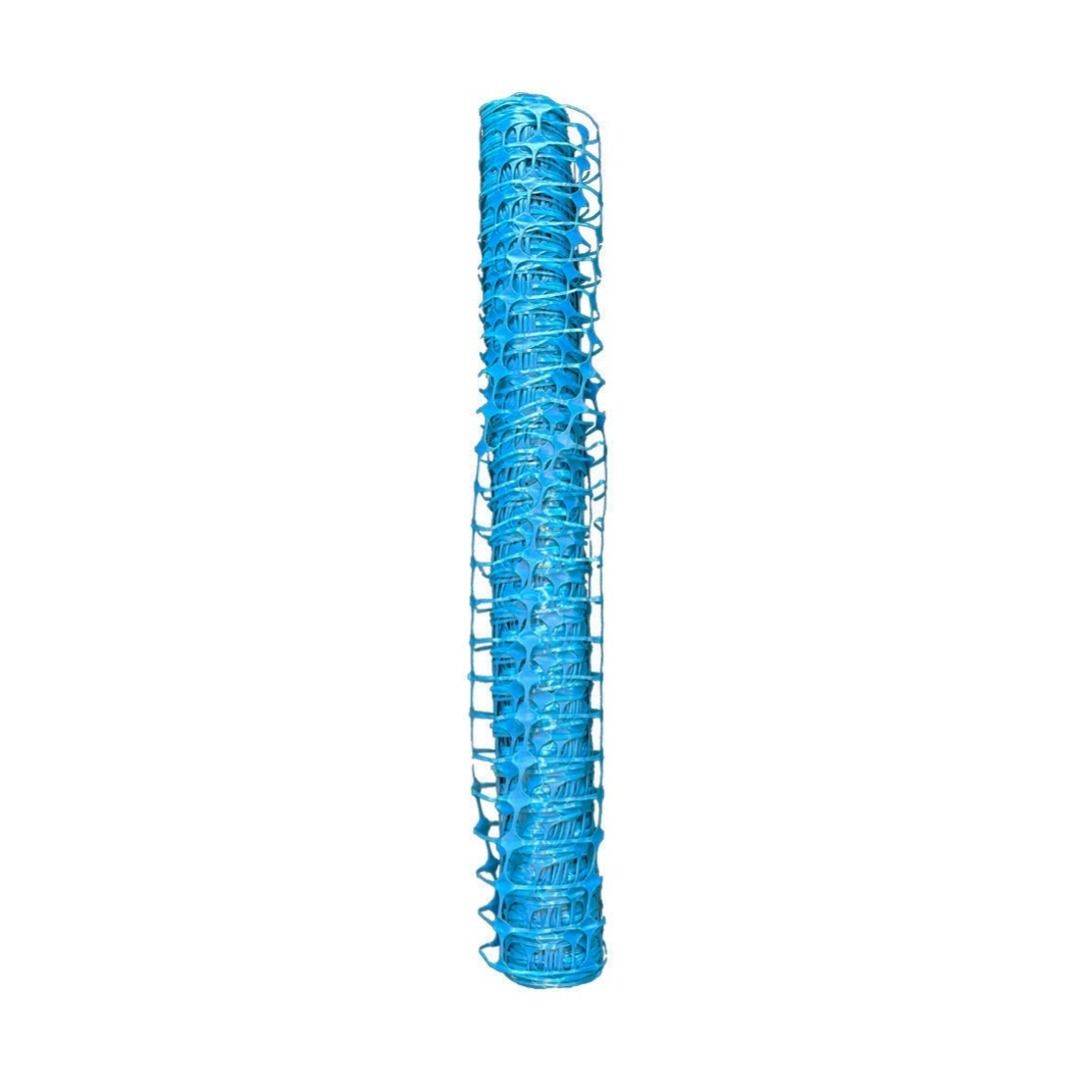

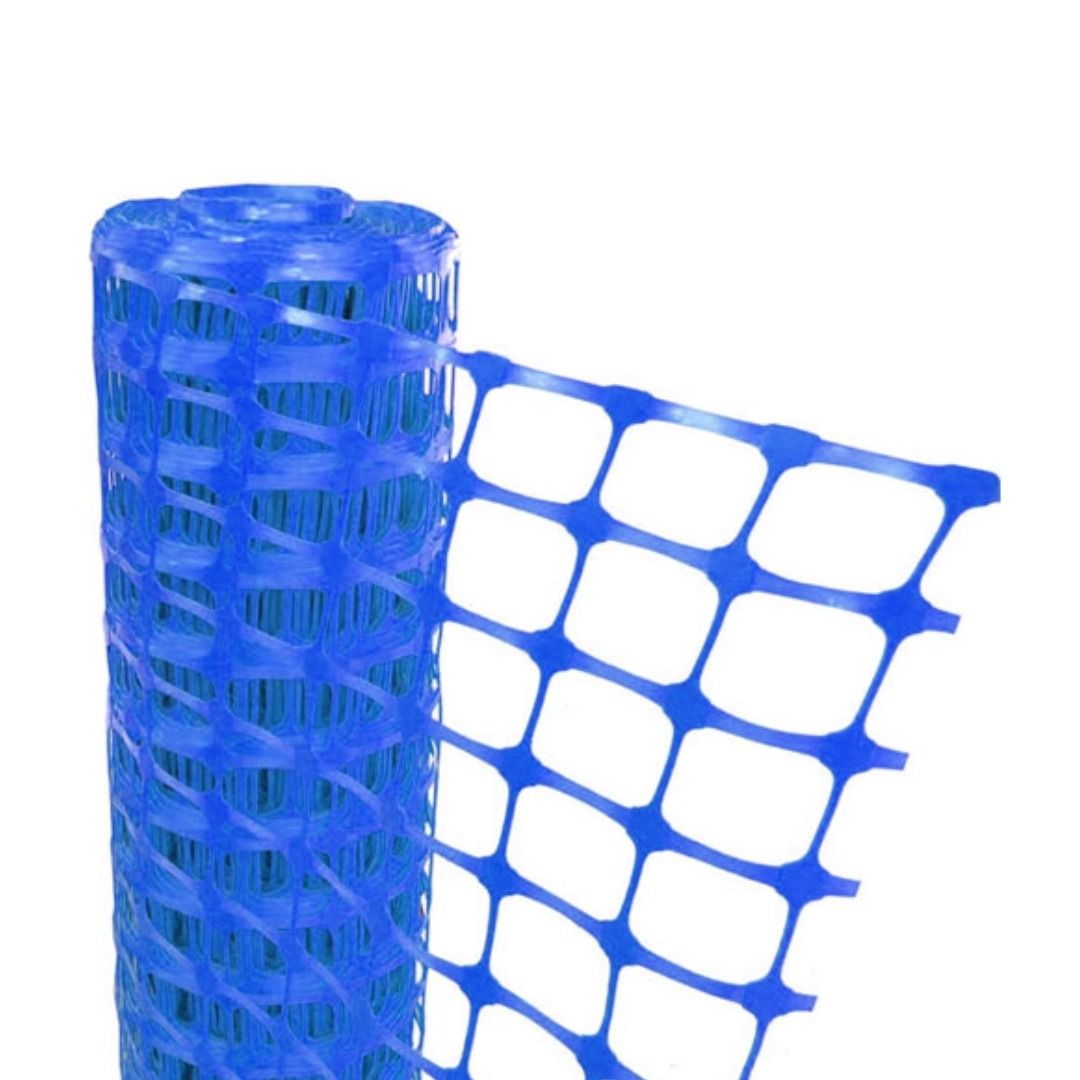

Blue Mesh Barrier Fencing - 1m x 50m Construction Site and Railway Demarcation

Who is this for

Blue HDPE mesh barrier fencing at this specification is used by site managers, civils contractors, railway possession supervisors, and event organisers who need to establish a clear, visible, reusable temporary boundary quickly across large distances. The 50m roll length makes it practical for construction sites of any scale, from individual drainage excavations to full road reconstruction schemes. Railway and utilities teams value the product for its ability to define possession limits and pedestrian exclusion zones using standard T-post or pin installation methods without requiring specialist equipment. Procurement teams managing multiple concurrent sites or events order in roll quantities, relying on the reusable format to reduce per-project cost across a season.

Typical applications

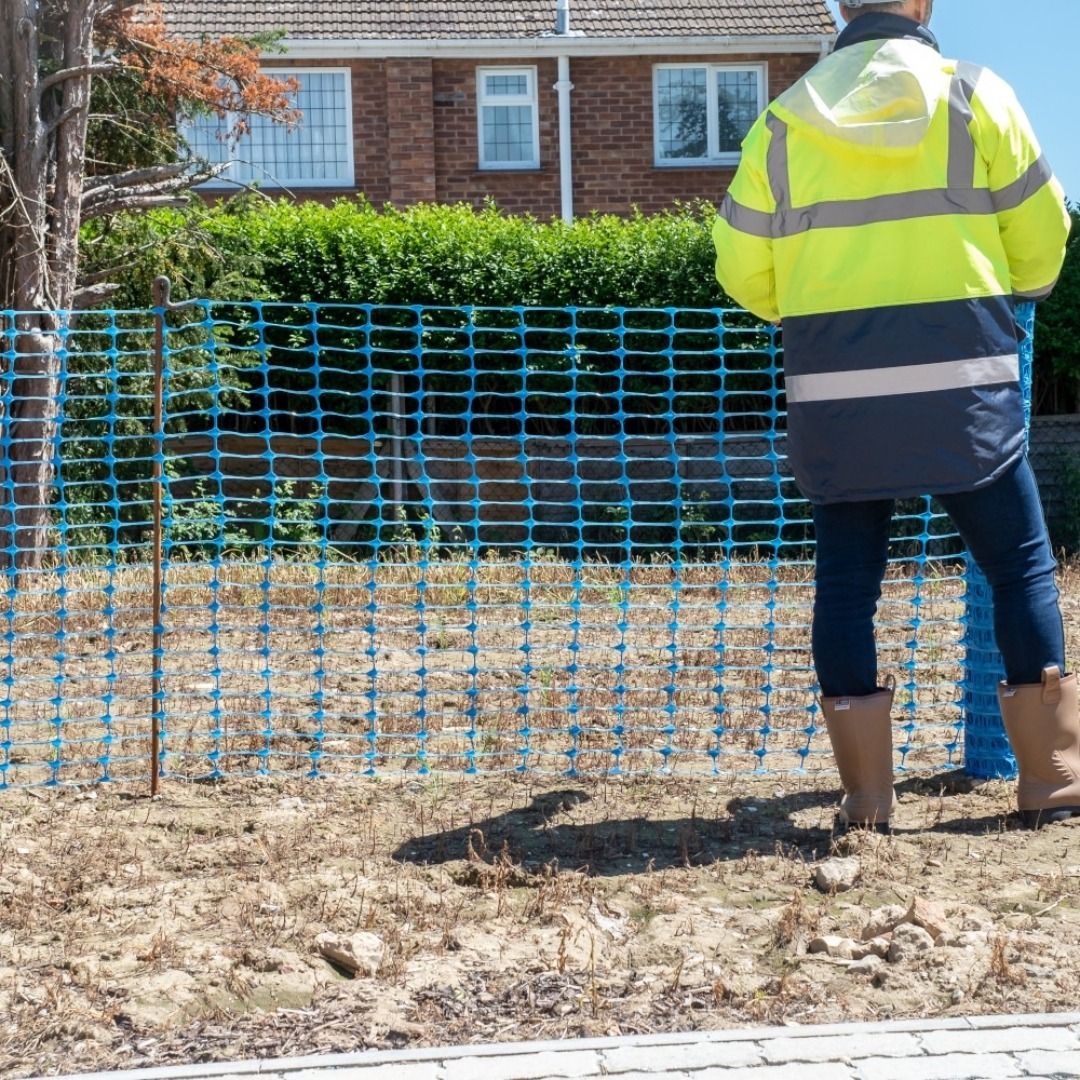

• Marking the boundary of a temporary construction site compound or excavation zone where pedestrian access must be restricted during groundwork operations.

• Defining railway possession limits during P/Way maintenance, renewal, or inspection work where a clear, visible demarcation line is required between the possession and open lines.

• Cordoning off roadwork excavations, utility trenches, and highway maintenance zones to prevent pedestrian encroachment on active work areas.

• Establishing crowd flow corridors and restricted access zones at outdoor events, festivals, sporting events, and parades where temporary demarcation is required across open ground.

• Creating temporary safety boundaries around hazardous areas such as roof edge protection zones, foundation excavations, and material storage compounds on construction sites.

• Demarcating temporary pedestrian diversions around street works and footpath closures in urban environments where a lightweight, rapidly deployable barrier is required.

• Providing temporary garden and landscaping boundaries during ground preparation, planting, or landscaping works where access restriction is needed without permanent fencing installation.

How to use

Step 1: Determine the fence line and calculate the number of fencing pins required. Use a minimum of one fencing pin per 5 metres of fencing. In exposed or windy conditions, reduce the spacing to one pin per 3 metres for additional stability.

Step 2: Insert fencing pins into the ground at measured intervals along the fence line. Ensure each pin is driven to a depth of at least 300mm (12 inches) to provide a stable fixing point in typical ground conditions.

Step 3: Attach the leading edge of the mesh roll to the first pin using cable ties or wire fixings at top, middle, and base of the mesh. Do not rely on a single fixing point at the top, this allows the mesh to flap and disengage in wind.

Step 4: Unroll the mesh along the fence line, attaching to each subsequent pin at three fixing points as you progress. Keep the mesh taut between pins to maintain a visible, upright fence line.

Step 5: At the end of the roll or at a change of direction, cut the mesh cleanly using snips or heavy scissors and fix the cut edge securely to the final pin.

Step 6: At the conclusion of the project, remove fixings, re-roll the mesh starting from one end, and secure the roll with cable ties or the original packaging band for storage and redeployment.

Common mistakes

Under-pinning the fence line: Using too few fencing pins is the most common cause of barrier fencing failure on site. One pin per 5 metres is the minimum — on exposed sites, near traffic, or in coastal conditions, one pin per 3 metres is more appropriate.

Single-point fixing at the top only: Attaching the mesh to pins with a single cable tie at the top allows the lower mesh to billow outward and disengage in wind. Always fix at top, mid, and base of the mesh at every pin.

Using oversized mesh apertures for close access restriction: The 100 x 26mm flat oval aperture of this fencing is a demarcation product, not an exclusion barrier. Children and animals can pass through any mesh opening of this size. For exclusion of small persons or animals, use close-mesh barrier panels rather than plastic mesh fencing.

Attempting to use mesh fencing as vehicle containment: HDPE mesh barrier fencing is a pedestrian demarcation product only. It provides no resistance to vehicle impact and must not be used as a vehicle containment or traffic management device.

Storing the roll in direct sunlight for extended periods: Although this fencing is UV-resistant for outdoor deployment, prolonged storage in direct sunlight over months between projects will accelerate degradation. Store re-rolled fencing in shade or covered storage when not in use.

Safety

Blue HDPE mesh barrier fencing is a demarcation product. It defines a boundary and warns against access. It does not physically prevent determined entry by adults, provide vehicle containment, or substitute for solid hoarding on high-risk perimeters. On construction sites, its use should be defined in the site safety plan and RAMS documentation appropriate to the task. On railway possessions, demarcation fencing must be used in accordance with the relevant Network Rail standards and possession supervisor instructions. This product is not a substitute for hard barriers, Armco, or rigid hoarding where vehicle restraint or structural separation is required.

Maintenance

After each deployment, remove all cable ties and wire fixings from the mesh before re-rolling. Inspect the full roll for tears, cuts, or areas of significant UV degradation before reuse, a compromised mesh that has lost structural integrity provides inadequate demarcation and should be replaced. Rinse with clean water to remove concrete, mud, or chemical contamination before storage. Re-roll firmly and store in covered conditions away from prolonged direct sunlight.
