Kratos Eco Line - Adjustable Horizontal Temporary Lifeline 5m to 20m

Eco Line - Adjustable Horizontal Temporary Lifeline 5m to 20m

A horizontal lifeline gives operatives continuous anchorage across a span rather than from a single fixed point. The Eco Line stretches between two anchor points, is tensioned by a steel ratchet to the required length within the 5m to 20m range, and allows up to two operatives to travel along it simultaneously without disconnecting. The forked anchor ends connect directly to a structure, eliminating the need for separate anchor slings. Excess webbing stores in the integrated inseparable bag during use, keeping the working area free of trailing webbing and the whole system contained for transport and storage after use. Certified to EN795:2012 and TS16415:2013 Type C, the specific standard for horizontal flexible anchor lines.

Why Choose the Eco Line - Adjustable Horizontal Temporary Lifeline 5m to 20m

• 5m to 20m adjustable span: A single system covers a wide range of structural spans without needing different length products for different sites. The steel ratchet sets and holds the tension at the required length, preventing sag under load.
• Dual-user capability: Tested and certified for simultaneous use by two operatives. On flat roof maintenance, inclined plane work, or lattice structure operations, two workers can travel independently along the same line without either needing to disconnect.
• Forked anchor ends: The forked termination allows the lifeline to wrap around a structural element and anchor without requiring a separate sling or anchor plate, reducing both the number of components and the installation time.
• Steel ratchet tensioner: Applies and maintains correct tension across the span. A slack lifeline increases fall distance and arrest forces. The ratchet removes the risk of under-tensioning after installation.
• Integrated inseparable storage bag: Excess webbing beyond the set span is stored in the bag during use rather than trailing on the working surface. After use, the whole system packs into the same bag for storage and transport.
• Vertical and horizontal direction use: The system can be installed in relation to the anchor points in either a vertical or horizontal direction, covering inclined plane work, flat roof travel, and lattice structure applications from a single product.
• 30mm polyester webbing: Wide enough to distribute loading across the anchor terminations and resist abrasion on structural edges during use.

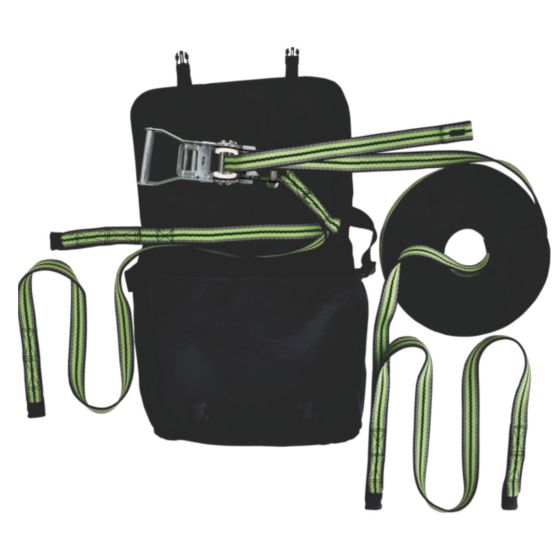

What's Included

• Eco Line horizontal lifeline webbing, adjustable 5m to 20m, 30mm polyester

• Steel ratchet tensioner

• Forked anchor ends

• 2 steel screw-locking karabiners

• Integrated inseparable storage bag

 Specifications

 Compatibility

Who Is This For?

This system is for site managers, safety officers, and operatives specifying temporary horizontal anchor lines for working at height on flat roofs, inclined structures, lattice frames, and any work area where operatives need to travel across a span while remaining continuously connected. It is suited to maintenance contractors, roofing teams, construction operatives, and facilities managers who need a deployable, adjustable anchor line that can be installed and removed for each work session without permanent fixings.

Typical Applications

• Flat roof maintenance and inspection where operatives travel across the roof surface between two anchor points

• Inclined plane and pitched roof work where a horizontal line provides continuous connection across the slope

• Work station prevention on elevated platforms where the line restricts the operative from reaching the fall edge

• Lattice metallic structure work where a temporary line is installed between structural members for the duration of a task

• Double rope descent applications where the Eco Line provides the secondary anchor line

• Horizontal plan work on bridges, gantries, and elevated walkways where a single fixed anchor point is not sufficient

How to Use

1. Before installation, confirm that both anchor points are structurally sound and rated to a minimum static strength of 12kN. The host structure must be capable of withstanding the loads generated by a fall arrest event on the lifeline.

2. Identify the required span and set the ratchet tensioner to the approximate length needed before installation.

3. Connect the forked anchor ends to the two anchor points. The forked design allows direct connection around structural members without slings. Confirm both ends are correctly seated and locked.

4. Connect the two supplied steel screw-locking karabiners to the lifeline at the appropriate positions for the operatives who will use it.

5. Apply tension using the steel ratchet until the webbing is taut with no visible sag. A correctly tensioned lifeline reduces fall distance and arrest forces. Store excess webbing in the integrated bag.

6. Operatives connect their fall arrest lanyards or guided fall arresters to the karabiners on the lifeline before entering the work area.

7. On completion, release the ratchet tension, disconnect from both anchor points, and pack the entire system into the integrated bag.

Safety

• The host structure at both anchor points must have a minimum static strength of 12kN. Do not install this lifeline on structures that cannot be confirmed as adequately rated.

• This system is classified as No PPE under EU Regulation 2016/425. It is an anchor device, not personal protective equipment. The fall arrest system connected to it, the harness and lanyard, must be separately certified PPE.

• Do not use this lifeline for more than 2 users simultaneously. It has been tested for 2 users and must not be loaded beyond that capacity.

• Install the anchor points as high above the working level as practicable to reduce fall factor and arrest distance.

• A correctly tensioned lifeline is critical. A sagging line increases fall distance and arrest forces on the connected operative.

• A rescue plan must be in place before any work begins on this lifeline, as required under EN365.

Maintenance

• Inspect the webbing, ratchet, forked anchor ends, and karabiners before each use. Check for cuts, abrasion, contamination, and correct mechanical function throughout.

• Clean with a damp cloth. Remove concrete, dirt, and chemical contamination before packing into the storage bag.

• Dry naturally away from direct heat before storage.

• Check the ratchet mechanism for correct tensioning function and smooth release before each deployment.

• Formally inspect all components by a competent person at intervals not exceeding 12 months with written records per PUWER.

• Withdraw from service immediately after any fall arrest event involving this lifeline. Have all components assessed by a competent person before any decision on return to service.

Frequently Asked Questions

Q: What is EN795:2012 Type C and why does it matter for this product?

 A: EN795:2012 is the European standard for anchor devices used in personal fall protection systems. Type C covers anchor devices using horizontal flexible anchor lines, which is exactly what the Eco Line is. It specifies the static and dynamic strength requirements, the number of users the system must be tested for, and the performance requirements for the webbing, tensioner, and anchor terminations. CE marking to EN795:2012 Type C confirms this system meets the legal requirements for use as a horizontal anchor line on UK sites. TS16415:2013 Type C is the additional technical specification that extends the EN795 requirements for multi-user horizontal lifeline systems.

Q: This product is classified as No PPE. What does that mean?

 A: No PPE means this product is an anchor device rather than personal protective equipment under EU Regulation 2016/425. It provides the anchor point to which PPE is connected, but it is not itself classed as PPE. The harness and lanyard worn by the operative are PPE and must be separately certified to the relevant EN standards. The Eco Line and the PPE connected to it together form the complete fall protection system, but they are governed by different regulatory frameworks.

Q: Can this lifeline be used by two operatives at the same time?

 A: Yes. The Eco Line has been tested and certified for simultaneous use by two operatives. Both can travel along the line independently without either needing to disconnect. It must not be used by more than two users simultaneously, as testing and certification is based on a maximum of two users.

Q: What structure strength is required at the anchor points?

 A: The host structure at both anchor points must have a minimum static strength of 12kN. This is the requirement specified under EN795 for anchor devices. Before installing the Eco Line, the structural capacity at both connection points must be confirmed by a competent person. Do not install on a structure that cannot be verified as meeting this requirement.

Q: What is the fall factor and why does anchor point height matter?

 A: The fall factor is the ratio of the distance fallen to the length of the lanyard. A higher anchor point reduces the fall factor and the arrest forces generated. Fall factor 0 means the anchor is above the operative: the preferred position. Fall factor 1 means the anchor is at the same level. Fall factor 2 means the anchor is below: the worst case, generating the highest arrest forces. Where possible, install the Eco Line anchor points as high above the working level as the structure allows.

Q: Can this be used as a permanent anchor system?

 A: No. The Eco Line is a temporary lifeline designed to be installed and removed for each work session. For applications requiring a permanent or semi-permanent horizontal lifeline, a formally designed and installed system certified to EN795 for permanent use must be specified and installed by a competent person.

Q: What is the pendulum effect and how does the lifeline position affect it?

 A: The pendulum effect occurs when an operative connected to an anchor point falls in a direction away from the direct line beneath the anchor. The operative swings like a pendulum and can strike a structure or obstacle. With a horizontal lifeline, operatives should work as directly beneath their connection point on the line as possible to minimise the pendulum arc in a fall. The further along the line from the nearest anchor point, the greater the potential pendulum swing.
