InverShield Ventilated Mesh Box – Solar Inverter Cable Protector – Galvanised Steel

The InverShield Ventilated Mesh Box - Solar Inverter Cable Protector - Galvanised Steel is designed to protect exposed inverter cable runs and junction points on ground-mounted solar installations located on agricultural land. Solar farms operating in rural environments increasingly rely on sheep grazing to manage vegetation beneath panels. While this approach supports land management and biodiversity objectives, livestock interaction with exposed electrical infrastructure can lead to cable damage, system faults and unplanned maintenance call-outs.

Standard cable protection solutions used on solar farms often create additional operational challenges. Plastic conduit systems can be easily chewed through by livestock, particularly sheep, while fully enclosed metal boxes can restrict airflow around inverter connections, potentially causing overheating or inverter derating. The InverShield Ventilated Mesh Box addresses both problems by combining robust physical protection with an open mesh design that maintains natural airflow around inverter components.

Manufactured from heavy-duty galvanised steel, or optionally stainless steel, the enclosure forms a durable barrier that prevents livestock from accessing cable runs and junction connections. The mesh spacing and structural design help prevent animals from biting, rubbing or interfering with exposed electrical infrastructure while ensuring cables remain visible and accessible for inspection by operations and maintenance teams. Powder-coated or zinc-coated finish options provide additional corrosion resistance, supporting long-term performance in exposed rural environments.

Unlike solid enclosures that trap heat around electrical infrastructure, the ventilated mesh structure allows continuous airflow around inverter cables and connection points. Maintaining ventilation is critical for solar installations where inverter thermal performance directly affects system efficiency and output. The ventilated cage design supports safe heat dissipation without compromising cable protection, helping solar operators maintain stable inverter operation and avoid temperature-related performance losses.

Installation is designed to be straightforward for EPC contractors, solar installers and maintenance teams. The enclosure mounts using bolt-on brackets and can be fitted around existing inverter frames or cable runs without major modification to the electrical installation. The standard configuration measures 870mm width by 570mm depth with a 460mm back panel height, providing coverage for common inverter cable layouts. For projects with different equipment configurations, bespoke custom sizes can be manufactured to suit specific inverter models or cable routing requirements.

An optional GRP enclosure variant is also available where electrical insulation or specific environmental requirements apply. This flexibility gives the InverShield system a significant advantage over standard off-the-shelf cable protection products that cannot be adapted to different solar farm designs.

The InverShield Ventilated Mesh Box is intended specifically for protecting solar inverter cables from livestock interaction on agricultural solar farms. It is not designed as a security enclosure, vehicle impact barrier or equipment housing, and should be installed as part of a properly designed solar electrical infrastructure system.

By protecting exposed cable infrastructure while maintaining essential airflow around inverter equipment, the InverShield system helps solar operators reduce maintenance costs, minimise inverter downtime and maintain long-term reliability across agricultural solar installations.

✓ Livestock-resistant cable protection enclosure
✓ Ventilated mesh airflow design
✓ Heavy-duty galvanised steel construction
✓ Corrosion-resistant outdoor finish options
✓ Bolt-on installation for existing solar infrastructure
✓ Designed for agricultural solar farm environments

Specifications Table – InverShield Ventilated Mesh Box - Solar Inverter Cable Protector - Galvanised Steel

DIMENSION OPTIONS:

Standard configuration 870mm × 570mm enclosure footprint.

Custom sizes Manufactured to suit inverter models and cable run layouts.

Application:

The InverShield Ventilated Mesh Box - Solar Inverter Cable Protector - Galvanised Steel is suitable for:

• •  Ground-mounted solar farms on agricultural land
  •  Agrivoltaic installations using sheep grazing
  •  Renewable energy infrastructure in rural locations
  •  Solar inverter stations with exposed cable runs

Environment suitability table:

Usage Guide:

Before installation

Confirm enclosure dimensions match inverter cable routing and ensure mounting brackets align securely with inverter frames or support structures.

During operation

Ensure the enclosure remains securely mounted and does not obstruct routine electrical inspection or maintenance procedures required by the solar asset operator.

Maintenance guidance

Inspect periodically for corrosion, physical damage or loose fixings during routine solar farm maintenance checks.

What is the InverShield Ventilated Mesh Box used for?
It protects solar inverter cables and junctions from livestock damage on agricultural solar farms where sheep or other animals graze beneath panels.

Why are solar inverter cables vulnerable on agricultural solar farms?
Livestock grazing beneath solar panels can chew, rub against or otherwise damage exposed cable runs, leading to faults and maintenance call-outs.

How does the ventilated mesh design help inverter performance?
The open mesh structure allows airflow around inverter cables and electrical connections, supporting natural heat dissipation and preventing overheating.

Is the enclosure resistant to livestock damage?
Yes. The galvanised steel mesh structure forms a strong physical barrier that prevents sheep and other livestock from accessing the cables.

Can the enclosure be customised for different solar sites?
Yes. Custom dimensions can be manufactured to match different inverter models or cable routing layouts.

Is there a GRP option available?
Yes. A GRP enclosure variant is available where electrical insulation or site-specific environmental conditions require it.

Why buy solar infrastructure protection equipment from CMT Group?
CMT Group supplies specification-led solar infrastructure solutions supported by reliable UK stock control and structured procurement systems. With EDGE portal visibility and SiteHive.ai supported supply capability, CMT helps solar operators maintain compliance, asset protection and consistent infrastructure availability across renewable energy projects.

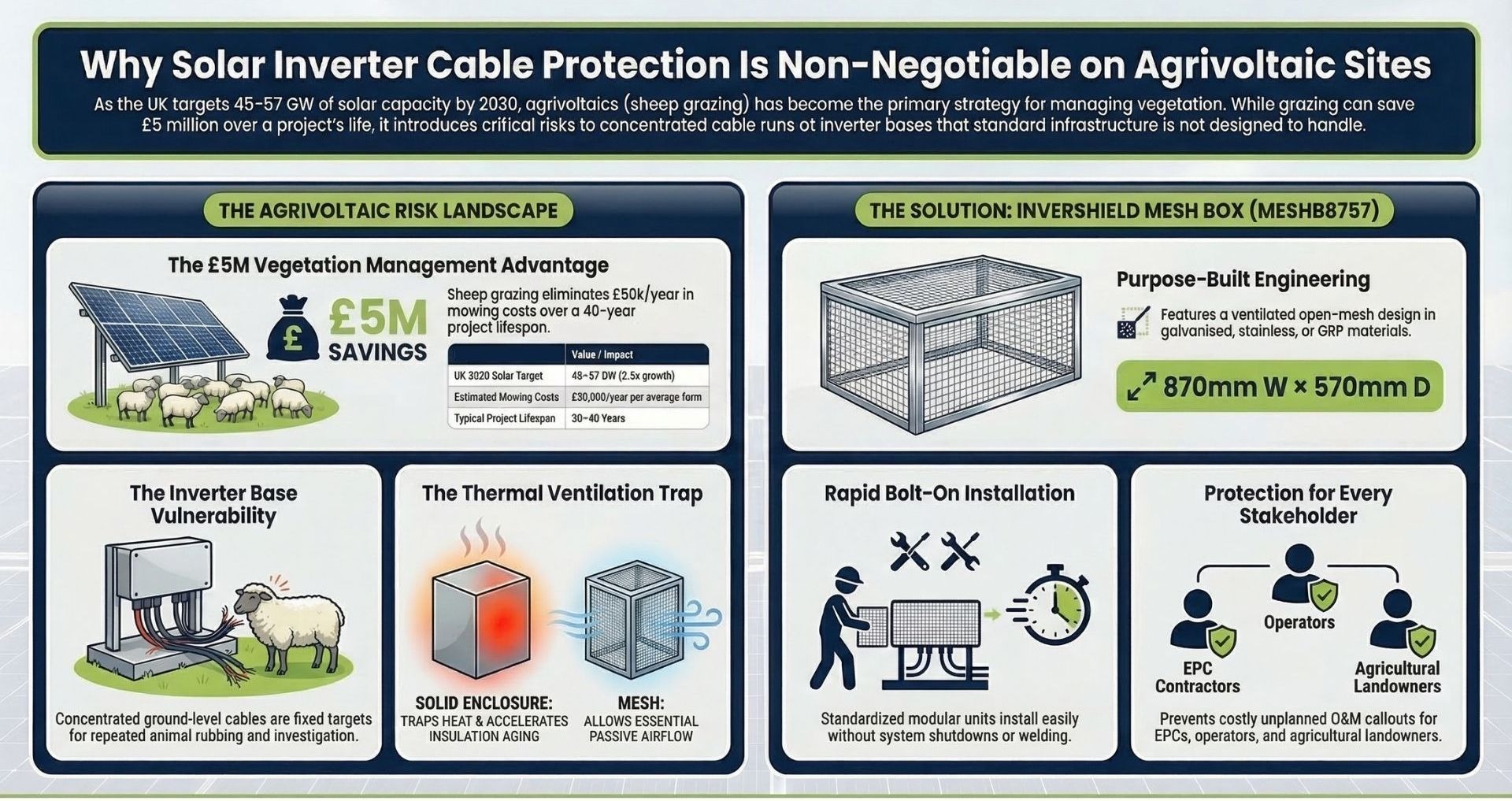

Why Solar Inverter Cable Protection Is Non-Negotiable on Agrivoltaic Sites?
