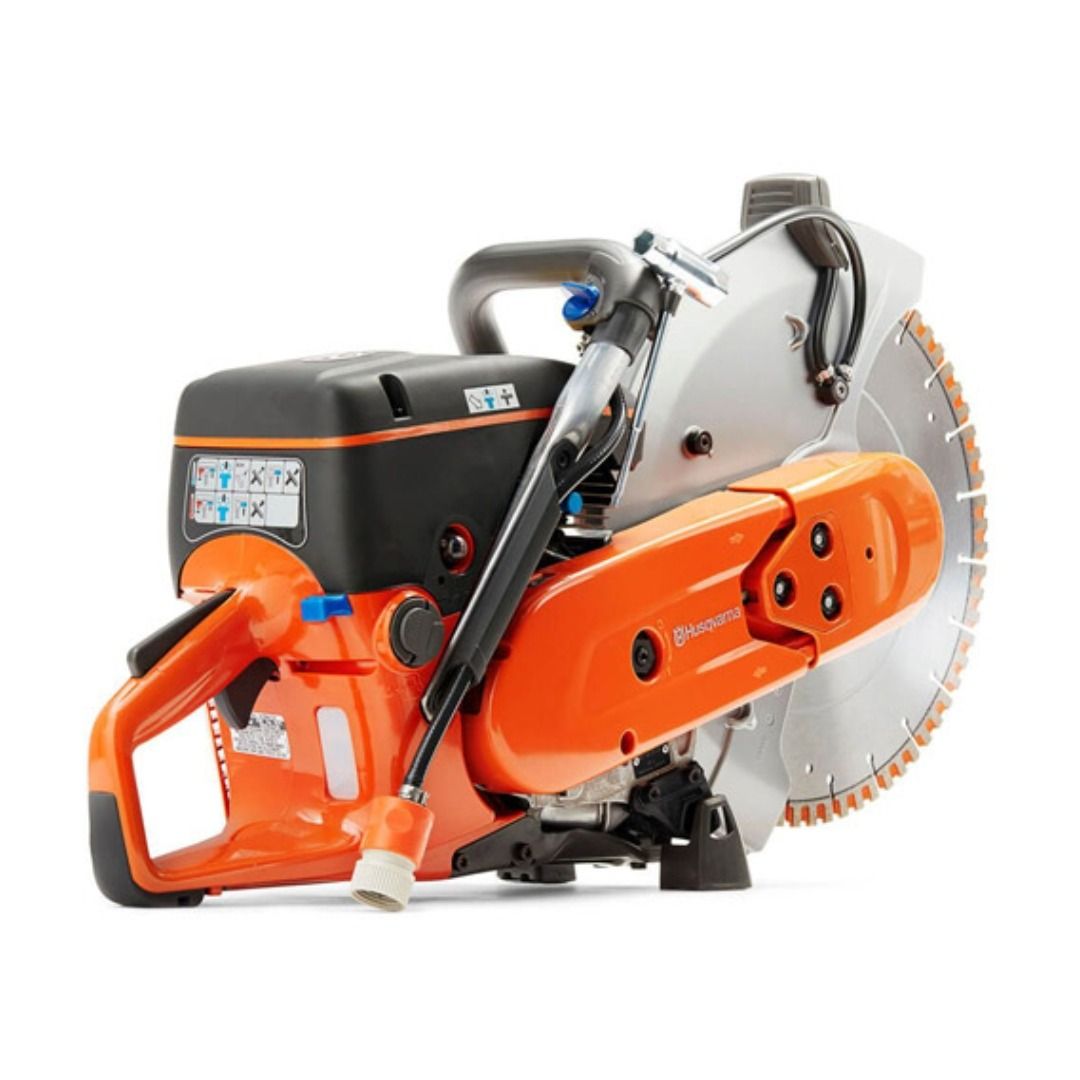

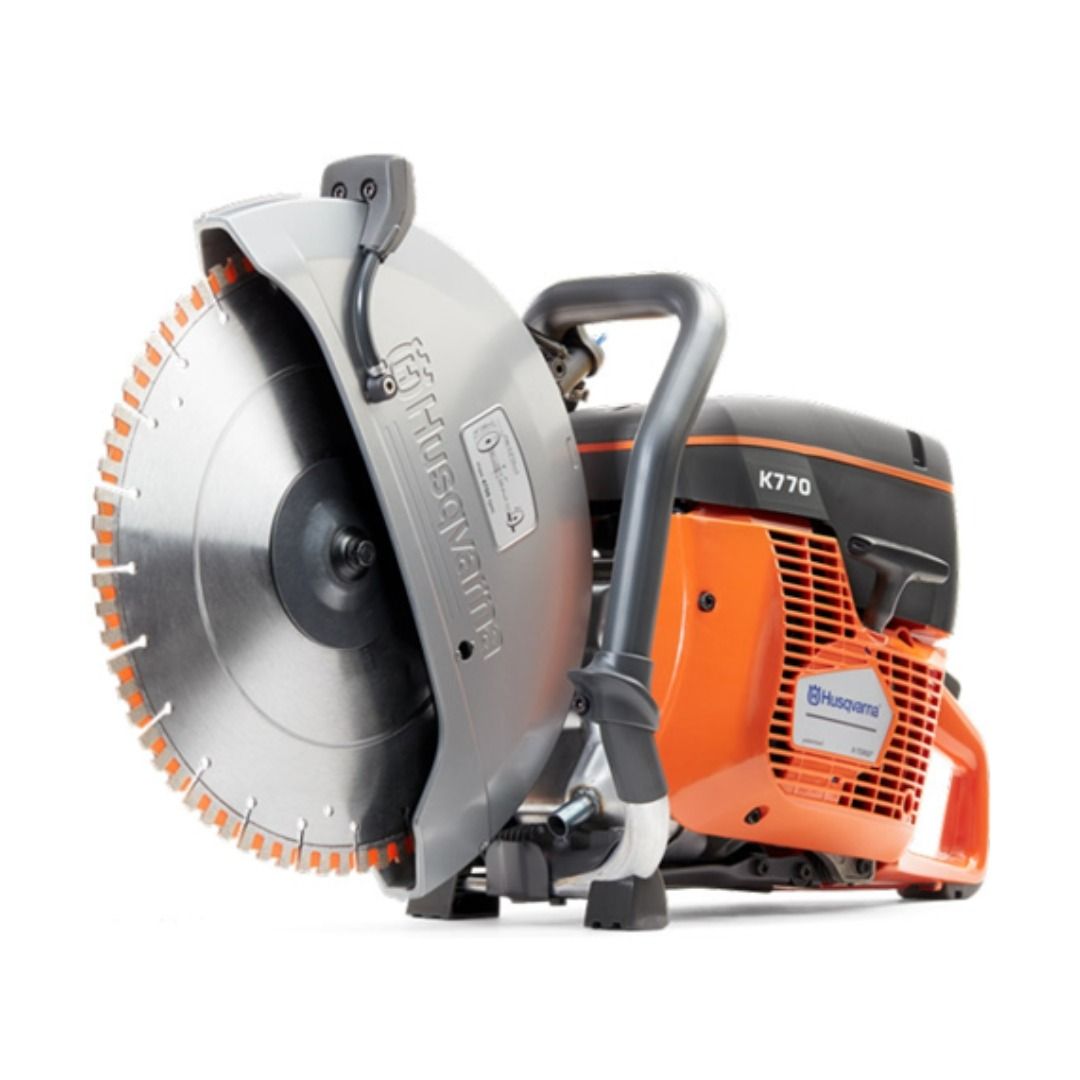

Husqvarna K770 Petrol Cut-Off Saw 300mm (12")

Who is this for

This petrol cut-off saw is used by groundworkers, road workers, civils operatives, and construction trades carrying out concrete, masonry, kerb, and asphalt cutting on UK construction and roadwork sites where a mains power supply is unavailable or impractical. It is suited to operatives who cut for extended periods throughout the working day, where the low vibration figure and outstanding power-to-weight ratio reduce fatigue and support compliance with daily exposure limits under the Control of Vibration at Work Regulations 2005. Site managers and procurement teams specifying cut-off saws for roadwork, groundwork, and utilities projects will find the SmartTension system and digital ignition directly relevant to reducing maintenance downtime and improving operational reliability on site.

Typical applications

• Cutting concrete kerbs, channels, and edgings during road construction, reinstatement, and highway maintenance work.

• Cutting concrete slabs, foundations, and structural elements during demolition, groundwork, and civil engineering projects.

• Cutting asphalt and tarmac during road reinstatement, utility trenching, and pothole repair operations.

• Cutting brick, block, and masonry during construction, renovation, and civils work where a bench saw is impractical.

• Straight and curved track cutting on roadwork sites using the machine hand-held or mounted on the Husqvarna KV7 trolley.

• Cutting concrete drainage channels, pipe surrounds, and service ducts during utilities installation and infrastructure work.

• Cutting paving, flags, and hard landscaping materials on commercial external works and civils projects.

• Emergency repair and maintenance cutting on highways and utilities infrastructure where site access limits the use of larger cutting equipment.

How to use

Step 1: Select the correct diamond blade for the material being cut. A concrete blade used on asphalt will load rapidly and lose cutting performance. Confirm the blade bore is 20mm and the maximum diameter does not exceed 300mm before fitting.

Step 2: Fit the blade securely using the correct flange and blade washer arrangement. Do not operate the saw with a loose or incorrectly fitted blade.

Step 3: Mix fuel at the correct 50:1 ratio of petrol to 2-stroke oil before filling. Using incorrectly mixed fuel damages the engine and voids the warranty.

Step 4: Prime the fuel system using the air purge bulb and set the choke to the cold start position before starting. Use the decompression valve if fitted to reduce pull-cord resistance on the first pull.

Step 5: Allow the engine to warm up for 30 seconds at idle before engaging the blade under load. This allows the clutch and belt to reach operating temperature before cutting begins.

Step 6: Apply steady, controlled forward pressure through the cut. Do not force the blade, the engine power and blade segment design do the work. Forcing increases wear, overheats the blade, and risks blade distortion.

Step 7: For wet cutting, connect the water supply to the blade guard water feed before beginning. Maintain a consistent water flow throughout the cut to cool the blade and suppress dust.

Step 8: Disengage the blade and allow it to stop fully before setting the saw down. Never place a running saw on the ground or against a surface with the blade in motion.

Common mistakes

• Using the wrong blade for the material: A concrete diamond blade used on asphalt loads with bitumen and loses cutting performance rapidly. An asphalt blade used on hard concrete wears prematurely. Always match the blade specification to the material being cut.

• Incorrect fuel mix ratio: The K770 requires a 50:1 petrol to 2-stroke oil mix. Too little oil causes insufficient lubrication, overheating, and accelerated engine wear. Too much oil causes excessive smoke, carbon build-up, and spark plug fouling.

• Forcing the blade through the cut: Applying excessive downward or forward pressure overloads the engine, overheats the blade segments, and can cause blade distortion or segment loss. Use consistent controlled pressure and allow the blade to cut at its natural rate.

• Neglecting belt tension checks: Although the SmartTension system maintains belt tension automatically, the belt should be inspected visually at regular intervals for wear, fraying, and cracking. A worn belt that is not replaced will fail under load regardless of correct tension.

• Operating indoors without dust control: Concrete and masonry cutting generates respirable crystalline silica dust. Operating this saw indoors or in enclosed spaces without appropriate dust suppression, wet cutting or extraction, creates a serious health risk under the Control of Substances Hazardous to Health Regulations 2002.

Safety

This saw operates at high blade speeds with an exposed cutting disc. Full PPE is mandatory: safety glasses or a full face shield, hearing protection, a dust mask rated P3 or FFP3 for silica dust, cut-resistant gloves, safety footwear, and appropriate clothing with no loose material near the blade. Never operate without the blade guard fully fitted. The blade must be rated for the operating speed of the machine, check the blade maximum RPM before fitting. Under the Control of Vibration at Work Regulations 2005, the declared vibration level of 2.4 m/s² must be monitored against the daily exposure action value (EAV) of 2.5 m/s² A(8) and exposure limit value (ELV) of 5 m/s² A(8). Employers must introduce controls where the EAV is approached or exceeded. This machine produces carbon monoxide exhaust and must not be operated in enclosed or confined spaces.

Maintenance

Check and clean the air filter at regular intervals, a blocked filter restricts airflow to the engine and reduces power output. Inspect the drive belt for wear, fraying, and cracking at the start of each shift. Check the fuel system for leaks before starting. Clean the blade guard and water feed connection after each wet cutting session. Inspect the blade for segment loss, cracking, or distortion before every use, a damaged blade must be replaced before the machine is operated. Store with the fuel tank empty or with stabilised fuel if the machine will not be used for more than 30 days.
