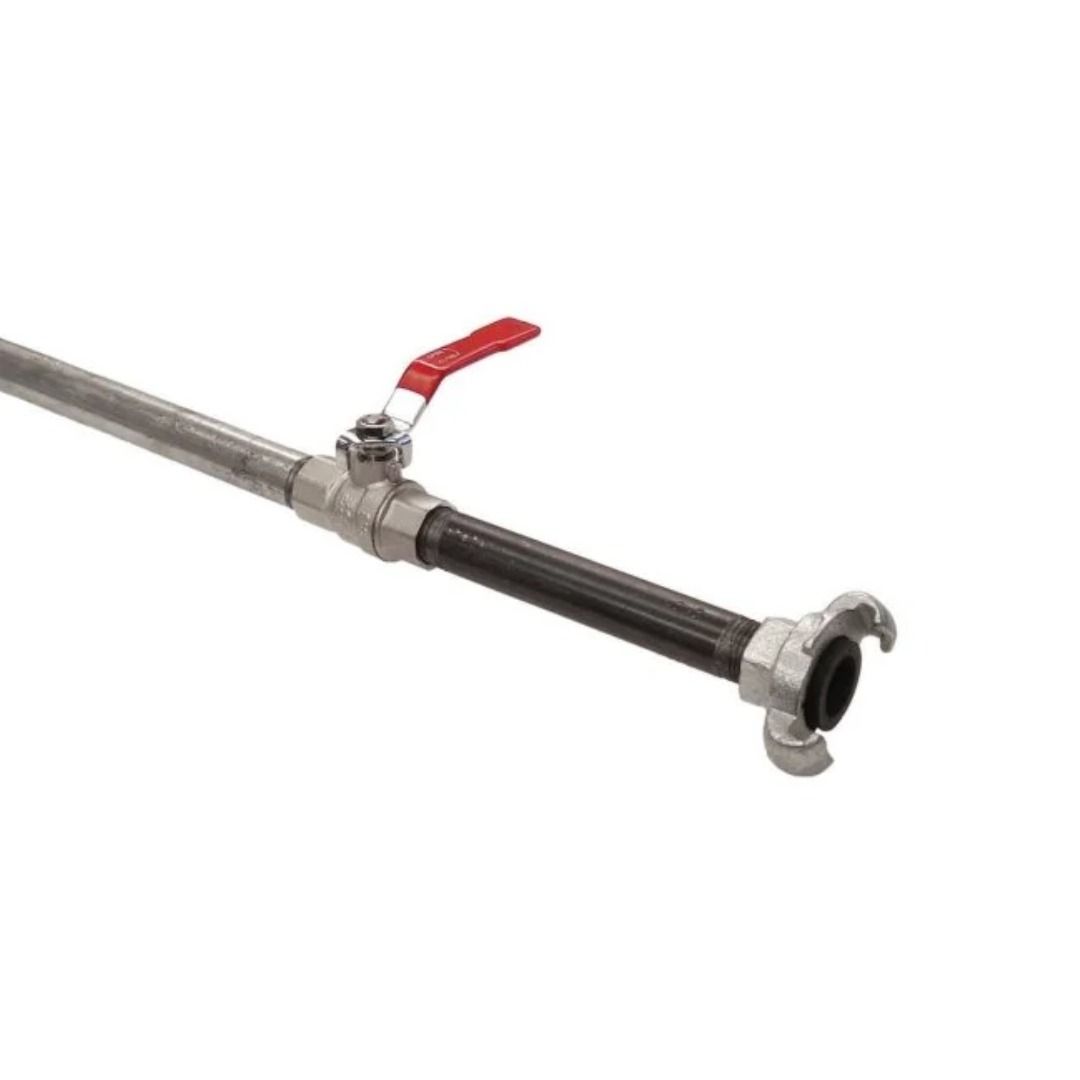

Modular compressed air blow lance kit for air compressors, with 2m flexible pipe, air tap, claw coupling, extension tube, and two 1m lance sections for debris removal from machinery, plant, and workshop equipment.
- Complete kit: 2m flexible pipe, 1/2" air tap, claw coupling, Q coupling (1/2" BSP female), 1/2" female socket, 6" (152mm) extension tube, two 1m blow pipe lances
- 1/2" BSP threaded fittings throughout, compatible with 3/4" (19mm) compressor hose
- Metal lance construction for regular industrial and workshop use
- Modular assembly: configure reach using one or both 1m lance sections
- Maximum working pressure
Blow Lance Kit for Air Compressors - 2m Pipe Length
Modular compressed air blow lance kit for air compressors, with 2m flexible pipe, air tap, claw coupling, extension tube, and two 1m lance sections for debris removal from machinery, plant, and workshop equipment.
- Complete kit: 2m flexible pipe, 1/2" air tap, claw coupling, Q coupling (1/2" BSP female), 1/2" female socket, 6" (152mm) extension tube, two 1m blow pipe lances
- 1/2" BSP threaded fittings throughout, compatible with 3/4" (19mm) compressor hose
- Metal lance construction for regular industrial and workshop use
- Modular assembly: configure reach using one or both 1m lance sections
- Maximum working pressure
- Buy 6 for £59.16 £49.30 each and save 10%
- Buy 12 for £53.40 £44.50 each and save 19%
| BULK DISCOUNT | 6 | 12 |
|---|---|---|
| Price | £49.30 £59.16 | £44.50 £53.40 |
Order 1x to earn 54 FASTPoints
Order to earn 54 FASTPoints
Log in to access trade discountsBlow Lance Kit for Air Compressors - 2m Pipe
Compressed air blow lance kit for directing high-pressure air into machinery cavities, engine bays, filter housings, conveyor frames, and workshop equipment during maintenance, clean-down, and pre-inspection operations. The 2m flexible pipe gives operators significant reach into confined spaces without repositioning the compressor, while the modular lance sections allow the assembly to be configured for different access requirements using standard 1/2" BSP thread connections throughout.
How a modular lance kit outperforms a standard blow gun on plant and machinery
A standard blow gun provides around 100mm to 150mm of fixed reach, which is inadequate for cleaning radiator cores, engine bay interiors, conveyor frameworks, and deep filter housings without moving the operator and compressor into positions that may not be safe or practical on a live site. The 2m hose combined with two 1m lance sections and a 6" extension tube provides configurable reach of up to approximately 2.3m beyond the air tap, allowing a single operator to direct airflow precisely into areas that a short blow gun simply cannot access.
Key Features
-
2m flexible pipe: Extends the working distance between the compressor supply point and the lance tip, reducing the need to reposition the compressor during clean-down operations.
-
1/2" air tap: Positive lever-operated on/off control at the lance body, allowing the operator to interrupt airflow instantly without reaching back to the compressor.
-
Modular 1m lance sections: Two interchangeable 1m blow pipe lances on 1/2" BSP thread. Use one for a shorter, more manoeuvrable setup or combine both for maximum reach.
-
6" (152mm) extension tube: Adds focused extension for directing airflow into particularly narrow apertures, slots, or confined component housings.
-
Claw coupling and Q coupling: Both coupling types included in a single kit. Claw couplings provide vibration-resistant site connections; Q couplings suit faster tool-change workshop environments.
-
Standard 1/2" BSP throughout: Integrates directly with existing airline systems without additional adapters in the majority of UK workshop and site setups.
Who is this for
Trades and roles:
-
Maintenance engineers
-
Workshop technicians
-
Plant operators
-
Site managers
-
Agricultural machinery operators
Industries:
-
Construction and plant maintenance
-
Manufacturing and engineering workshops
-
Agricultural machinery servicing
-
Automotive and commercial vehicle workshops
-
Industrial plant and facilities management
Specifications
| Specification | Detail |
|---|---|
| Product Name | Blow Lance Kit for Air Compressors - 2m Pipe Length |
| SKU / Product Code | BLKAC2M |
| Fixed Specifications | |
| Pipe Length | 2 metres (6.56 ft) |
| Thread Standard | 1/2" BSP throughout |
| Compatible Hose | 3/4" (19mm) compressor hose via standard claw/Q coupling |
| Air Tap | 1/2" lever-operated air tap for positive on/off control |
| Coupling Types | 1/2" Claw Coupling and Q Coupling 1/2" BSP Female |
| Lance Sections | Two 1m blow pipe lances (1/2" BSP) — modular configuration |
| Extension Tube | 6" (152mm) x 1/2" BSP for additional focused reach |
| Lance Construction | Metal — industrial grade |
| Machine Compatibility | Air compressors with standard airline systems |
| Variable Specifications | |
| Colour | Silver lance, red air tap lever |
Compatibility
| Application or System | Status |
|---|---|
| Air compressors with 1/2" BSP airline fittings | ✓ Compatible |
| 3/4" (19mm) compressor hose via claw or Q coupling | ✓ Compatible |
| Standard workshop airline systems (BSP) | ✓ Compatible |
| Engine bay and radiator clean-down | ✓ Suitable |
| Filter housing and cabinet interior cleaning | ✓ Suitable |
| Swarf and debris removal from machined components | ✓ Suitable |
| Flammable vapour or explosive dust atmospheres | ✗ Not suitable without risk assessment |
| Gases other than compressed air | ✗ Not suitable |
| Pressures exceeding rated working pressure | ✗ Never — pressure system hazard |
Who is this for
Maintenance engineers and workshop technicians carrying out planned and reactive clean-down of construction plant, agricultural machinery, manufacturing equipment, and compressor-driven tooling. Particularly suited to servicing environments where machinery must be cleaned before inspection, oil change, or painting, tasks where a standard short blow gun cannot reach the areas that accumulate the most debris.
Typical applications
-
Removing swarf, metal particles, and machining debris from component faces, bores, and slots before assembly or inspection in engineering and fabrication workshops.
-
Blowing dust, dirt, and debris from engine bays, radiator cores, and cooling fins on construction plant during scheduled service intervals.
-
Clearing accumulated dust and debris from filter housings, air intakes, electrical cabinets, and ventilation grilles on industrial compressors and powered equipment.
-
Cleaning conveyor frames, machine bases, and fabricated steelwork of accumulated fine particulate and swarf during production clean-downs.
-
Pre-painting and pre-inspection blow-down of fabricated components and assemblies to remove loose contamination before surface treatment or quality checks.
-
Daily workshop bench and tool clean-down at the end of a shift in high-throughput machining or fabrication environments.
How to use
Step 1: Before connecting to the airline, confirm the compressor supply pressure does not exceed the maximum rated working pressure of the kit. Check the product label for the rated pressure figure.
Step 2: Set the air tap lever to the closed position before connecting to the airline.
Step 3: Connect the claw coupling to the compressor hose. Ensure the coupling is fully engaged and locked before pressurising the line.
Step 4: Assemble the required lance configuration: attach one or both 1m lance sections and the extension tube to achieve the reach and access needed for the task. All connections are 1/2" BSP thread.
Step 5: Ensure all personnel are clear of the blast direction and any rebound path before opening the air tap. Put on safety glasses or a full-face visor.
Step 6: Open the air tap and direct the airflow across the surface being cleaned. Use controlled sweeping movements to dislodge and clear debris.
Step 7: Close the air tap before repositioning the lance or changing the assembly configuration.
Step 8: Close the air tap and depressurise the line before disconnecting any coupling or fitting.
Common mistakes
-
Directing compressed air at the body: compressed air under pressure injected into or directed at skin causes serious internal injury. Never point the lance at any person under any circumstances.
-
Disconnecting couplings under pressure: always close the air tap and depressurise the line before uncoupling any fitting. Sudden coupling release under pressure is a serious hazard.
-
Exceeding rated working pressure: operating above the rated pressure of the lance kit risks component failure and a sudden pressure release event. Always confirm supply pressure against the product label rating before use.
-
Using without eye protection: debris dislodged by compressed air travels at high velocity in unpredictable directions. Safety glasses or full-face protection must be worn throughout every blowing operation.
-
Using near flammable or explosive atmospheres: compressed air can ignite fine dust suspensions and accelerate combustion of flammable vapours. Carry out a risk assessment before using in any environment where these hazards may be present.
Safety
This product is used with compressed air systems and is subject to the Pressure Systems Safety Regulations 2000 (UK). The maximum rated working pressure must not be exceeded. Safety glasses or full-face protection must be worn during all blowing operations. Never direct compressed air at any person. Always depressurise the line before disconnecting fittings. Do not use in flammable or explosive atmospheres without a full risk assessment. Treat all pressurised components as a stored energy hazard and handle accordingly.
Maintenance
Inspect all couplings, the air tap, and the hose for damage, leaks, or wear before each use. Any component showing signs of leakage, cracking, or coupling wear must be taken out of service immediately. Wipe lance tube sections clean after use. Store in a dry location away from moisture and impact damage. Do not attempt temporary repairs on damaged high-pressure components.
Frequently Asked Questions
Q: What compressor systems is this kit compatible with?
A: The kit connects to standard airline systems via the 1/2" claw coupling and Q coupling (1/2" BSP). The claw/Q coupling arrangement is compatible with 3/4" (19mm) compressor hose. The standard size on the majority of industrial and site compressors running standard BSP airline systems. If your compressor uses a non-standard fitting or hose size.
Q: What is the maximum working pressure of this kit?
A: The maximum working pressure must be confirmed from the product label before connecting to a compressed air supply. This figure is not yet confirmed in the current product documentation and is flagged as pending supplier confirmation. Operating any compressed air product above its rated pressure is a serious safety hazard under the Pressure Systems Safety Regulations 2000.
Q: What is the difference between the claw coupling and the Q coupling included in the kit?
A: The claw (Geka-type) coupling provides a shake-resistant, vibration-proof connection suited to outdoor and construction site environments where hose movement and vibration could dislodge a standard push-fit coupling. The Q coupling allows faster tool changes in workshop environments where hose connections are changed frequently. Both are 1/2" BSP. Including both types in a single kit provides compatibility with the widest range of existing airline setups without requiring separate adapters.
Q: Can I use the two 1m lance sections independently or in different combinations?
A: Yes. The two 1m blow pipe lances are independently usable and connect via standard 1/2" BSP thread. Use a single 1m section for a shorter, more manoeuvrable configuration, combine both for maximum lance length, or add the 6" extension tube for focused access into particularly narrow housings. The modular design allows the assembly to be reconfigured tool-free between tasks.
Q: What PPE is required when using a compressed air blow lance?
A: Safety glasses or a full-face visor are mandatory throughout every blowing operation, compressed air dislodges debris at high velocity and flying particles cause serious eye injury. For extended operation in enclosed or noisy environments, hearing protection is recommended when compressor and blowing noise reaches 85dB or above. If blowing fine dust or particulate contamination, respiratory protection should be included in the task risk assessment.
Q: Is this blow lance compliant with UK pressure system regulations?
A: Compressed air equipment used in UK workplaces is governed by the Pressure Systems Safety Regulations 2000. Employers must ensure that the maximum allowable working pressure of all system components is confirmed and not exceeded in use. Confirm the rated pressure from the product label. Users in regulated environments should include this equipment in their Written Scheme of Examination where required under the Regulations.
Q: What is this kit NOT suitable for?
A: This kit must not be directed at any person, compressed air injection causes serious internal injury. It must not be operated above its rated working pressure. It is not suitable for use with gases other than compressed air, or in atmospheres where compressed air could ignite fine dust suspensions or flammable vapours without prior risk assessment and appropriate controls.
