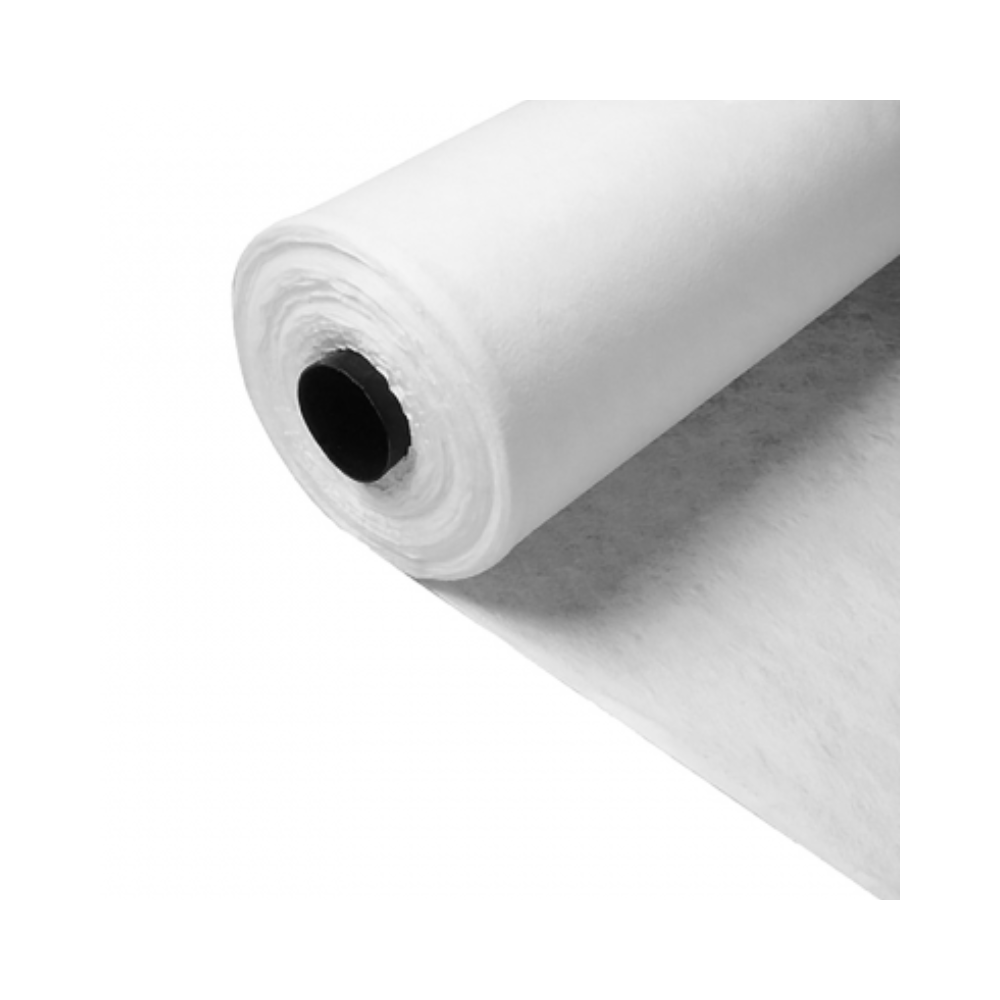

Geotextile Membrane Non Woven 100gsm White 4.5m x 100m
Geotextile Membrane Non Woven 100gsm White 4.5m x 100m
  • Provides rapid filtration for a wide range of applications inculding drains & trenches
  • Prevents loss of aggregates into underlying soil
  • Provides high tensile strength and CBR protection alongside standard separation and filtration functions
  • Roll width: 4.5m
  • Roll length: 100m

Geotextile Membrane Non Woven 100gsm White 4.5m x 100m

Code
GEONW45100
In Stock
  • Provides rapid filtration for a wide range of applications inculding drains & trenches
  • Prevents loss of aggregates into underlying soil
  • Provides high tensile strength and CBR protection alongside standard separation and filtration functions
  • Roll width: 4.5m
  • Roll length: 100m
£418.58 £348.82
  • Buy 4 for £386.38 £321.98 each and save 8%
  • Buy 10 for £352.49 £293.74 each and save 16%
  • BULK DISCOUNT 4 10
    Price £321.98 £386.38 £293.74 £352.49

Order 1x to earn 348 FASTPoints

Order to earn 348 FASTPoints

Log in to access trade discounts
In Stock



The Lotrak® Non-Woven Geotextile Membrane (100gsm) is designed to deliver rapid filtration across a variety of applications, including drainage systems, trenches, and soakaways. It allows water to pass through efficiently while preventing the movement of fine soil particles, helping to maintain system performance and longevity. In addition to its filtration capabilities, the membrane prevents the loss of aggregates into the underlying soil and offers high tensile strength and CBR protection. This ensures effective separation, soil stabilisation, and long-term reliability in both domestic and commercial groundwork projects.






Specification Rating

Tensile strength

8kN/m
Elongation at max load  45%
CBR puncture resistance 1500N
Cone drop penetration 36mm
Pore size 90% finer than 100 microns
Water permeability VIH50 0.130
Water flow rate 130 l/m2/sec
