TH3 powered air respirator white helmet front view with integrated visor | CMT Group UK
TH3 powered air respirator white helmet front view with integrated visor | CMT Group UK JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers White safety helmet respirator side profile showing visor and skirt seal | CMT Group UK Powered air respirator turbo unit and HEPA filter detail on white helmet | CMT Group UK Product Spotlight | JSP PowerCap® Infinity® JSP Powercap Infinity 4 in 1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers

JSP Powercap Infinity TH3 powered air respirator delivering integrated head, eye, face and respiratory protection for site managers and competent operatives.

  • 4 in 1 integrated head, eye, face and respiratory protection in one unit
  • User responsive, smart PPE
  • EN12941:1998+A2:2008 TH3 rated
  • NPF 500, UK APF 40, CE marked
  • No face fit testing required
  • Suitable for beards and glasses
  • High capacity HEPA filters deliver 160 litres of clean air per minute
  • EVO5 Olympus safety helmet
  • ABS shell
  • EN397 rated head protection
  • White Colour, Build UK standard for site managers
  • Rechargeable battery, 8 hour working life
  • Nominal protection factor = 500
  • EN166.B
  • Carry/storage box
  • Easy maintenance
  • Weight approx. 1.6kg

JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers

Code
CEA646-WHT
In Stock

JSP Powercap Infinity TH3 powered air respirator delivering integrated head, eye, face and respiratory protection for site managers and competent operatives.

  • 4 in 1 integrated head, eye, face and respiratory protection in one unit
  • User responsive, smart PPE
  • EN12941:1998+A2:2008 TH3 rated
  • NPF 500, UK APF 40, CE marked
  • No face fit testing required
  • Suitable for beards and glasses
  • High capacity HEPA filters deliver 160 litres of clean air per minute
  • EVO5 Olympus safety helmet
  • ABS shell
  • EN397 rated head protection
  • White Colour, Build UK standard for site managers
  • Rechargeable battery, 8 hour working life
  • Nominal protection factor = 500
  • EN166.B
  • Carry/storage box
  • Easy maintenance
  • Weight approx. 1.6kg
£674.99 £674.99

Order 1x to earn 674 FASTPoints

Order to earn 674 FASTPoints

Log in to access trade discounts
In Stock

JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers

TH3 powered air respirator combining head, eye, face and respiratory protection into a single head mounted unit, built for site managers, competent operatives and vehicle marshals working in dust hazard environments on UK construction sites. Unlike waist mounted or hose fed PAPR systems, the turbo blower, filters and battery sit directly on the helmet, removing trailing hoses and belt mounted control units from the wearer's movement. Finished in white to meet the Build UK safety helmet colour standard, and supplied without the need for face fit testing.

How positive pressure design removes the need for face fit testing

Tight fitting respirators such as FFP3 masks and half masks require individual face fit testing for every wearer, and facial hair, spectacle arms or a poor seal can invalidate the fit entirely. On a site where managers move constantly between office, plot and different work areas throughout the day, requalifying a respirator every time facial hair changes or a new manager joins the team creates ongoing compliance overhead and leaves gaps in protection between test dates. The Powercap Infinity's helmet mounted turbo unit maintains a constant flow of filtered air inside a loose fitting visor and skirt, creating positive pressure that keeps contaminated air out regardless of facial hair, spectacles or a variable seal, removing the need for face fit testing altogether.

Key Features

  • 4-in-1 integrated protection: combines head (EN397), eye and face (EN166.B) and respiratory (EN12941 TH3) protection in a single unit, removing the need to coordinate separate PPE items for the same hazard.

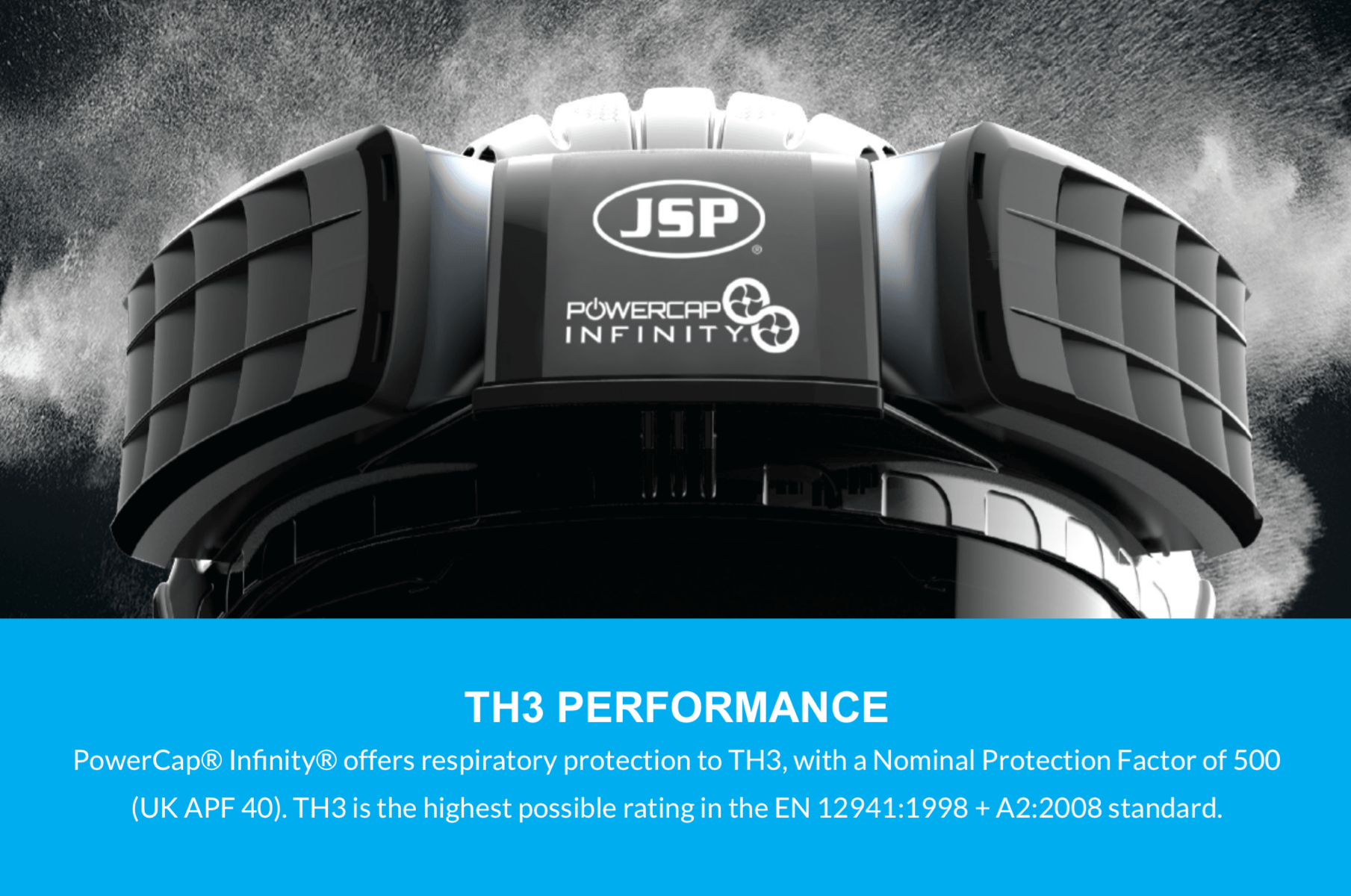

  • TH3 respiratory protection, NPF 500: the highest protection factor available under EN12941:1998+A2:2008, suited to sites with elevated dust concentrations such as demolition, cutting and grinding.
  • No face fit testing required: positive pressure air delivery inside a loose visor and skirt means beards, spectacles and changing facial features do not affect the seal or the protection factor.

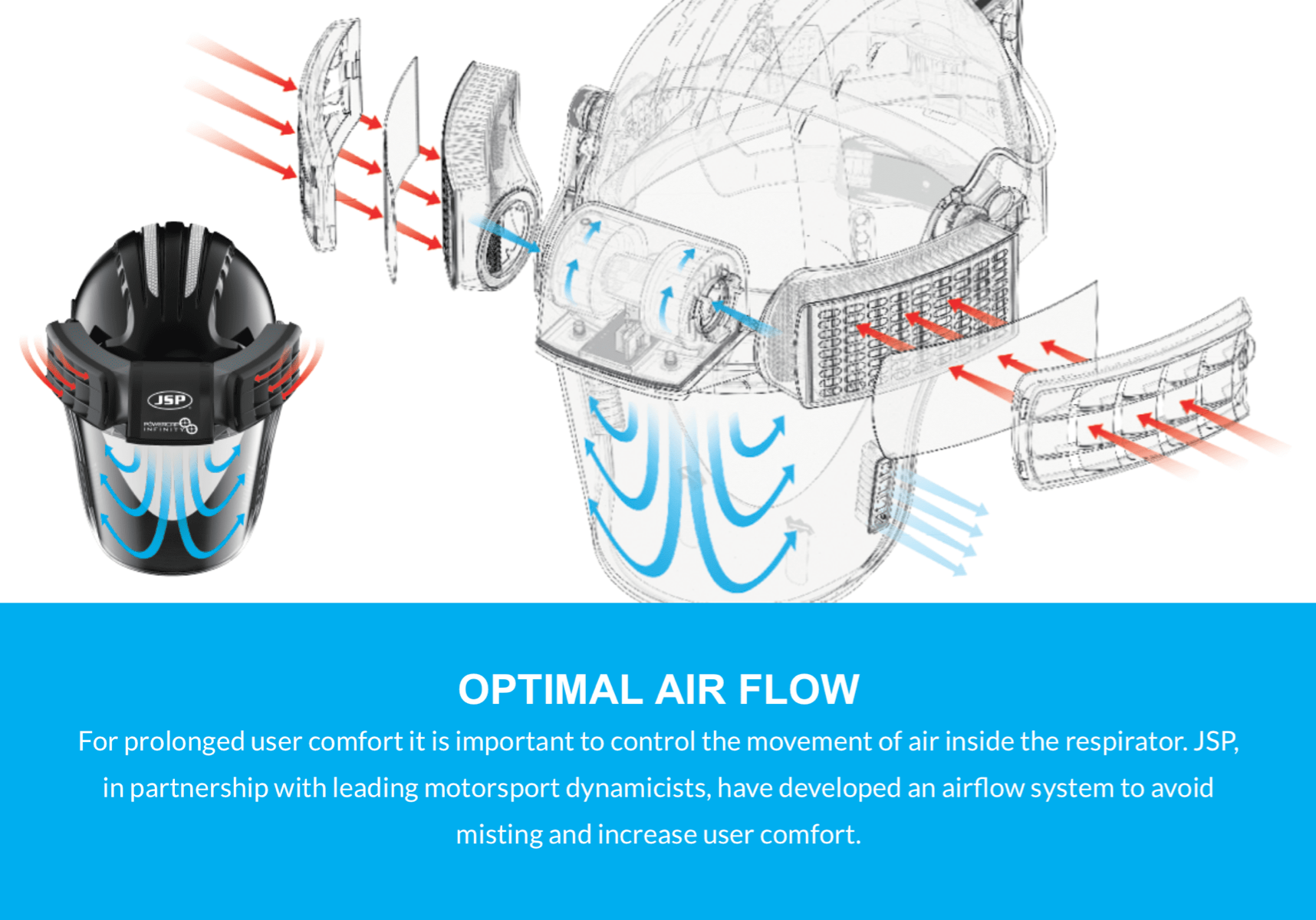

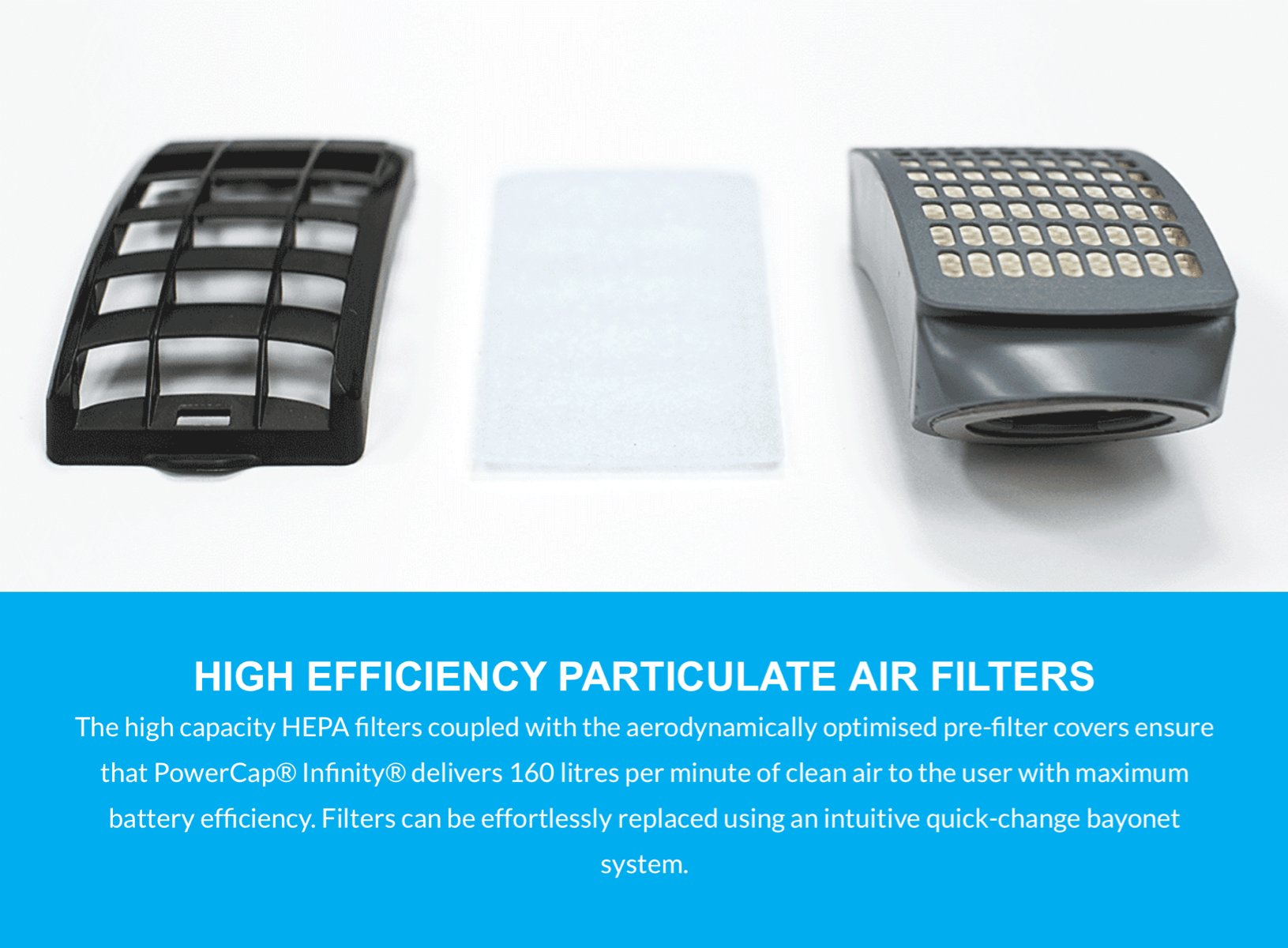

  • High capacity HEPA filtration: delivers 160 litres of clean air per minute through pre-filter covers and HEPA cartridges, replaced using a quick change bayonet fitting.

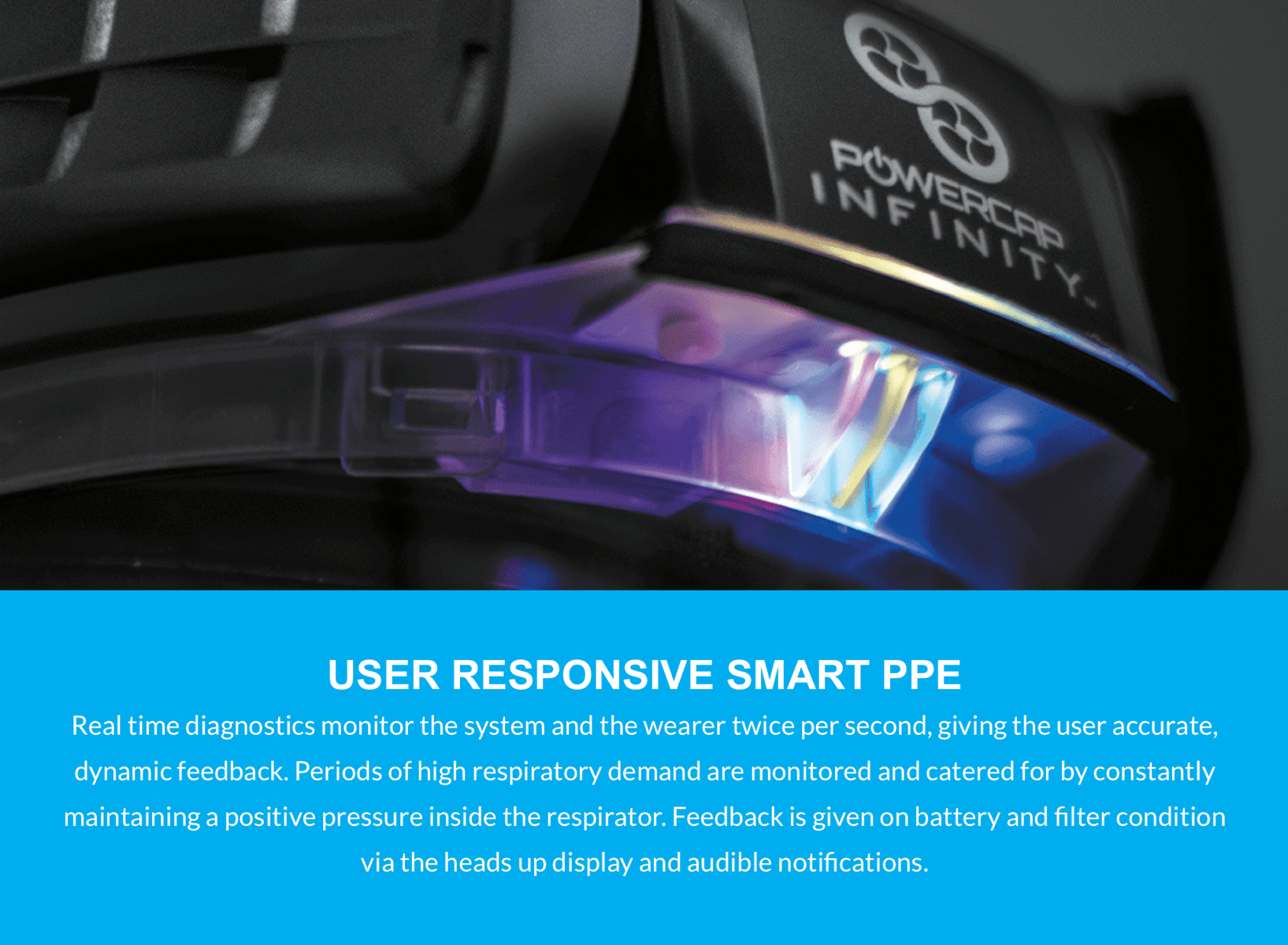

  • Heads up display and audible alerts: real time diagnostics monitor battery and filter condition twice a second, giving the wearer early warning before either needs attention.

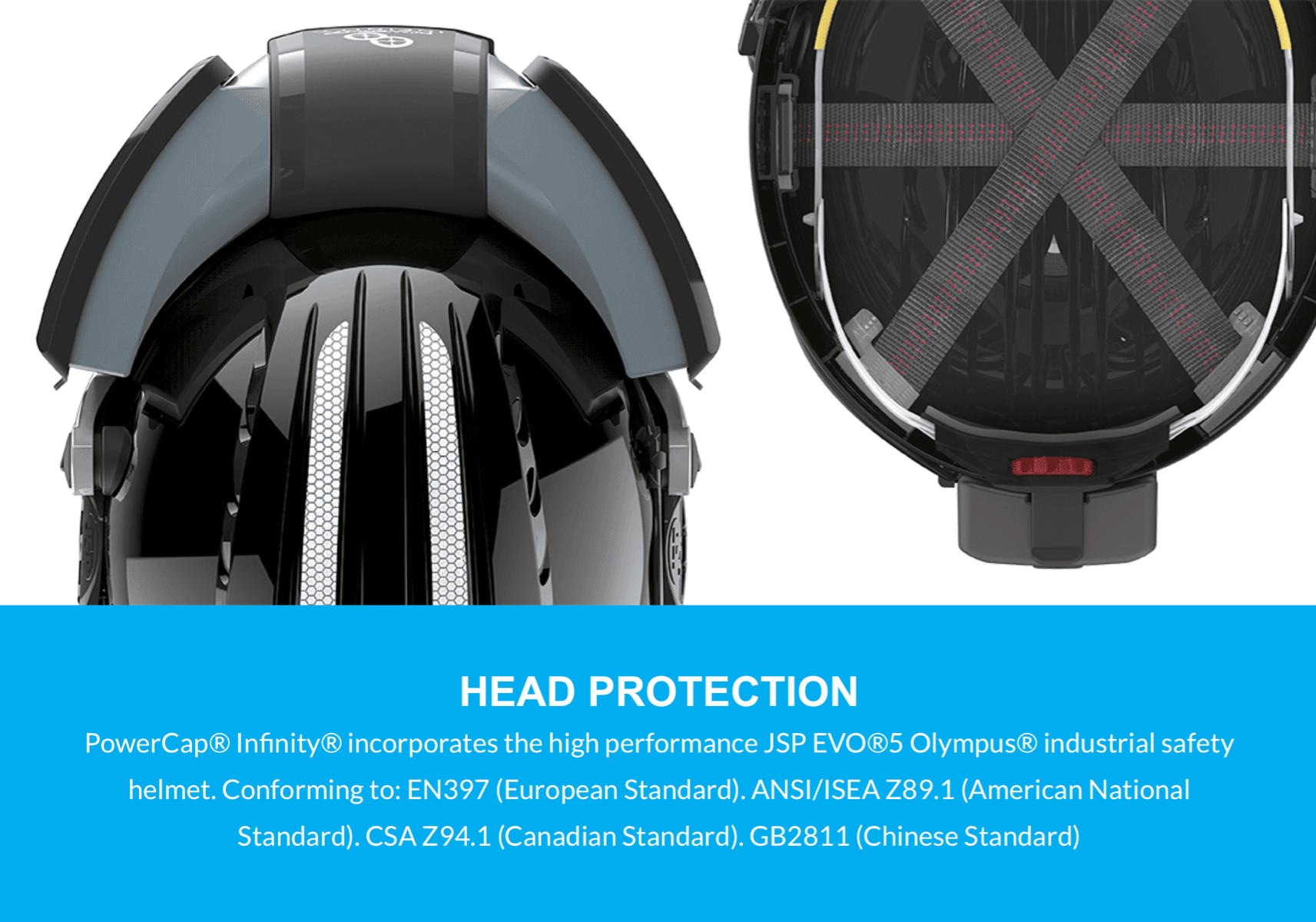

  • EVO5 Olympus safety helmet base: ABS shell with a 3D adjustment harness and wheel ratchet, built to EN397:2012+A1:2012 for impact protection alongside the respiratory system.
  • White helmet for site manager identification: finished to the Build UK Safety Helmet Colours standard, distinguishing site managers, competent operatives and vehicle marshals at a glance.

Who is this for

Trades and roles:

  • Site managers
  • Competent operatives
  • Vehicle marshals
  • Contracts managers conducting site walkovers

Industries:

  • Construction
  • Demolition
  • Civil engineering
  • Facilities management

Specification Detail
Product Name JSP Powercap Infinity 4-in-1 TH3 Powered Air Respirator - White Helmet for Site Managers
SKU CEA646-WHT
Respirator Category Powered Air Purifying Respirator, 4-in-1 head, eye, face and respiratory protection
Respiratory Standard EN12941:1998+A2:2008 TH3
Nominal Protection Factor 500 (UK APF 40)
Airflow Delivery 160 litres of clean air per minute
Filter Type High capacity HEPA filters with aerodynamic pre-filter covers, quick change bayonet fitting

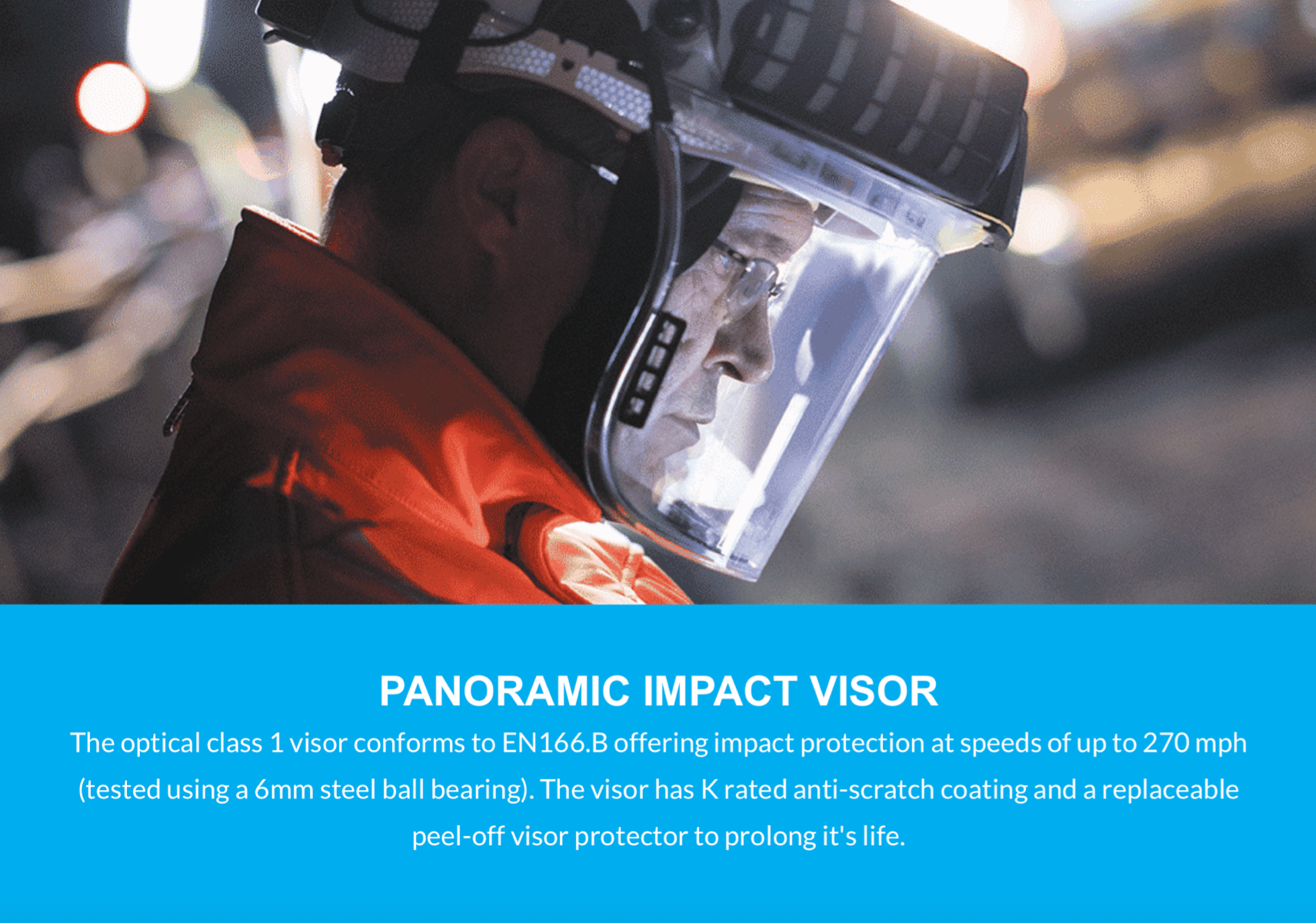

Visor Standard EN166:2001 1.B
Visor Material Polycarbonate, optical Class 1, anti scratch coating
Impact Protection Up to 270 mph, tested with a 6mm steel ball bearing
Helmet Standard EN397:2012+A1:2012
Helmet Base JSP EVO5 Olympus industrial safety helmet, ABS shell
Harness Evolution 3D adjustment harness with wheel ratchet
Skirt Material Foam backed natural rubber
Battery Life 8 hours per charge, rechargeable
Diagnostics Heads up display and audible alerts for battery and filter condition
Face Fit Testing Not required, positive pressure loose fit design
Compliance Markings CE marked, EC Type Examination Certificate 59716
Helmet Colour White
Unit Weight 1.1kg approx
Packaging Weight 1.6kg approx
Packaging Dimensions 377mm length x 240mm width x 265mm height approx

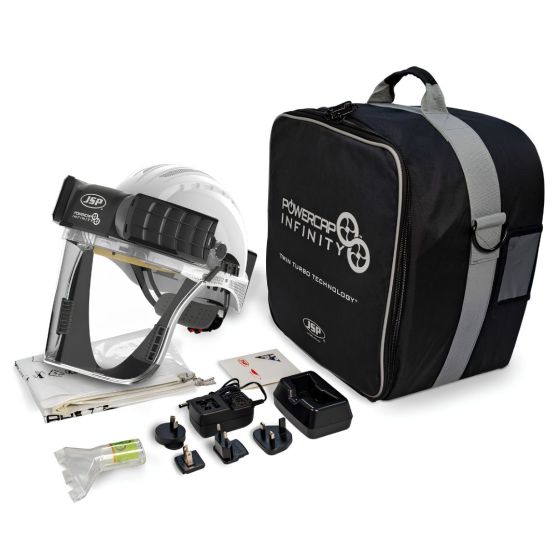

Included Items Complete unit with filters and carry case

Compatibility

Application or condition Status
Beards and facial hair ✓ Compatible
Spectacles and prescription eyewear ✓ Compatible
Sonis helmet mounted ear defenders ✓ Compatible
High intensity, high exertion dust work ✓ Compatible
General nuisance and silica dust ✓ Compatible
Well ventilated, non oxygen deficient areas ✓ Compatible
Chemical gas exposure ✗ Not recommended
Oxygen deficient or explosive atmospheres ✗ Not recommended
Full immersion or water contact ✗ Not recommended
Individuals with a known natural rubber allergy ✗ Not recommended



Who is this for

Site managers and competent operatives who need to move between dust hazard areas and clean areas throughout the day without stopping to refit or requalify their respiratory protection. The loose fit and positive pressure design particularly suits managers with beards or those who wear glasses, since neither affects the seal or the protection factor. Also suited to vehicle marshals working near demolition or cutting operations where airborne dust is intermittent but unpredictable.

Typical applications

  • Conducting site walkovers through active demolition or strip out areas with elevated dust levels.
  • Supervising concrete cutting, grinding or drilling operations where silica dust is generated.
  • Moving between clean office areas and active dust hazard zones multiple times per shift.
  • Overseeing agricultural or grain handling sites where organic dust and mould spores are present.
  • Managing sites with mixed trades where face fit testing every operative individually is impractical.
  • Attending demolition, refurbishment or carpentry work areas as part of routine site inspection.

How to use

Step 1: Check the airflow using the Test Unit before entering the hazard area, and re-test regularly during use.
Step 2: Fit the helmet and tighten the wheel ratchet until secure, with the peak facing forward.
Step 3: Ensure the skirt sits neatly and continuously around the face before entering the hazard area.
Step 4: Monitor the heads up display and audible alerts for battery and filter condition throughout the shift.
Step 5: Remove saturated filters by rotating each one upwards, and fit new filters by aligning and twisting into place.
Step 6: Allow the battery to run down fully before recharging to maximise its working life.

Common mistakes

  • Entering the hazard area before checking airflow with the Test Unit, which can mean using the respirator without knowing whether protection is being delivered correctly.
  • Leaving the skirt loose or gapped around the jaw or neck, which allows contaminated air to bypass the positive pressure seal.
  • Continuing to use filters past their printed use by date or after visible saturation, reducing the effective protection factor.
  • Charging the battery repeatedly before it has run down, which shortens overall battery life over time.
  • Using the unit in oxygen deficient, explosive or chemical gas environments it was never rated for.

Safety

Rated to EN12941:1998+A2:2008 TH3 with a Nominal Protection Factor of 500 (UK APF 40). Not suitable for chemical gas exposure, oxygen deficient atmospheres, explosive atmospheres, or full immersion in water. The skirt is made from foam backed natural rubber, and operatives with a known natural rubber allergy should not use this unit. If skin irritation occurs, leave the hazard area, remove the unit and seek medical advice.

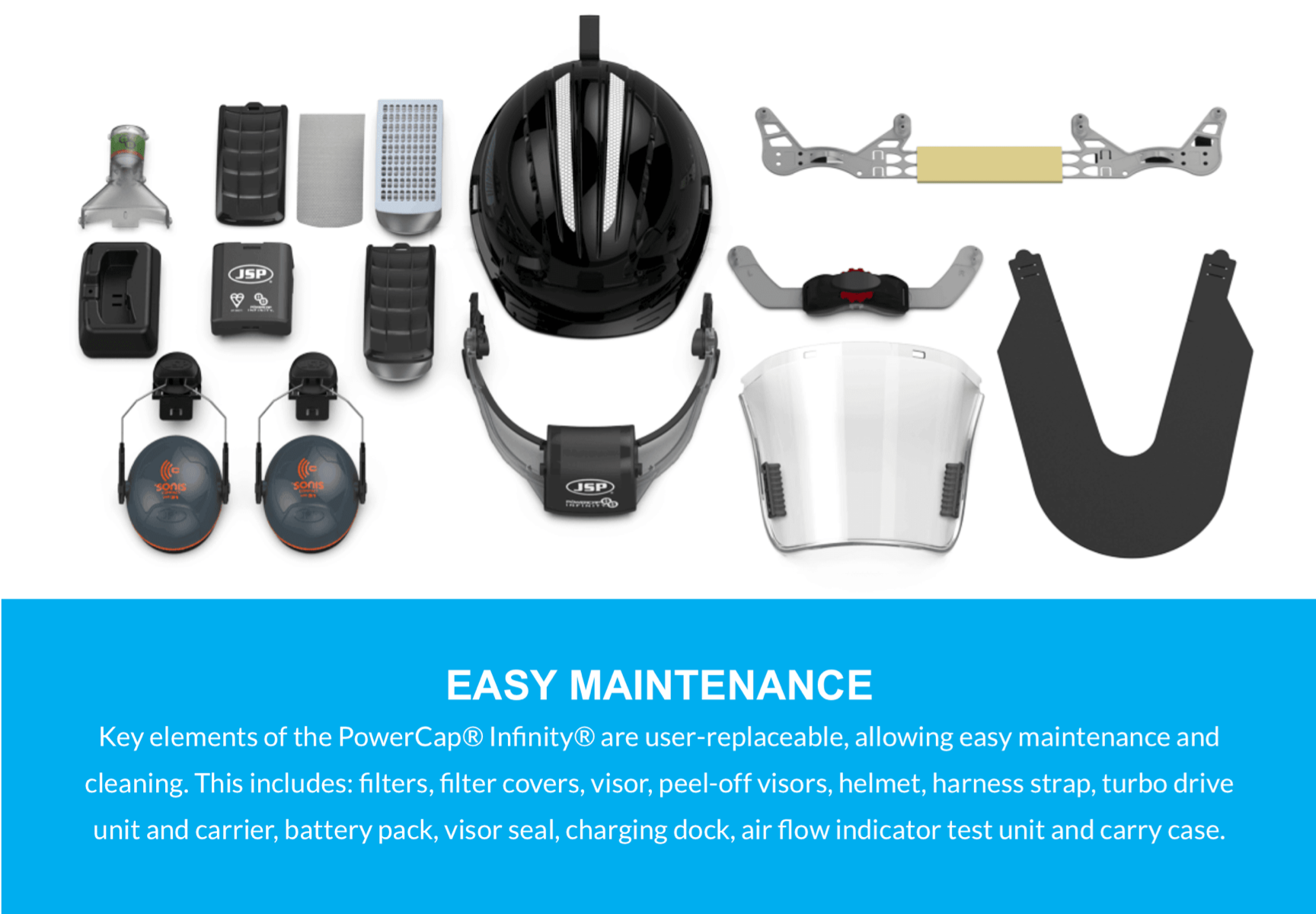

Maintenance

Clean plastic parts with a damp cloth only, never chemical or abrasive cleaners, and never immerse the unit in water. Store away from direct sunlight, chemicals and temperature extremes. Replace filters, the visor, harness strap, battery pack and visor seal as they become worn, all of which are user replaceable.

Frequently Asked Questions

Q: Does this respirator require face fit testing before use?
A: No. The Powercap Infinity uses a loose fitting visor and skirt combined with a constant positive pressure air supply, which removes the need for the tight seal that tight fitting respirators such as FFP3 masks rely on. This means beards, spectacles and facial changes do not affect protection. Traditional face fit testing, and the retesting it requires whenever facial hair or wearers change, is not applicable to this design.

Q: What does the TH3 rating actually mean?
A: TH3 is the highest protection class under EN12941:1998+A2:2008, the European standard for powered air purifying respirators with a hood or helmet. It carries a Nominal Protection Factor of 500, equivalent to a UK Assigned Protection Factor of 40, meaning the unit is designed to reduce the wearer's exposure to airborne particles by a factor of 40 under laboratory test conditions. This sits above the lower TH1 and TH2 classes in the same standard, which offer reduced protection factors. The rating covers particulate protection only, not gas or vapour hazards.

Q: What is this respirator not suitable for?
A: This unit is not designed for use in chemical gas environments, oxygen deficient atmospheres or explosive atmospheres. It should not be fully immersed in water, and the natural rubber skirt is not suitable for operatives with a known rubber allergy. For chemical gas or vapour hazards, a different type of respiratory protection rated to the relevant EN standard is required.

Q: Why choose an integrated helmet unit over a waist mounted PAPR system?
A: A waist mounted PAPR routes air through a hose from a belt mounted fan, adding a trailing hose and a separate battery pack that can catch on site obstructions. The Powercap Infinity houses the turbo blower, filters and battery directly on the helmet, so there is no hose and no separate belt unit to manage. This particularly suits site managers who move quickly between different areas of a site rather than working stationary at a single task.

Q: How long does the battery last on a full charge?
A: The rechargeable battery provides approximately 8 hours of use on a single charge, covering a standard working shift. A heads up display and audible alert warn the wearer before the battery runs low, giving time to plan a recharge. For maximum working life from the unit, allow the battery to run down fully before recharging rather than topping it up partway through a shift.

Q: Can this respirator be used with hearing protection?
A: Yes. The helmet is designed to work with JSP Sonis helmet mounted ear defenders, which attach directly to the same helmet shell without interfering with the visor or airflow system. This allows head, eye, face, respiratory and hearing protection to be combined on sites with elevated noise levels alongside dust hazards.

Q: How do I maintain the filters and know when to replace them?
A: The use by date is printed on the outside of each filter cartridge, and working life also depends on work rate, airflow and the concentration of dust in the atmosphere at the time. Filters are removed by rotating upwards and refitted by aligning the housing and twisting into place, with no tools required. Replace filters as soon as airflow drops or the use by date is reached, since continuing to use a saturated filter reduces the protection factor.

Q: How quickly can I get this respirator delivered to site?
A: Order by 7pm for next day delivery nationwide on stocked lines, with CMT Group's own fleet covering over 95% of the UK mainland rather than a third party courier. Live order tracking and What3Words integration mean the unit can be delivered to a specific site entrance or compound without a postcode. As this is a specialist respiratory PPE item, confirm current stock and lead time at the time of ordering.

Q: How do I know CMT Group stocks the right respiratory PPE for a compliance sensitive site?
A: CMT Group holds BSIF Registered Safety Supplier status alongside ISO 9001:2015 and CHAS Elite accreditation, reflecting an in-house compliance team that checks products against current UK regulations before they reach the catalogue. For procurement teams managing PPE across multiple sites, the EDGE portal provides contract pricing, role based ordering controls and full delivery visibility. Over 400 verified Reviews.io reviews reflect consistent service on safety critical PPE orders.
