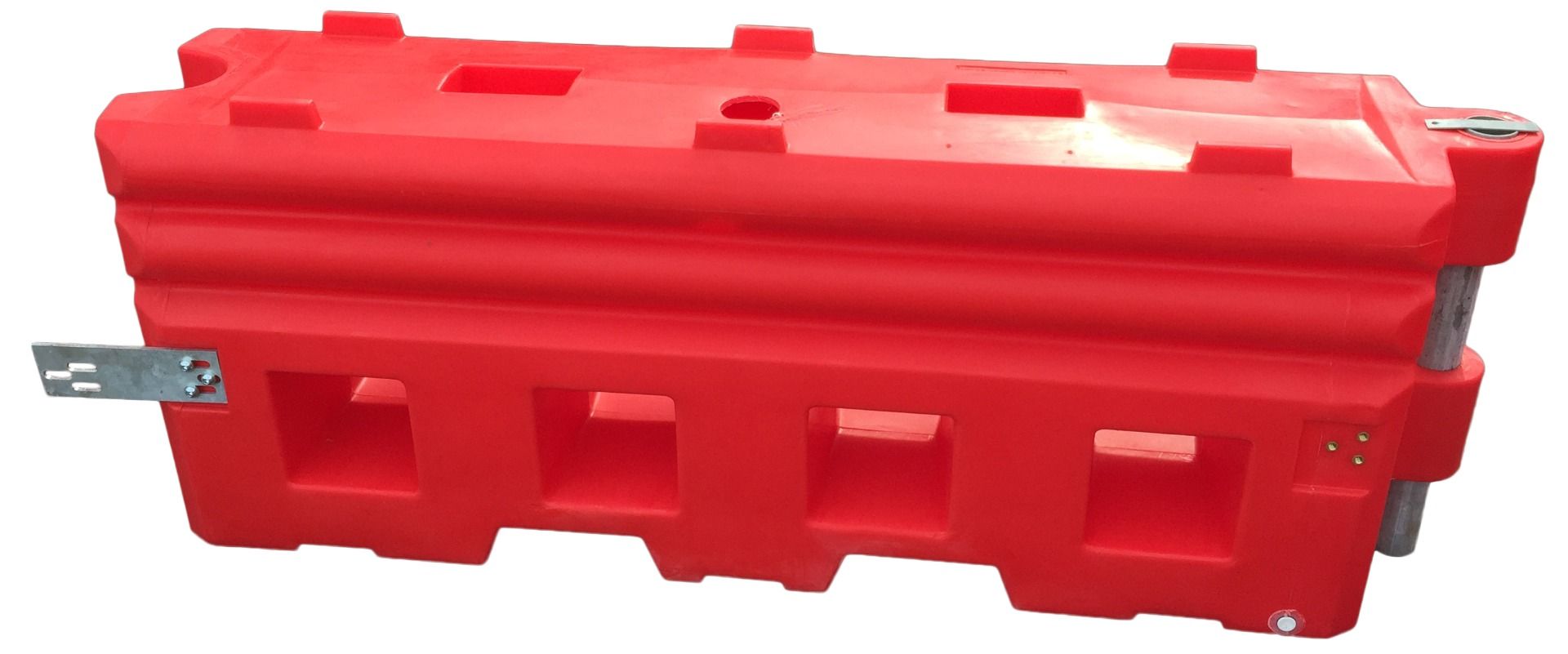

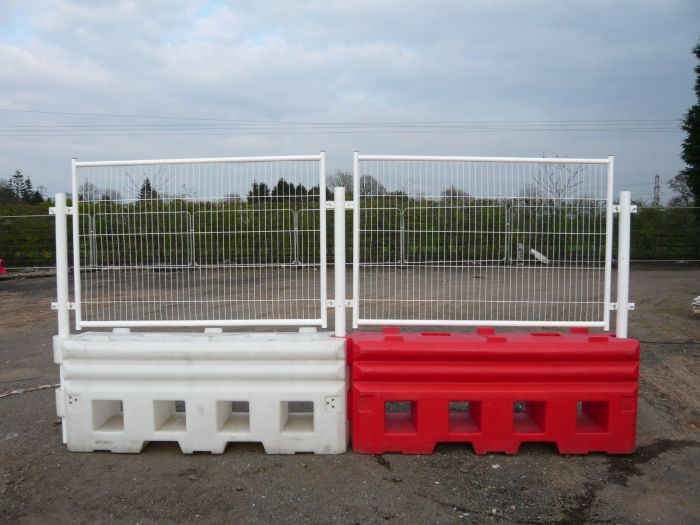

RB22 50MPH Crash Barrier System - Water Filled

Crash Tested

Fully crash tested to BS EN1317 - N1 50 Mph (when filled).

UK Highways Approved

The RB22 is the highest approved plastic barrier system on the UK Highways list.

Securely Stackable

Securely stackable for ease of transport and storage.

Forklift Slots

Wide-design forklift slots for ease of transport and safe handling.

Up to 200m Per Load

Transport more in fewer runs thanks to the RB22 being stackable and interlocking.

Water Filled

Can be water-filled bringing the weight to 600kg for exception.

Speedy Setup

Quick setup thanks to quick secure pin hinge and support plate assembly.

No Heavy Machinery

No need for lifting machinery or heavy tooling, easily deployed by your team.

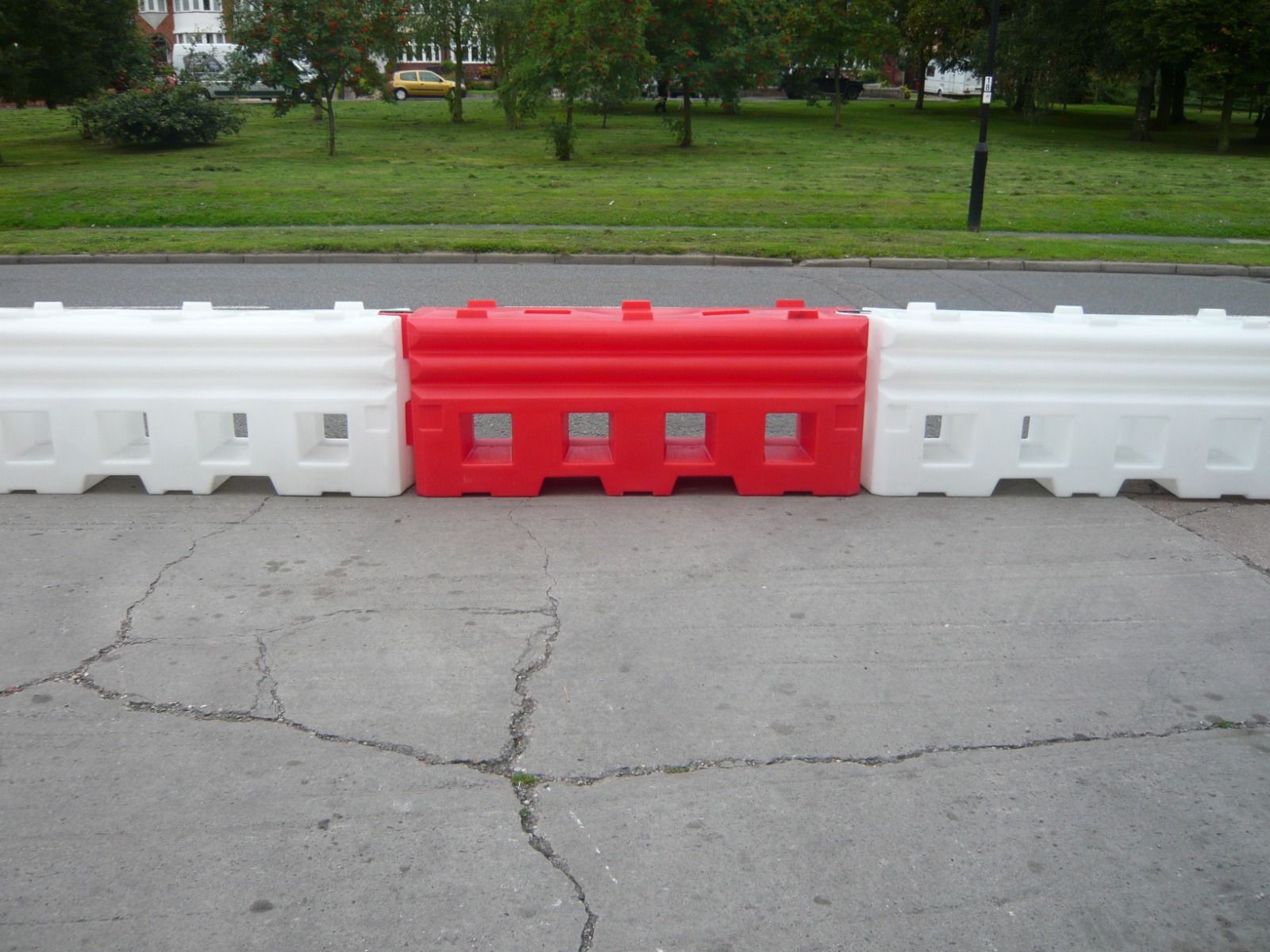

The RB22 Water-Filled Crash Barrier System is designed to withstand impact from vehicles travelling up to 50mph making them an ideal solution for temporary workworks and highway maintenance.

The RB22 is the highest approved plastic barrier system on the UK Highways approval list. On impact, the RB22 can bring an arrant vehicle to a controlled stop.

This rigorously tested barrier system can withstand speeds up to 70mph when filled to the fill line and has obtained a Class A/78mph classification.

It has also been tested and approved for BS EN1317-N1 50MPH (80KMPH).

Note: The barrier must be filled with water to convert it into a compliant traffic barrier.

• Interlocking with reinforced steel pin
• Can incorporate curves
• Can be moved without a forklift when empty
• Feature wide forklift slots at the base in case they need to be moved when filled
• Place on even ground when possible
• Male-female fittings to interlock seamlessly
• The pin must never be banged or hammered into place, simply screw the eyelet
• Attach faceplate to both sides and apply screws - do not overtighten
• Open the filler cap on top of each barrier to fill the barrier (540L) and firmly close when full
