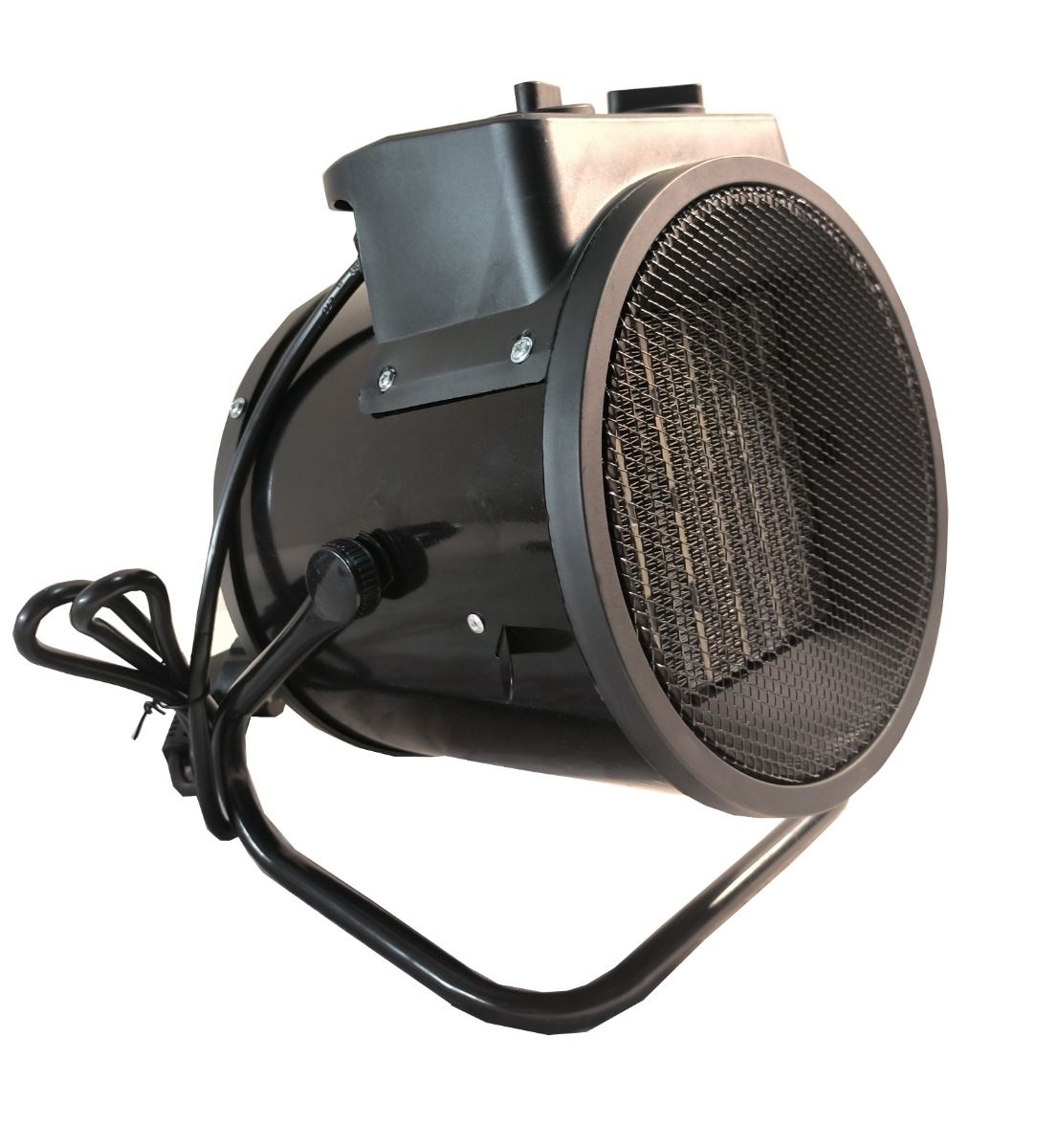

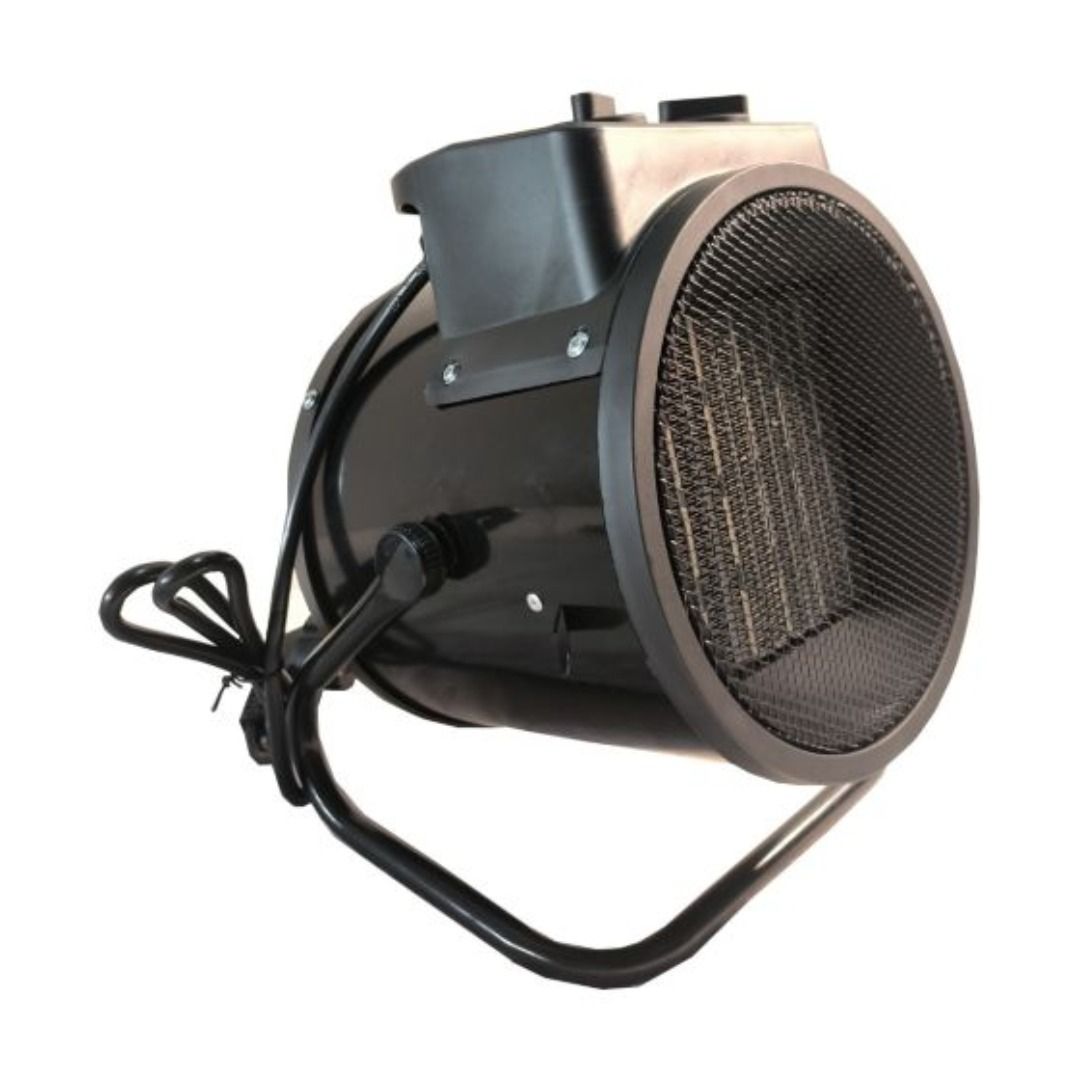

MAX 240V Electric Fan Heater 3kW - Industrial

Who Is This For

This heater is used primarily by workshop operatives, garage owners, and site welfare managers who need fast, directed convection heat in a compact indoor space on a standard 240V mains supply. It works well as a supplementary heater in larger spaces where the building's central heating is insufficient for a specific working area, and equally well as the primary heat source in smaller enclosed spaces such as site offices, store rooms, and welfare cabins. The 2.2kg weight and compact drum format make it a practical choice for anyone who needs to move a heater between rooms or working areas during the day without assistance.

Typical Applications

• Heating a workshop or garage bay during cold weather, directed at the working area rather than attempting to warm the full building volume.

• Providing supplementary heat at a specific workstation in a warehouse or light industrial unit where the general building heating does not reach the required level.

• Warming a site office, welfare cabin, or temporary accommodation at the start of a shift on a standard 240V site supply.

• Directed heat at a damp or cold corner of a room to assist with drying or to bring a working area up to a usable temperature quickly.

• Fan-only air circulation in a warm enclosed space during summer months where air movement is needed without additional heat.

How to Use

Step 1: Place the heater on a firm, level surface in its upright position. Maintain a minimum 1 metre clearance all around from any flammable materials, curtains, or combustible objects.

Step 2: Connect the plug to a suitable 240V mains supply. Ensure the supply is rated to handle the 3kW draw on the high heat setting.

Step 3: Set the thermostat dial to the maximum position (fully clockwise) before selecting a heat mode, to allow the heater to reach the working temperature without cutting out prematurely.

Step 4: Set the mode selector to the desired setting: fan only, intermediate heat, or high heat. The heater takes up to three minutes to reach optimum output on the heating settings.

Step 5: Once the space reaches the required temperature, turn the thermostat dial slowly anticlockwise until you hear the thermostat click. Leave the dial in that position. The thermostat maintains the temperature automatically from that point by cycling the element on and off.

Step 6: When finished, turn the mode selector to off before disconnecting from the mains. Allow the heater to cool before storing.

Common Mistakes

• Setting the thermostat too low before reaching temperature: the thermostat cuts out the heating element when it reaches the set level. If the dial is set too low at the start, the element cuts off before the room has warmed, and the heater runs on fan only. Set the thermostat to maximum on start-up, then dial back once the room is up to temperature.

• Placing on a deep pile carpet: the air intake at the base of the heater draws air from beneath the unit. A deep pile carpet can partially block this intake, restricting airflow and causing the unit to overheat. Use on a hard floor or a low-pile surface.

• Using with an automatic timer: the manufacturer specifically advises against using this heater with a programmable timer set to switch it on automatically. The heater may be covered or positioned incorrectly when the timer activates.

• Leaving unattended while in operation: turn off and unplug whenever leaving the area for an extended period.

• Blocking the air outlet: never cover any part of the heater. The outlet must remain clear during operation.

Safety

This is a Class I earthed appliance, the plug must be correctly connected to an earthed supply. Keep a minimum of 1 metre clearance between the air outlet and any textiles, curtains, or flammable materials. Do not use near flammable liquids, gases, or compressed gas cylinders. Do not use in bathrooms, near water, or on a damp floor. Do not insert any objects through the outlet grilles or air intake grilles. The heating surfaces become very hot during operation, keep children and vulnerable people away from the unit while it is in use. If the heater is dropped or shows any visible damage, do not use it. A slight emission of smoke on first use is normal and stops after a short time, this is caused by the protective oil coating on the heating element burning off.

Maintenance

Clean the heater body with a soft, damp cloth. Do not use solvents or abrasive materials. Keep the inlet and outlet grilles clear of dust and debris, he most common cause of overheating is dust accumulation on the heating element. To clean the grilles, allow the heater to cool completely, disconnect from the mains supply, and clean the grilles with a vacuum cleaner. Do not attempt any internal maintenance, there are no user-serviceable parts inside the heater. Any internal repairs must be carried out by a qualified technician. Store in a safe, dry, child-proof location when not in use.
