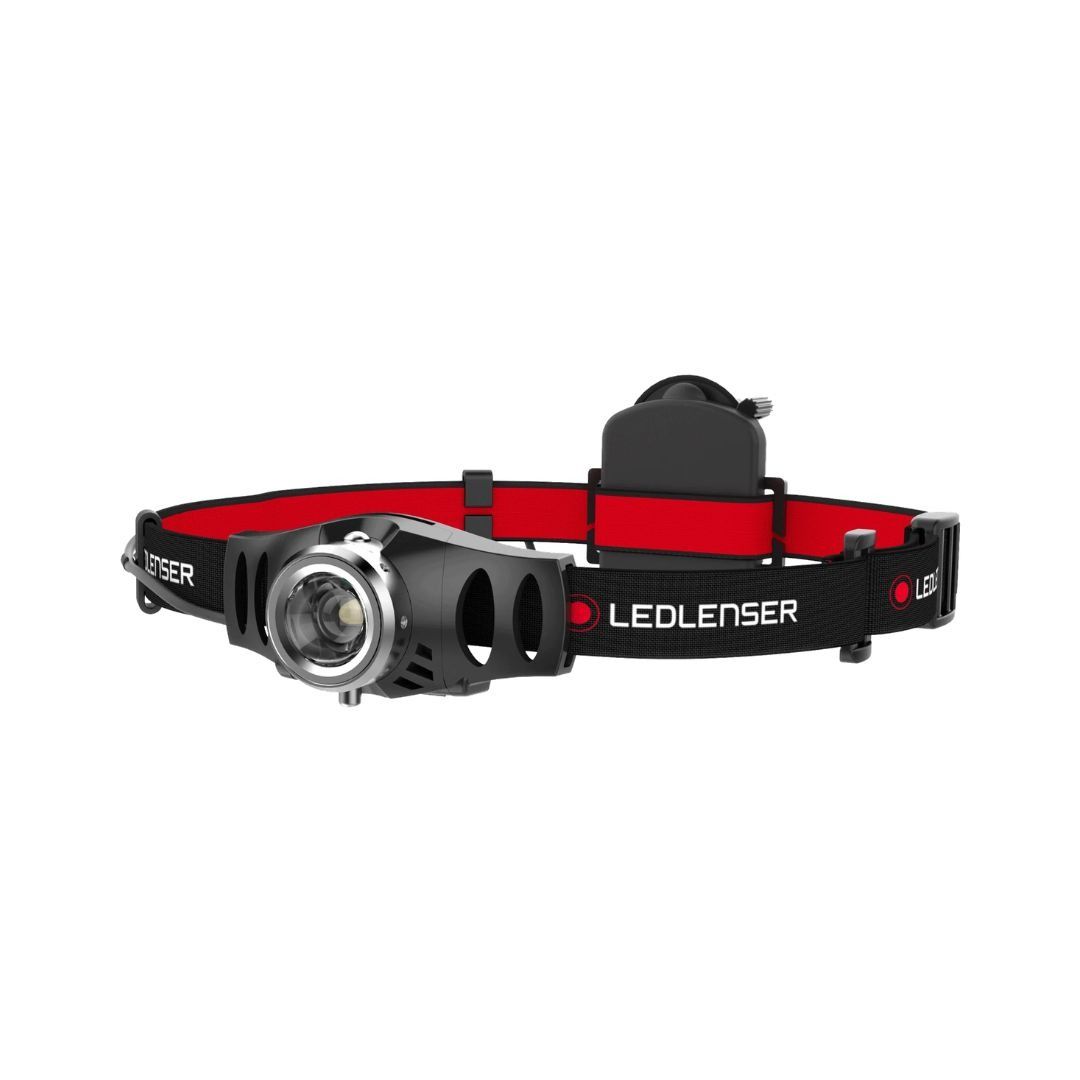

Ledlenser H3.2 Head Torch - Advanced Focus 120 Lumen

Who is this for

This head torch suits trades professionals and site operatives who alternate between close-up and distance tasks during the same shift and need a single head torch that handles both without adjustment beyond the focus and dimmer controls. The beam focus is particularly useful for electricians and engineers who move between reading terminals and navigating service areas, and for maintenance teams who work across large plant sites and confined service voids in the same shift. The 60-hour low-power mode supports lone working and extended remote site assignments where sustained battery life is a safety consideration.

Typical applications

• Reading electrical diagrams, wiring terminals, and connection labelling at close range using the wide flood beam setting.

• Navigating large plant sites, substations, and outdoor infrastructure areas at distance using the focused spot beam.

• Maintenance inspections in confined service voids, plant rooms, and cable risers where beam angle needs adjusting between tasks.

• Overhead cabling, duct installation, and bracket fitting where the 75 degree tilt directs the beam precisely at the work surface.

• Extended lone working or remote site assignments where the 60-hour low-power mode provides sustained lighting across multiple shifts.

• Site and infrastructure inspections requiring clear illumination at varying distances without carrying multiple lights.

• General site navigation and handover in dark areas where a reliable, adjustable light source is required.

How to use

Step 1: Insert 3 x AAA batteries (supplied). Fit and adjust the headband for a secure fit over your head or helmet.

Step 2: Press the switch to activate Standard Power (120 lumens). Press and hold briefly to activate Low Power (5 lumens).

Step 3: Use the integrated dimmer lever to adjust brightness continuously between 5 and 120 lumens.

Step 4: Adjust the focus by moving the front optic of the head unit. Forward position produces a wide flood for close work. Rearward position produces a concentrated spot for distance.

Step 5: Adjust the 75 degree head tilt to direct the beam at the working area before starting the task. Re-adjust as the working position changes.

Step 6: Register the product online at Ledlenser to extend the warranty from 2 to 7 years.

Common mistakes

• Not using the dimmer. Running at 120 lumens when 20-30 lumens would be sufficient for close work drains the battery from 60 hours to 6. The dimmer is the most useful feature for extending shift runtime.

• Not adjusting the focus for the task. A spot beam at close range causes glare. A flood beam at distance misses the target. Match the beam to the task before starting.

• Forgetting to register for the 7-year warranty. For a premium product at this level, the online registration at Ledlenser takes under two minutes and adds 5 years of additional cover.

• Not adjusting the headband correctly. A loose fit shifts the beam during movement and requires constant correction throughout the task.

• Leaving batteries in during extended storage. Remove AAA batteries for storage over one month to prevent contact corrosion.

Safety

IPX4 covers water splash from any direction. It does not cover water jets or submersion. Avoid sustained use in heavy rain or wet site conditions. No ATEX certification. Do not use in explosive or flammable atmospheres. Operating temperature range: -20 degrees C to +40 degrees C. Do not exceed this range. Drop tested to 1m. Replace immediately if the housing cracks.

Maintenance

The headband is detachable and washable. Remove periodically and wash in warm soapy water. Dry fully before reattaching. Wipe the head unit body with a dry cloth. Remove batteries for storage over one month. Register the warranty online to activate the 7-year cover.
