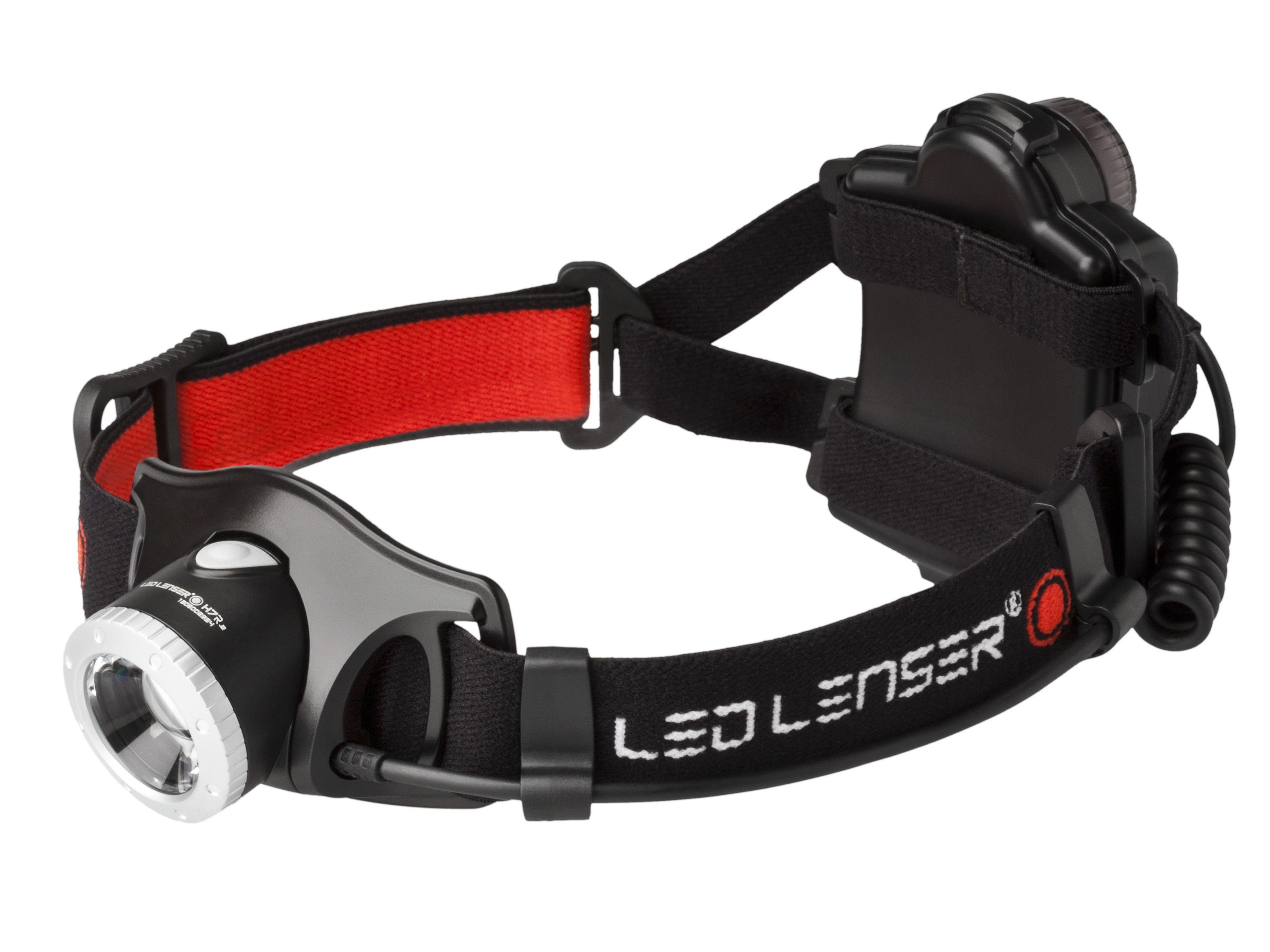

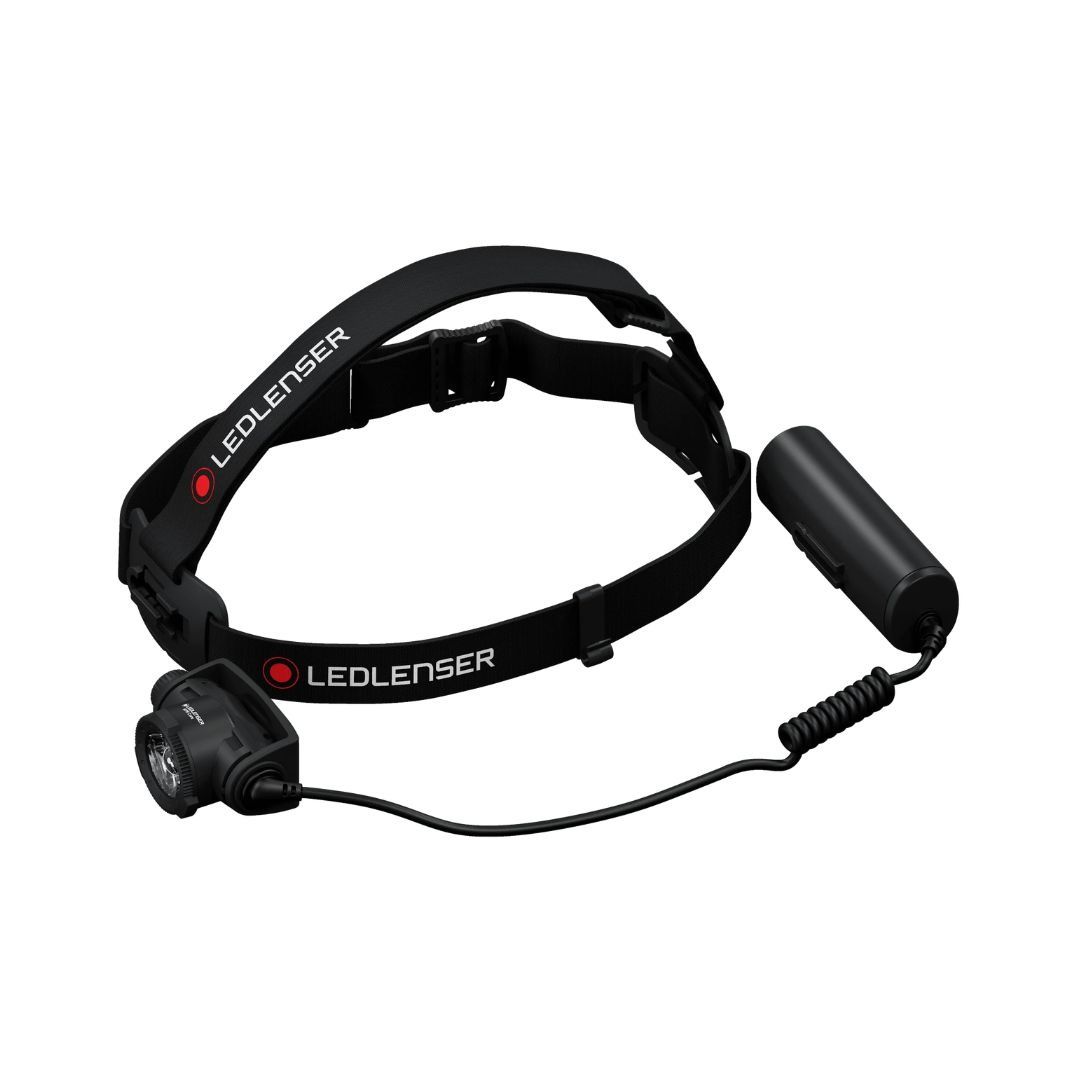

Ledlenser H7R Core Head Torch - Rechargeable 1000 Lumen

Who is this for

This head torch suits trades professionals and site operatives who work across demanding environments and cannot carry multiple lights for different conditions. The IP67 rating makes it suitable for dusty plant rooms, wet outdoor groundwork, and civil infrastructure where standard head torches fail from ingress. The 1000 lumen Boost and 65-hour Low mode together cover everything from maximum-output inspection to extended lone working where battery life is a safety consideration. The flicker-free output makes it safe in environments with fast-moving machinery.

Typical applications

• High-output inspection of plant rooms, underground service voids, and confined infrastructure spaces where dust and water ingress are active hazards.

• Outdoor groundwork and civil engineering in sustained wet conditions where the IP67 rating protects the torch throughout the shift.

• Precision close-up work in service panels, distribution boards, and electrical installations using the wide flood beam setting.

• Distance illumination of large plant areas, tunnels, and infrastructure using the focused spot beam at 200-250m.

• Environments with fast-moving or rotating machinery where flicker-free output prevents distracting or hazardous strobe effects.

• Extended lone working and remote site assignments using the 65-hour low power mode for sustained illumination across multiple shifts.

• Active site tasks requiring a stable, high-output head torch during movement, using the overhead top strap for stability.

How to use

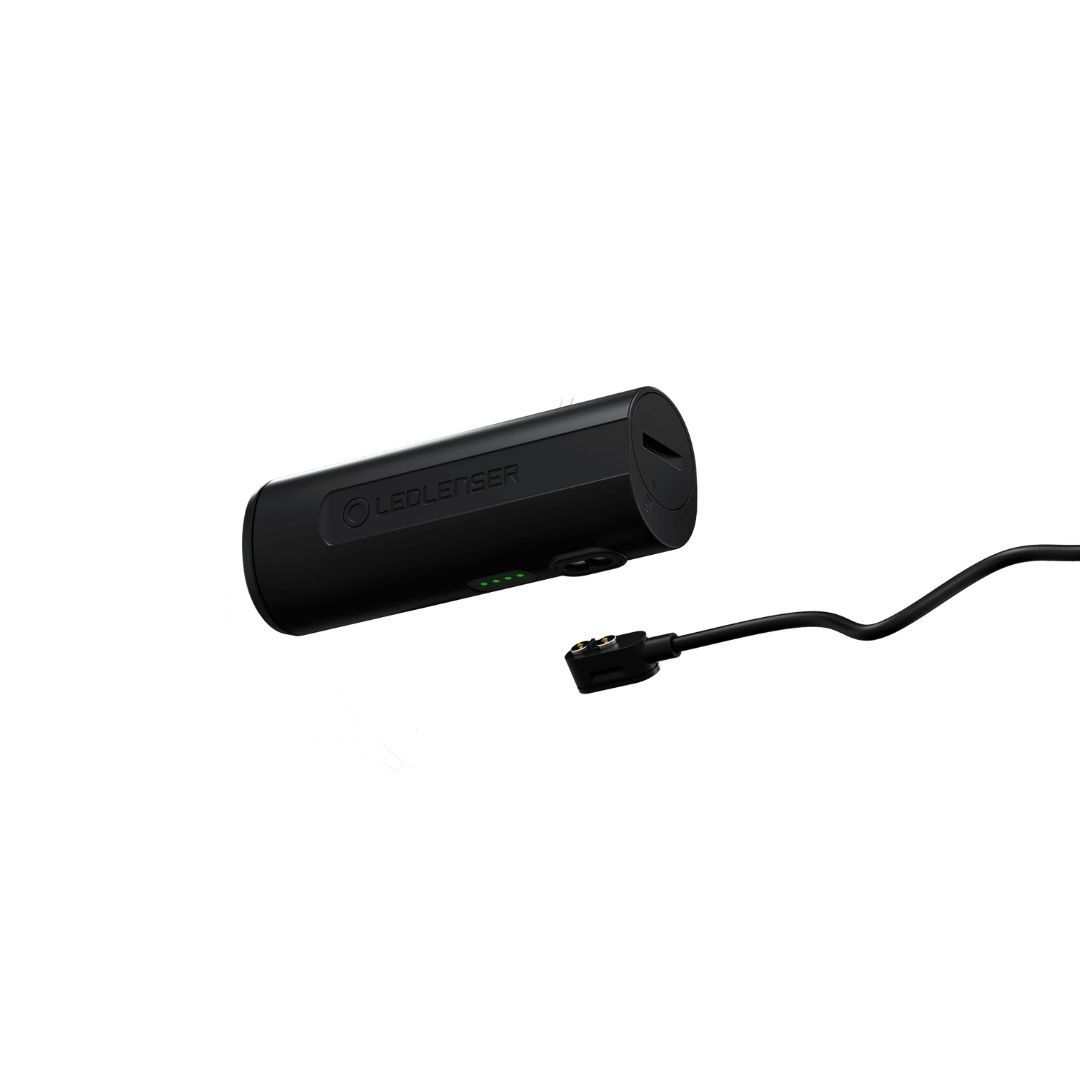

Step 1: Charge fully before first use. Connect the magnetic charging cable. Full charge takes 210 minutes.

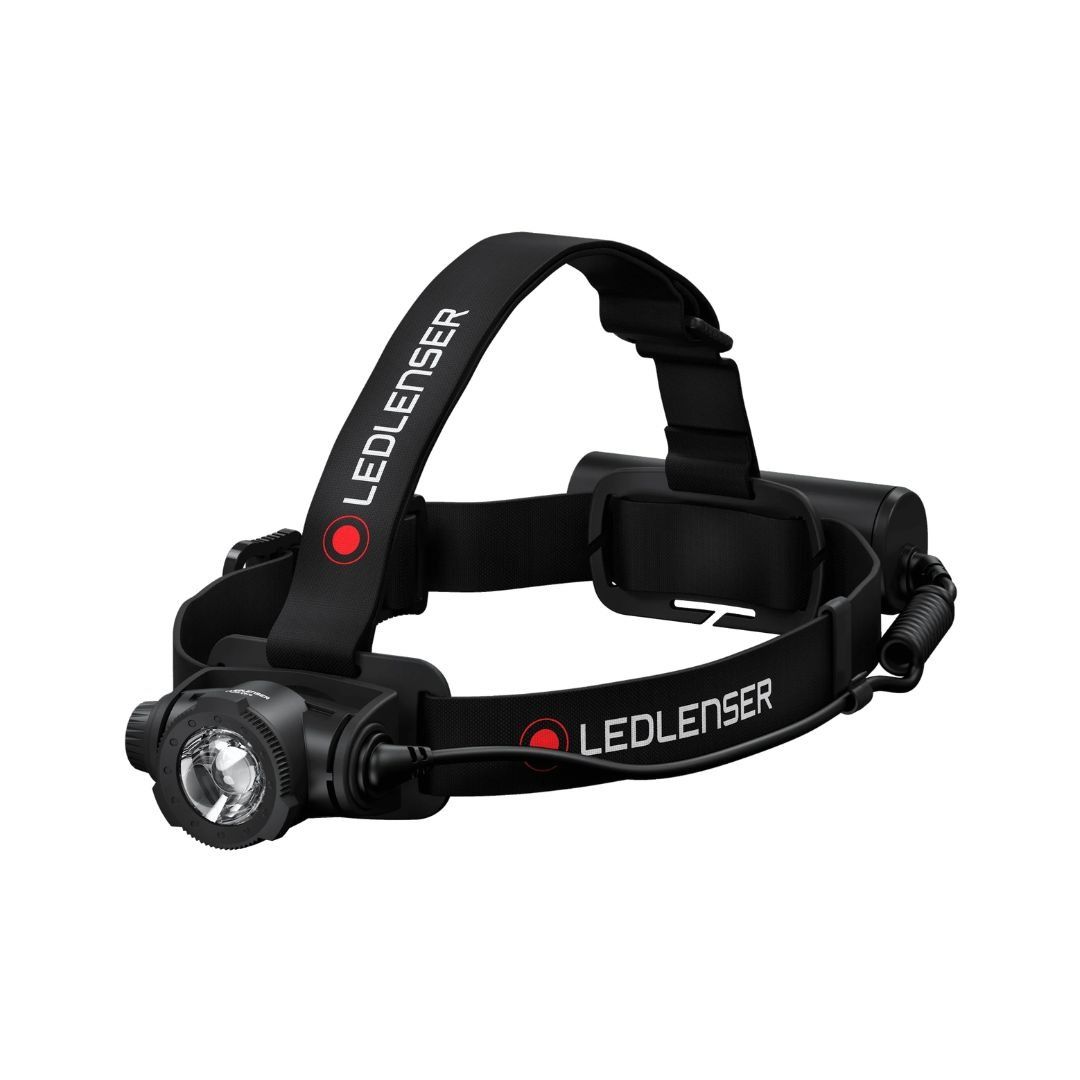

Step 2: Fit the headband and attach the overhead strap if required. Adjust for a secure fit over your head or helmet.

Step 3: Press the switch to activate Standard Power (600 lumens). Hold briefly to activate Low Power (15 lumens).

Step 4: From Standard Power, hold the switch to activate Boost (1000 lumens). Use for short bursts only.

Step 5: Adjust the focus using the head unit to switch between concentrated spot (distance) and wide flood (close work).

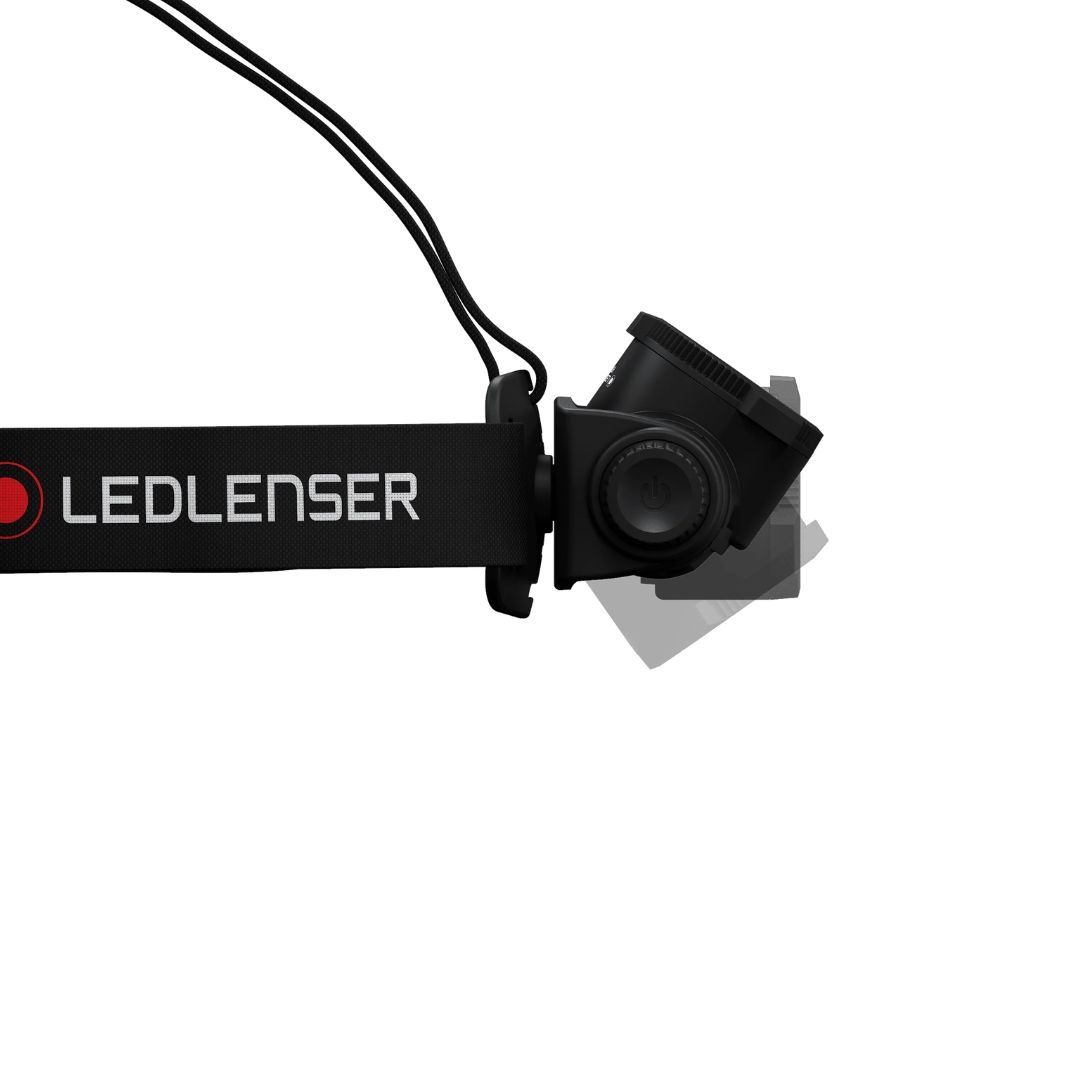

Step 6: Rotate the lamp head within the 130 degree range to direct the beam at the working area before starting.

Step 7: Activate Transport Lock before transit to prevent accidental activation and battery drain.

Common mistakes

• Not using Transport Lock during transit. Accidental switch activation drains the battery. Always activate Transport Lock before placing in a bag or vehicle.

• Treating Boost as the standard running mode. Boost is designed for short maximum-output bursts. Standard power (600 lumens) is the correct mode for continuous use.

• Not checking the battery status indicator before a long shift. Charge at the start of each shift to ensure full output is available.

• Removing the overhead strap during active work. The top strap significantly improves stability during movement and reduces beam drift. Detach it only when it actively restricts the task.

• Not registering for the 7-year warranty. Standard cover is 2 years.

Safety

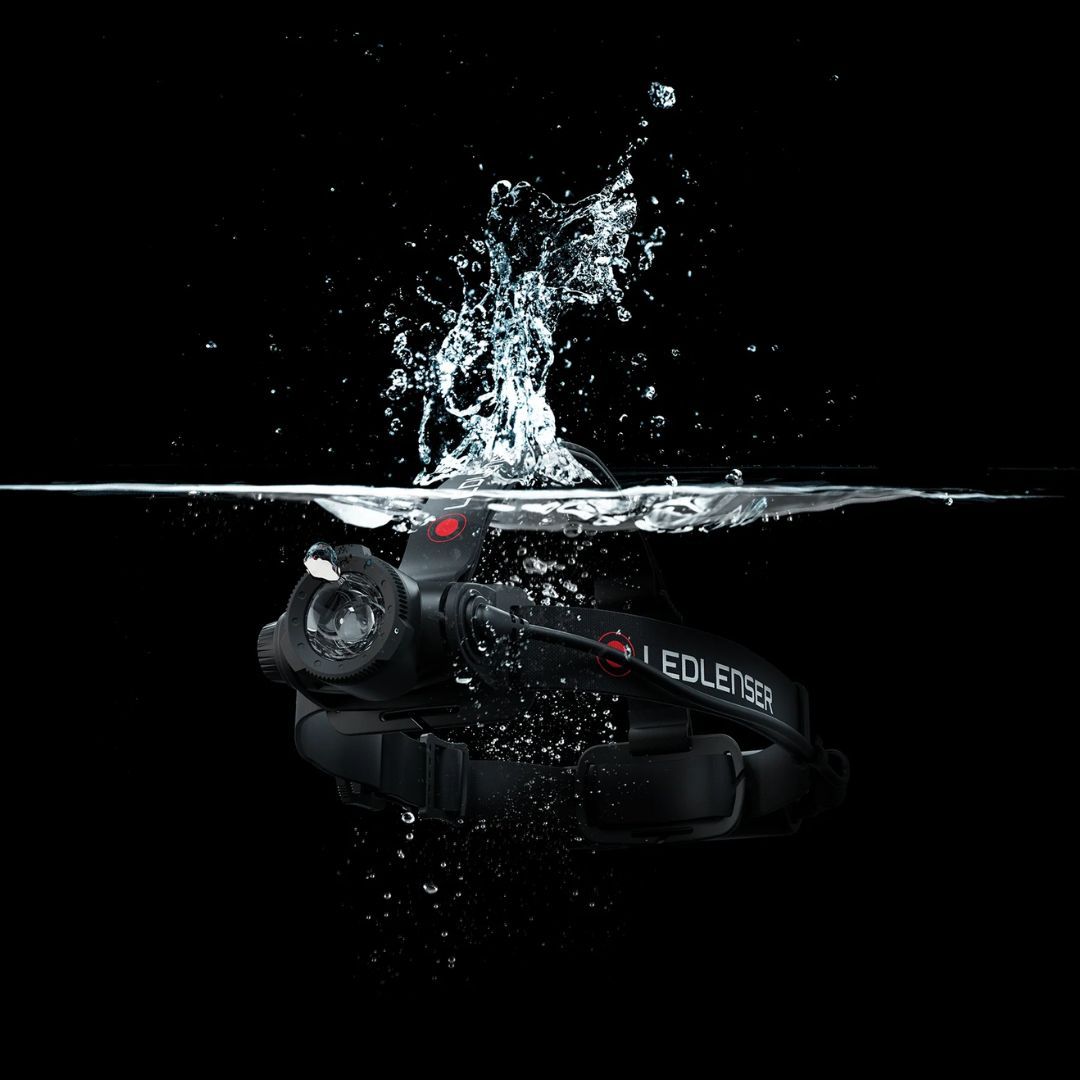

IP67 protects against immersion between 15cm and 1m for up to 30 minutes. It does not cover submersion beyond 1m or for extended periods. No ATEX certification. Do not use in explosive or flammable atmospheres. Working temperature: -20 to +40 degrees C. Boost mode runs at maximum output for a short burst only. Drop tested to 1.5m but replace immediately if the housing cracks after impact.

Maintenance

Charge via the magnetic cable after each shift. Check the battery status indicator before extended shifts. Detach the headband and overhead strap for washing in warm soapy water. Allow to dry before reattaching. Keep the magnetic charge contacts clean and free of debris.
