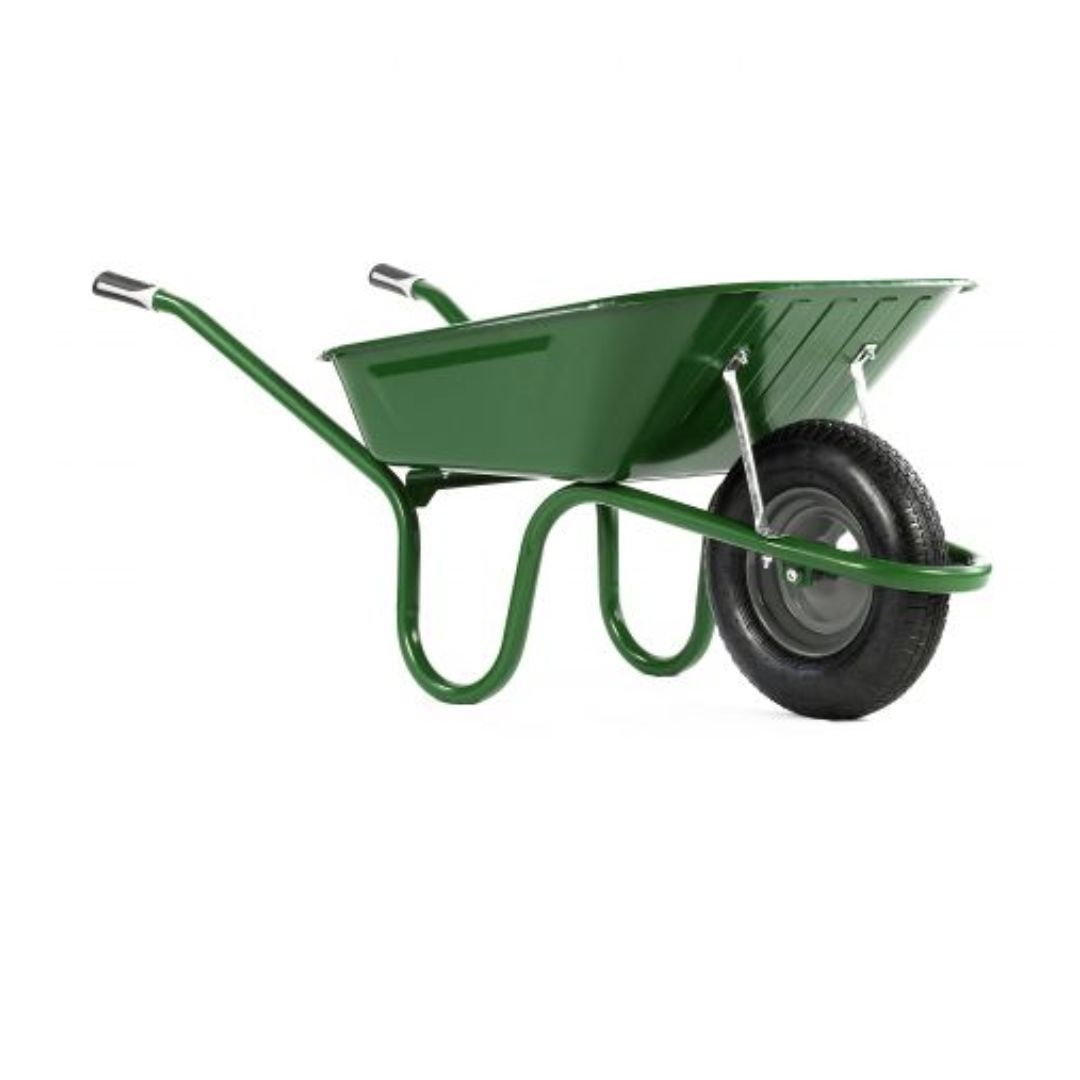

The Haemmerlin Original heavy duty steel wheelbarrow, the UK's best-selling 90-litre contractor barrow, built for builders, groundworkers, and site operatives handling heavy materials daily on UK construction sites.
The Haemmerlin Original heavy duty steel wheelbarrow, the UK's best-selling 90-litre contractor barrow, built for builders, groundworkers, and site operatives handling heavy materials daily on UK construction sites.
Heavy duty steel contractor wheelbarrow built for builders, groundworkers, bricklayers, and site operatives moving concrete, rubble, aggregate, and heavy site materials on UK construction sites. The Haemmerlin Original has been the UK's best-selling 90-litre wheelbarrow for nearly three decades, built on a platform of consistent structural specification: an extra strong double rolled edge pressed steel pan, an integral one-piece tubular steel frame with tipping bar, and front tray supports that reinforce the chassis under maximum loads. Available with an extra large pneumatic tyre for general site use or an extra large puncture-free tyre for demolition, strip-out, and debris-contaminated sites.
A standard pressed steel pan has a single folded edge at the lip, which is the highest-stress point on the pan during loading, tipping, and accidental impact with kerbs, skips, and site obstacles. Under repeated heavy loading with concrete, aggregate, and rubble, a single-fold edge deforms progressively, eventually cracking or splitting at the corners and reducing effective pan capacity. The Haemmerlin Original pan uses a double rolled edge, applying two continuous rolls to the full perimeter of the pan lip. This doubles the material thickness at the highest-stress point, resisting deformation and cracking under the kind of repeated heavy use that shortens the life of lighter-duty alternatives. It is the detail that explains why a Haemmerlin Original is still in service on sites where three cheaper barrows have already been replaced.
Extra strong double rolled edge pan: Two continuous rolls applied to the full pan lip perimeter double the material thickness at the highest-stress point, resisting deformation, cracking, and corner splitting under repeated heavy loading and tipping impact.
90-litre heavy duty pressed steel pan: Pressed steel construction provides rigidity under concrete, aggregate, and rubble loads. Green epoxy powder coat finish protects against corrosion from cement contact, rain, and outdoor site exposure.
Integral one-piece tubular steel frame: Single-piece frame construction eliminates the welded joint failure points present in cheaper multi-piece alternatives. The integral frame absorbs tipping shock and uneven ground loading without flexing at the joints.
Tipping bar for easy unloading: Built-in tipping bar positions the nose of the barrow correctly for clean, controlled unloading without load spillage or pan contact with the ground surface.
Front tray supports: Structural braces between the pan and the frame chassis reinforce the highest-load points, extending frame service life under sustained daily professional use.
Bi-material slip-resistant handle grips: Two-material grip construction combines rigidity at the core with a slip-resistant outer surface, maintaining secure hand contact in wet, muddy, and gloved-hand conditions across a full shift.
Lock nuts fixed to pan: Pan secured to frame with locking nuts that prevent movement, rattle, or pan shift under repeated heavy loading and tipping impact.

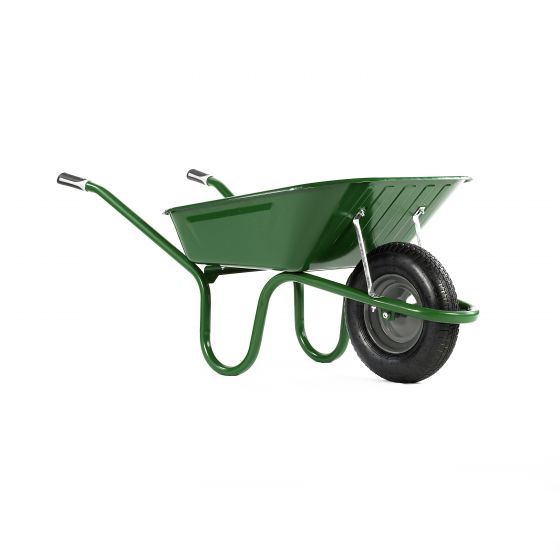

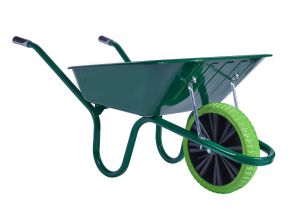

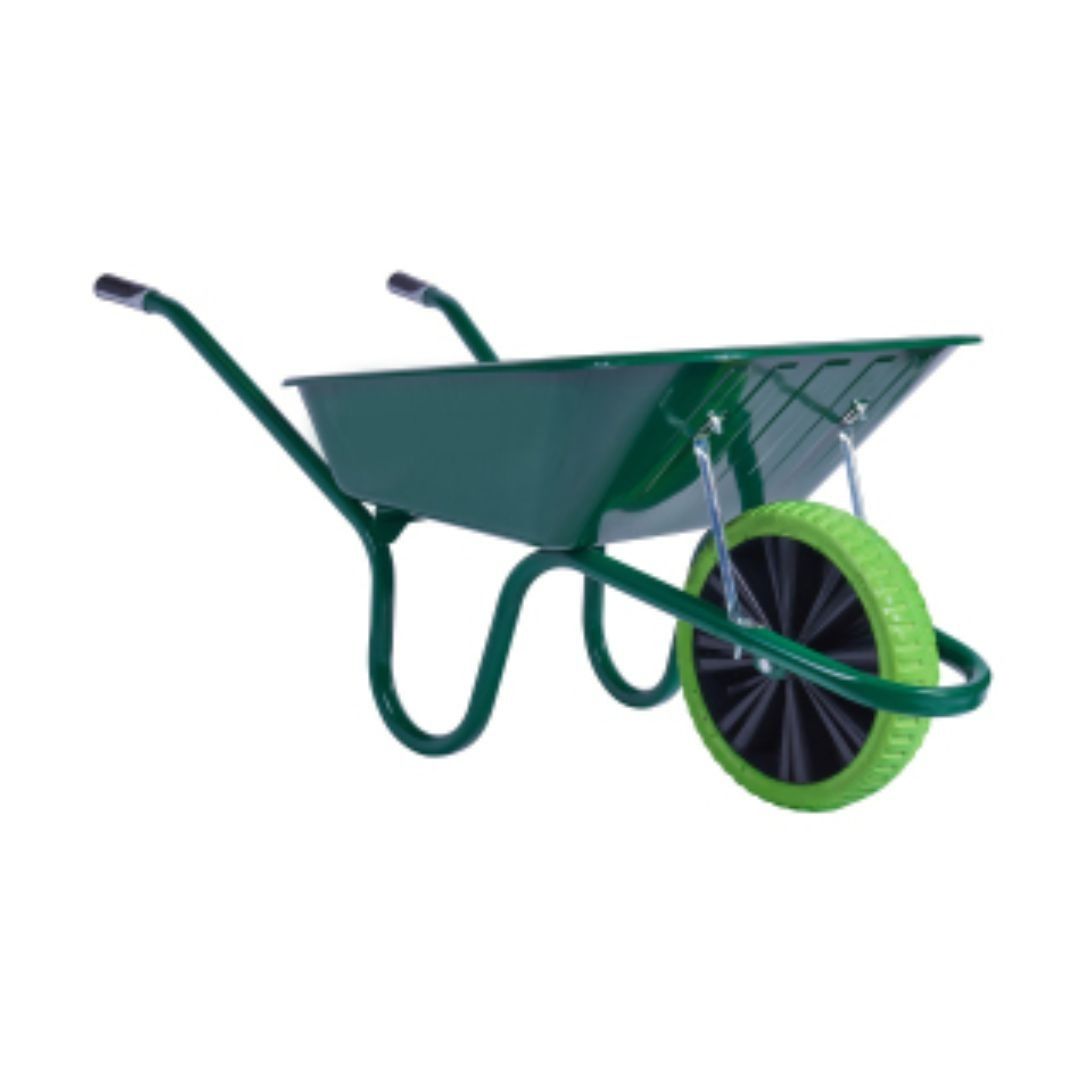

Extra large wheel options: Available with extra large pneumatic tyre for smooth movement on compacted and uneven site surfaces, or extra large puncture-free tyre for sites where debris contamination makes a pneumatic tyre impractical.
Trades and roles:
Builders and general contractors
Groundworkers and drainage operatives
Bricklayers and masons
Concreters and civils operatives
Site labourers and material handlers
Demolition operatives
Industries:
Construction
Civil engineering
Groundworks
Demolition and strip-out
Utilities and infrastructure
Landscaping and external works
| Specification | Detail |
|---|---|
| Product Name | Haemmerlin Original Heavy Duty Steel Wheelbarrow 90 Litre |
| SKU / Product Code | WBH |
| Pan Material | Heavy duty pressed steel |
| Pan Edge Construction | Extra strong double rolled edge |
| Pan Capacity | 90 litres |
| Pan Finish | Green epoxy powder coat |
| Frame Construction | Integral one-piece tubular steel |
| Frame Support | Front tray supports |
| Tipping Bar | Yes, integral for easy unloading |
| Pan Fixing | Lock nuts fixed to pan |
| Handle Type | Bi-material slip-resistant grip |
| Wheel Options | Extra large pneumatic (WB90HAE) or extra large puncture-free (WBVANG) |
| Colour | Green pan and frame |
| Application / Site Condition | Status |
|---|---|
| Concrete, mortar, and cement handling | ✓ Compatible |
| Rubble, aggregate, and general site material handling | ✓ Compatible |
| Groundwork and drainage installation | ✓ Compatible |
| Bricklaying and masonry supply runs | ✓ Compatible |
| General outdoor site use in wet conditions | ✓ Compatible |
| Demolition and debris-contaminated sites (puncture-free variant) | ✓ Compatible |
| Debris-contaminated sites with nails and rebar (pneumatic variant) | ✗ Use puncture-free variant |
| Hot asphalt or bitumen loads | ✗ Not recommended - use PE or HDPE pan barrow |
| Chemical or hazardous liquid containment | ✗ Not suitable |
| Powered or motorised attachment use | ✗ Not applicable - manual use only |
The Haemmerlin Original is used by builders, groundworkers, bricklayers, and site operatives on UK construction sites where a robust, long-service 90-litre steel barrow is the core daily material handling tool. It suits contractors who specify on whole-life cost rather than purchase price, and site managers who need a barrow that stays in service across multiple projects without frame failure, pan deformation, or handle deterioration. Both variants serve professional contractor use: the pneumatic tyre for general compacted and uneven site surfaces, and the puncture-free tyre for demolition, strip-out, and sites where sharp ground debris is consistently present at ground level.
Moving mixed concrete and mortar from the mixing point to pour locations during slab, foundation, and groundwork operations on UK construction sites.
Transporting rubble, broken block, and demolition debris from strip-out areas to skips or segregation points during internal and external demolition operations.
Carrying aggregate, sand, and drainage stone to trench locations during groundwork, drainage installation, and utilities projects.
Supply runs on bricklaying operations, moving bricks, blocks, and bagged mortar from delivery points to the working gang throughout the shift.
Shifting excavated soil and spoil from foundation trenches, service trenches, and ducting excavations to spoil heaps or skips.
General site labouring across construction projects, moving materials between delivery areas, storage, and working zones throughout the working day.
Reinstatement and patching works involving cold-lay asphalt and road planings handled at ambient temperature.
Landscaping and external civils works involving topsoil, aggregate, paving materials, and wet concrete in open site conditions.
Step 1: Select the correct variant for the site conditions. Use the pneumatic tyre variant on clean, compacted, or smooth site surfaces. Use the puncture-free variant on demolition, strip-out, or debris-contaminated ground where nails, rebar, broken tile, or sharp aggregate are present at ground level.
Step 2: Before loading, check that the lock nuts securing the pan to the frame are fully tightened. Inspect the frame, front tray supports, and wheel for any visible damage. Do not use a barrow with a cracked pan, bent frame, or damaged wheel.
Step 3: Load material centrally in the pan with the weight positioned over or slightly forward of the wheel axle. Rear-heavy loading makes the barrow unstable and significantly increases the effort needed to push and balance it on the move.
Step 4: Use the tipping bar to position and control the nose of the barrow at the unloading point. The tipping bar keeps the pan clear of the ground surface during unloading, allowing clean and controlled load release without pan contact damage.
Step 5: After each shift, rinse concrete and cement residue from the pan with clean water before it sets. Hardened concrete bonded to the powder coat finish is difficult to remove and reduces effective pan capacity over time.
Loading too far to the rear: Placing heavy material at the back of the pan shifts the balance point behind the wheel, making the barrow difficult to push and balance on long runs. Load centrally or slightly forward of the axle on every run.
Not using the tipping bar correctly: The tipping bar is there to control the nose position during unloading. Tipping without using it correctly risks the pan nose contacting the ground or skip edge, which concentrates impact at the rolled edge and reduces its service life over time.
Using the pneumatic variant on debris-contaminated ground: On demolition or strip-out sites where nails and rebar are present at ground level, specify the puncture-free variant from the outset. A single puncture on the pneumatic tyre puts the barrow out of service until a replacement wheel is sourced.
Leaving cement residue to set in the pan: Concrete and mortar bond to the powder coat finish once cured and are difficult to remove without risking surface damage. A brief rinse with clean water at the end of every shift prevents this entirely and preserves the powder coat finish for longer.
Ignoring loose pan fixings: Lock nuts can work slightly loose under sustained heavy use. A pan that rattles or shifts under load should have its fixings checked and re-tightened before continuing use.
Use this wheelbarrow only for manual material handling tasks within its design capacity. Do not modify the frame, pan, or wheel. Inspect the frame, front tray supports, pan, lock nuts, and wheel before each use and do not operate a barrow with visible structural damage or loose fixings. Operatives should wear appropriate PPE including safety footwear when loading and unloading heavy materials. When working near excavations, trenches, or site edges, maintain a safe distance from the edge at all times.
Rinse concrete, mortar, and cement residue from the pan with clean water at the end of each shift before residue sets. Check and re-tighten the pan lock nuts weekly under heavy daily use. For the pneumatic tyre variant, check tyre pressure at the start of each working week and inflate to the correct operating pressure. Inspect the wheel and bearing periodically for roughness or increased rolling resistance and replace when wear is noticeable. Touch up any chips in the powder coat finish promptly to slow surface corrosion at exposed steel points. Store upright or inverted in a covered area when not in use to protect the pan and frame from prolonged standing water and UV exposure.
Q: What makes the Haemmerlin Original different from a cheaper 90-litre steel wheelbarrow?
A: The two structural differences that matter most on a construction site are the double rolled edge pan and the integral one-piece tubular steel frame. A standard cheaper pan has a single folded edge at the lip, which deforms and cracks under repeated heavy loading with concrete, aggregate, and rubble. The Haemmerlin Original applies two continuous rolls to the full pan perimeter, doubling the material thickness at the highest-stress point and significantly extending the service life of the pan under professional daily use. The one-piece frame removes the welded joints that flex and fail on multi-piece alternatives under sustained heavy loading and tipping impact.
Q: What is the difference between the pneumatic tyre and puncture-free tyre variants?
A: The pneumatic variant uses an extra large air-filled tyre that provides smooth movement on compacted and uneven site surfaces and absorbs ground vibration under load. The puncture-free variant uses an extra large solid tyre with no inner tube and no air, making it immune to punctures from nails, rebar offcuts, broken tile, and sharp aggregate. On demolition, strip-out, and debris-contaminated sites, a single nail puncture can put a pneumatic-tyred barrow out of service until a replacement wheel is sourced. The puncture-free variant removes that risk entirely and is the correct specification for those site conditions.
Q: What is this wheelbarrow NOT suitable for?
A: This barrow is not suitable for carrying hot asphalt or bitumen at working temperature: the material bonds to the steel pan surface and cannot be removed cleanly once cooled. For tarmac and surfacing operations, a PE or HDPE pan barrow is the correct specification. It is not suitable for chemical or hazardous liquid containment as the pan is not sealed. The pneumatic tyre variant is not suitable for demolition or strip-out sites where nails, rebar, and sharp debris are consistently present at ground level.
Q: What does the tipping bar do and why does it matter?
A: The tipping bar is a fixed bar on the frame nose that acts as the contact point between the barrow and the ground or skip edge when the load is tipped. It positions the pan at the correct angle for clean load release and keeps the pan surface itself clear of direct contact with the tipping surface. Without a tipping bar, the pan nose contacts the ground or skip edge directly on every tip, which concentrates impact loading at the rolled edge and progressively damages the pan lip over time. The tipping bar distributes that impact onto the frame rather than the pan.
Q: Why does the front tray support matter on a heavy-duty barrow?
A: The front tray supports are structural braces between the pan underside and the frame chassis that reinforce the points where the pan loading transfers to the frame. Without them, the pan fixings carry the full bending load of a heavily loaded pan on every run, which stresses the lock nuts and pan mounting points progressively. The front tray supports share that load across a wider area of the frame chassis, reducing stress at the fixing points and extending the service life of both the pan and the frame under sustained daily professional use.
Q: How long should the Haemmerlin Original last under daily contractor use?
A: The Haemmerlin Original has been in continuous production for nearly three decades and its specification reflects that longevity. Under daily professional use with correct loading and end-of-shift pan cleaning, the double rolled edge pan and one-piece frame should provide multiple seasons of reliable service. The components most likely to require attention over time are the wheel and, on the pneumatic variant, the tyre. Replacement wheels are available separately from CMT Group, keeping the barrow in service without full replacement.
Q: Can I order the Haemmerlin Original in bulk for a large project or site fleet?
A: Yes. CMT Group supplies Haemmerlin barrows to contractors running large site fleets and multi-site operations. The EDGE procurement portal provides agreed contract pricing, role-based spending controls, live stock visibility, and bulk ordering capability with full delivery tracking from dispatch to drop-off.
