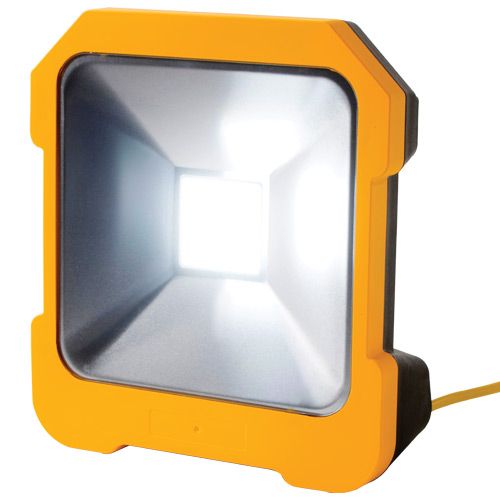

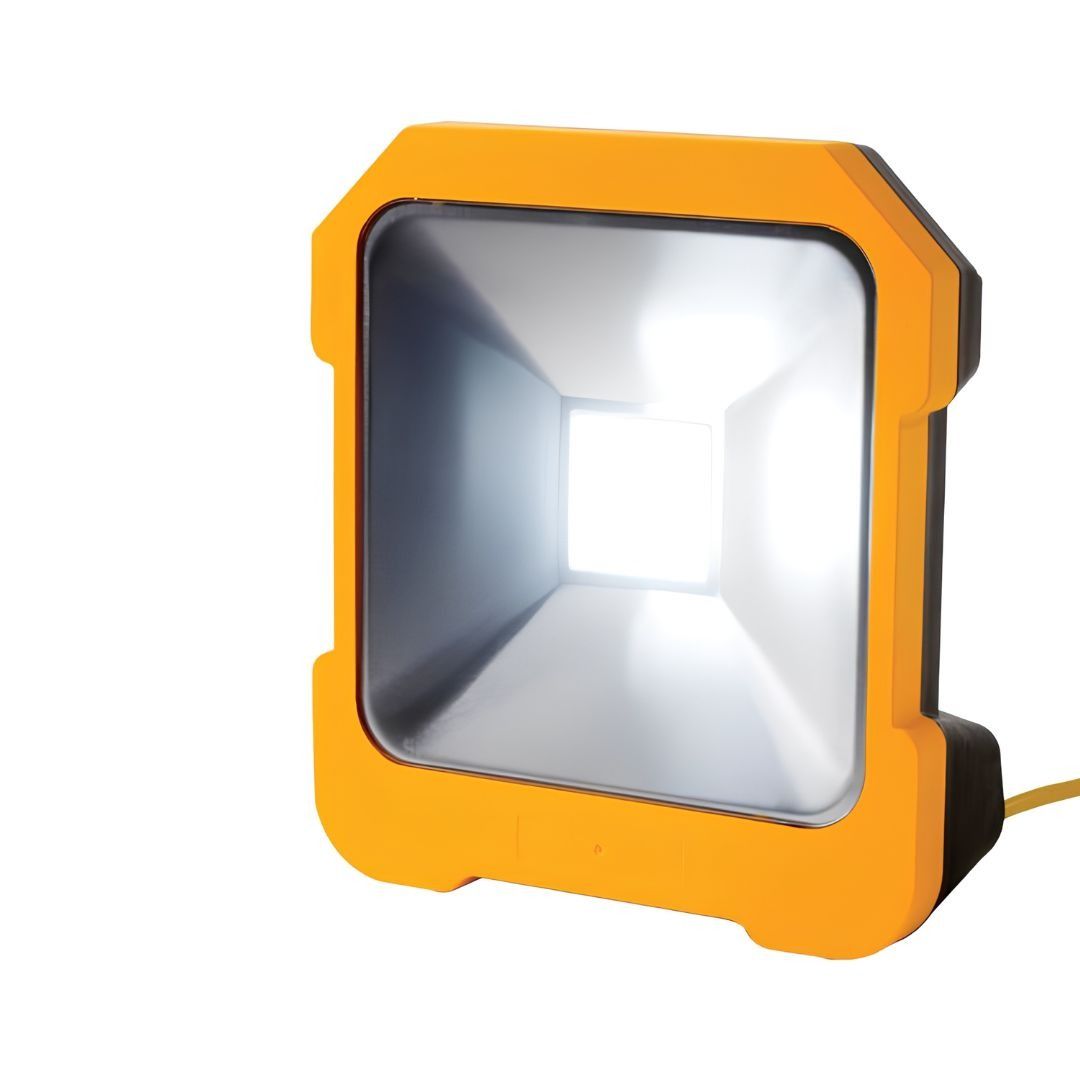

MAX 110V LED task lights deliver 2000 lumens of cool white site illumination with an integrated daisy-chain socket for linking multiple units from a single 110V transformer.
- 2000 lumens, 120 degree wide beam, 6400K cool white
- Integrated 110V Ceeform socket, link up to 15 units
- Maximum total socket load 1500W
- IP54 body, IP44 socket
- 110V site-safe voltage, 3m cable lead
- Class II construction, double insulated
- CE marked, RoHS compliant
MAX 110V LED Task Light with Socket - 20W 2000lm
MAX 110V LED task lights deliver 2000 lumens of cool white site illumination with an integrated daisy-chain socket for linking multiple units from a single 110V transformer.
- 2000 lumens, 120 degree wide beam, 6400K cool white
- Integrated 110V Ceeform socket, link up to 15 units
- Maximum total socket load 1500W
- IP54 body, IP44 socket
- 110V site-safe voltage, 3m cable lead
- Class II construction, double insulated
- CE marked, RoHS compliant
- Buy 6 for £64.14 £53.45 each and save 10%
- Buy 12 for £56.41 £47.01 each and save 20%
| BULK DISCOUNT | 6 | 12 |
|---|---|---|
| Price | £53.45 £64.14 | £47.01 £56.41 |
Order 1x to earn 59 FASTPoints
Order to earn 59 FASTPoints
Log in to access trade discountsMAX 110V LED Task Light with Socket - 20W
MAX 110V LED task lights deliver 2000 lumens of cool white flood lighting from a 20W unit with a built-in 110V Ceeform daisy-chain socket. Connect one unit to the transformer. Link up to 14 more through the socket in series. One transformer output. Up to 15 lights. Total socket load must not exceed 1500W.
How a daisy-chain socket changes how you light a site corridor or stairwell
Lighting a corridor, stairwell, or escape route across a construction site requires multiple lights. Without a daisy-chain socket, each one needs its own transformer connection or a separate extension from the same circuit. A built-in socket simplifies this. Run one cable from the transformer to the first unit. Plug the next unit into the first unit's socket. Continue along the run. Up to 15 units can be linked from a single transformer output at a maximum total load of 1500W.
Key Features
-

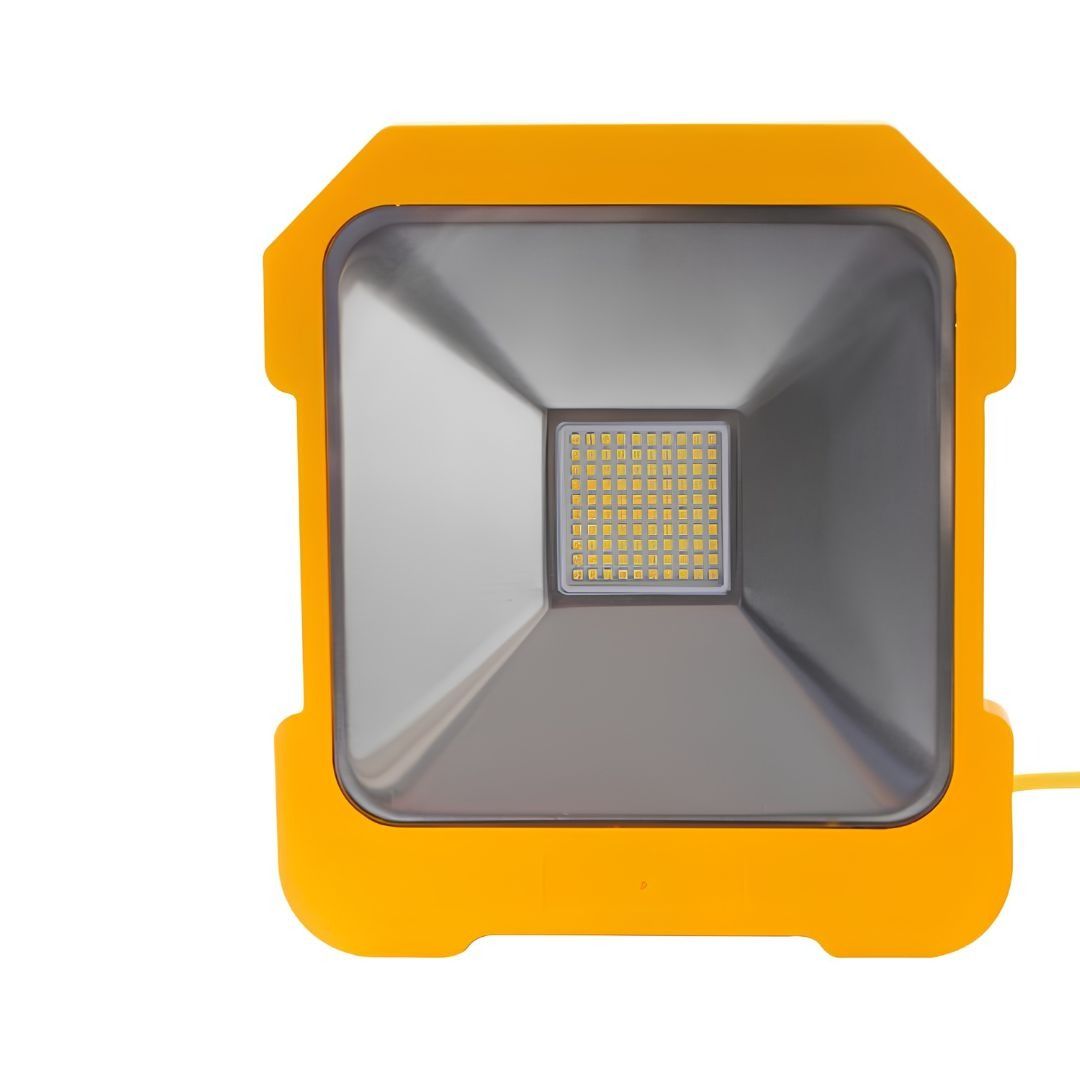

2000 lumen output: 120 degree wide beam provides broad site illumination. 6400K cool white light for clear visibility during construction tasks and inspections.
-

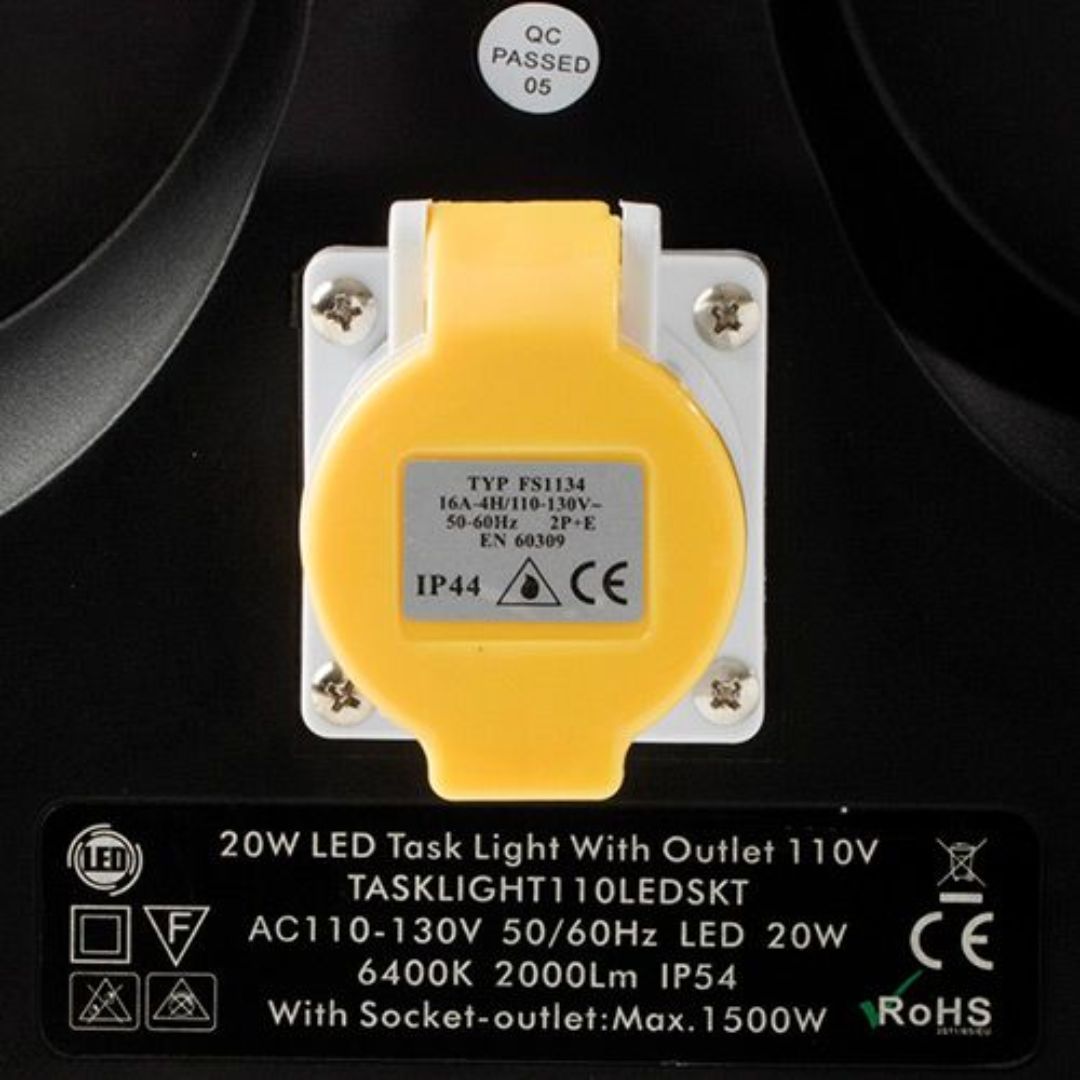

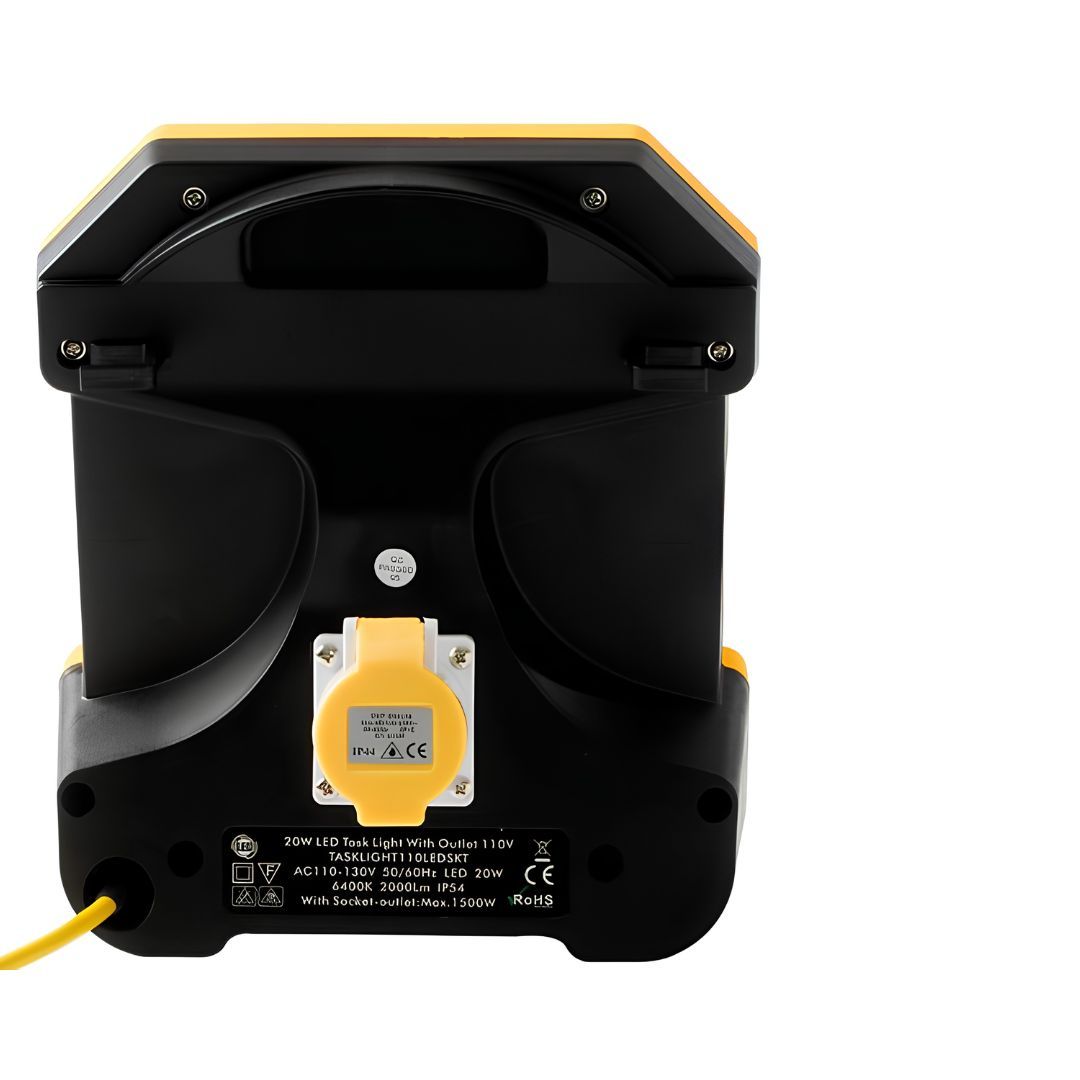

Integrated 110V Ceeform socket: Link up to 15 units in series from a single 110V transformer output. Maximum total socket load 1500W. EN 60309 compliant 16A socket (TYP FS1134).
-
IP54 body: Dust protected and water splash resistant across the main housing. Suitable for active site conditions and light rain.
-
IP44 socket: The integrated socket carries its own IP44 rating. Keep the socket cover closed when not in use.
-
110V site-safe voltage: Runs on 110V CTE supply. Meets principal contractor requirements for temporary electrical equipment on UK construction sites. 3m cable included.
-
Class II construction: Double insulated. No earth connection required through the lamp body.
-
CE marked, RoHS compliant: Meets UK and EU product safety and hazardous substance requirements.
Who is this for
Trades and roles:
-
Site managers
-
Site electricians
-
M&E contractors
-
Project managers
-
Groundwork and civils contractors
Industries:
-
Construction
-
Civil engineering
-
M&E and building services
-
Fit-out
-
Groundworks and infrastructure
Specifications
| Specification | Detail | |
| Product Name | MAX 110V LED Task Light with Socket - 20W 2000lm | |
| SKU | MAXLED20 | |
| Brand | MAX (CMT Group) | |
| LED Power | 20W | |
| Lumen Output | 2000lm | |
| Beam Angle | 120 degrees | |
| Colour Temperature | Approx. 6400K | |
| IP Rating (Body) | IP54 (dust protected, water splash resistant) | |
| IP Rating (Socket) | IP44 | |
| Socket Type | 16A Ceeform (TYP FS1134, EN 60309, 2P+E) | |
| Socket Current | 6.25A (max 1000W per connection) | |
| Max. Total Socket Load | 1500W | |
| Max. Units Linked | 15 | |
| Voltage | 110V ~50/60Hz | |
| Cable Length | 3m | |
| Construction Class | Class II (double insulated) | |
| Min. Ventilation Clearance | 0.5m above, 0.3m each side, 1.0m in front | |
| Compliance | CE marked, RoHS compliant | |
| Use | Professional use only | |
Compatibility
| Application or condition | Status | |
| Multi-zone site lighting via daisy chain (up to 15 units) | ✓ Suitable | |
| Single-unit site task lighting | ✓ Suitable | |
| 110V CTE site supply | ✓ Suitable | |
| Dusty site environments | ✓ Suitable (IP54 body) | |
| Water splash and light rain | ✓ Suitable (IP54 body) | |
| 230V mains supply connection | ✗ Not suitable. 110V only. 230V causes permanent damage and electrical hazard. | |
| Total socket load exceeding 1500W | ✗ Not suitable. 1500W is the maximum total socket load across all linked units. | |
| More than 15 units linked in series | ✗ Not suitable. Maximum 15 units per chain. | |
| Water jets or submersion | ✗ Not suitable. IP54 body, IP44 socket. Neither rated for jets or submersion. | |
| Explosive or flammable atmospheres | ✗ Not suitable. No ATEX certification. | |
Who is this for
This task light suits site managers, site electricians, and M&E contractors who need to provide compliant temporary lighting across multi-zone site areas from a single transformer connection. It is particularly suited to principal contractors lighting corridors, stairwells, and escape routes before permanent systems are commissioned, M&E teams running temporary lighting through plant rooms and riser shafts during installation, and groundwork contractors who need multiple lights across large open excavation areas without multiple transformer connections.
Typical applications
-
Lighting site corridors, escape routes, and stairwells during construction phases before permanent electrical systems are commissioned.
-
Providing distributed task lighting across multiple zones in plant rooms and service areas during M&E installation.
-
Illuminating groundwork excavations, trench runs, and civils access areas requiring multiple light positions from a single transformer.
-
Temporary lighting of welfare facilities, site offices, and common areas awaiting permanent connection.
-
Inspection and health and safety walkthrough lighting across multi-zone build areas.
-
Supplementary lighting alongside UtilityLite LED strip to provide focused task illumination within larger areas of ambient coverage.
-
Emergency access route lighting during site operations where permanent escape route lighting is not yet installed.
How to use
Step 1: Inspect the cable, plug, socket, and housing for damage before each use.
Step 2: Position the unit at the required location. Ensure adequate ventilation clearances: 0.5m above, 0.3m each side, 1.0m in front.
Step 3: For a single unit: connect the cable plug to the 110V CTE transformer output.
Step 4: To daisy-chain: connect the first unit to the transformer. Connect the next unit's cable plug to this unit's Ceeform socket. Continue for up to 15 units. Do not exceed 1500W total load.
Step 5: Switch on and confirm all units are functioning.
Step 6: Disconnect from the power supply and allow at least 10 minutes to cool before repositioning or any adjustment.
Common mistakes
-
Connecting to 230V supply. This unit is 110V only. Connecting to 230V permanently damages the lamp.
-
Exceeding 1500W total socket load across all linked units. Calculate total load before energising (20W per unit, 15 units = 300W, well within the limit when using only these task lights, but other equipment on the same circuit increases the total).
-
Linking more than 15 units in a single chain. Maximum is 15.
-
Leaving the socket cover open during use in wet conditions. Close the socket cover when not in use to maintain the IP44 protection.
-
Restricting ventilation during operation. Objects placed on or around the unit block airflow and cause overheating.
-
Repositioning while still connected and hot. Disconnect and allow 10 minutes cooling before moving.
Safety
This lamp is 110V only. Connecting to 230V permanently damages the unit and creates a risk of fatal electric shock. Class II construction: double insulated. No earth connection required through the lamp body. Inspect the cable, plug, socket, and housing before every use. Do not use if damage is found. Keep socket cover closed when not in use. Maintain minimum ventilation clearances during operation. No ATEX certification. Do not use in explosive or flammable atmospheres. Do not stare directly at the operating light source.
Maintenance
Wipe the housing, lens, and socket cover with a clean dry cloth. Keep the socket cover closed and clean when not in use. Do not immerse in water. Inspect the plug, cable, socket, and housing for damage before each use. Disconnect from mains and allow 10 minutes cooling before cleaning. Dispose of in accordance with UK WEEE regulations at end of service life.
Frequently Asked Questions
Q: What is the integrated socket for?
A: The built-in 110V Ceeform socket allows multiple units to be linked in a daisy chain from a single 110V transformer output. Connect the cable of the next unit into the socket of the previous unit. Up to 15 units can be linked in total, with a maximum total socket load of 1500W. This removes the need for separate transformer connections or extension leads for each light.
Q: How many units can be linked together?
A: Up to 15 units can be linked in a single chain. The maximum total socket load across all linked units must not exceed 1500W. At 20W per unit, 15 units draw 300W, well within the limit. If other 110V equipment is connected to the same chain, the combined load must still not exceed 1500W.
Q: Why does the socket have a different IP rating (IP44) from the body (IP54)?
A: The lamp body is rated IP54: dust protected and water splash resistant from any direction. The integrated socket carries its own IP44 rating: protected against water splash from any direction but with a lower dust protection level. Keep the socket cover closed when not in use, particularly in wet or dusty conditions. Do not use in sustained heavy rain or wet conditions.
Q: How does this differ from the MAX 110V Portable LED Work Light (MAXLED10)?
A: The MAXLED10 delivers 900 lumens from a 10W unit with a tilt-adjustable head and tripod stand for directed single-position task lighting. This unit (MAXLED20) delivers 2000 lumens from a 20W unit and adds an integrated daisy-chain socket for linking up to 15 lights. The MAXLED20 suits multi-zone and corridor lighting. The MAXLED10 suits single-position directed task lighting.
Q: What is this lamp NOT suitable for?
A: Not suitable for 230V connection (110V only). Not suitable for water jets or submersion (IP54 body, IP44 socket). No ATEX certification: do not use in explosive or flammable atmospheres. Maximum 15 units per chain. Maximum total socket load 1500W.
Q: Why must it run on 110V?
A: 110V CTE is the standard temporary supply voltage on UK construction sites. Most principal contractors require temporary electrical equipment to run on 110V CTE rather than 230V mains. The CTE system reduces the maximum shock voltage to 55V to earth, significantly lowering the risk of a fatal electric shock from cable damage during site operations.
Q: What transformer do I need?
A: A 110V CTE site transformer is required. A single MAXLED20 draws 20W. A chain of 15 draws 300W. Ensure the transformer output capacity covers the total load of all linked units plus any other equipment on the same circuit.
Q: Is it waterproof?
A: IP54 rated body: dust protected and water splash resistant from any direction. The socket is IP44. Keep the socket cover closed when not in use. Not rated for water jets or submersion.
