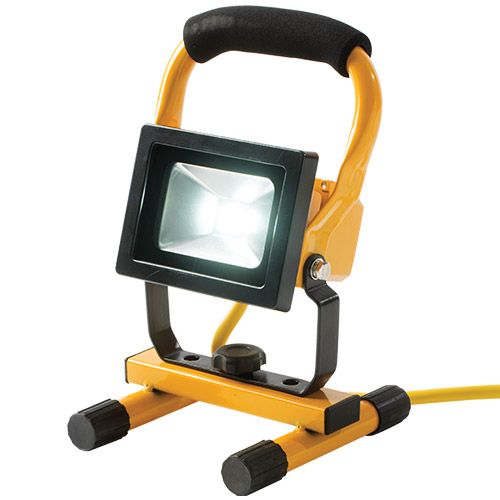

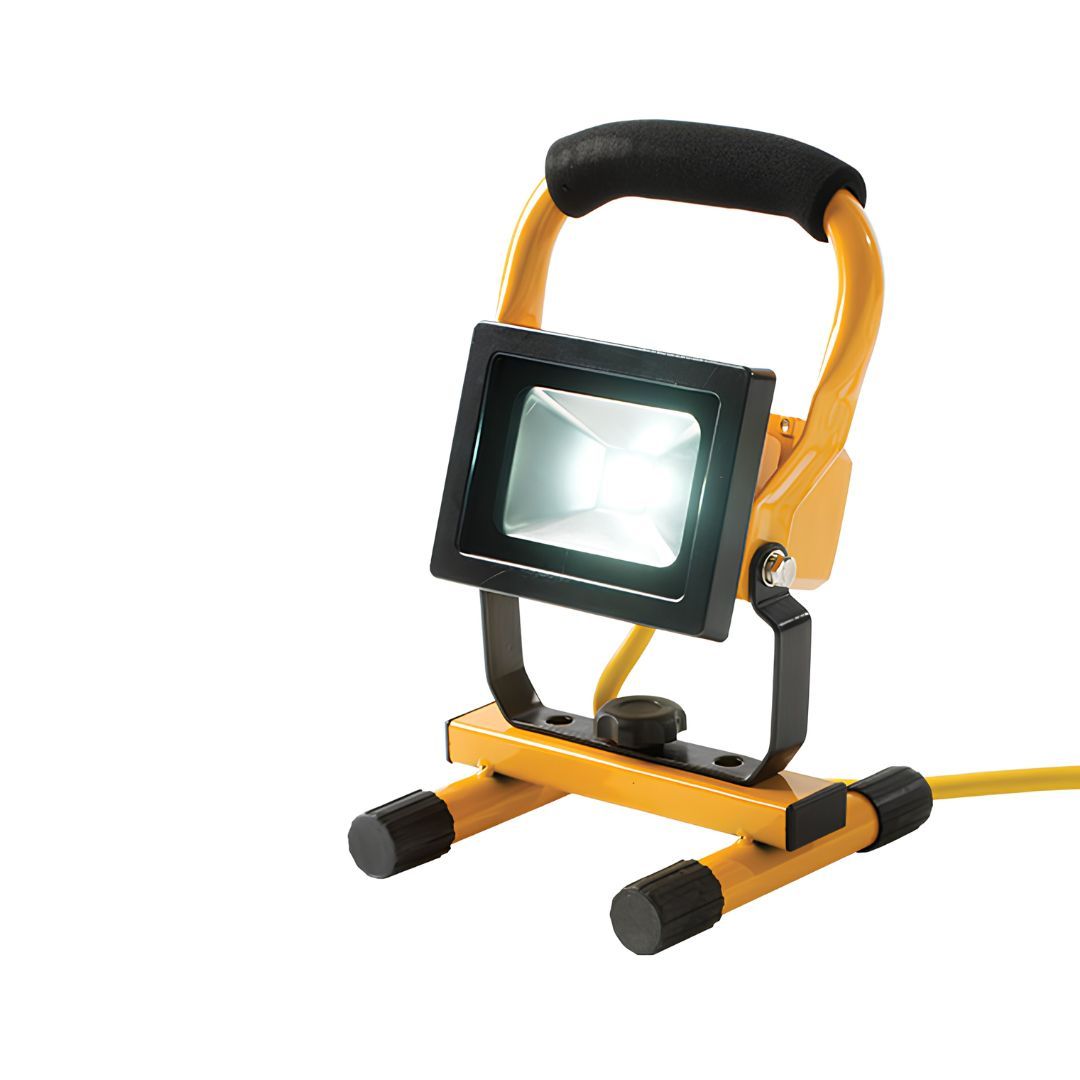

MAX 110V Portable LED Work Light - 10W 900lm

Who is this for

This work light suits site operatives and trades professionals who need reliable, positioned task lighting in low-light areas during active construction. It is particularly suited to electricians and M&E contractors working in service areas and plant rooms before permanent lighting is commissioned, groundworkers needing focused light during dark-hours operations, carpenters working in unlit structural areas, and site managers inspecting poorly lit areas of the build. The 3m cable and free-standing base allow precise positioning and quick repositioning as the work moves through the site.

Typical applications

• Task lighting for electrical installations, M&E connections, and panel work in poorly lit service areas before permanent lighting is live.

• Floor-level illumination for groundwork tasks, trench inspection, and drainage installation during low-light site operations.

• Directed lighting for carpentry, fixing, and joinery work in dark structural areas and service voids.

• Inspection lighting for site managers and health and safety officers conducting dark-area walkthroughs on active build sites.

• Temporary lighting in welfare areas, storerooms, and site offices awaiting permanent electrical connection.

• Work lighting during early morning setup and late evening working phases when natural light is insufficient.

• Supplementary task lighting in areas served by LED strip lighting where close-up directed illumination is needed alongside ambient coverage.

How to use

Step 1: Inspect the cable, plug, and housing for damage before each use. Do not use if damage is found.

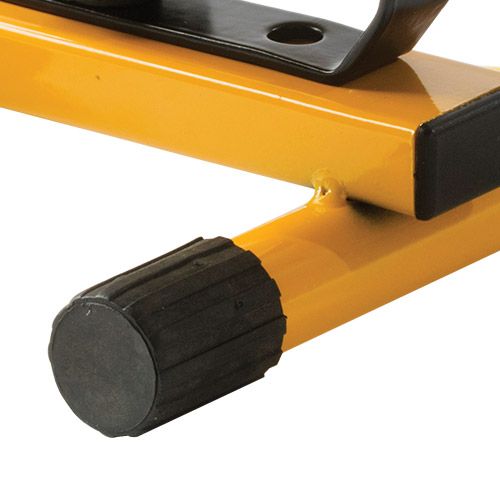

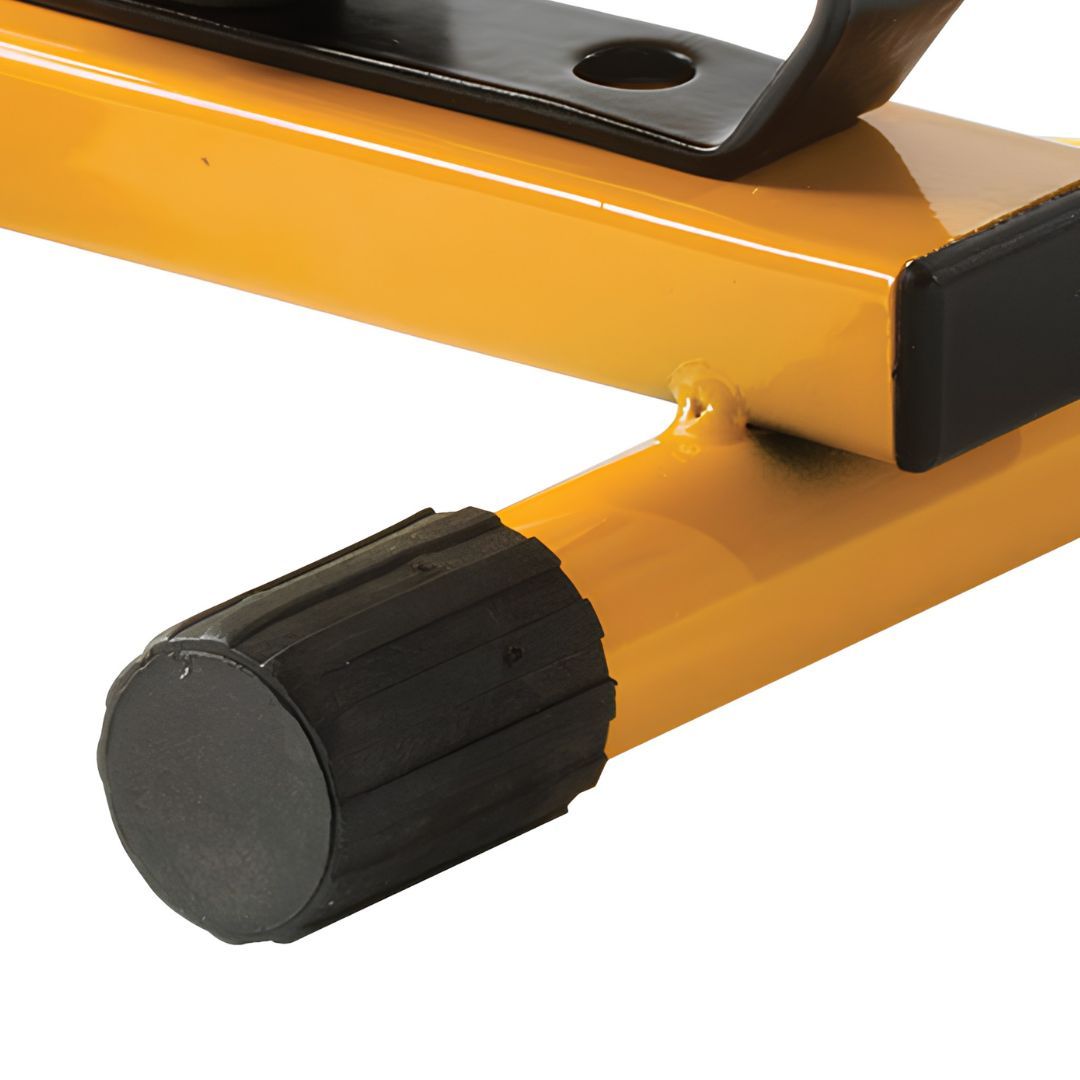

Step 2: Position the unit on a stable, level surface. Ensure the rubber feet are in contact with the floor.

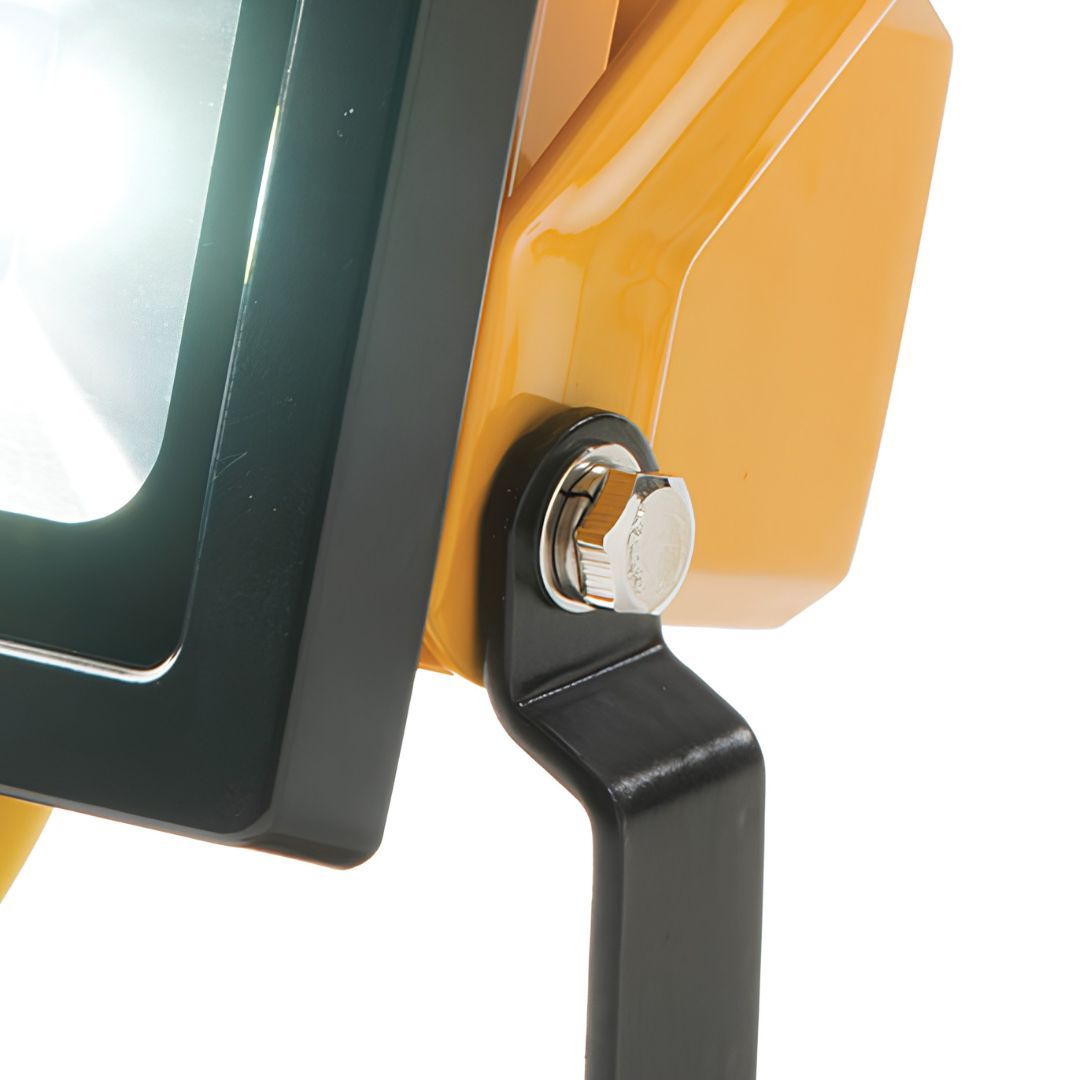

Step 3: Adjust the head tilt angle using the side knob and lock it at the required beam direction.

Step 4: Connect the 3m cable to the 110V CTE transformer output. Do not connect to 230V supply.

Step 5: Switch on and confirm the light is functioning. Maintain minimum ventilation clearances: 0.5m above, 0.3m to each side, and 1.0m in front of the unit.

Step 6: Disconnect from the power supply and allow at least 10 minutes to cool before repositioning or any adjustment.

Common mistakes

• Connecting to 230V supply. This unit is 110V only. Connecting to 230V permanently damages the lamp and creates a fatal electrical hazard.

• Restricting ventilation. Objects placed on or around the unit during operation block airflow and cause overheating. Maintain the required clearances at all times.

• Repositioning while still connected and hot. Always disconnect and allow at least 10 minutes of cooling before moving the lamp.

• Using with a damaged cable, plug, or housing. A damaged lamp or cable can cause a fatal electric shock. Inspect before every use.

• Staring directly at the operating light source. The 900 lumen output causes eye discomfort at close range. Avoid direct eye contact during operation.

Safety

This lamp is 110V only. Connecting to 230V will permanently damage the unit and creates a risk of fatal electric shock. Class I construction: must be earthed via the 110V CTE supply. Inspect the cable, plug, and housing before every use. Do not use if any damage is found. Maintain minimum ventilation clearances during operation. Do not use in explosive or flammable atmospheres. No ATEX certification. Do not stare directly at the operating light source. Disconnect from mains and allow 10 minutes cooling before repositioning or adjustment.

Maintenance

Wipe the housing and lens with a clean dry cloth after use. Keep the lens clear of dust and debris to prevent overheating. Do not immerse the unit in water. Inspect the plug, cable, and housing for damage before each use. Disconnect from mains and allow to cool before cleaning. Dispose of in accordance with UK WEEE regulations at end of service life.
