UtilityLite IP65 LED site lighting strips deliver construction-grade 110V illumination for temporary lighting across active build areas, plant rooms, tunnels, and confined site spaces.
- IP65 rated, dust-tight and water jet resistant
- 180 high-output LEDs per metre
- 110V centre-tapped earth for construction site safety compliance
- UK-developed for the construction industry
- Available in 10m, 25m, and 50m lengths
- Compact on reel or in bag for fast deployment and storage
- Easily installed by a non-skilled person
UtilityLite IP65 LED Strip on Reel - 110V Site Lighting
Code
ELLEDCBL
UtilityLite IP65 LED site lighting strips deliver construction-grade 110V illumination for temporary lighting across active build areas, plant rooms, tunnels, and confined site spaces.
- IP65 rated, dust-tight and water jet resistant
- 180 high-output LEDs per metre
- 110V centre-tapped earth for construction site safety compliance
- UK-developed for the construction industry
- Available in 10m, 25m, and 50m lengths
- Compact on reel or in bag for fast deployment and storage
- Easily installed by a non-skilled person

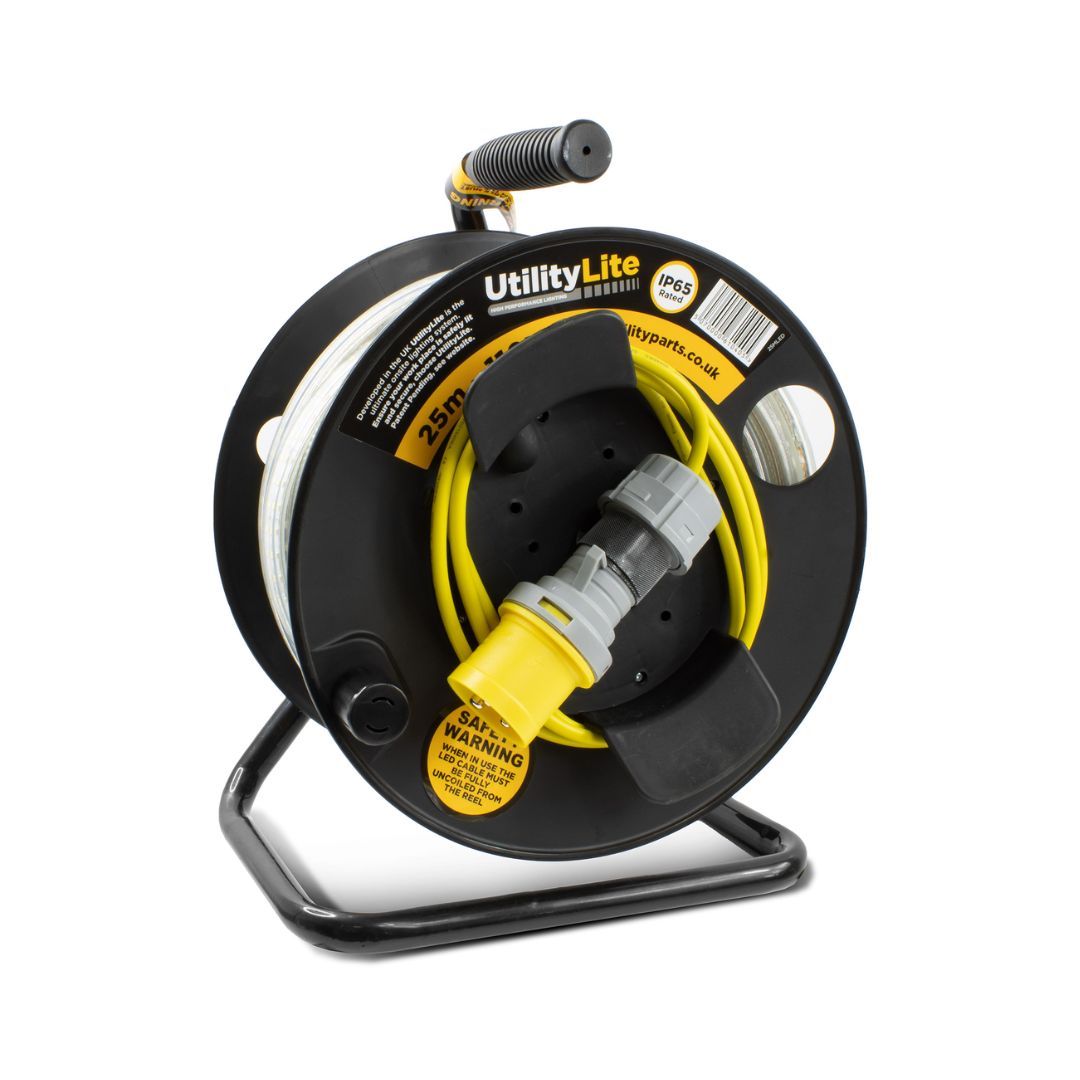

UtilityLite IP65 LED Strip on Reel - 110V
UtilityLite IP65 LED site lighting strips are designed specifically for the UK construction industry. They run on 110V centre-tapped earth, the standard temporary site voltage, and carry an IP65 rating for all-weather use across dusty and wet site environments. Three lengths cover localised task areas through to large open site zones.
How 110V IP65 LED strip lighting addresses the limitations of standard temporary site lighting
Standard temporary lighting is not designed for the UK site electrical environment. Most principal contractors prohibit 230V supply for temporary site lighting on active construction sites. Standard-rated festoon and strip lighting fails in the combined dust and water conditions of groundwork, structural, and fit-out phases. A 110V IP65 LED strip addresses both. The 110V CTE supply reduces the maximum shock voltage to 55V to earth, significantly lowering the risk of a fatal electric shock if a cable is damaged during site operations. IP65 keeps the strip operational across dusty and wet site conditions.
Key Features
-
IP65 rating: Dust-tight and protected against water jets from any direction. Suitable for dusty plant rooms, wet groundwork areas, and all phases of site construction where temporary lighting is required.
-
180 LEDs per metre: High-density LED arrangement delivers consistent, even illumination across the full length of the strip.
-
110V CTE site voltage: Runs on UK construction site standard 110V centre-tapped earth supply. Compatible with standard yellow Ceeform site transformer output. Meets principal contractor requirements for temporary site lighting.
-
UK-developed: Designed specifically for UK construction site conditions and electrical standards.
-

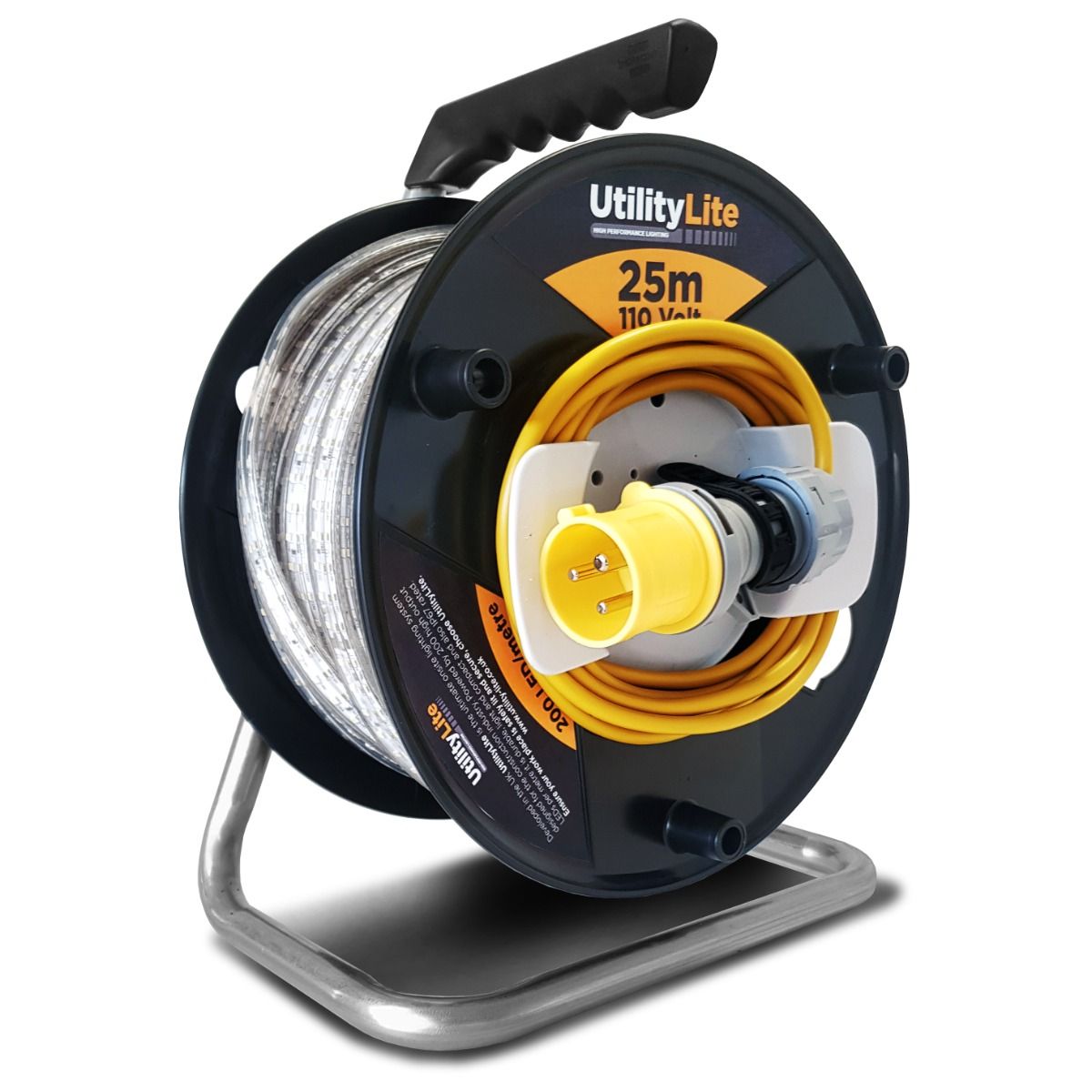

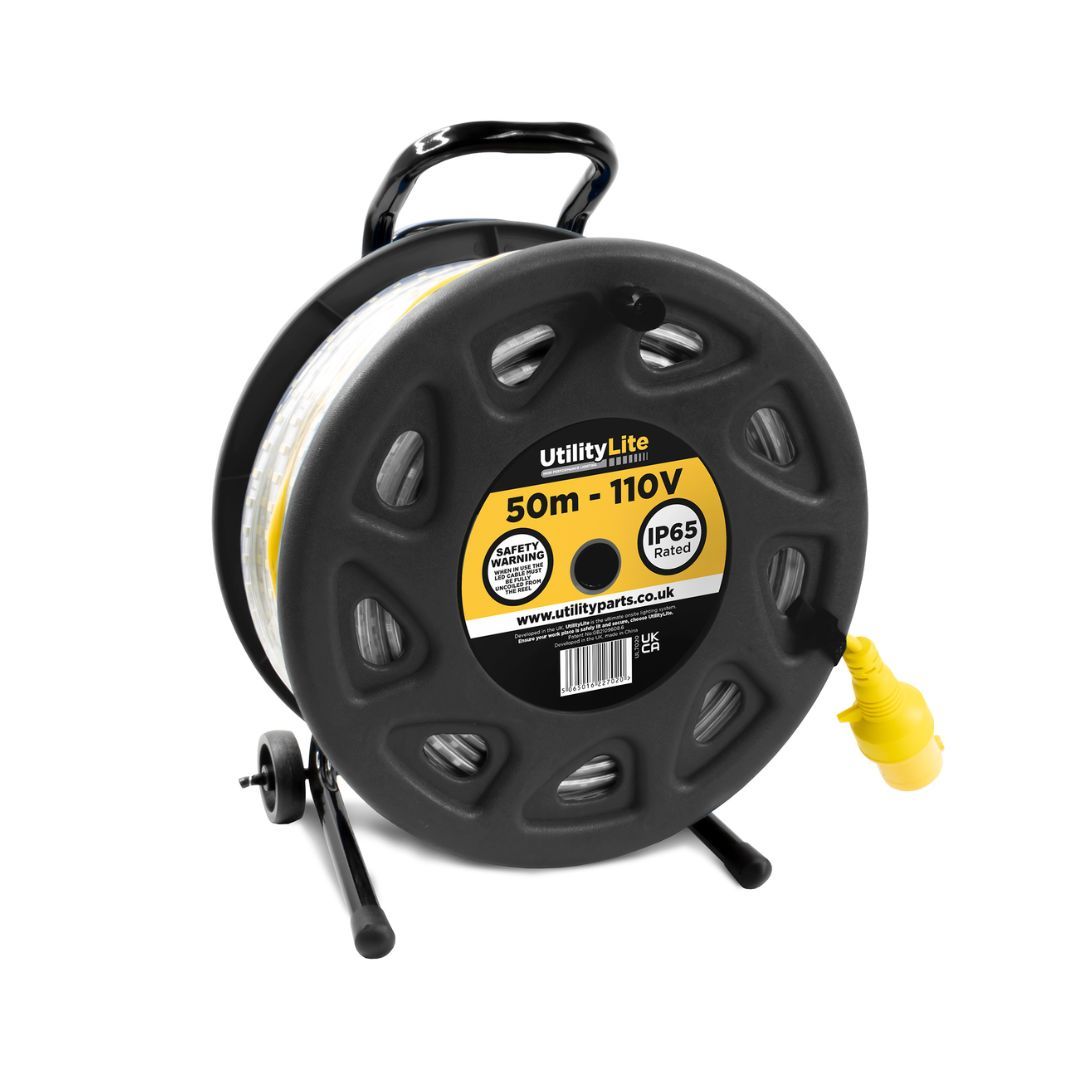

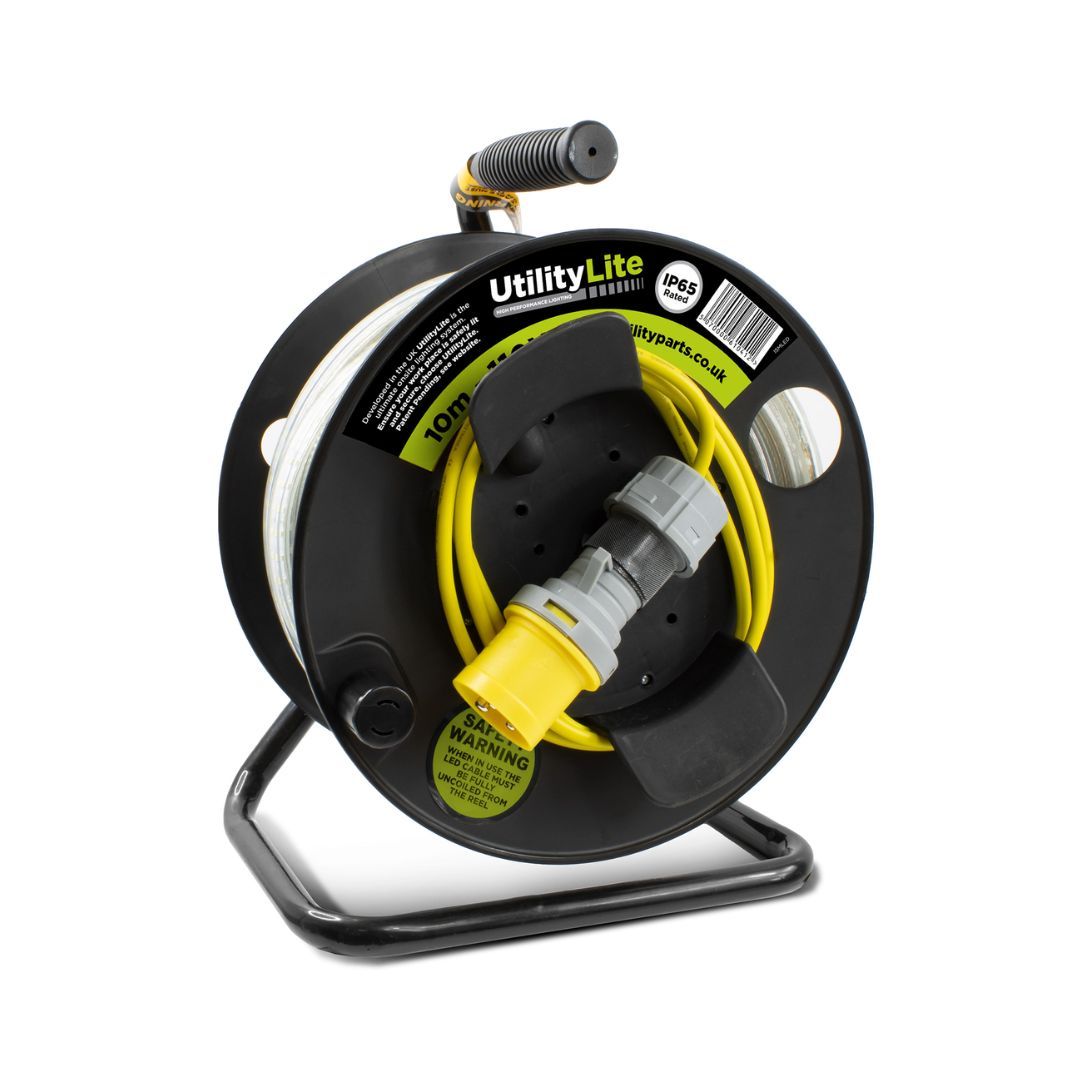

Three lengths: 10m (Strip in Bag), 25m (Reel), and 50m (Reel). Select the length suited to the area to be illuminated.
-
Compact and portable: Supplied on reel or in bag for fast deployment, repositioning, and storage between site phases.
Who is this for
Trades and roles:
-
Site managers
-
Site electricians
-
M&E contractors
-
Project managers
-
Groundwork and civils contractors
Industries:
-
Construction
-
Civil engineering
-
M&E and building services
-
Groundworks
-
Tunnelling and infrastructure
Specifications
| Specification | Detail | |
| Product Name | UtilityLite IP65 LED Strip on Reel - 110V Site Lighting | |
| Parent SKU | ELLEDCBL | |
| Origin | UK-developed | |
| Voltage | 110V Centre-Tapped Earth (CTE) | |
| LED Density | 180 LEDs per metre | |
| Power per Metre | 12.5W/m | |
| IP Rating | IP65 (dust-tight, water jet resistant) | |
| Light Colour | White | |
Available Lengths
| Specification | 10m | 25m | 50m |
|---|---|---|---|
| SKU | ELLEDREL-10M | ELLEDCBL-25M | ELLEDCBL-50M |
| Length | 10m | 25m | 50m |
| Format | Strip in Bag | Reel | Reel |
| Total LEDs | 1,800 | 4,500 | 9,000 |
| Total Power Draw | 125W | 312.5W | 625W |
| Min. Transformer Output | 125W | 313W | 625W |
Compatibility
| Application or condition | Status | |
| 110V CTE temporary site lighting | ✓ Suitable | |
| Active construction and groundwork sites | ✓ Suitable | |
| Dusty environments (plant rooms, structural work) | ✓ Suitable (IP65, dust-tight) | |
| Wet outdoor conditions and rain | ✓ Suitable (IP65, water jet resistant) | |
| Tunnels, culverts, and confined underground spaces | ✓ Suitable | |
| Fit-out and M&E installation phases | ✓ Suitable | |
| 230V mains supply connection | ✗ Not suitable. 110V only. 230V connection will cause permanent damage and electrical hazard. | |
| Submersion | ✗ Not suitable. IP65 is not a submersion rating. | |
| Explosive or flammable atmospheres | ✗ Not suitable. No ATEX certification. | |
Who is this for
This product suits site managers, site electricians, and M&E contractors who need to provide compliant temporary lighting across active construction areas. It is particularly suited to principal contractors requiring 110V CTE temporary lighting for site-wide compliance, M&E teams lighting plant rooms and riser shafts during installation, groundwork contractors lighting excavations and trenches, and fit-out teams providing temporary illumination during second-fix and commissioning phases when permanent electrical systems are not yet live.
Typical applications
-
Temporary lighting of active build areas including structural frames, groundwork excavations, and internal build phases before permanent electrical installation is complete.
-
Semi-permanent temporary lighting in plant rooms, riser shafts, and mechanical service areas during M&E installation.
-

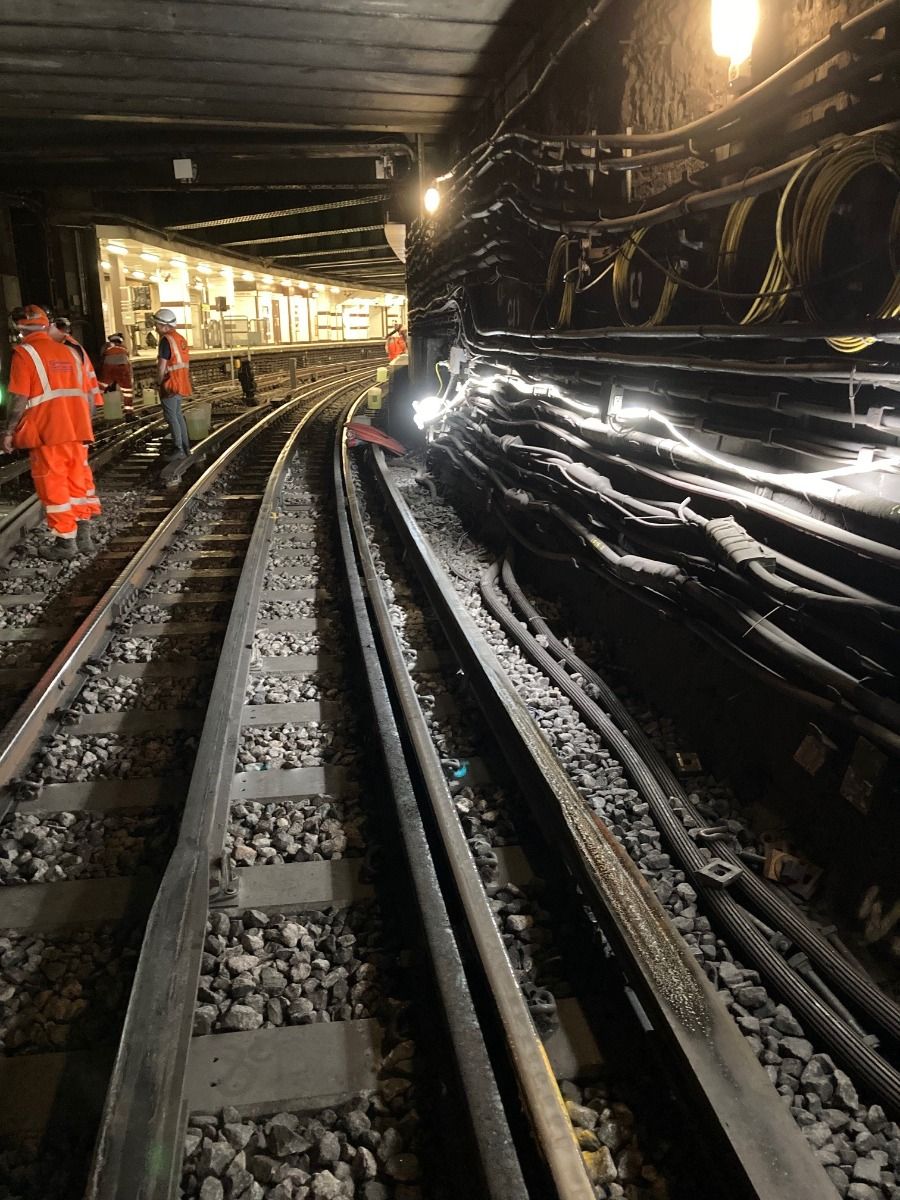

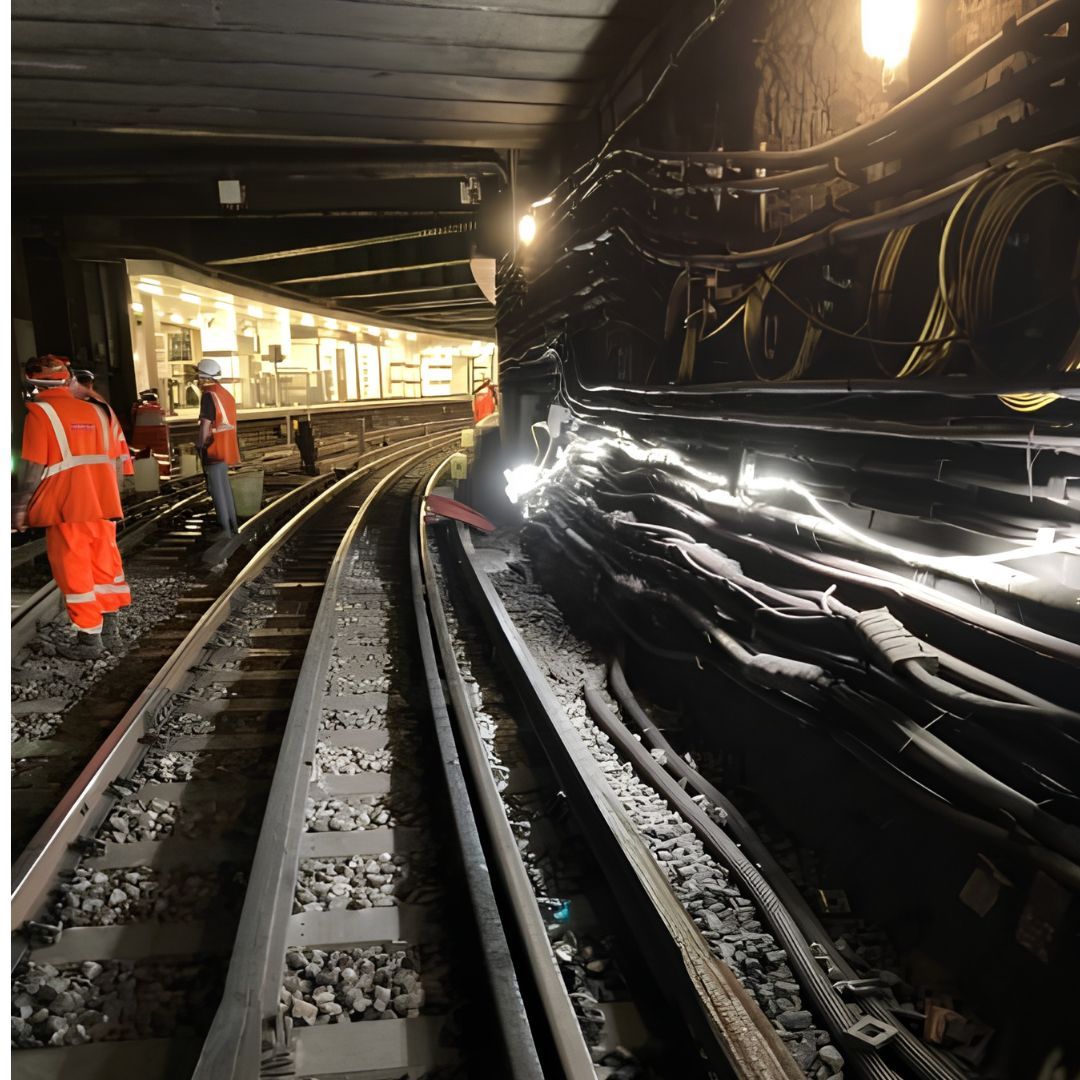

Lighting tunnels, culverts, and underground drainage runs during civils and groundwork operations.
-
Fit-out phase lighting in commercial and residential projects before permanent electrical systems are commissioned.
-

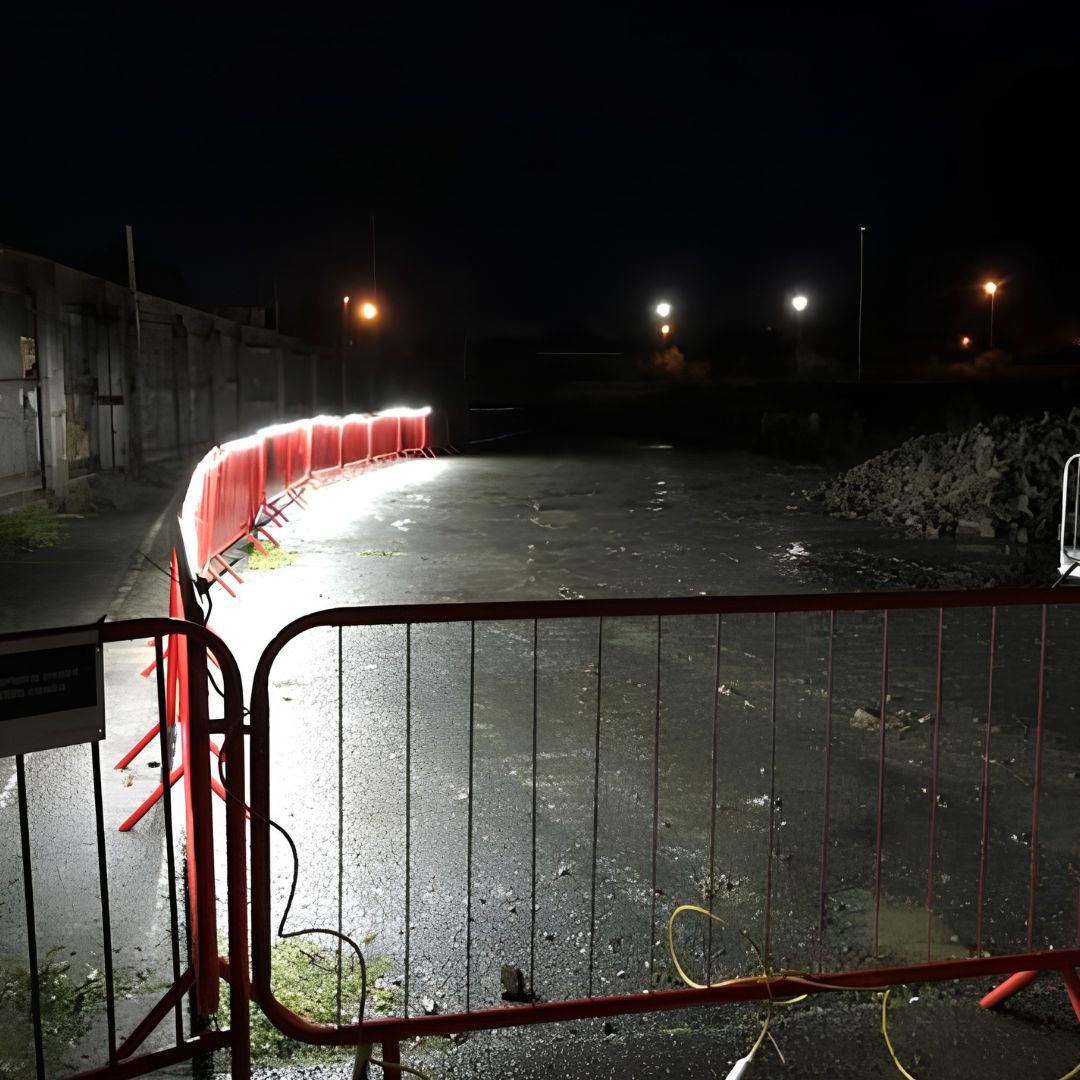

Site compound and welfare unit lighting where a 110V supply is available and IP-rated equipment is required.
-
Confined space and inspection pit lighting on civil engineering and infrastructure sites.
-

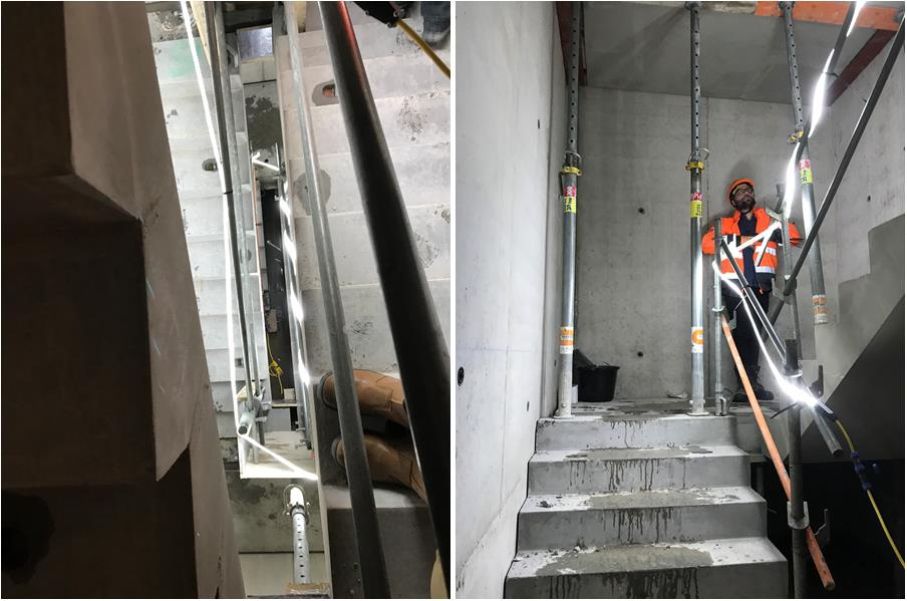

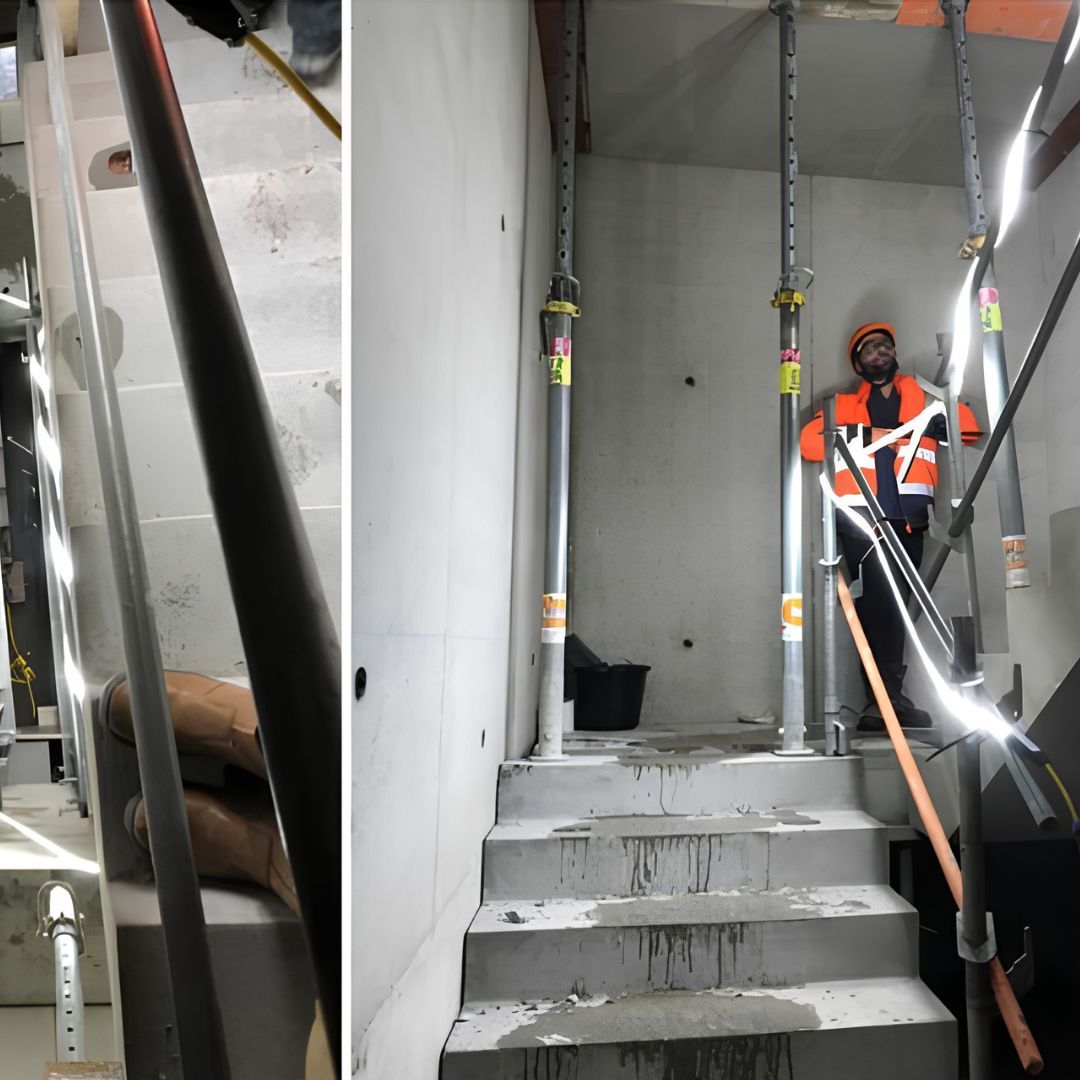

Construction phase lighting for basement structures, service voids, and any enclosed area requiring temporary illumination.
How to use
Step 1: Confirm the transformer output voltage is 110V CTE and the output capacity is sufficient for the strip length selected (10m = 125W, 25m = 312.5W, 50m = 625W minimum).
Step 2: Unroll the strip from the reel or remove from the bag before connecting to the supply.
Step 3: Connect to the 110V transformer output via the correct Ceeform connector. Do not connect to 230V supply.
Step 4: Secure the strip at regular intervals if mounting overhead or along walls. Use appropriate clips or fixings rated for the strip weight and site conditions.
Step 5: Inspect IP65 connectors and end caps before each deployment. Do not energise if any connector or end cap is damaged or missing.
Step 6: De-energise and disconnect from the transformer before rolling or adjusting the strip.
Common mistakes
-
Connecting to 230V supply. This strip is 110V only. Connecting to 230V permanently damages the strip and creates a serious electrical hazard.
-
Overloading the transformer. Calculate total wattage before energising (12.5W per metre). A 50m strip draws 625W. Ensure the transformer output capacity covers this plus any other loads on the circuit.
-
Using a damaged end cap or connector. IP65 protection depends on the integrity of all connections. A damaged cap or connector allows water and dust ingress. Replace before returning to service.
-
Coiling or adjusting the strip while energised. Always disconnect from the transformer before repositioning or rolling.
-
Using in explosive atmospheres. No ATEX certification. Not suitable for any environment classified as explosive or potentially explosive.
Safety
This strip is rated for 110V CTE supply only. Never connect to 230V or any other voltage. Always connect to an earthed 110V site transformer. Inspect the full length of the strip and all connectors and end caps before each use. IP65 protection depends on the integrity of all connections. Replace immediately if any part of the strip is physically damaged. No ATEX certification. Do not use in explosive or flammable atmospheres. Only competent electrical operatives should install, inspect, and maintain temporary site electrical equipment.
Maintenance
Wipe the strip with a dry cloth before rolling onto the reel for storage. Inspect all end caps and connectors after each deployment and replace any that are cracked or missing. Store rolled onto the reel in a dry location away from direct sunlight and sharp objects. Do not store with kinks or tight bends in the strip. Check the full length before each new deployment.
Frequently Asked Questions
Q: Why does this strip run on 110V and not 230V?
A: 110V centre-tapped earth (CTE) is the standard temporary supply voltage on UK construction sites. Most principal contractors require all temporary electrical equipment, including lighting, to operate on 110V CTE rather than 230V mains. A centre-tapped earth transformer reduces the maximum shock voltage to 55V to earth, significantly reducing the risk of a fatal electric shock if a cable is cut or damaged during site operations. This strip is designed to comply with that requirement.
Q: What transformer do I need to run this strip?
A: A 110V CTE site transformer is required. Calculate the output capacity needed based on strip length. The 10m strip draws 125W. The 25m draws 312.5W. The 50m draws 625W. Ensure the transformer output covers the total load including any other equipment running on the same circuit. Allow adequate headroom above the minimum figure.
Q: What does IP65 mean for a site lighting strip?
A: IP65 means the strip is fully dust-tight (first digit 6) and protected against water jets from any direction (second digit 5). In site conditions, this covers dust from cutting, grinding, and groundwork, and water from rain, site washdowns, and splashing during wet working phases. IP65 does not cover submersion. IP67 or IP68 is required for any application where the strip could be submerged.
Q: What is the total power consumption of each length?
A: At 12.5W per metre: the 10m strip draws 125W, the 25m draws 312.5W, and the 50m draws 625W. These are the minimum transformer output capacities required, before adding any other loads on the circuit.
Q: Is the strip suitable for use in explosive or flammable atmospheres?
A: No. This strip carries no ATEX certification and must not be used in any environment classified as explosive, flammable, or potentially hazardous under DSEAR or equivalent regulations.
Q: What is the difference between the 10m, 25m, and 50m options?
A: All three share the same specification: IP65, 110V, 12.5W per metre, 180 LEDs per metre. The only differences are length, format (10m comes in a bag, 25m and 50m come on a reel), total LED count, and total power draw. Select the length suited to the area to be illuminated. For large open site areas, plant rooms, or extended tunnel runs, the 50m reel avoids the need for joining multiple shorter strips.
