Kratos EVA'LAD 2 Webbing Rescue Ladder 6m - Integrated Belaying System and Aluminium Rungs

Kratos EVA'LAD 2 Webbing Rescue Ladder 6m

When a fall arrest system does its job and stops a worker mid-air, the rescue plan takes over. The EVA'LAD 2 is designed for exactly that moment: a conscious victim suspended at height who needs to reach safety under their own power, secured by a trained rescue worker. The ladder deploys from its integrated transport bag, connects to a rated anchor point via the upper textile loop, and unrolls to the victim in under two minutes. The integrated belaying system, a 7m kernmantle rope and sliding fall arrester, keeps the victim secured against a second fall during the entire ascent or descent. This is not a general access ladder. It is a dedicated rescue tool for a specific, planned emergency scenario.

Why Choose the EVA'LAD 2 Webbing Rescue Ladder 6m

• Integrated belaying system: The 7m kernmantle rope and sliding fall arrester are built into the ladder, not supplied separately. The rescue worker controls the rope from above while the victim climbs, providing continuous secondary protection throughout the rescue. No additional equipment is needed for the belay function.

• Aluminium-reinforced rungs: Each rung has a rigid 11mm diameter aluminium core encased in webbing. This gives a firm, reliable foothold under the full weight of a laden operative, even when the ladder is swinging free against a structure.

• Colour-coded bottom rungs: The 6th rung from the bottom is red and the 7th is orange. In a real rescue scenario, with a victim under stress and a rescuer working at speed, clear visual markers at the base of the ladder reduce the risk of misjudging the remaining distance to safety.

• Deploys in under two minutes: Compact storage in the integrated transport bag and a straightforward deployment sequence mean the ladder can be in position quickly. Rescue time is critical when a suspended worker is at risk of suspension trauma.

• Suitable for ascent and descent: The victim can climb up to the rescue worker's level or descend to the ground depending on the rescue scenario, giving the rescue team flexibility to respond to the specific situation.

• Three steel karabiners included: All connection hardware for deployment is supplied with the ladder, ready for immediate use.

• Compact and portable at 3.88kg: Light enough for a single rescue worker to carry to the deployment point, and small enough to be stored on site as permanent rescue equipment for the duration of a project.

What's in the Box?

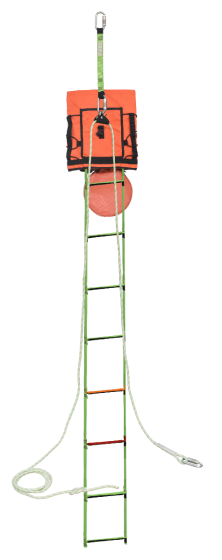

• EVA'LAD 2 webbing rescue ladder, 6m

• Integrated belaying system: sliding fall arrester and 7m kernmantle rope, 10mm diameter

• 3 steel karabiners

• Integrated transport bag

 Specifications

Compatibility

Who Is This For?

This product is for trained rescue workers and site safety managers on construction, industrial, and infrastructure projects where a working at height rescue plan is required. The EVA'LAD 2 is specified as the rescue equipment component of a formal rescue plan for operatives using fall arrest systems at height. The rescue worker deploying this ladder must be specifically trained and regularly exercised in its use. It is not a general-purpose access product and must not be used as such.

Typical Applications

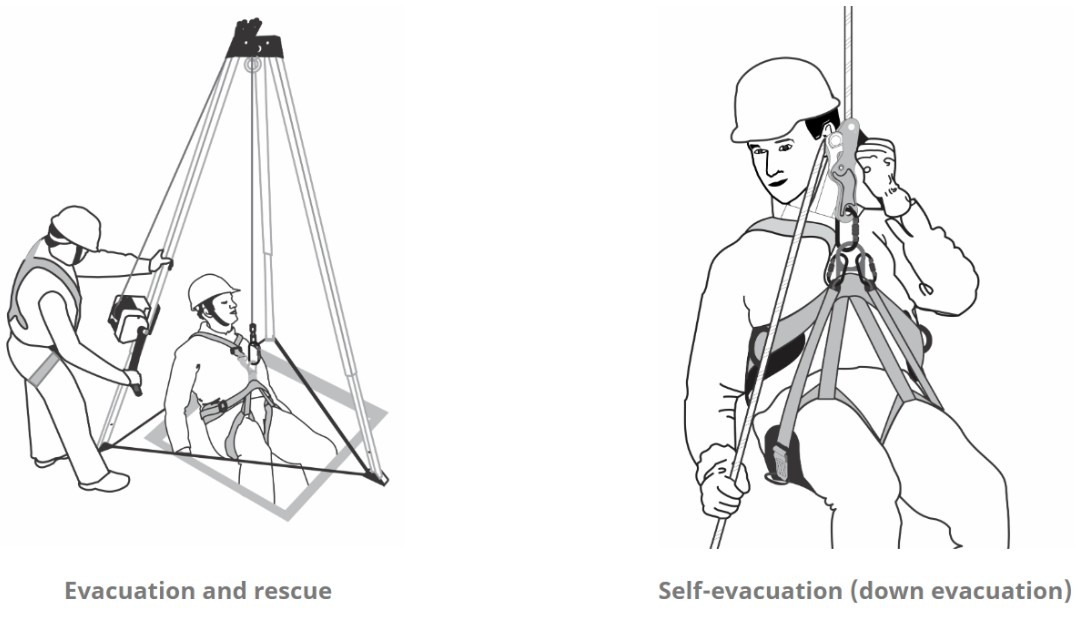

• Evacuating a conscious fall arrest victim suspended after an arrest event, where direct physical rescue is not possible

• Self-evacuation by a trained operative from a suspended or elevated position using the ladder and belaying system

• Emergency rescue planning for steel erection, roofing, scaffolding, and mast or tower work where fall arrest systems are in use

• Rescue plan component for fixed ladder work where the operative could become suspended between rungs

• Evacuation from elevated platforms or structures where other rescue methods cannot reach the victim

How to Use

1. The rescue worker confirms the scene is safe before proceeding. Check for residual hazards including electrical risk, gas, or structural instability. Do not proceed if the scene is unsafe.

2. Connect the upper textile loop of the ladder to a rated anchor point above the victim using one of the supplied steel karabiners. Confirm the connection is locked before deploying.

3. Unroll the ladder downward toward the victim. The red 6th rung and orange 7th rung from the bottom are visual markers indicating the base of the ladder. Confirm the ladder reaches the victim's level.

4. Instruct the victim to connect the sliding fall arrester from the integrated belaying system to their harness attachment point using the supplied karabiner.

5. The rescue worker controls the kernmantle rope from above, maintaining tension while the victim climbs up or descends as dictated by the rescue plan.

6. The victim ascends or descends the ladder to safety. The rescue worker keeps the rope under controlled tension throughout, providing continuous secondary protection against a second fall.

7. Once the victim has reached a safe position, disconnect the belaying system before removing the ladder from the anchor point.

8. Return all components to the transport bag. Inspect the ladder and belaying system before returning to service.

Safety

This ladder must only be used by a trained and exercised rescue worker in accordance with a pre-established rescue plan. Under Directive 89/655/CEE Article 7 and Annex II §4.4.f, the rescue worker must have been specifically trained for the rescue operations they are implementing. The EVA'LAD 2 is designed for evacuating a conscious victim who has not lost consciousness after a fall arrest event. It must not be used on an unconscious or incapacitated victim. Do not use this ladder as a means of general access at any time. Suspension trauma can develop rapidly in a suspended worker: the rescue must be completed as quickly as possible, and emergency services must be contacted in parallel with the rescue operation.

WARNING: DURING RESCUE AND EVACUATION OPERATIONS, THE RESCUE WORKER MUST BE TRAINED AND EXERCISED.

Maintenance

Inspect the ladder, rope, and all components before and after each use and each training exercise. Check the webbing rungs for cuts, abrasion, and contamination. Check the kernmantle rope along its full length for stiffness, kinking, or sheath damage. Check all karabiners for correct gate function. Clean by wiping with a damp cloth. Dry naturally away from direct heat. Store in the integrated transport bag away from UV exposure, chemicals, and sharp edges. Formally inspect all components by a competent person at intervals not exceeding 12 months, with written records kept. Withdraw the ladder from service immediately after any rescue deployment or training fall event and have it assessed by a competent person before return to service.

Frequently Asked Questions

Q: What is this ladder actually for and when would it be used?

 A: The EVA'LAD 2 is a rescue tool for a specific scenario: a worker who has been arrested by their fall arrest system and is suspended at height, conscious, and unable to reach safety without assistance. The trained rescue worker deploys the ladder from an anchor point above, unrolls it to the victim, and controls the belaying rope while the victim climbs to safety. It is one component of a formal working at height rescue plan and must never be used as a general access ladder.

Q: What does the integrated belaying system do?

 A: The integrated belaying system consists of a sliding fall arrester and a 7m kernmantle rope. The victim connects the fall arrester to their harness before climbing. The rescue worker holds the rope from above, maintaining controlled tension. If the victim slips or loses grip during the rescue, the fall arrester locks and the rope prevents a second fall. This secondary protection is what makes the EVA'LAD 2 a rescue tool rather than simply a rope ladder.

Q: Can this be used to rescue an unconscious victim?

A: No. The EVA'LAD 2 requires the victim to be conscious and physically capable of climbing the ladder under their own power, with guidance from the rescue worker. An unconscious or physically incapacitated victim cannot use this ladder safely. A different rescue method, such as a mechanical lowering or raising system, must be specified in the rescue plan for scenarios involving an incapacitated victim.

Q: What certification does this product carry and what does PPE-R/11.115 mean?

 A: PPE-R/11.115 is the CE certification reference for this product under the EU Personal Protective Equipment Regulation. It confirms the product has been assessed against the applicable safety requirements for rescue and evacuation equipment and meets those requirements as a certified PPE product. CE marking is required for fall protection and rescue equipment used on UK sites under the Personal Protective Equipment at Work Regulations 1992.

Q: Does the rescue worker need specific training to use this product?

 A: Yes, and this is a legal obligation, not a recommendation. Under Directive 89/655/CEE Article 7 and Annex II §4.4.f, the rescue worker must be specifically trained and regularly exercised in the rescue operations they will implement. Owning this ladder does not mean your team is prepared to use it. The rescue plan must define who is trained, what procedures they will follow, and how regularly they practise.

Q: Can this ladder be used as a permanent means of access to a scaffold or structure?

 A: No. The EVA'LAD 2 must not be used as a means of access under any circumstances. It is designed exclusively for rescue and evacuation scenarios. Using it as an access ladder risks damaging the webbing rungs and belaying system, compromising its reliability in a real emergency. Permanent or temporary access requires a ladder certified for that purpose.

Q: How quickly can this ladder be deployed in an emergency?

 A: The EVA'LAD 2 is designed for deployment in under two minutes from the integrated transport bag. Achieving this in a real scenario requires the rescue worker to be trained and familiar with the deployment sequence. Regular practice exercises are essential: the first time a rescue worker deploys this ladder should not be during an actual emergency.
