Twisted Knot Bevel Wire Brush M14x100mm - Angle Grinder Rust Removal

Twisted Knot Bevel Wire Brush M14x100mm - Angle Grinder Rust Removal

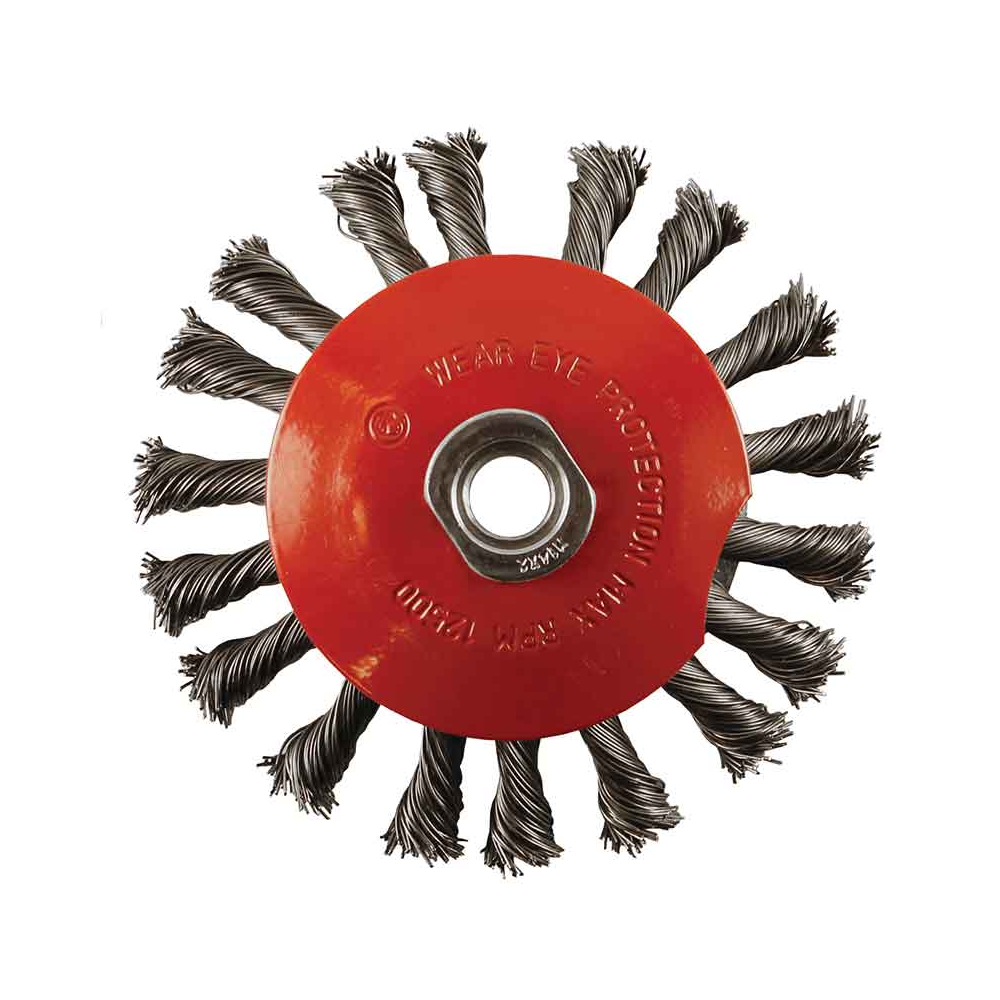

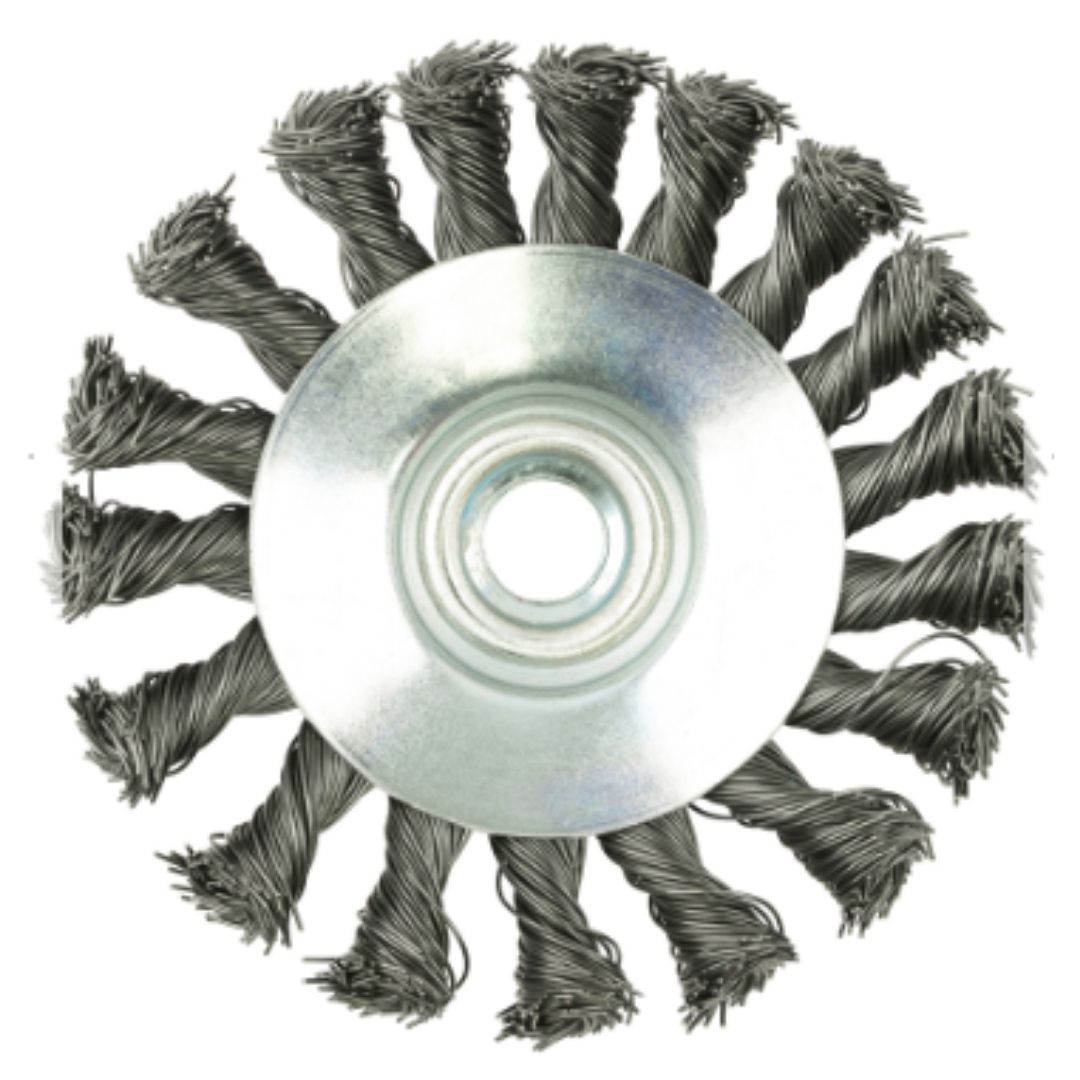

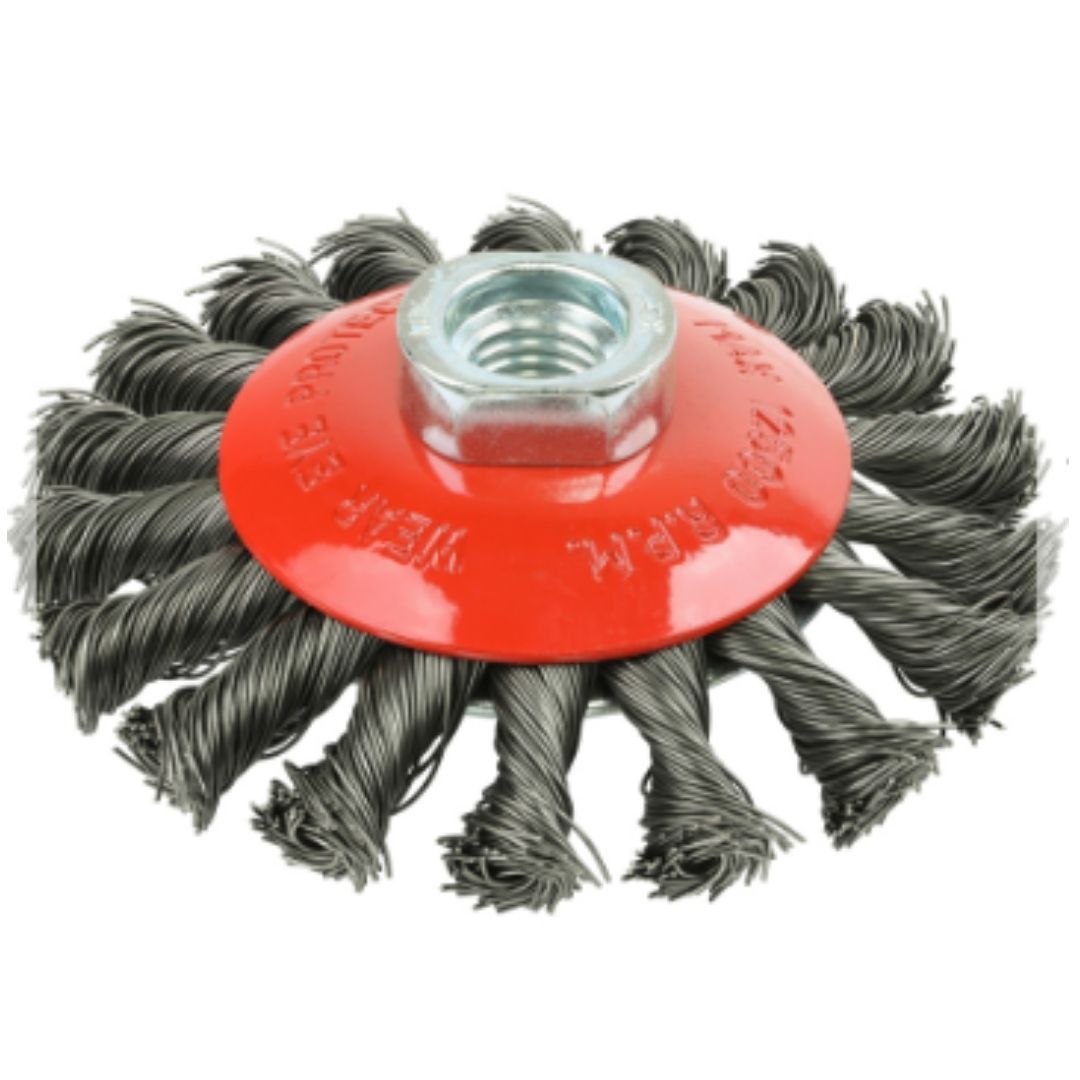

The Twisted Knot Bevel Wire Brush is a 100mm M14 wire brush designed for aggressive surface preparation on angle grinders. The twisted knot wire construction concentrates wire tension at the tip of each strand, delivering significantly higher surface contact pressure than a crimped wire brush of equivalent size. This makes it the correct tool for removing heavy rust, mill scale, hardened paint, weld spatter, and surface contamination from steel, concrete, and metal surfaces where a softer brush would either skip across the surface or wear too quickly to be effective. The bevel profile adds a further practical advantage over flat cup brushes by allowing access into corner joints, fillet welds, and angled sections where a flat brush cannot make full contact.

 The 0.5mm twist steel wire is hard wearing and gives an aggressive removal of paint, rust, rubber, concrete or dirt. The metal ring can be removed to increase usage life.

Why Choose the Twisted Knot Bevel Wire Brush

• Twisted knot wire construction: each wire strand is twisted under tension before being anchored into the brush body, which concentrates abrasive force at the wire tip rather than distributing it along the length. This gives the twisted knot brush a significantly more aggressive cutting action than crimped wire brushes on the same material.

• Bevel profile for corner and joint access: the angled wire arrangement allows the brush to reach into fillet welds, corner joints, and recessed sections that a flat cup brush physically cannot contact. This makes it the correct tool for weld preparation and cleaning in fabricated steel structures.

• M14 direct thread fitment: the M14 thread mounts directly onto standard angle grinder spindles without requiring an adaptor, ensuring secure, concentric fitment and eliminating the wobble that loose-fitting adaptors can introduce at high speed.

• Suitable for metal, concrete, rust, and paint: the twisted knot construction handles the full range of surface preparation tasks from light paint stripping on sheet steel to heavy rust and mill scale removal on structural sections, reducing the number of different brushes needed on a mixed-material site.

• 100mm diameter for controlled working: at 100mm, the brush covers sufficient surface area for productive working on sections and joints whilst remaining manoeuvrable enough for detail work on complex fabrications and tight access areas.

• 12,500rpm maximum operating speed: rated for safe use on standard 115mm and 125mm angle grinders, covering the most common tool sizes used by fabricators, steelwork contractors, and general construction trades on UK sites.

What's Included

• One Twisted Knot Bevel Wire Brush, 100mm diameter, M14 thread

 Specifications

 Compatibility

Who Is This For?

The Twisted Knot Bevel Wire Brush is aimed at fabricators, structural steelwork contractors, welders, general construction trades, and maintenance engineers who carry out surface preparation, rust removal, and weld cleaning on steel, metal, and concrete surfaces. It suits the fabricator cleaning weld beads and removing spatter from steel frames, the site operative stripping rust and old paint from structural steel before recoating, and the maintenance engineer descaling corroded pipework and fixings during refurbishment work. This is a professional tool for aggressive surface preparation, not a brush for light cleaning or polishing work.

Typical Applications

• Removing heavy rust and mill scale from structural steel sections before painting or galvanising

• Cleaning weld beads and removing weld spatter from fabricated steel frames and connections

• Stripping old paint and protective coatings from steel plate, pipework, and structural sections

• Descaling corroded steel reinforcement bar before concrete encasement or protective coating

• Preparing concrete and masonry surfaces by removing laitance, loose material, and surface contamination

• Cleaning mortar and cement residue from steel fixings, brackets, and embedded components

• Removing surface rust and oxidation from steel pipe and tube before mechanical or welded joining

How to Use

1. Confirm your angle grinder has an M14 threaded spindle and that the tool's maximum RPM does not exceed 12,500rpm. Check the tool nameplate before fitting.

2. Remove the grinding disc or current attachment from the grinder. Thread the Twisted Knot Bevel Wire Brush directly onto the M14 spindle by hand, tightening firmly without using a spanner on the brush body.

3. Ensure the correct guard is fitted to the angle grinder before operating. Do not operate a wire brush on an angle grinder without the appropriate guard in place.

4. Run the brush at full operating speed for at least 15 seconds before making contact with the workpiece, observing from the side for any sign of wire breakage or imbalance.

5. Apply the brush to the workpiece surface at a low angle, allowing the twisted wire tips to make contact with the surface. Do not press hard into the surface. The wire tension and rotational speed do the work.

6. Use consistent, overlapping strokes across the surface for even material removal. For weld cleaning, work along the weld bead direction to avoid wire snagging on weld profile edges.

7. Inspect the brush periodically during use for broken or missing wire strands. Remove the brush from the tool immediately if wire loss is evident.

8. After use, remove the brush from the tool and store in a dry environment away from moisture to prevent corrosion of the wire strands.

Safety and Maintenance

Safety during use:

• Eye protection is mandatory: use a full face shield to EN 166, not just safety goggles. Twisted knot wire brushes generate high-velocity wire fragments when individual strands break during use, and these travel at sufficient speed to penetrate standard safety spectacles.

• Wear cut-resistant gloves to EN 388. Wire brush use generates sharp metal debris and the wire strands themselves present a laceration risk during fitting and removal.

• Hearing protection to EN 352 is required. Angle grinders operating wire brushes consistently exceed 85dB(A).

• Respiratory protection: wire brushing rust, old paint, and surface coatings generates metallic dust and potentially hazardous paint pigment particles. Wear a minimum FFP2 mask to EN 149. If stripping lead-based paint or other hazardous coatings, a full COSHH assessment is required before work begins.

• Never exceed 12,500rpm. Over-speeding a wire brush dramatically increases the risk of wire strand ejection.

• Stand to the side of the brush rotation arc when starting the tool, not in line with the wire tips.

• Do not use this brush on wood, plastic, or any surface where wire contamination of the workpiece would cause a problem.

After use and storage:

• Inspect the brush after each use for broken wire strands, deformation of the brush body, or loosening of the wire anchor. Discard any brush showing significant wire loss or body damage.

• Store the brush in a dry environment. Moisture causes corrosion of the steel wire strands, which weakens them and increases the risk of strand ejection during subsequent use.

• Do not store wire brushes where they can contact other tools or hard objects that could deform the wire profile.

Frequently Asked Questions

Q: What is the difference between a twisted knot wire brush and a crimped wire brush?

 A: Twisted knot wire brushes twist multiple wire strands together under tension before anchoring them into the brush body. This concentrates abrasive force at the wire tip, delivering a more aggressive cutting action than crimped wire brushes where individual wires are simply waved or corrugated. For heavy rust removal, mill scale, and weld cleaning, twisted knot is the correct choice. Crimped wire brushes are better suited to lighter cleaning and finishing work.

Q: What is the difference between a bevel brush and a flat cup brush?

A: A flat cup brush presents its wire tips perpendicular to the work surface, which is ideal for flat surface preparation. A bevel brush angles the wire tips outward, allowing the brush to reach into corner joints, fillet welds, angled sections, and recessed areas that a flat cup brush cannot contact effectively. For weld cleaning on fabricated structures, the bevel profile is usually the more practical choice.

Q: Will this brush fit my angle grinder?

 A: The Twisted Knot Bevel Wire Brush has an M14 thread and fits directly onto any angle grinder with an M14 threaded spindle, which is the standard fitment on 115mm and 125mm angle grinders sold in the UK. Before fitting, confirm your tool's maximum RPM does not exceed 12,500rpm by checking the tool nameplate.

Q: Is this brush safe to use on stainless steel?

 A: A standard carbon steel twisted knot wire brush will contaminate stainless steel surfaces with ferrous particles, which initiate corrosion and destroy the passive layer. For surface preparation on stainless steel, use a dedicated stainless steel wire brush with stainless wire strands to avoid cross-contamination.

Q: How do I know when the brush needs replacing?

A: Inspect the brush before and after each use. Replace the brush if you notice broken or missing wire strands, deformation of the brush body, reduction in brush diameter as wires wear back, or any loosening of the wire anchor points in the brush body. A brush with missing strands becomes unbalanced at speed, which increases vibration and the risk of further wire ejection.

Q: Can this brush be used to prepare surfaces before painting or coating?

 A: Yes. Removing rust, mill scale, and old paint with the Twisted Knot Bevel Wire Brush provides a mechanically prepared surface that improves adhesion of primers, protective coatings, and galvanising treatments. For surfaces that require a specific surface profile standard such as Sa 2.5 under ISO 8501-1, confirm with your coating supplier that mechanical wire brushing meets the preparation standard specified.

Q: What PPE is essential when using a wire brush on an angle grinder?

 A: A full face shield to EN 166 is the minimum eye and face protection requirement, not safety goggles alone, because broken wire strands travel at sufficient velocity to penetrate standard spectacle lenses. Cut-resistant gloves to EN 388, hearing protection to EN 352, and respiratory protection to at least FFP2 are also required for all wire brushing operations.
