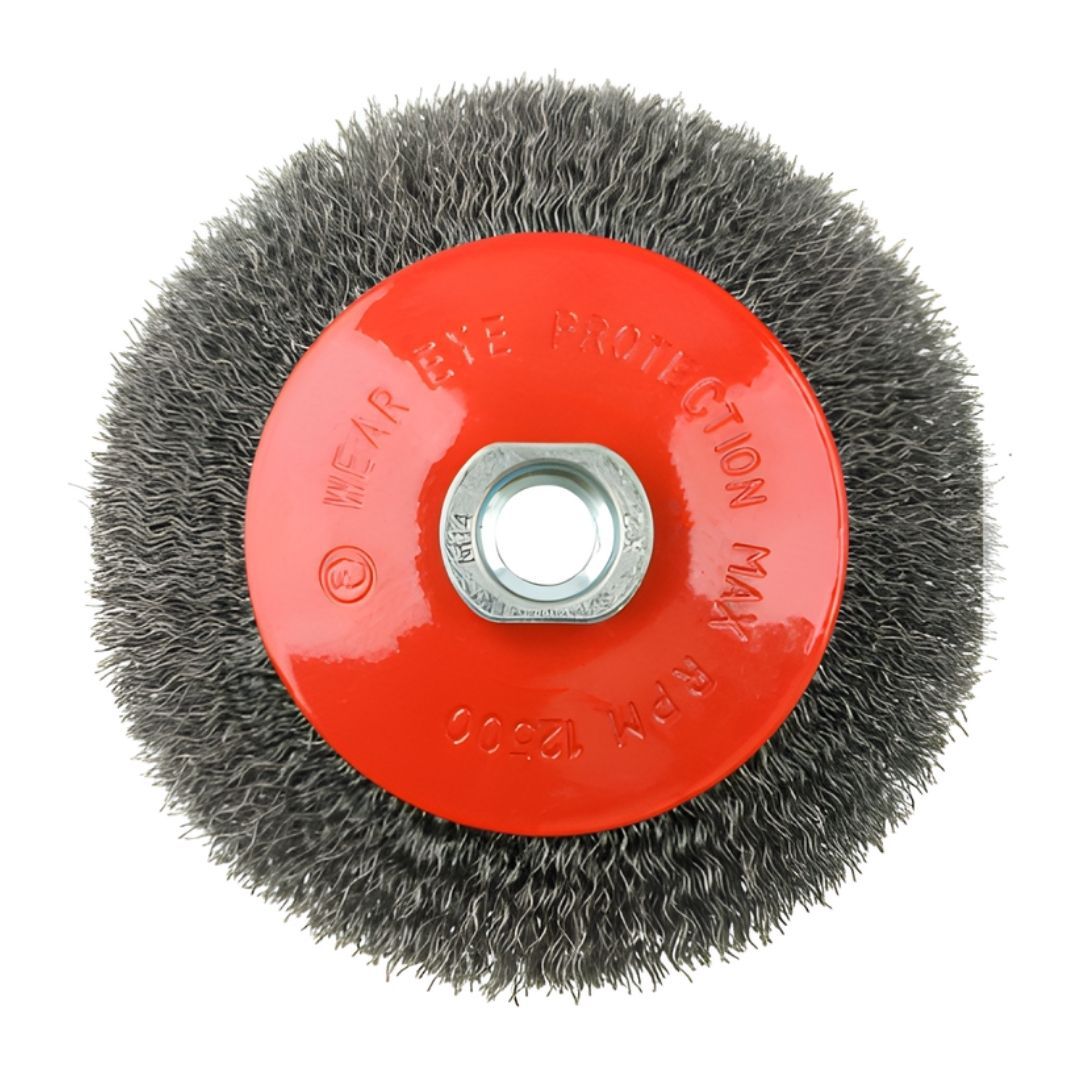

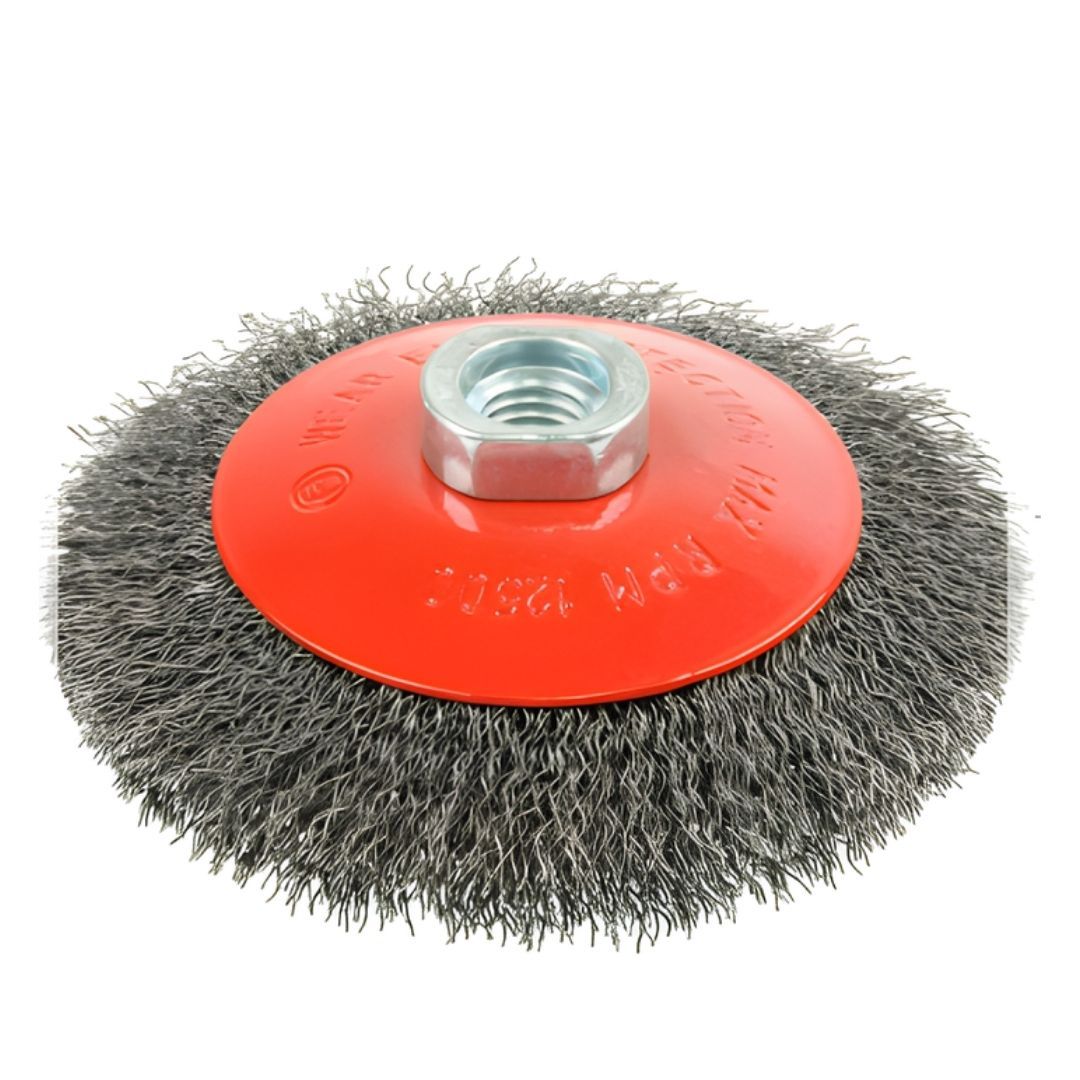

A 115mm carbon steel crimped bevel wire brush with M14 thread and 0.3mm wire, designed for controlled removal of loose paint, light rust, and surface dirt on angle grinders without scarring the base material.
- 0.3mm crimped carbon steel wire: light cleaning action, no scarring on base material
- Bevel profile: reaches corner joints and angled sections flat cup brushes cannot access
- Thread: M14, fits all standard angle grinders with M14 spindle
- Diameter: 115mm, suited to 115mm and 125mm angle grinders
- Max speed: 12,500rpm, check tool nameplate before fitting
- Materials: metal, concrete, loose paint, light rust and dirt
Crimp Bevel Wire Brush M14x115mm - Angle Grinder Surface Preparation
A 115mm carbon steel crimped bevel wire brush with M14 thread and 0.3mm wire, designed for controlled removal of loose paint, light rust, and surface dirt on angle grinders without scarring the base material.
- 0.3mm crimped carbon steel wire: light cleaning action, no scarring on base material
- Bevel profile: reaches corner joints and angled sections flat cup brushes cannot access
- Thread: M14, fits all standard angle grinders with M14 spindle
- Diameter: 115mm, suited to 115mm and 125mm angle grinders
- Max speed: 12,500rpm, check tool nameplate before fitting
- Materials: metal, concrete, loose paint, light rust and dirt
- Buy 10 for £25.20 £21.00 each and save 13%
- Buy 24 for £21.84 £18.20 each and save 25%
| BULK DISCOUNT | 10 | 24 |
|---|---|---|
| Price | £21.00 £25.20 | £18.20 £21.84 |
Order 1x to earn 24 FASTPoints
Order to earn 24 FASTPoints
Log in to access trade discountsCrimp Bevel Wire Brush M14x115mm - Angle Grinder Surface Preparation
The Crimp Bevel Wire Brush is a 115mm M14 carbon steel wire brush designed for light to medium surface preparation on angle grinders. With 0.3mm crimped wire strands, it removes loose paint, light rust, and surface dirt without the scarring or excessive material removal that a twisted knot brush would cause on thinner or more sensitive steel surfaces. The crimped wire construction flexes on contact with the surface rather than concentrating force at a single point, which makes it the correct choice for controlled cleaning work where the integrity of the base material needs to be preserved. The bevel profile adds practical access into corner joints, fillet welds, and angled sections that a flat cup brush cannot reach.
Why Choose the Crimp Bevel Wire Brush
-
0.3mm crimped carbon steel wire: the fine wire diameter and crimped construction flex on surface contact, delivering a controlled cleaning action that removes loose paint, rust, and dirt without gouging or scarring the underlying material, which is critical on thin-gauge sheet steel and prepared surfaces.
-
Bevel profile for joint and corner access: the angled wire arrangement reaches into corner joints, fillet welds, and recessed sections where a flat cup brush cannot make full contact, making it practical for cleaning complex fabrications and structural connections.
-
M14 direct thread fitment: mounts directly onto standard angle grinder spindles without an adaptor, ensuring secure and concentric fitment at 12,500rpm operating speed.
-
115mm diameter for productive coverage: at 115mm, the brush covers a wider surface area per pass than smaller brushes, improving productivity on flat surface preparation tasks such as paint stripping from steel plate and sheet.
-
12,500rpm maximum operating speed: rated for safe use on standard 115mm and 125mm angle grinders, the most common tool sizes used by UK trade professionals.
-
Carbon steel wire construction: carbon steel wire delivers sufficient surface aggression for light rust and paint removal on standard steel surfaces whilst remaining cost-effective for regular consumable replacement on busy sites.
What's Included
- One Crimp Bevel Wire Brush, 115mm diameter, M14 thread
Specifications
| Specification | Detail |
|---|---|
| Product Name | Crimp Bevel Wire Brush M14x115mm - Angle Grinder Surface Preparation |
| Product Code | ABWBB115M14C |
| Brush Type | Crimped Bevel Wire Brush |
| Diameter | 115mm |
| Thread | M14 |
| Wire Material | Carbon Steel |
| Wire Thickness | 0.3mm |
| Max Operating Speed | 12,500 rpm |
| Profile | Bevel |
| Compatible Tools | Angle Grinders with M14 Threaded Spindle |
| Suitable Materials | Metal, Concrete, Loose Paint, Light Rust, Dirt |
| Pack Dimensions | 134mm x 122mm x 46mm |
Compatibility
| Material / Application | Status |
|---|---|
| Loose Paint & Coating Removal | ✓ Compatible |
| Light Rust & Surface Oxidation | ✓ Compatible |
| Surface Dirt & Contamination | ✓ Compatible |
| Concrete Surface Cleaning | ✓ Compatible |
| Light Weld Spatter Removal | ✓ Compatible |
| Heavy Rust & Mill Scale | ✗ Not Recommended – Use Twisted Knot Brush |
| Stainless Steel Surfaces | ✗ Not Recommended – Risk of Ferrous Contamination |
| Wood Surfaces | ✗ Not Recommended |
| Plastics & Composites | ✗ Not Recommended |
Who Is This For?
The Crimp Bevel Wire Brush is aimed at fabricators, general construction trades, maintenance engineers, and site operatives who carry out light to medium surface preparation, paint stripping, and cleaning on metal and concrete surfaces. It is particularly suited to work on thin-gauge steel sheet, lightly corroded structural sections, and painted surfaces where the more aggressive twisted knot construction would scar the base material or remove too much surface profile. This is the correct brush for controlled cleaning and preparation work, not for heavy rust removal or mill scale stripping on heavily corroded structural steel.
Typical Applications
-
Stripping loose paint and deteriorated coatings from steel plate and sheet before repainting or recoating
-
Light rust and surface oxidation removal from mildly corroded steel sections during maintenance and refurbishment
-
Cleaning mortar, cement, and concrete splatter from steel fixings, brackets, and embedded components
-
Preparing concrete and masonry surfaces by removing loose laitance and surface contamination before coating
-
Removing light weld spatter and surface debris from fabricated steel frames and connections
-
General surface cleaning and decontamination on metal components during inspection and maintenance work
-
Removing surface dirt and oxidation from steel pipe and tube before protective coating or joining
How to Use
-
Confirm your angle grinder has an M14 threaded spindle and that the tool's maximum RPM does not exceed 12,500rpm by checking the tool nameplate before fitting.
-
Remove the current disc or attachment from the grinder. Thread the Crimp Bevel Wire Brush directly onto the M14 spindle by hand, tightening firmly without using a spanner on the brush body.
-
Ensure the correct guard is fitted to the angle grinder before operating. Do not operate a wire brush without the appropriate guard in place.
-
Run the brush at full operating speed for at least 15 seconds before making contact with the workpiece, observing from the side for any sign of wire breakage or imbalance.
-
Apply the brush to the workpiece at a low angle, allowing the crimped wire tips to make light contact with the surface. Do not press hard into the material. The rotational speed and wire flexibility do the work.
-
Use consistent, overlapping strokes for even material removal. Avoid dwelling in one spot, which concentrates heat and can distort thin-gauge material.
-
Inspect the brush periodically for broken or missing wire strands and remove from the tool immediately if wire loss is evident.
-
After use, remove the brush from the tool and store in a dry environment away from moisture to prevent wire corrosion.
Safety and Maintenance
Safety during use:
-
Eye protection is mandatory: use a full face shield to EN 166. Even crimped wire brushes generate wire fragments and debris at 12,500rpm, and a full face shield provides protection that safety goggles alone cannot offer.
-
Wear cut-resistant gloves to EN 388 for fitting, removal, and all operations where hand proximity to the brush or workpiece is unavoidable.
-
Hearing protection to EN 352 is required. Angle grinders operating wire brushes consistently exceed 85dB(A).
-
Respiratory protection: wire brushing paint, rust, and surface coatings generates metallic dust and potentially hazardous particles. Wear a minimum FFP2 mask to EN 149. If stripping lead-based or other hazardous coatings, a full COSHH assessment is required before work begins.
-
Never exceed 12,500rpm. Check the tool nameplate before fitting and do not fit this brush to a tool whose maximum RPM exceeds this rating.
-
Stand to the side of the brush rotation arc when starting the tool, not directly in line with the wire tips.
After use and storage:
-
Inspect the brush after each use for broken wire strands, deformation of the brush body, or loosening of the wire anchor points. Discard any brush showing significant wire loss or body damage.
-
Store in a dry environment. Moisture causes corrosion of the carbon steel wire strands, weakening them and increasing the risk of strand ejection during subsequent use.
-
The brush is supplied and stored in box packaging. Retain the packaging for storage between uses to protect the wire profile from damage.
Frequently Asked Questions
Q: What is the difference between a crimped wire brush and a twisted knot wire brush?
A: Crimped wire brushes use individually corrugated wire strands that flex on contact, delivering a controlled cleaning action suited to loose paint, light rust, and surface dirt removal without scarring the base material. Twisted knot brushes concentrate wire tension at the tip for a more aggressive cutting action suited to heavy rust, mill scale, and weld spatter on structural steel. For thin-gauge or sensitive surfaces, crimped is the correct choice.
Q: Will this brush scratch or scar the base material?
A: The 0.3mm crimped wire construction is specifically designed to remove loose surface contamination without scarring the underlying material. This makes it suitable for use on prepared steel surfaces where preserving the base material profile is important before recoating or finishing. For very thin or polished surfaces, always test on a small area first.
Q: Will this brush fit my angle grinder?
A: The Crimp Bevel Wire Brush has an M14 thread and fits directly onto any angle grinder with an M14 threaded spindle, the standard fitment on 115mm and 125mm angle grinders sold in the UK. Confirm your tool's maximum RPM does not exceed 12,500rpm before fitting.
Q: What is the difference between a bevel brush and a flat cup brush?
A: A flat cup brush presents its wire tips perpendicular to the work surface, which suits flat open surface preparation. A bevel brush angles the wire tips outward, allowing access into corner joints, fillet welds, and angled sections that a flat cup brush cannot reach. For cleaning complex fabrications and structural connections, the bevel profile is the more practical choice.
Q: Can this brush be used on stainless steel?
A: No. The carbon steel wire will deposit ferrous particles onto stainless steel surfaces, destroying the passive chromium oxide layer and initiating surface corrosion. For stainless steel surface preparation, use a dedicated stainless steel wire brush with stainless wire strands.
Q: When should I use this brush instead of the twisted knot bevel wire brush?
A: Use the Crimp Bevel Wire Brush when the task requires controlled cleaning rather than aggressive material removal, specifically for loose paint stripping, light rust treatment, and general surface cleaning where a twisted knot brush would scar the base material or remove too much surface profile before coating or finishing.
Q: What PPE is required when using this brush?
A: A full face shield to EN 166 is the minimum for eye and face protection. Cut-resistant gloves to EN 388, hearing protection to EN 352, and respiratory protection to at least FFP2 to EN 149 are also required. If stripping old paint that may contain lead or other hazardous substances, a full COSHH assessment must be completed before work begins.
