Adjustable steel tripod for the 110V LED Globe Site Light, raising the fitting to 1.5m for freestanding area lighting across construction floors and site spaces.
- Extends to 1490mm (approx. 1.5m), adjustable height
- IP54 rated steel for outdoor site use
- IK07 impact resistant
- Stable three-leg spread of 795mm
- Lightweight at 2.5kg for easy repositioning
- UKCA and CE approved, 2-year warranty
- Globe light (EL060013) sold separately

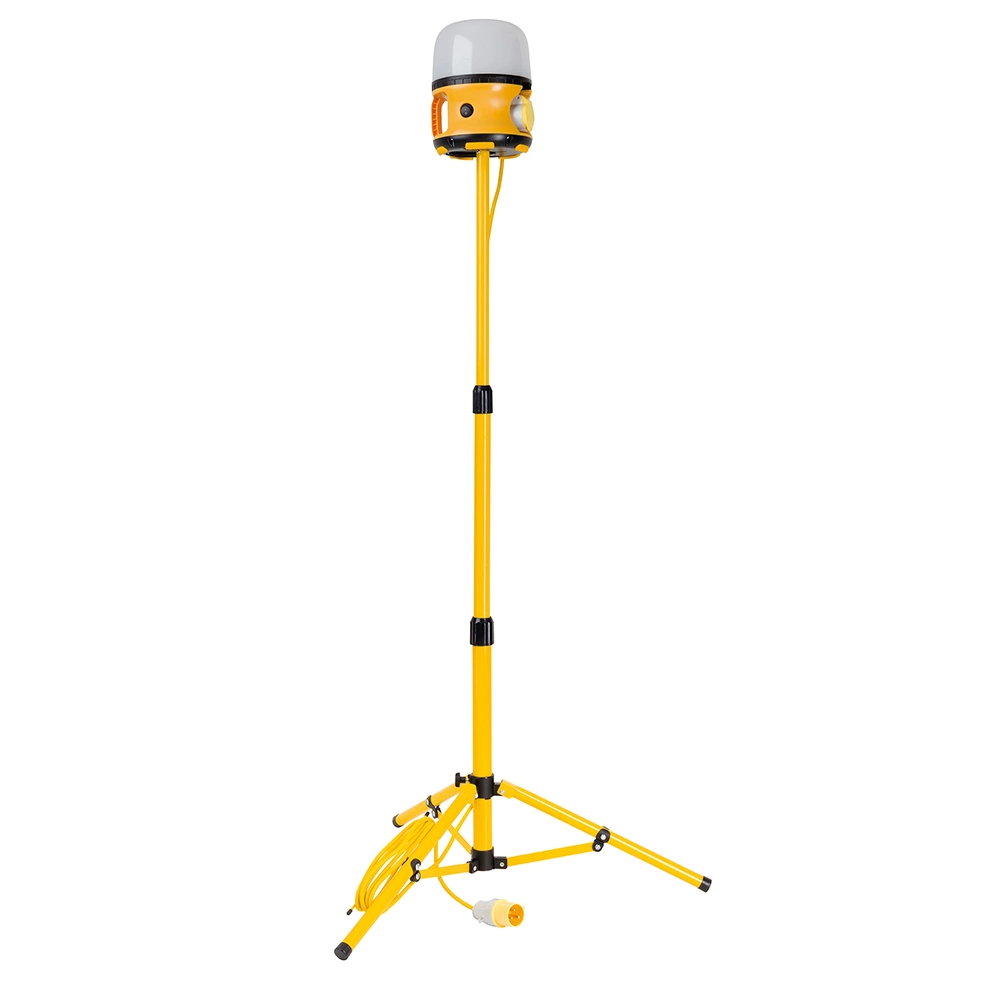

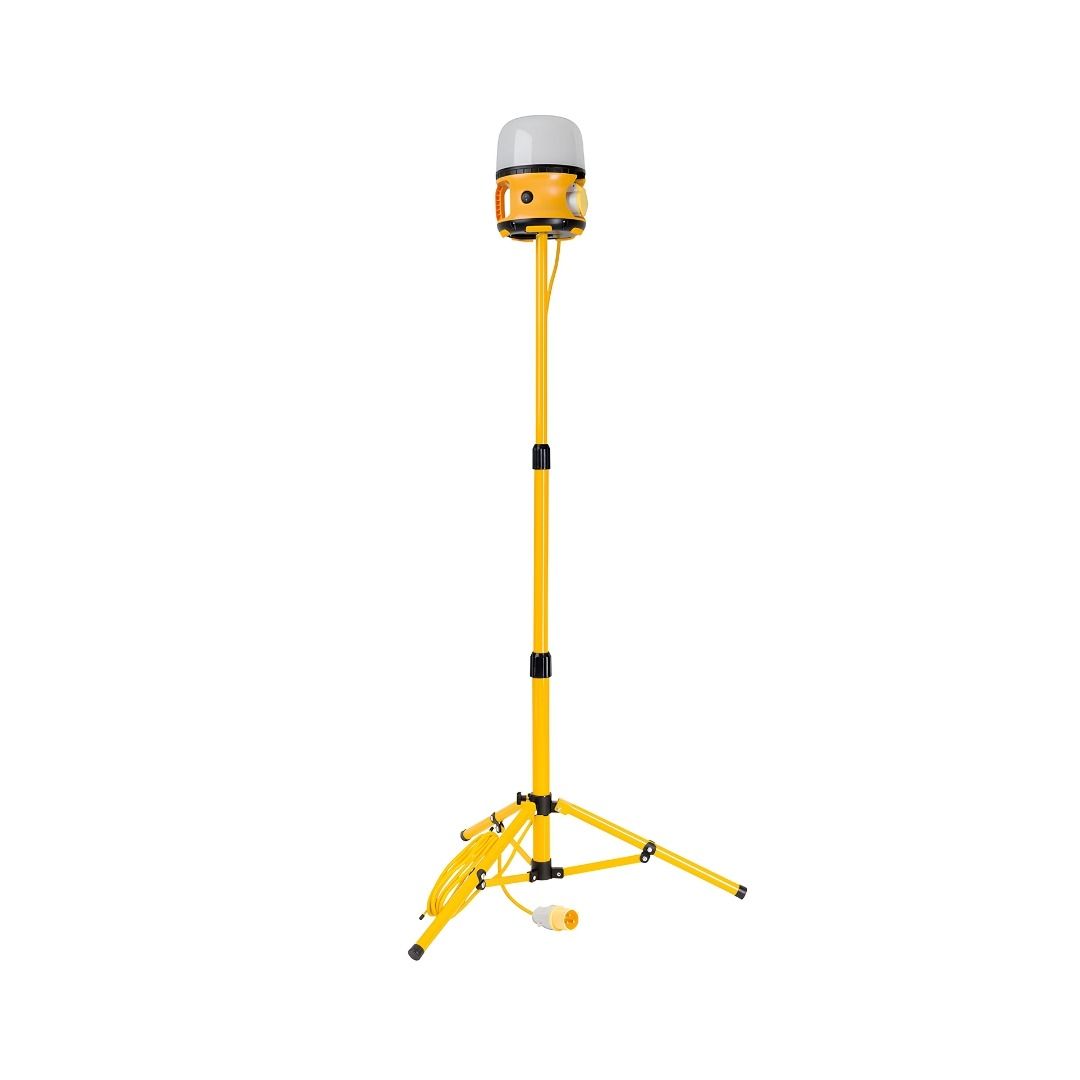

Adjustable Tripod for 110V LED Globe Site Light - 1.5m
Adjustable steel tripod for the 110V LED Globe Site Light, raising the fitting to 1.5m for freestanding area lighting across construction floors and site spaces.
- Extends to 1490mm (approx. 1.5m), adjustable height
- IP54 rated steel for outdoor site use
- IK07 impact resistant
- Stable three-leg spread of 795mm
- Lightweight at 2.5kg for easy repositioning
- UKCA and CE approved, 2-year warranty
- Globe light (EL060013) sold separately
Order 1x to earn 29 FASTPoints
Order to earn 29 FASTPoints
Log in to access trade discountsAdjustable Tripod for 110V LED Globe Site Light
Globe light adjustable tripod designed for use with the 110V LED Globe Site Light (EL060013), raising the fitting from floor level to a working height of up to 1.5m. At that height, a 360° globe distributes light over a considerably larger floor area than it can from its own base. IP54 rated steel construction and a wide three-leg spread keep the unit stable across the range of surfaces found on an active construction site.
Why height makes a meaningful difference to globe light coverage
A globe light sitting on its own base at floor level illuminates the immediate area around it, but site materials, plant, and equipment interrupt the light before it reaches the wider floor space. In a large open floor or welfare area, that means multiple lights placed around the perimeter to avoid dark zones in the middle. Raising the same globe light to 1.5m on the adjustable tripod puts it above most obstructions. The 360° output then spreads at a higher angle, covering a larger radius from a single central position.
Key Features
-
Extends to 1490mm: Telescoping pole sections adjust to the height the space requires. Maximum extended height is 1490mm, approximately 1.5m.
-
IP54 rated steel body: Protected against water splashes from any direction and partial dust ingress. Suitable for outdoor construction sites, covered scaffold areas, and temporary welfare buildings.
-
IK07 impact resistance: The steel construction withstands knocks and contact on a live construction site without damage to the locking mechanisms or pole sections.
-
795mm three-leg spread: Wide stable base on concrete, tarmac, and compacted ground. The spread keeps the unit upright at full height without additional ballast under typical site conditions.
-
Lightweight at 2.5kg: Moves easily between working areas during a shift. No additional equipment or second person required to reposition it.
-
Compatible with 110V LED Globe Site Light (EL060013): Connects via the central thread mount on the underside of the globe light head. The globe light is sold separately.
Who is this for
Trades and roles:
-
Site electricians
-
Site managers and foremen
-
Groundwork and civils contractors
-
Electrical contractors
-
Facilities management teams
Industries:
-
Construction and groundworks
-
Civil engineering and infrastructure
-
Industrial maintenance
-
Temporary works and site welfare
-
Utilities and public sector construction
Specifications
| Specification | Detail |
| Product Name | Adjustable Tripod for 110V LED Globe Site Light – 1.5m |
| SKU | EL060014 |
| Compatible With | 110V LED Globe Site Light (EL060013). Globe light sold separately. |
| Material | Steel |
| Colour | Yellow (RAL1007) |
| IP Rating | IP54 |
| IK Rating | IK07 |
| Max Extended Height | 1490mm (approx. 1.5m) |
| Leg Spread | 795mm x 795mm |
| Approval | UKCA and CE |
| Warranty | 2 years |
| Net Weight | 2.5 kg |
| Box Dimensions | L:650mm x W:140mm x D:140mm |
| Box Gross Weight | 3 kg |
Compatibility
| Application or condition | Status |
| Use with 110V LED Globe Site Light (EL060013) | ✓ Compatible – central thread mount |
| Construction floors, welfare areas, and open site spaces | ✓ Suitable |
| Outdoor and covered site use | ✓ Suitable – IP54 rated |
| Height-adjustable freestanding positioning | ✓ Suitable – extends to 1490mm |
| Reasonably level concrete, tarmac, or compacted earth | ✓ Suitable – 795mm three-leg spread |
| Use with other globe light models not listed above | ✗ Confirm compatibility before use – only EL060013 confirmed |
| Photographic, optical, or survey equipment | ✗ Not suitable – designed for site lighting use only |
| Significantly sloped or unstable surfaces without additional stabilisation | ✗ Not recommended – risk of tipping at full height |
| Use in high winds without securing the legs | ✗ Not recommended – secure legs or remove fitting in adverse conditions |
Who is this for
Site managers and electricians using the 110V LED Globe Site Light (EL060013) who need freestanding height-adjustable positioning rather than floor-level or hook-mounted use. The tripod is particularly useful in larger open spaces where a floor-level globe light would not cover the full working area, and in temporary welfare buildings where the light needs to be repositioned between areas without removal from its mounting.
Typical applications
-
Raising the 110V LED Globe Site Light to working height on construction floors where materials, plant, or equipment would interrupt floor-level coverage.
-
Positioning a globe light at the centre of an open floor or welfare area to maximise coverage from a single fitting.
-
Adjusting height between spaces during the same project, from low-ceilinged plant rooms to full-height construction floors.
-
Moving the globe light between work areas during a shift without a fixed wall or floor mount.
-
Outdoor covered site areas where a freestanding light needs to be IP54 rated against rain splash and debris.
How to use
Step 1: Attach the 110V LED Globe Site Light (EL060013) to the central thread mount on top of the tripod pole. The globe light is sold separately.
Step 2: Spread the three legs to their full open position. Confirm all leg locking mechanisms are engaged before proceeding.
Step 3: Extend the telescoping pole sections to the required working height. Lock each section fully before moving to the next. Maximum height is 1490mm.
Step 4: Place the tripod on a level or near-level surface. Check that all three feet make firm contact before connecting power.
Step 5: Connect the globe light to the 110V supply via its cable. Switch on and confirm operation.
Step 6: Before repositioning, always disconnect the power supply. Do not drag or tilt the tripod with the globe light energised.
Common mistakes
-
Raising height before attaching the globe light: fit the globe light to the central thread before extending the pole sections. It is easier to engage the thread at low height, and the connection is more stable before the pole is fully extended.
-
Positioning on significantly sloped or loose ground without extra stabilisation: the wide leg spread handles minor unevenness well, but on sloped or loose material the risk of tipping increases at full height. Add weight to the legs or reduce height on poor surfaces.
-
Moving the tripod without disconnecting power: always isolate the 110V supply before repositioning. Never carry the assembly by the globe light housing or cable.
Safety
This tripod is confirmed compatible with the 110V LED Globe Site Light (EL060013). Do not attach other fittings via the central thread unless compatibility with this tripod has been confirmed separately. In high winds, secure the tripod legs against movement or remove the globe light fitting until conditions are safe. Confirm all pole section locks and leg mechanisms are fully engaged before energising the light. The globe light must be installed in compliance with IEE Wiring Regulations (BS7671) by a qualified electrician.
Maintenance
Wipe down the steel pole sections and legs after use in wet or muddy conditions to prevent surface corrosion developing on the steel finish. Inspect the telescoping lock mechanisms and leg joints before each use. If any mechanism is stiff or damaged, do not use the tripod at full height until it has been inspected. Do not use solvents on the yellow powder coat finish. Store in the original box or a dry covered location between project deployments.
Frequently Asked Questions
Q: Which globe light does this tripod fit?
A: This tripod is designed for use with the 110V LED Globe Site Light (EL060013). The globe light connects to the central thread mount on top of the tripod pole. If you need both the tripod and the globe light, EL060013 and EL060014 can be ordered together and delivered next day on stocked lines.
Q: What height does the tripod extend to and can I use it at lower heights?
A: The tripod extends to a maximum of 1490mm, approximately 1.5m. The telescoping pole sections can be set at any height below the maximum, so the unit is usable in lower-ceilinged spaces such as plant rooms, welfare units, and partially enclosed site structures. The minimum collapsed height is not specified by the manufacturer.
Q: Is the globe light included?
A: No. The tripod is sold separately from the 110V LED Globe Site Light (EL060013). The globe light can be used on its own base or hanging hook without the tripod. The tripod is the optional accessory for raised freestanding positioning.
Q: What does IP54 mean for a steel tripod on a construction site?
A: IP54 covers protection against water splashes from any direction and partial dust ingress. For a tripod used on outdoor sites, in covered scaffold areas, and in temporary welfare buildings, IP54 means the locking mechanisms and steel surfaces are protected against the typical moisture and debris found on a live UK construction site.
Q: How stable is the tripod at full height?
A: The 795mm three-leg spread provides good stability on concrete, tarmac, and compacted earth at full 1.5m extension under normal site conditions. On sloped or loose surfaces, reduce the working height or add weight to the legs. Always confirm all leg locks are fully engaged before use.
Q: Can I order the tripod and globe light together?
A: Yes. Both are stocked lines. Order EL060014 (tripod) and EL060013 (globe light) together and both will be delivered next day when ordered by 7pm. CMT Group's own fleet covers over 95% of the UK mainland.
