110V LED globe site light delivering 2600lm of 360° omnidirectional illumination for construction floors, welfare units, and temporary site workspaces.
110V LED globe site light delivering 2600lm of 360° omnidirectional illumination for construction floors, welfare units, and temporary site workspaces.
Order 1x to earn 83 FASTPoints
Order to earn 83 FASTPoints
Log in to access trade discounts110V LED globe site lights eliminate the shadow problem that directional floodlights create on construction floors. The 360° spread puts 2600lm into every part of the working area from a single point on a standard site supply. A built-in auxiliary socket lets an electrician chain up to 20 units from one feed, covering large floors and welfare areas without additional power drops.
A directional floodlight aimed at a construction floor lights one half of the space and leaves the other in shadow. Workers move between lit and unlit areas constantly, which slows the job and creates a genuine safety hazard. The globe diffuser spreads the full 2600lm output in every direction simultaneously, giving even, shadow-free coverage of the area around it without repositioning.
360° omnidirectional output: The globe diffuser spreads light in all directions. There are no hot spots, no dark spots, and no shadowing caused by the fitting itself.
IP44 and IK07 rated: IP44 covers water splashes from any direction. IK07 means the housing withstands the knocks and drops of a live site environment.
Three mounting options: Stand on its own base, hang from the built-in hook, or fix to a tripod via the central thread. The matching GLTYPW tripod is sold separately.
Daisy-chain up to 20 units: The auxiliary socket accepts the next light's cable. Up to 20 units can run in sequence from a single 110V feed, reducing cable runs across a site floor.
35,000-hour LED lifetime: Tested to L70B50. The LED and driver are integrated and non-replaceable, but at 8 hours per day the rating exceeds ten years of typical site service.
2-year guarantee: Covered against defects for 2 years under normal working conditions.
Trades and roles:
Site electricians
Electrical contractors
Site managers and foremen
Groundworkers and civils teams
Facilities management teams
Industries:
Construction and groundworks
Civil engineering and infrastructure
Industrial maintenance
Temporary works and site welfare
Utilities and public sector construction
| Specification | Detail |
| Product Name | 110V LED Globe Site Light – 30W 2600lm Head Only |
| SKU | EL060013 |
| Voltage | 110V |
| Frequency | 50Hz |
| Wattage | 30W |
| Lumen Output | 2600lm |
| Efficacy | 86 lm/W |
| Colour Temperature | 6500K (daylight white) |
| Colour Rendering Index | Ra>80 |
| Beam Angle | 360° (omnidirectional) |
| IP Rating | IP44 |
| IK Rating | IK07 |
| LED Lifetime | L70B50 35,000 hours |
| Working Temperature | −20°C to +40°C |
| Power Factor | >0.9 |
| Driver Type | Fixed Output |
| Material | ABS and polycarbonate |
| Cable | 5m H05VV-F |
| Plug/Socket | 16A industrial (110V) |
| Mounting Options | Stand-alone base, hanging hook, tripod via central thread (GLTYPW, sold separately) |
| Max Daisy-Chain | Up to 20 units via built-in auxiliary socket |
| Guarantee | 2 years |
| Energy Rating | F (30 kWh/1000h) |
| Box Contents | 1x Globe Light, 1x H05VV-F 5m Cable, 1x PG11 Cable Glands |

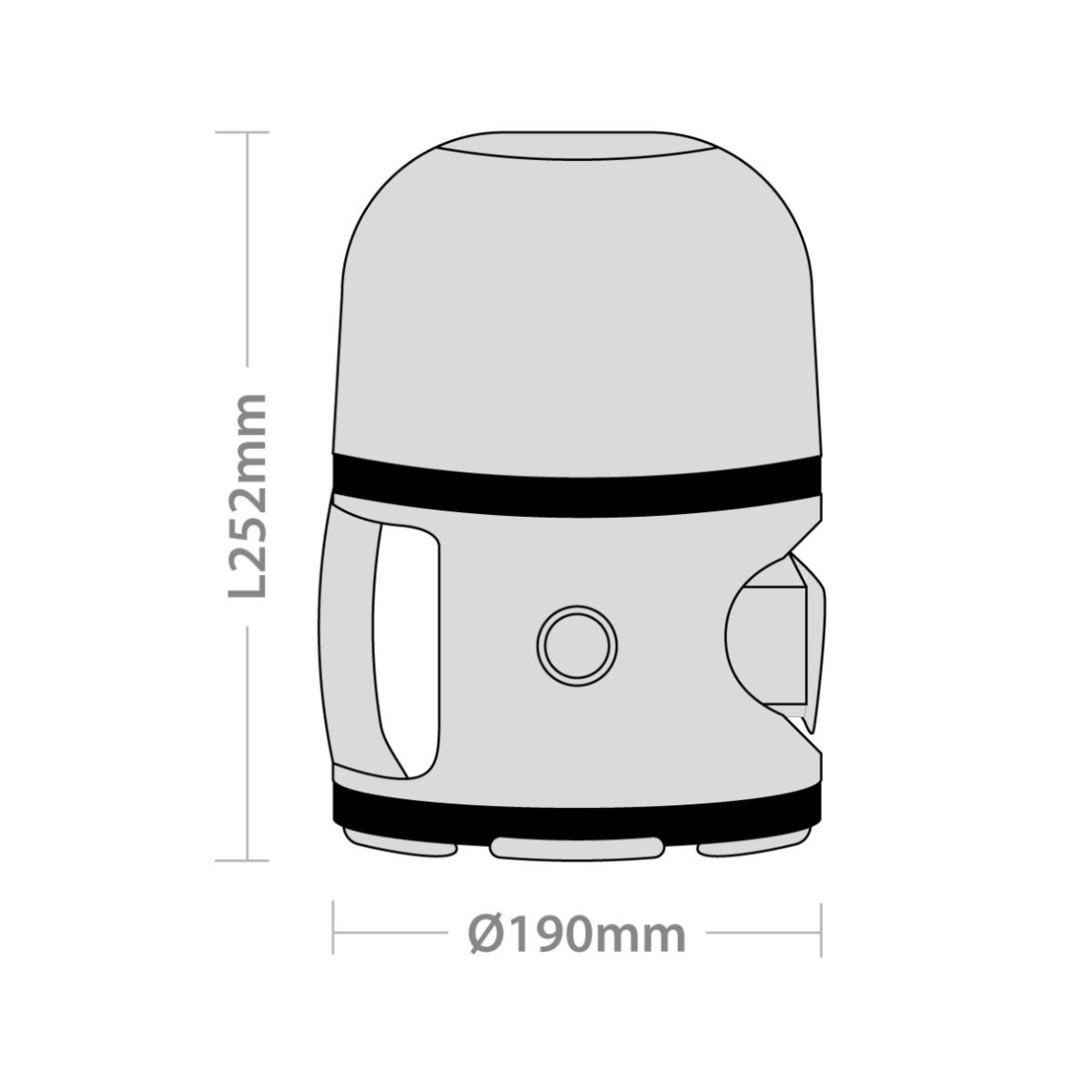

| Dimensions | L252mm, Ø190mm |
| Colour | Yellow and black |
| Application or condition | Status |
| 110V site supply connection | ✓ Suitable |
| Construction floors, stairwells, and welfare units | ✓ Suitable |
| Stand-alone, hanging hook, or tripod mounting | ✓ Suitable |
| Daisy-chain connection of up to 20 units | ✓ Suitable |
| Covered outdoor and sheltered site conditions | ✓ Suitable – IP44 rated |
| Working temperature −20°C to +40°C | ✓ Suitable |
| 240V mains supply connection | ✗ Not suitable – 110V only, 240V connection will damage the unit |
| Water immersion or sustained pressure washing | ✗ Not recommended – IP44 covers splashes, not directed jets or submersion |
| Fully exposed outdoor use in direct rain without overhead protection | ✗ Not recommended – specify a higher IP-rated fitting for exposed outdoor use |
| Daisy-chain configurations exceeding 20 units | ✗ Not recommended – exceeds circuit capacity |
| Relamping or LED replacement | ✗ Not possible – LED and driver are non-replaceable |
Site electricians and electrical contractors fitting out construction floors, stairwells, welfare units, and temporary workspaces are the primary buyers. Site managers specifying lighting for phased builds, underground working, or reduced daylight operations are the next most common users. The 20-unit daisy-chain capability makes this particularly relevant for contractors lighting whole floors or welfare areas from a single 110V circuit.
Lighting open construction floors during first and second fix trades work, where fixed permanent lighting is not yet installed.
Illuminating stairwells and lift shafts on multi-storey projects where daylight does not reach internal areas.
Providing temporary welfare area and canteen lighting during the construction phase of a project.
Underground and basement construction where natural light is absent and multiple linked lights are needed to cover the working area.
Groundwork operations and drainage installation during early-morning starts and winter working hours outside daylight.
Lighting plant rooms and service corridors during building services installation.
Temporary site store and compound lighting during project setup and demobilisation.
Step 1: Confirm the power source is 110V before connecting. This light must not be connected to a 240V supply.
Step 2: Remove the globe light from the box.
Step 3: Choose a mounting position. Place on the base for stand-alone use, hang from the hook, or attach to a GLTYPW tripod using the central thread on the underside.
Step 4: Connect the 16A industrial plug to a 110V supply. Switch on using the side-mounted switch and confirm the light is working.
Step 5: To link additional units, plug the next light's cable into the auxiliary socket. Repeat up to a maximum of 20 fittings.
Step 6: To remove power, switch off and unplug in sequence.
Connecting to a 240V supply: this is a 110V-only fitting. A 240V connection will damage the unit and creates a serious electrical hazard.
Exceeding the 20-unit daisy-chain limit: more than 20 units overloads the circuit. Count the fittings before completing the installation.
Assuming IP44 means fully weatherproof: IP44 covers splashes from any direction, not sustained rain, pressure washing, or submersion. Provide overhead protection for outdoor installation.
Cleaning with solvents or abrasive cloths: the polycarbonate diffuser degrades under solvent contact. Use a dry or lightly damp cloth only.
This light is for 110V supply only. Never connect to 240V mains. If the fitting is used in dusty, painted, or oily environments, clean the diffuser and housing regularly to maintain light output. The LED and driver are non-replaceable integrated components. Do not attempt to disassemble the unit. At end of life, do not dispose with general waste. Recycle through your local authority or an appropriate WEEE scheme.
Wipe the polycarbonate diffuser with a dry or lightly damp cloth. Do not use solvents, aggressive detergents, or abrasive materials. The LED and driver require no routine maintenance. If the unit fails within the 2-year guarantee period, contact the CMT Group sales team.
Q: What does "Head Only" mean and what else do I need to get started?
A: Head Only means the box contains the globe light unit, a 5m H05VV-F cable with 16A industrial plug, and PG11 cable glands. The light can be used immediately as supplied, either standing on its own base or hanging from the built-in hook. If tripod mounting is required, the GLTYPW tripod is available separately from CMT Group.
Q: How does the daisy-chain system work and how many units can I connect?
A: The globe light has a built-in auxiliary socket on its body. A second light's cable plugs into this socket and receives power from the same 110V feed. Each additional unit connects to the one before it in the same way. Up to 20 fittings can run in sequence from a single power source, allowing a complete floor or welfare area to be lit without running individual cables back to the transformer for each light.
Q: What is this light NOT suitable for?
A: It must not be connected to 240V mains supply. The IP44 rating covers water splashes but not sustained rain exposure, pressure washing, or submersion. The LED and driver are non-replaceable, so the unit cannot be relamped at end of life. Daisy-chain configurations must not exceed 20 units.
Q: How do the three mounting options differ?

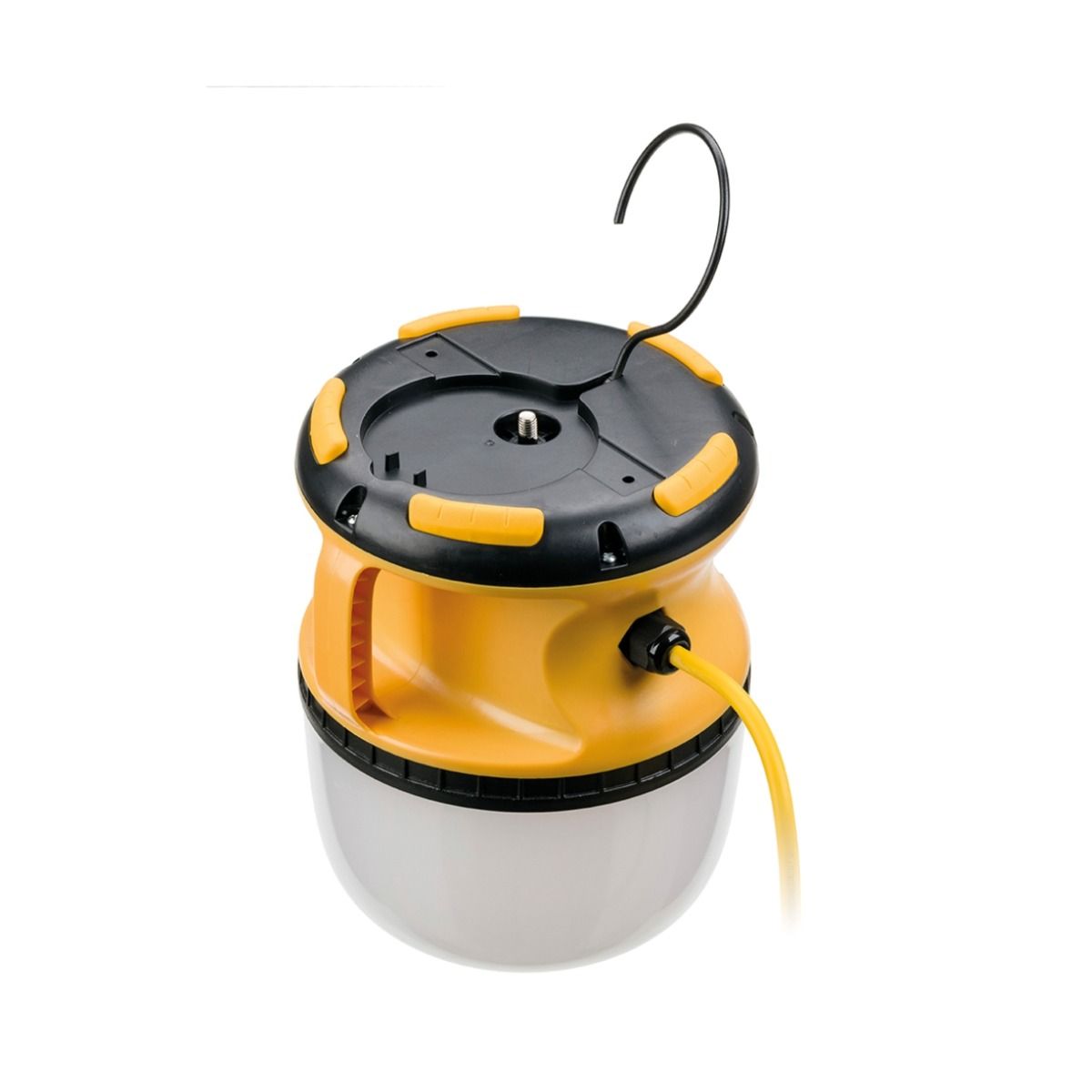

A: Stand-alone use places the light on its own moulded base on any flat surface. The hanging hook on the underside allows it to be suspended from a scaffold tube, beam, or cable hook, raising it above head height for better area coverage. Tripod mounting with the GLTYPW (sold separately) allows height adjustment and is suited to larger open areas where a fixed-height or floor-level position is not practical.
Q: Is this light suitable for outdoor site use?
A: The IP44 rating makes it suitable for sheltered outdoor conditions, including use under scaffold sheeting, in partially enclosed structures, and in covered walkways. It is not designed for direct rain exposure without overhead protection. For fully exposed outdoor positions, specify a fitting with a higher IP rating.
Q: Can the LED be replaced when it eventually fails?
A: No. The LED and driver are integrated non-replaceable components. The L70B50 35,000-hour rating means the LED maintains at least 70% of original output for that duration, which at 8 hours of daily use exceeds ten years of service. If the unit fails within the 2-year guarantee period, contact CMT Group for a replacement assessment.
Q: Can I use this light on a 240V supply?
A: No. This fitting is 110V only. If the site does not have a 110V supply, a 110V site transformer is required. CMT Group supplies both 3kVA and 5kVA 110V site transformers that will power these globe lights correctly.
