Brick cutting diamond blade developed for professional contractors cutting soft bricks and low-density clay bricks on UK construction and masonry projects.
• Specialist blade engineered specifically for soft brick applications
• Designed for clean cutting with extended service life
• 9mm segment height
• 350mm diameter with 25mm bore
• Suitable for floor saw use
• EN13236 compliant

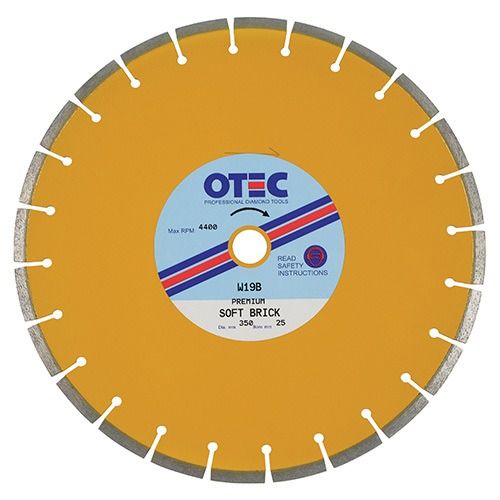

Brick Cutting Diamond Blade – Premium – Soft Brick – 9mm Segment – 350x25mm – OTEC W19B
Brick cutting diamond blade developed for professional contractors cutting soft bricks and low-density clay bricks on UK construction and masonry projects.
• Specialist blade engineered specifically for soft brick applications
• Designed for clean cutting with extended service life
• 9mm segment height
• 350mm diameter with 25mm bore
• Suitable for floor saw use
• EN13236 compliant
Order 1x to earn 95 FASTPoints
Order to earn 95 FASTPoints
Log in to access trade discountsBrick Cutting Diamond Blade – Premium – Soft Brick – 9mm Segment – 350x25mm – OTEC W19B is a specialist blade developed for professional brickwork contractors requiring clean, accurate cuts in soft clay bricks.
It is intended for use on soft bricks and other low-density clay masonry units commonly used in UK housing, extensions and façade work. The premium bond formulation supports long blade life while maintaining a clean cutting edge, helping reduce breakout and surface damage.
The W19B is not suitable for medium, hard or engineering bricks, reinforced concrete, natural stone or metal. It should be specified specifically for soft brick applications.
Need a different size or even higher performance?
View the complete OTEC range, including the OTEC W19 - our professional alternative brick blade.
For noise-sensitive environments and indoor workshop use, the OTEC W19SC Professional Silent Centre edition is also available, providing the same precision cutting with significantly reduced operating noise.
✓ Premium grade bond formulated for soft clay brick materials
✓ Optimised for smooth, controlled cutting with reduced surface breakout
✓ Engineered for long operational life in low-density brick
✓ Maintains consistent cutting speed across repetitive masonry work
✓ Designed for stable tracking when used on floor saws
✓ Supports reduced edge chipping on facing brick installations
Specifications Table – OTEC W19B
| Specification | Details |
|---|---|
| Product Name | Brick Cutting Diamond Blade – Premium – Soft Brick – 9mm Segment – 350x25mm – OTEC W19B |
| Product Code | W19B |
| Variation Code | W19B-350/25 |
| Diameter | 350mm |
| Bore Size | 25mm |
| Segment Height | 9mm |
| Primary Application | Soft brick |
| Secondary Application | Low-density clay masonry |
| Not Suitable For | Medium brick, hard brick, ultra hard brick, reinforced concrete, stone, metal |
| Safety Standard | EN13236 |
| Recommended Machine Type | Floor saw |
| Use Environment | UK construction and masonry sites |
| Longevity / Wear Notes | Designed to reduce steel core undercutting in abrasive materials |
Variations Table – OTEC W19B
| Diameter | Bore | Max RPM | Variation Code |
|---|---|---|---|
| 350mm | 25mm | 4400 rpm* | W19B-350/25 |
! Max RPM must always be verified against machine rating before use.
Recommended Saw Type by Blade Size – OTEC W19B
| Blade Size | Bore | Recommended Saw Type | Typical Site Use |
|---|---|---|---|
| 350mm | 25mm | Floor saw | Soft brick cutting on masonry projects |
Application:
The Brick Cutting Diamond Blade – Premium – Soft Brick – 9mm Segment – 350x25mm – OTEC W19B is suitable for:
- Soft facing brick cutting
- Low-density clay brickwork
- Residential masonry construction
- Housing developments and extensions
- Brick façade detailing
Material Suitability Table – OTEC W19B
| Soft Brick | Medium Brick | Hard Brick | Ultra Hard Brick |
|---|---|---|---|
| ✔✔✔ | ❌ | ❌ | ❌ |
Usage Guide:
Before use
Ensure the blade type and specification are suitable for the material being cut. Inspect for cracking, segment detachment, undercutting of the steel centre, uneven wear, or other defects. Confirm correct rotation direction and bore compatibility with the machine spindle. Wear appropriate PPE, including eye protection, and ensure guards are correctly fitted.
During use
Do not apply excessive force. Allow the blade to cut at its designed speed and take regular cooling breaks. If overheating occurs, reassess material suitability. A blunt blade may be refreshed by cutting a soft abrasive material such as brick or block.
Wet cutting
If wet cutting is used, ensure a continuous and adequate water supply to both sides of the blade.
Is the W19B suitable for soft facing bricks?
Yes. It is specifically designed for clean cutting in soft clay and facing bricks.
Can this blade cut engineering bricks?
No. It is not designed for medium, hard or engineering brick densities.
Is the W19B suitable for reinforced concrete?
No. It must not be used on reinforced or structural concrete.
What machine is the 350x25mm blade designed for?
It is designed to suit floor saws compatible with a 350mm blade and 25mm bore within the rated RPM.
Does the W19B comply with UK safety standards?
Yes. The blade conforms to EN13236.
Can the blade be used wet?
Yes. If wet cutting is used, a continuous water supply should be applied to both sides of the blade.
