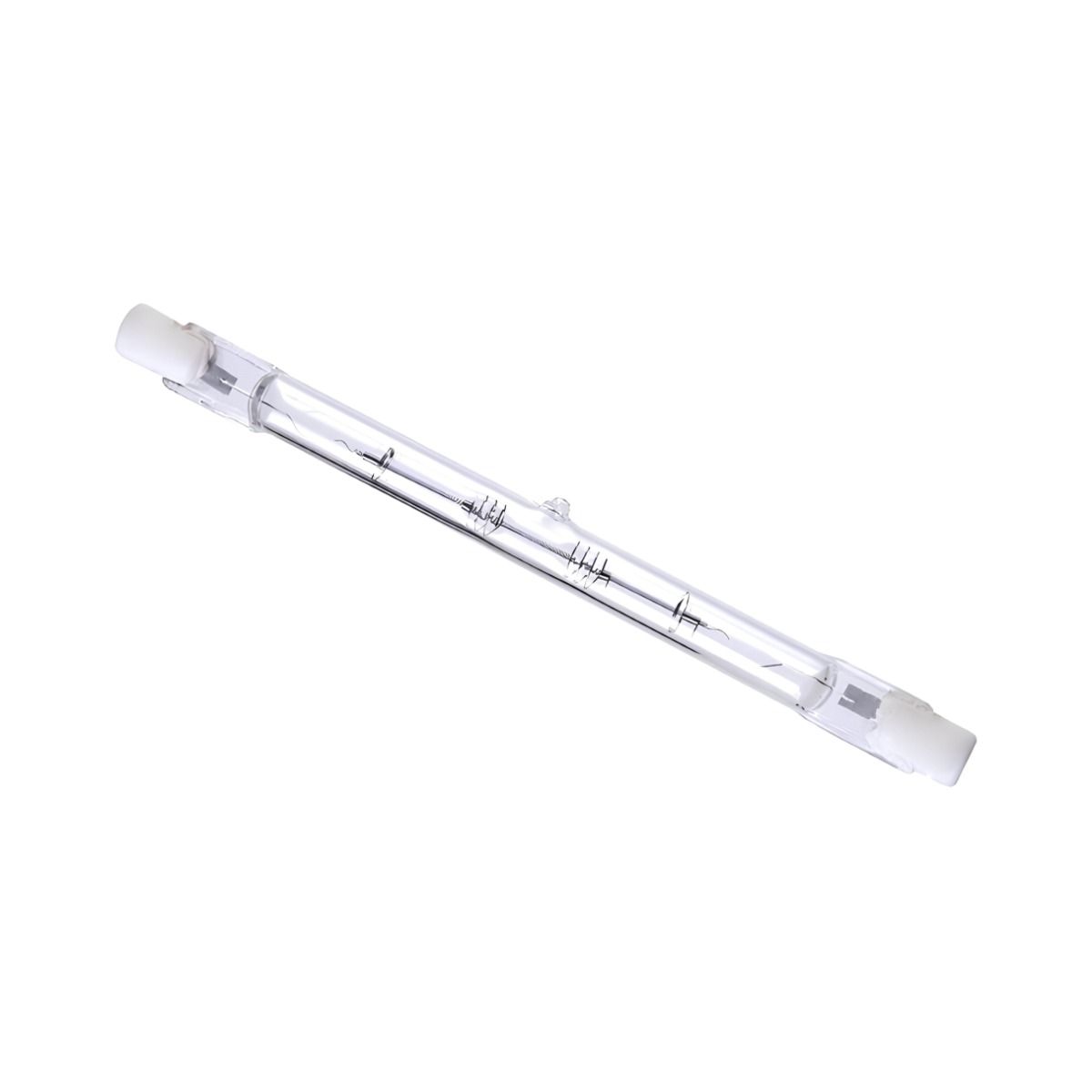

R7s 500W 230V halogen linear lamps are double-ended replacement tubes for 230V halogen floodlights, work lights, and linear halogen fittings.
- 500W halogen linear tube
- R7s double-ended cap
- 230V supply
- CE marked
230V Halogen Linear Lamp - R7s 500W
R7s 500W 230V halogen linear lamps are double-ended replacement tubes for 230V halogen floodlights, work lights, and linear halogen fittings.
- 500W halogen linear tube
- R7s double-ended cap
- 230V supply
- CE marked
Order 1x to earn 0 FASTPoints
Order to earn 0 FASTPoints
Log in to access trade discountsR7s 500W 230V Halogen Linear Lamp
R7s 500W 230V halogen linear lamps are double-ended replacement tubes for 230V halogen work lights, floodlights, and linear fittings. The R7s cap fits directly into compatible double-ended lamp holders. Rated at 500W for high-output illumination where full halogen brightness is required.
Key Features
-
500W halogen output: High-intensity light from a compact linear tube. Suited to halogen floodlights and work lights requiring full-power replacement lamps.
-
R7s double-ended cap: Push-fit into compatible R7s lamp holders. Check fitting compatibility before ordering.
-
230V supply: For use on standard 230V domestic and commercial supply. Not compatible with 110V site fittings.
-
CE marked: Meets UK and EU product safety requirements.
Who is this for
Trades and roles:
-
Site managers
-
Maintenance technicians
-
Facilities managers
-
Electricians
Industries:
-
Construction
-
Facilities management
-
Property maintenance
-
Utilities
Specifications
| Specification | Detail | |
| Product Name | R7s 500W 230V Halogen Linear Lamp | |
| SKU | ELB500 | |
| Cap Type | R7s (double-ended) | |
| Power | 500W | |
| Technology | Halogen linear tube | |
| Voltage | 230V | |
| Compliance | CE marked | |
Compatibility
| Application or condition | Status | |
| R7s double-ended fittings on 230V supply | ✓ Compatible | |
| Halogen floodlights and work lights (230V, R7s) | ✓ Compatible | |
| 110V site supply fittings | ✗ Not compatible. 230V only. | |
| B22 or E27 lamp fittings | ✗ Not compatible. R7s cap only. | |
Typical applications
-
Replacement lamp for 230V R7s halogen floodlights and portable work lights.
-
Replacement for 230V R7s halogen security and area lighting fittings.
-
General replacement lamp for any 230V fitting that accepts an R7s double-ended halogen tube at 500W.
How to use
Step 1: Switch off and isolate the fitting before replacing the lamp. Allow the old lamp to cool fully before handling.
Step 2: Remove the old lamp by releasing it from the R7s holders at each end.
Step 3: Handle the new lamp with a clean cloth or gloves. Do not touch the glass tube with bare hands. Skin oils can cause hot spots and premature failure.
Step 4: Insert the new lamp into the R7s holders at both ends. Ensure it is firmly seated before restoring power.
Step 5: Switch on and confirm the lamp is illuminated.
Safety
230V only. Not compatible with 110V supply. Switch off and allow to cool before handling. Do not touch the glass tube with bare hands, use a clean cloth or gloves. Halogen lamps operate at high temperatures. Maintain adequate clearance from combustible materials during operation. Dispose of in accordance with UK WEEE regulations at end of service life.
Frequently Asked Questions
Q: What cap type does this lamp have?
A: R7s double-ended. The two ceramic end caps push into a compatible R7s lamp holder at each end of the fitting. It is not compatible with B22 bayonet, E27 Edison screw, or any other cap type.
Q: What voltage does it run on?
A: 230V. For use on standard UK mains supply. Not compatible with 110V site supply.
Q: Why should I not touch the glass tube with bare hands?
A: Oils from skin contaminate the quartz glass surface. Under the heat of operation, this creates localised hot spots that cause premature failure and can lead to the tube cracking. Always handle with a clean cloth or gloves.
Q: What fittings is this compatible with?
A: Any 230V fitting designed to accept a double-ended R7s halogen linear lamp at 500W. Check the wattage and cap type of your fitting before ordering.
Q: Is this compatible with 110V site fittings?
A: No. This lamp is rated for 230V only. For 110V site lighting, see the CMT range of 110V LED work lights and tripod lights.
