A MAX 165 bar 2200W industrial pressure washer with integrated hose reel and auto start/stop for construction sites, plant washing, and heavy-duty outdoor cleaning.
- 165 bar maximum pressure, 110 bar working pressure, 2200W motor
- Auto start/stop: motor runs only when trigger is pressed, extending pump life
- Integrated hose reel with 5m high-pressure hose, no trailing or tangling
- Fully adjustable nozzle from concentrated jet to wide fan
- Foam cannon applicator included for detergent pre-treatment
- CE and UKCA marked, 240V, 12.5kg, 48.5 x 36 x 54cm

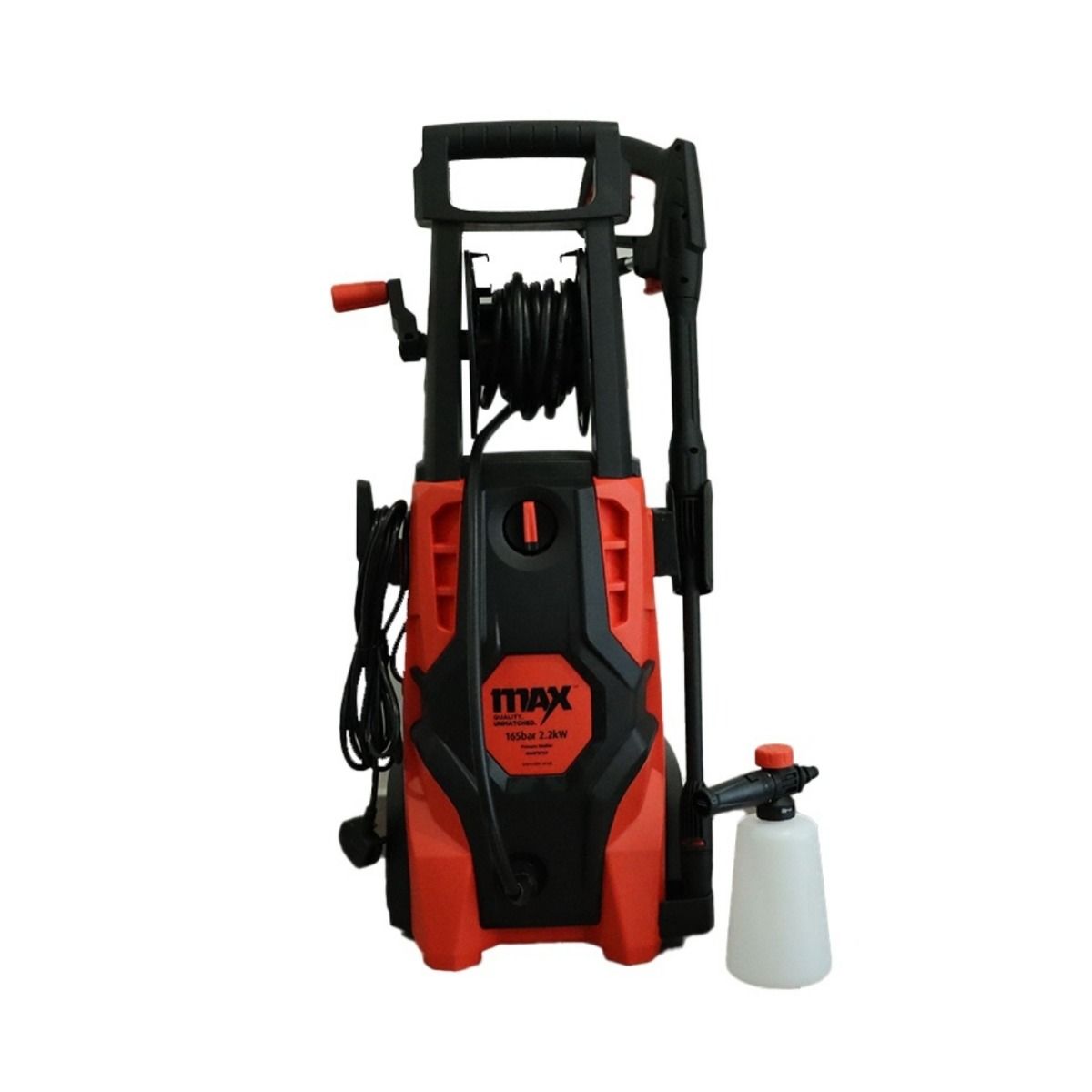

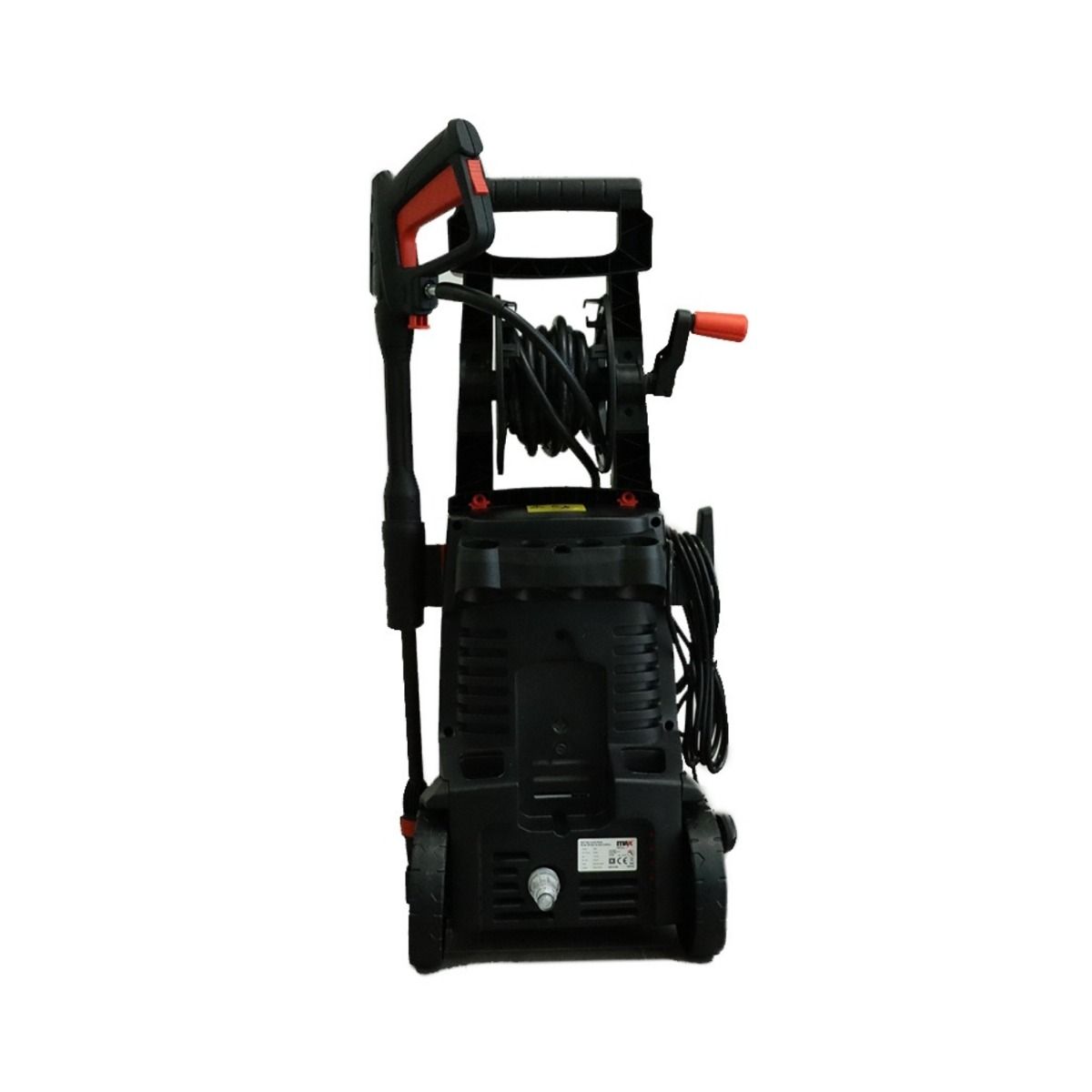

MAX 165 Bar Industrial Pressure Washer 2200W - Integrated Hose Reel and Auto Start Stop
A MAX 165 bar 2200W industrial pressure washer with integrated hose reel and auto start/stop for construction sites, plant washing, and heavy-duty outdoor cleaning.
- 165 bar maximum pressure, 110 bar working pressure, 2200W motor
- Auto start/stop: motor runs only when trigger is pressed, extending pump life
- Integrated hose reel with 5m high-pressure hose, no trailing or tangling
- Fully adjustable nozzle from concentrated jet to wide fan
- Foam cannon applicator included for detergent pre-treatment
- CE and UKCA marked, 240V, 12.5kg, 48.5 x 36 x 54cm
- Buy 3 for £186.00 £155.00 each and save 8%
- Buy 6 for £166.80 £139.00 each and save 18%
| BULK DISCOUNT | 3 | 6 |
|---|---|---|
| Price | £155.00 £186.00 | £139.00 £166.80 |
Order 1x to earn 169 FASTPoints
Order to earn 169 FASTPoints
Log in to access trade discountsMAX 165 Bar Industrial Pressure Washer 2200W
A 165 bar 2200W industrial pressure washer for construction site cleaning, plant and vehicle washing, and heavy-duty outdoor surface preparation. The auto start/stop system stops the pump the moment the trigger is released and restarts it instantly when pressed again. The integrated hose reel stores the 5m high-pressure hose cleanly on the machine frame, eliminating the trailing hose that creates trip hazards and tangling on a working site. CE and UKCA marked, 240V.
Why Auto Start/Stop Matters on a Site Pressure Washer
A continuous-run pressure washer runs the motor from the moment the unit switches on until it is switched off. Every pause, to move the machine, change attachments, or reposition, adds unnecessary running time against a closed head, generating heat and wear in the pump. Auto start/stop detects when the trigger is released and shuts the motor down immediately. The pump restarts in under a second when the trigger is pressed again. On a typical construction site cleaning session with frequent repositioning, this can reduce total motor running time significantly and extends pump service life accordingly.
Key Features
-
165 bar maximum pressure, 110 bar working pressure: The working pressure is the sustained output at the nozzle during normal operation. The gap between working and maximum pressure gives the motor headroom above its continuous load, reducing strain on the pump across a working session.
-
2200W motor, 240V, 50Hz: Delivers the flow rate and pressure required for concrete cleaning, plant washing, and paved surface cleaning on a standard UK mains supply.
-
Auto start/stop: Pump runs only when the trigger is pressed. Extends motor life, reduces heat buildup, and reduces energy consumption during pauses.
-
Integrated hose reel with 5m hose: The high-pressure hose winds onto the built-in reel on the machine frame. Unwind what you need, rewind after use. No loose hose to trip over or tangle during site operations.
-
Fully adjustable nozzle: Rotates from a concentrated high-pressure jet for stubborn deposits to a wide fan pattern for larger surface area cleaning.
-
Foam cannon included: Connects to the lance for detergent pre-treatment before rinsing. Adjustable dilution and foam volume.
-
Wheeled base and carrying handle: Moves across hard site surfaces on wheels. Top carry handle for lifting and repositioning.
-
CE and UKCA marked: Meets current UK and European electrical safety standards.
Who Is This For
Trades and roles:
-
Site managers and operatives
-
Plant operators and fleet maintenance teams
-
Groundworkers and civils contractors
-
Facilities managers
-
General builders
Industries:
-
Construction and groundworks
-
Plant hire and maintenance
-
Facilities management
-
Vehicle fleet washing
-
Commercial and industrial premises
Specifications
| Specification | Detail |
| Product Name | MAX 165 Bar Industrial Pressure Washer 2200W - Integrated Hose Reel and Auto Start Stop |
| SKU | MAXPW165 |
| Brand | MAX |
| Maximum Pressure | 165 bar |
| Working Pressure | 110 bar |
| Working Flow Rate | 6.3 l/min |
| Maximum Flow Rate | 7.8 l/min (468 l/h) |
| Motor Power | 2200W (2.2kW) |
| Voltage | 240V, 50Hz |
| Maximum Water Supply Pressure | 4 bar |
| Hose Length | 5m |
| Auto Start/Stop | Yes |
| Hose Storage | Integrated reel |
| Nozzle | Fully adjustable (jet to fan) |
| Compliance Marks | CE, UKCA |
| Weight | 12.5kg |
| Dimensions (W x D x H) | 48.5 x 36 x 54cm |
| Colour | Red and black |

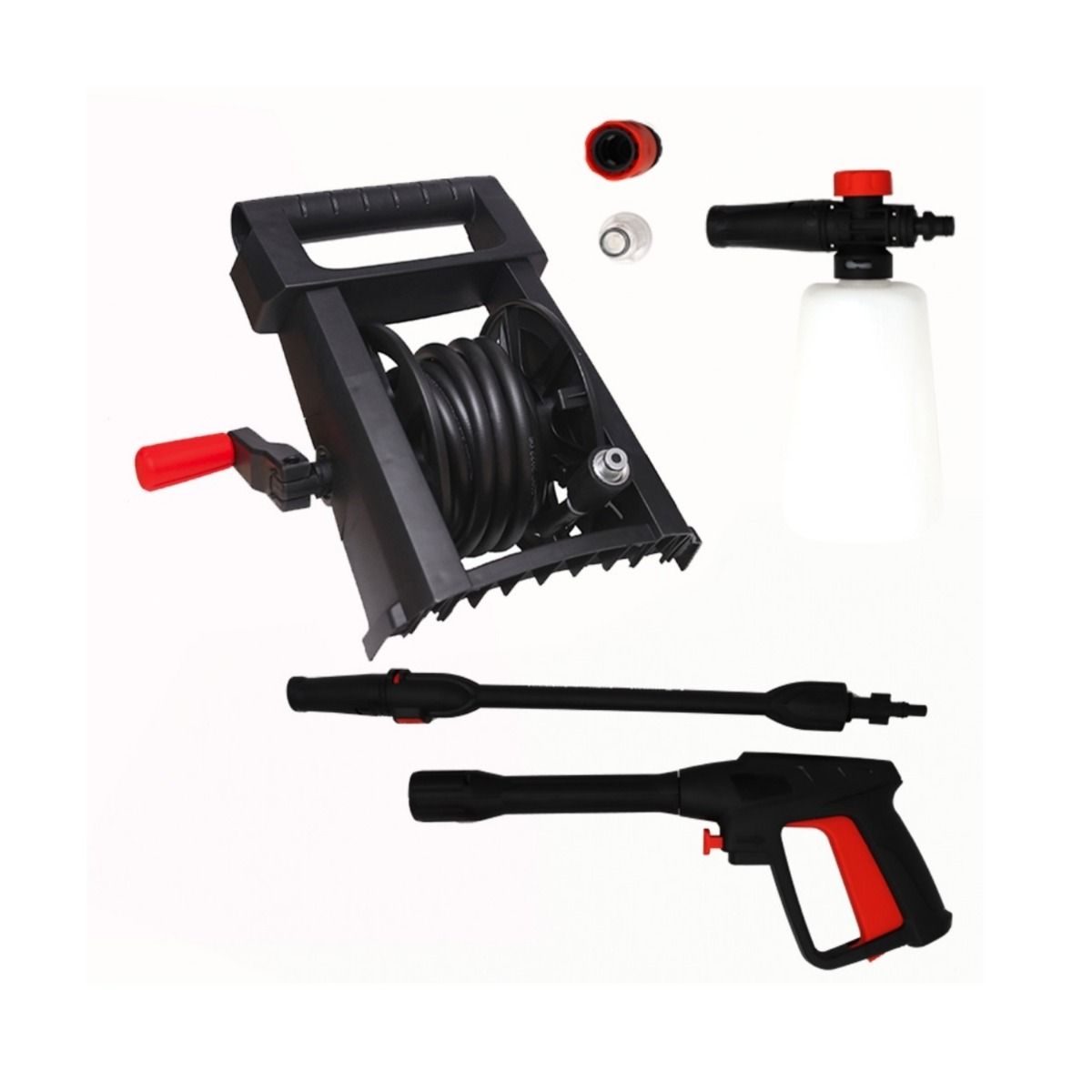

What's included
| Item | Detail |
| Pressure washer unit | 1x with integrated hose reel |
| High-pressure hose | 1x (5m, on integrated reel) |
| Spray gun with trigger | 1x |
| Lance extension | 1x |
| Foam cannon bottle | 1x (adjustable dilution) |
| Nozzle and connector adaptors | 1x set |
Compatibility
| Application or condition | Status |
| Plant and construction equipment washing | ✓ Compatible |
| Vehicle washing (vans, trucks, plant) | ✓ Compatible |
| Concrete and masonry surface cleaning | ✓ Compatible |
| Block paving, hard standing, and tarmac | ✓ Compatible |
| Site fencing, hoarding, and barrier cleaning | ✓ Compatible |
| Welfare room and site office entrance cleaning | ✓ Compatible |
| Standard UK mains water supply (1.5-4 bar) | ✓ Compatible |
| Soft surfaces: untreated timber, crumbling mortar | ✗ Not recommended (surface damage risk) |
| Water supply exceeding 4 bar | ✗ Not suitable (pump damage risk) |
| Operation in freezing conditions without pump protection | ✗ Not suitable (pump casing can crack) |
| Use near unprotected electrical equipment | ✗ Not suitable without isolation |
| Running without water connected (dry running) | ✗ Not suitable (destroys pump seals) |
Who Is This For
The MAX 165 Bar Industrial Pressure Washer is for construction site cleaning, plant and vehicle washing, and heavy-duty outdoor surface preparation where a consumer-grade washer lacks the pressure or duty cycle for professional use. The auto start/stop and integrated hose reel make it specifically suited to site environments where the operator moves between positions frequently and the machine needs to stop safely and restart quickly without manual intervention.
Typical Applications
-
Washing plant and site equipment at the end of a shift, including excavators, dumper trucks, rollers, and plant trailers.
-
Cleaning concrete and mortar residue from formwork, shuttering boards, and construction surfaces.
-
Washing down welfare room and site office entrance areas, steps, and hard standings.
-
Cleaning block paving, concrete, and tarmac surfaces on groundwork and reinstatement projects.
-
Removing mud, aggregate, and construction debris from vehicles at site exit wheel wash points.
-
Cleaning fencing panels, Heras-style barriers, and site hoarding for reuse after a project.
-
Surface preparation before painting, coating, or waterproofing on concrete and masonry.
-
Welfare facility entrance and compound cleaning during active projects.
How to Use
Setting up:
Step 1: Connect the water inlet to a mains supply using a standard hose connector. Confirm the supply pressure is within the 4 bar maximum inlet limit.
Step 2: Unwind the required length of hose from the integrated reel. Connect the spray gun and lance.
Step 3: Set the adjustable nozzle. Rotate fully for a concentrated jet on stubborn deposits. Rotate to the wide position for large surface areas.
Step 4: Switch on the unit. With auto start/stop active, the motor starts when you press the trigger and stops when you release it.
Foam cannon use:
Step 5: Attach the foam cannon to the lance. Fill with diluted detergent solution. Apply foam to the surface and allow to dwell before switching back to the plain nozzle and rinsing.
Shutting down:
Step 6: Release the trigger (motor stops). Switch the unit off. Disconnect the water supply. Press the trigger briefly to release residual pressure in the hose. Wind the hose back onto the integrated reel.
Common Mistakes
-
Connecting to a supply above 4 bar: the maximum inlet pressure is 4 bar. Confirm supply pressure before connecting, higher pressures damage the pump seals.
-
Dry running: never switch the unit on without water flowing through the pump. Even brief dry running destroys pump seals rapidly and voids warranty.
-
Holding the lance too close: a 165 bar jet at close range damages paint, soft stone, mortar joints, and timber. Start at a safe working distance and move gradually closer until the cleaning effect is correct.
-
Operating in freezing conditions: water remaining in the pump in sub-zero temperatures freezes and cracks the pump casing. Drain thoroughly and use pump protector fluid before any frost-risk storage.
-
Using without PPE: a 165 bar jet can penetrate skin. Eye protection and waterproof gloves are mandatory. Keep the lance pointed at surfaces only, never at people.
Safety
A high-pressure jet at 165 bar can cause serious penetrating injuries to skin. Never point the lance at people or animals. Always wear eye protection and waterproof gloves during operation. Keep all bystanders clear of the work area. Do not use near unprotected electrical equipment. Do not allow the hose to kink under pressure. Confirm water supply pressure does not exceed 4 bar before connecting. Never run the pump without water flowing. Use on an RCD-protected circuit is strongly recommended for all outdoor operation. The unit is CE and UKCA marked.
Maintenance
After each use, run the machine briefly on clean water to flush the pump. Release residual pressure by pressing the trigger after switching off. Wind the hose back onto the integrated reel. Inspect the hose, gun, and lance connections before each use. Store in a dry, frost-free location. Before any winter storage, drain the pump thoroughly and introduce a pump protector solution rated for pressure washer use. Check the adjustable nozzle for blockage or wear if cleaning performance drops.
Frequently Asked Questions
Q: What is the difference between the 165 bar maximum pressure and the 110 bar working pressure?
A: The maximum pressure (165 bar) is the highest pressure the pump can generate under static or no-flow conditions. The working pressure (110 bar) is the sustained pressure delivered at the nozzle during normal operation. A machine with headroom above its working pressure, in this case 55 bar, runs the pump at a lower percentage of its maximum output during normal use, which reduces wear and extends pump life compared with a machine working continuously at or near its maximum rating.
Q: What does auto start/stop mean in practice?
A: The auto start/stop detects when the trigger is released and immediately shuts the motor down. It restarts within a fraction of a second when the trigger is pressed again. On a site cleaning session with frequent pauses to reposition, change attachments, or move the machine, this eliminates the continuous running time that conventional pressure washers accumulate even when not actively spraying. It also means the machine does not need to be switched off between tasks.
Q: How does the integrated hose reel work?
A: The 5m high-pressure hose is stored on a reel built into the machine frame. Pull the required length from the reel before connecting the gun and lance. After use, the reel handle winds the hose back cleanly. No loose hose to store separately, trip over during operation, or unknot before the next use.
Q: How is the foam cannon used?
A: The foam cannon is an attachable bottle that connects to the lance in place of the standard nozzle. Fill it with a diluted detergent solution, attach to the lance, and operate as normal. The cannon delivers detergent as a thick foam that dwells on the surface before being rinsed off with the standard nozzle. Particularly effective for vehicle and plant washing where loosening dirt before rinsing removes it in fewer passes.
Q: What water supply does this pressure washer need?
A: It connects to a standard mains supply via a garden hose connector. The supply pressure must not exceed 4 bar. Most UK domestic and commercial mains supplies operate between 1.5 and 3.5 bar, which is within the acceptable range. If connecting to a site standpipe or commercial supply, confirm the outlet pressure before connecting.
Q: What is this pressure washer NOT suitable for?
A: Do not use on soft surfaces including untreated timber, crumbling mortar, or any surface that would be damaged by 110 bar water pressure at working range. Do not point at people or animals. Do not connect to a supply exceeding 4 bar. Do not dry run without water connected. Do not use in freezing conditions without draining and protecting the pump. Do not use near unprotected electrical equipment.
Q: Should I use an RCD with this machine?
A: Yes. Using an RCD-protected socket is strongly recommended for all outdoor electrical appliance use. The machine is CE and UKCA marked, but these marks confirm design standard compliance, not that unprotected circuit use is safe in all outdoor and wet conditions. An RCD provides additional protection against electric shock in the event of a wiring fault and is HSE best practice for all outdoor electrical equipment.
Q: How do I protect the pump in winter?
A: Water left in the pump in sub-zero temperatures freezes and can crack the pump casing. After any cold-season use, flush the pump with clean water, then introduce a pump protector or antifreeze solution rated for pressure washer use. Store in a frost-free location. If frost is forecast and the machine must stay outdoors, drain the pump and apply protector before overnight temperatures drop.
