110V LED A-Frame Work Light - 30W 2 Socket Outlets

Who is this for

This light suits site managers, site electricians, and contractors who need flexible area illumination across multiple positions and configurations from a single portable unit. The three mounting positions make it suited to environments where a single fixed configuration would not serve all tasks, particularly corridors where it can hang overhead, groundwork areas where it can be angled, and general site areas where upright floor-standing suits best. The socket outlets suit operatives who need to power tools or additional lights from the same connection point without separate cable runs.

Typical applications

• Floor-standing area lighting in construction zones during early build phases before permanent lighting is commissioned.

• Angled illumination for ramps, sloped excavation surfaces, and areas where horizontal floor-level light creates glare or insufficient coverage.

• Hanging overhead corridor and tunnel lighting from scaffold tubes or structural beams via the top hook.

• Daisy-chained multiple lights along a corridor or access route from a single 110V transformer connection.

• Powering 110V tools from the socket outlets alongside the light output, reducing transformer connections needed on site.

• Welfare compound and site office area lighting during construction phases without permanent electrical connection.

• Versatile positioning across different site zones as the operative relocates throughout the shift.

How to use

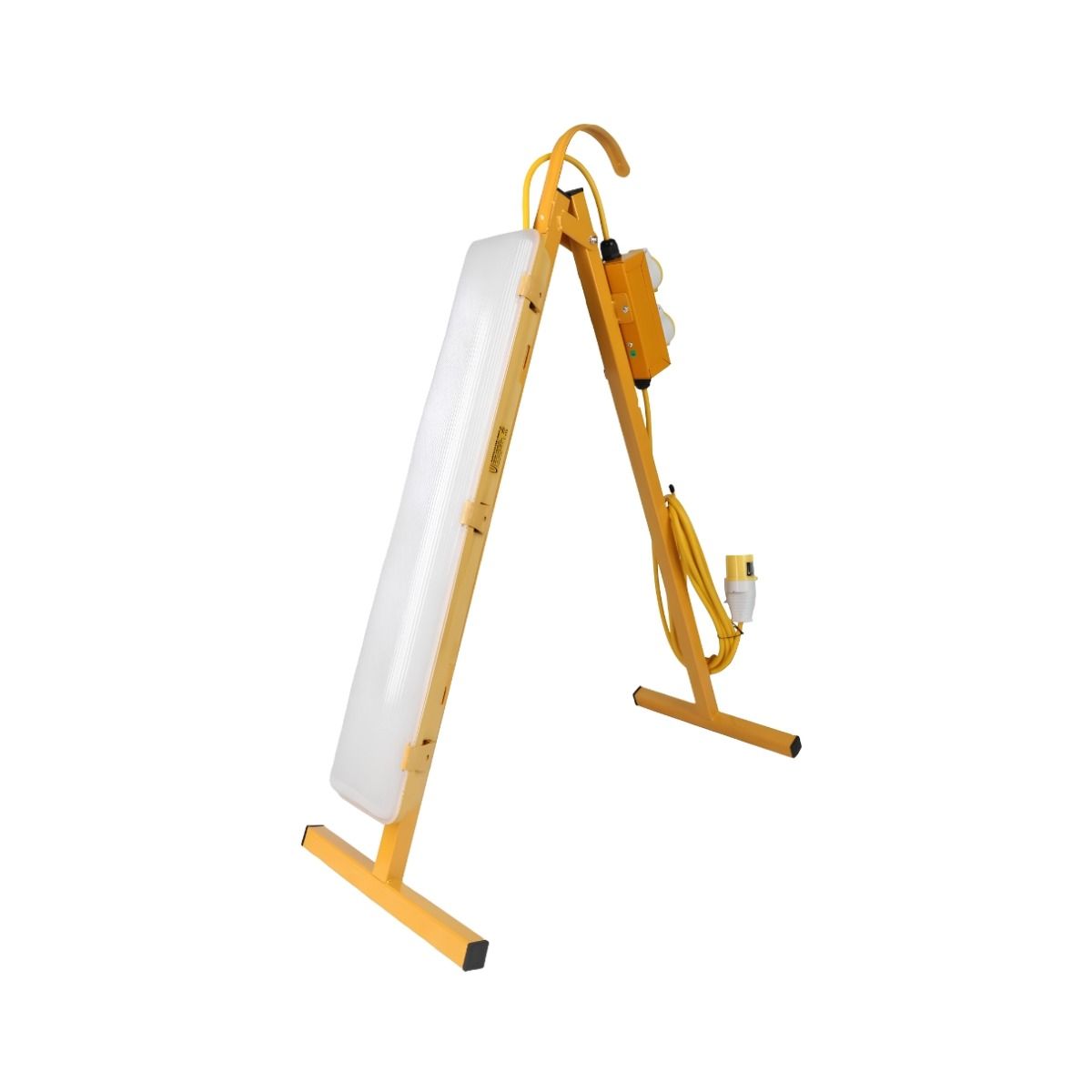

Step 1: Unfold the A-frame stand and ensure it is stable on a level surface before connecting power.

Step 2: Select the mounting position. Upright for standard floor lighting. Angled to direct the beam at a surface. Hang from overhead structure via the top hook.

Step 3: Connect the 5m cable to a 110V CTE transformer output via the 16A Ceeform plug.

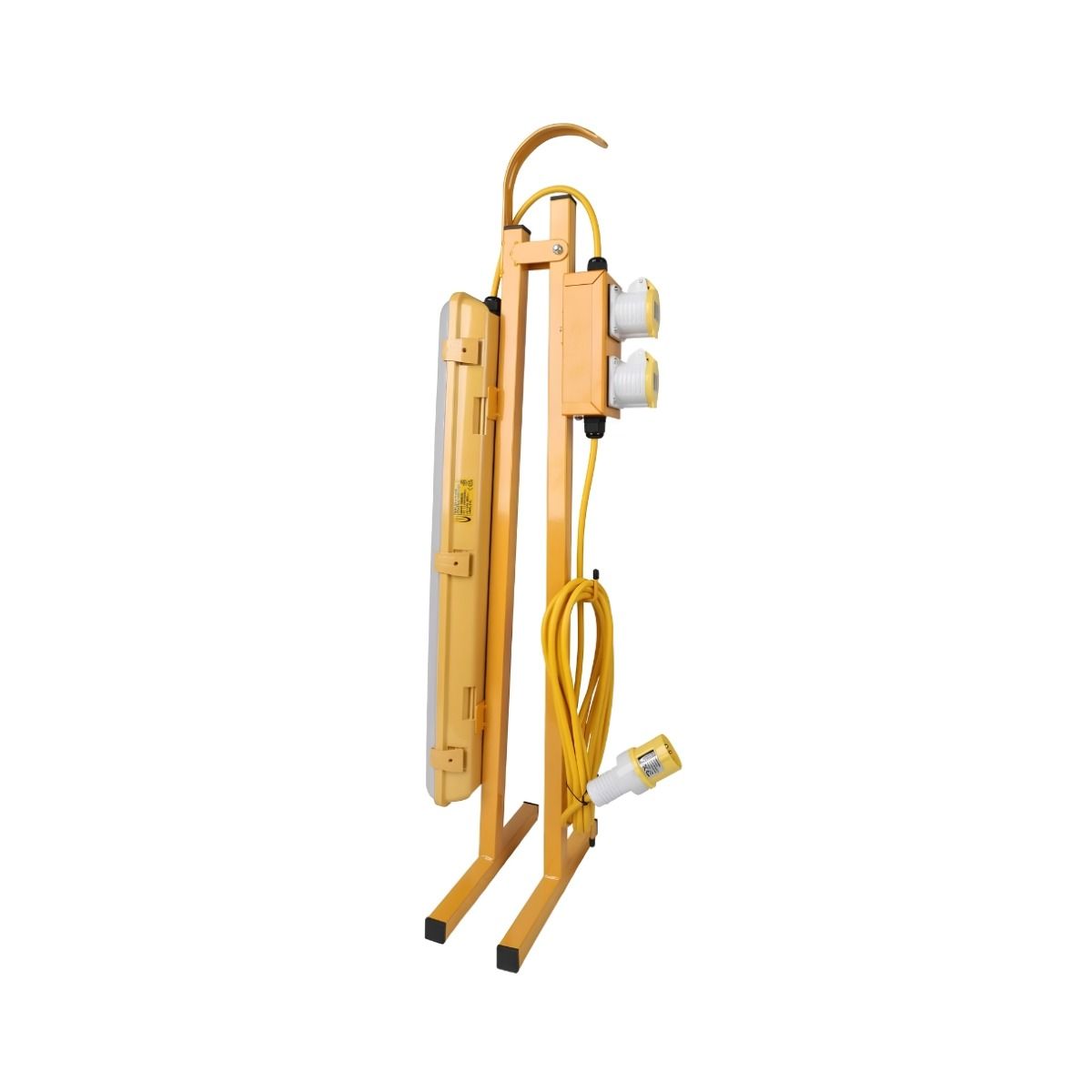

Step 4: Confirm the light is illuminated. To connect additional lights or tools, plug into the socket outlets on the junction box.

Step 5: Disconnect from the transformer before repositioning or adjusting the stand configuration.

Common mistakes

• Connecting to 230V supply. This unit is 110V only. 230V permanently damages it.

• Not earthing the unit. Class I, 110V CTE supply is required. Do not use on unearthed circuits.

• Exceeding the socket outlet rating when connecting tools or additional lights. Check the total load against the socket specification before connecting.

• Using in sustained heavy rain or water jets. IP44 covers splash. Avoid jet exposure.

• Repositioning or reconfiguring while energised. Always disconnect first.

Safety

110V only. Class I construction: must be connected to earthed 110V CTE supply. IP44 covers water splash but not jets or submersion. No ATEX certification. Do not use in explosive or flammable atmospheres. Confirm stand is stable before energising. Disconnect before repositioning. Ambient operating temperature: confirm with CMT Group sales.

Maintenance

Wipe the light panel and housing with a dry cloth after use. Keep socket outlet covers closed when not in use. Inspect the cable, plug, and sockets before each deployment. Fold the A-frame for storage and transport. Dispose of in accordance with UK WEEE regulations at end of service life.
