Body-worn 4-point chest harness for the Dustlight Mini personal dust monitor, keeping the device in the breathing zone throughout a shift.
Body-worn 4-point chest harness for the Dustlight Mini personal dust monitor, keeping the device in the breathing zone throughout a shift.
| BULK DISCOUNT | 10 | 20 |
|---|---|---|
| Price | £28.30 £33.96 | £26.24 £31.49 |
Order 1x to earn 31 FASTPoints
Order to earn 31 FASTPoints

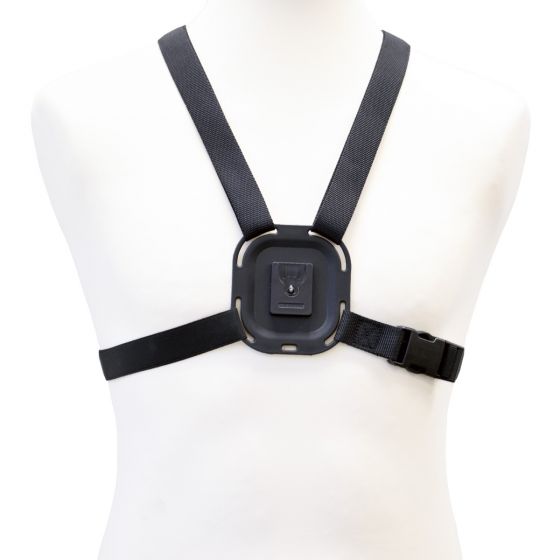

Log in to access trade discountsBody-worn 4-point chest harness with a built-in Klick Fast dock, designed to keep the Dustlight Mini personal dust monitor in the breathing zone throughout a working shift. Four attachment points hold the harness stable during physical work. The dock accepts any device fitted with a Peter Jones Klick Fast connector, including the Dustlight Mini.
The kinetic loop design uses elasticated torso straps rather than rigid webbing, so the harness moves with the body rather than against it. Made from Peter Jones Nylon, Nylon Webbing, and Polyester Elastic. Returnable to Peter Jones ILG for recycling at end of life.
A rigid nylon webbing harness works against the body when the wearer bends, reaches, or climbs. The straps ride up, the dock shifts off-centre, and by mid-shift the harness becomes something to tolerate rather than ignore. The kinetic loop system allows straps to flex with natural movement instead of pulling against it. Combined with elasticated torso straps that give without slipping, the harness settles into position at the start of the shift and stays there.
Kinetic loop strap system: Loops at the strap junctions allow flex with body movement. The dock stays centred on the chest rather than riding up or twisting during physical tasks.
Built-in Klick Fast dock: The chest plate dock is rated for 50,000+ uses. Compatible with all Peter Jones Klick Fast connectors, Go, Standard, and Ultra-Lock.
Elasticated torso straps: Polyester elastic straps around the waist give with movement and return to position. More comfortable across a full shift than rigid webbing.
Four-point support: Two shoulder straps and two waist straps distribute the weight of the docked device evenly. More stable than a 3-point harness under active movement.
Quick-release buckle: Single buckle at the side. Fast to put on and take off between tasks or at shift changes.
Loop slot for secondary attachment: A built-in loop allows a lanyard to be passed through for additional device security in applications where that is needed.
Returnable for recycling: The harness can be returned to Peter Jones ILG for recycling at end of life.
Trades and roles:
Construction operatives
Site managers
Health and safety officers
Facilities managers
Plant and vehicle operators
Industries:
Construction
Civil engineering
Woodworking and joinery
Metalworking and fabrication
Manufacturing
| Specification | Detail |
| Product Name | Klick Fast 4-Point Chest Harness for Dustlight Mini |
| SKU | PPRE0001 |
| Harness Type | 4-point chest harness |
| Dock Type | Klick Fast Dock, guaranteed 50,000+ uses |
| Compatible Devices | All devices fitted with Peter Jones Klick Fast connectors, including Dustlight Mini |
| Connector Included | No. Device must have a Klick Fast connector fitted separately. |
| Strap Design | Kinetic loop system with elasticated torso straps |
| Shoulder Straps | Nylon webbing, length-adjustable |
| Waist Straps | Polyester elastic, length-adjustable |

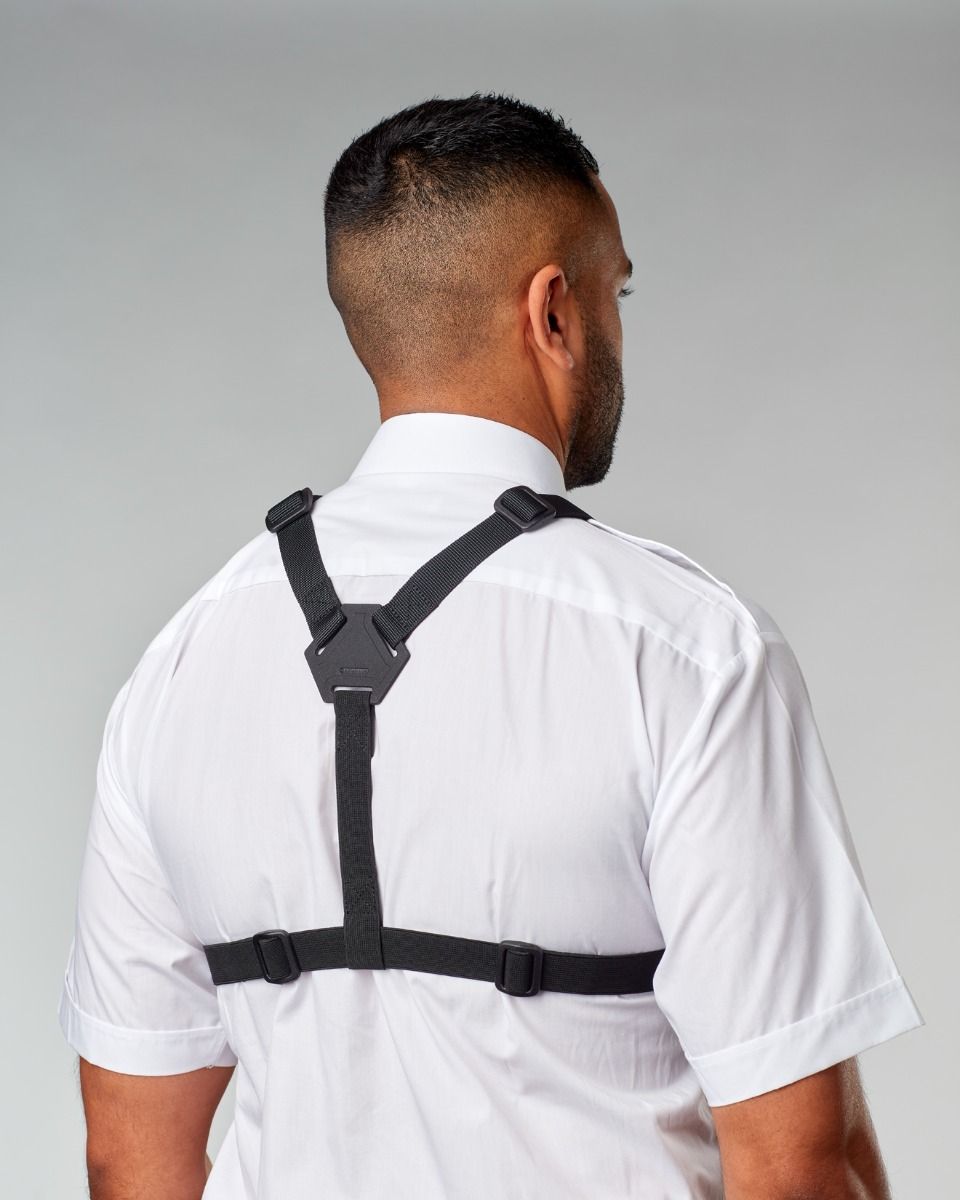

| Rear Plate | Peter Jones Nylon Y-junction with elasticated strap attachment |
| Fastening | Quick-release buckle |
| Secondary Attachment | Loop slot for lanyard attachment |
| Materials | Peter Jones Nylon, Nylon Webbing, Polyester Elastic, Nylon |
| Colour | Black |
| Weight | 0.142kg |
| Application or condition | Status |
| Dustlight Mini (with Klick Fast connector fitted) | ✓ Compatible |
| Body-worn cameras with Peter Jones Klick Fast connectors | ✓ Compatible |
| Radios and communication devices with Klick Fast connectors | ✓ Compatible |
| All Peter Jones Klick Fast connectors (Go, Standard, Ultra-Lock) | ✓ Compatible |
| Worn over work shirts, base layers, and standard site clothing | ✓ Compatible |
| Devices without a Peter Jones Klick Fast connector fitted | ✗ Not compatible |
| Klick Fast LT connectors (separate LT system) | ✗ Not compatible |
The harness is used by construction operatives, site managers, and health and safety officers who need the Dustlight Mini worn on the body throughout a shift rather than mounted in a fixed location. It is particularly suited to trades where the operative moves between different areas of a site during the day, carrying the dust monitor into each work environment. It also suits any Klick Fast connector-equipped device that needs to be worn at chest height.
Wearing the Dustlight Mini on the chest during cutting, grinding, or breaking tasks on a construction site, keeping the device at breathing zone height throughout the exposure period.
Monitoring dust exposure across a full shift in woodworking or joinery environments, where operatives move between bench work and other areas of the workshop.
Wearing the monitor during concrete breaking or block cutting to capture real-time PM10 and respirable dust data at the point of exposure.
Using the harness during site inductions or pre-task briefings in dusty environments, where monitoring compliance must be visible to site management.
Deploying the harness on a shared basis, with workers fitting the Dustlight Mini at the start of a high-dust task and removing it when returning to lower-risk areas.
Step 1: Confirm the Dustlight Mini has a Peter Jones Klick Fast connector fitted. The harness dock accepts only devices with a connector. Without one, the device cannot be docked.

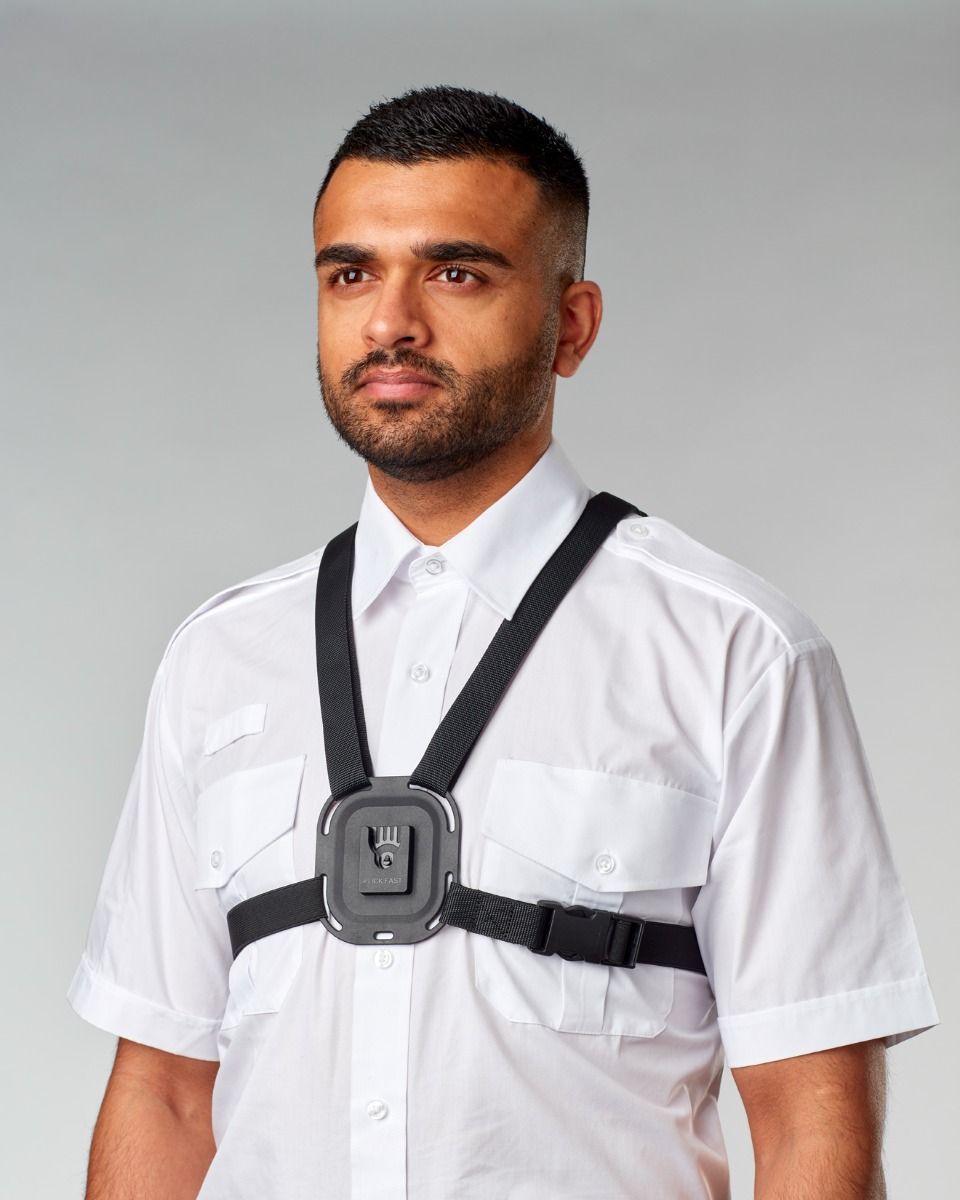

Step 2: Put the harness on over clothing. Slip both shoulder straps over the shoulders so the chest plate sits centrally on the sternum.
Step 3: Fasten the quick-release buckle at the side. Pull the waist strap ends to adjust fit around the torso.
Step 4: Adjust the shoulder strap lengths using the sliders so the chest plate sits at a comfortable height on the chest, in the breathing zone.
Step 5: Slide the Dustlight Mini's Klick Fast connector into the chest dock until it locks. Rotate the device into the preferred reading position from the seven available ratcheted angles.
Step 6: If secondary retention is required, thread a lanyard through the loop slot on the harness and attach to the device.
Not fitting a connector to the Dustlight Mini first: The dock on the harness accepts a connector, not the bare device. A Klick Fast connector, Go, Standard, or Ultra-Lock, must be fitted to the Dustlight Mini before it can be docked.
Leaving the shoulder straps too long: An overly long shoulder strap allows the chest plate to drop below the breathing zone. The monitor should sit at mid-chest height, not at the stomach. Adjust before starting the task.
Selecting the wrong connector type: The Go Connector releases with a direct grab, which is useful when the monitor needs to be removed and replaced frequently. The Standard requires inversion to release. Choose based on how often the device will be docked and undocked during the shift.
Over-tightening the waist strap: The elasticated waist strap is designed to give with movement. Pulling it tight removes that flexibility and reduces comfort across a long shift.
The harness is designed for device mounting, not fall arrest or personal protective equipment use. It does not meet the requirements of EN 361 or any fall protection standard and must not be used as a safety harness in working-at-height applications. The loop slot allows lanyard attachment for device security only. Inspect straps and buckle before each use. Do not use if webbing shows fraying, cuts, or if the buckle fails to click and hold securely.
Wipe straps and the chest plate with a damp cloth. Allow to dry naturally away from heat sources. Do not machine wash. Inspect the dock engagement point for debris before each use. Store away from direct sunlight and solvents. Replace if strap webbing is frayed or the buckle no longer clicks and holds. Return to Peter Jones ILG at end of service life for recycling.
Q: Does this harness include a Klick Fast connector for the Dustlight Mini?
A: No. The harness provides the Klick Fast dock at the chest. The Dustlight Mini requires a separate Klick Fast connector fitted to the device before it can be docked into the harness. The Go Connector (PP190001) is the recommended option for site use where fast access to the monitor is needed throughout the shift.
Q: What is the difference between the 4-point and 3-point version of this harness?
A: The 4-point uses two shoulder straps and two waist straps, giving four points of contact with the body. That distributes the weight of the docked device more evenly and keeps the chest plate more stable during active movement. The 3-point version uses fewer attachment points and suits lighter-duty or lower-mobility tasks. For full shift wear during physical construction work, the 4-point is the more stable option.
Q: What is this harness NOT suitable for?
A: It is not a fall arrest or safety harness. It must not be used in any working-at-height application as a means of preventing a fall. It is also not compatible with the Klick Fast LT system, which is a separate, lighter-duty connector range from Peter Jones. Devices without a Peter Jones Klick Fast connector fitted cannot be docked.
Q: What is the kinetic loop system?
A: Kinetic loops are the junction points where the shoulder and waist straps meet the chest plate. Rather than fixing rigidly, the loops allow the straps to move slightly as the body flexes. When a wearer bends, reaches, or lifts, the straps adjust rather than pulling taut. Combined with the elasticated waist straps, the result is a harness that stays comfortable during physically active work rather than becoming restrictive by mid-shift.
Q: Is the harness adjustable for different body sizes?
A: Yes. Both shoulder straps and waist straps are length-adjustable using slide adjusters. The elasticated waist straps also give naturally with body movement. The harness fits a wide range of body shapes and sizes without requiring a separate size to be specified.
Q: How long does the Klick Fast dock on the chest plate last?
A: The dock is rated for 50,000+ uses by Peter Jones ILG. Under typical site use, where the Dustlight Mini is docked and undocked once or twice per shift, that represents years of service before the dock needs assessment.
Q: Can the harness be recycled when it reaches end of life?
A: Yes. Peter Jones ILG operate a return-and-recycle programme for the Delta range. When the harness has reached the end of its service life, it can be returned to Peter Jones for recycling. This makes it a suitable option for sites and organisations with procurement sustainability requirements.
