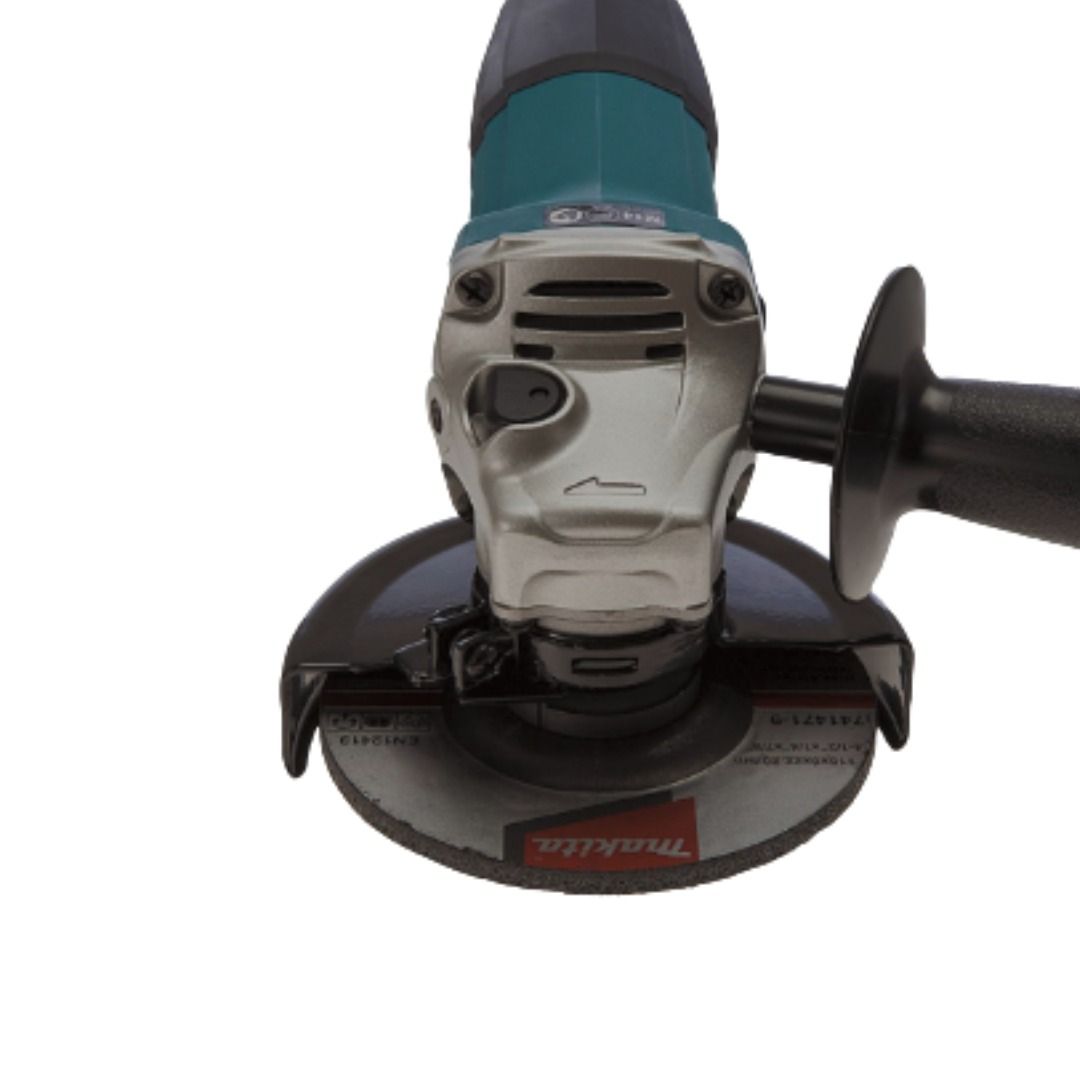

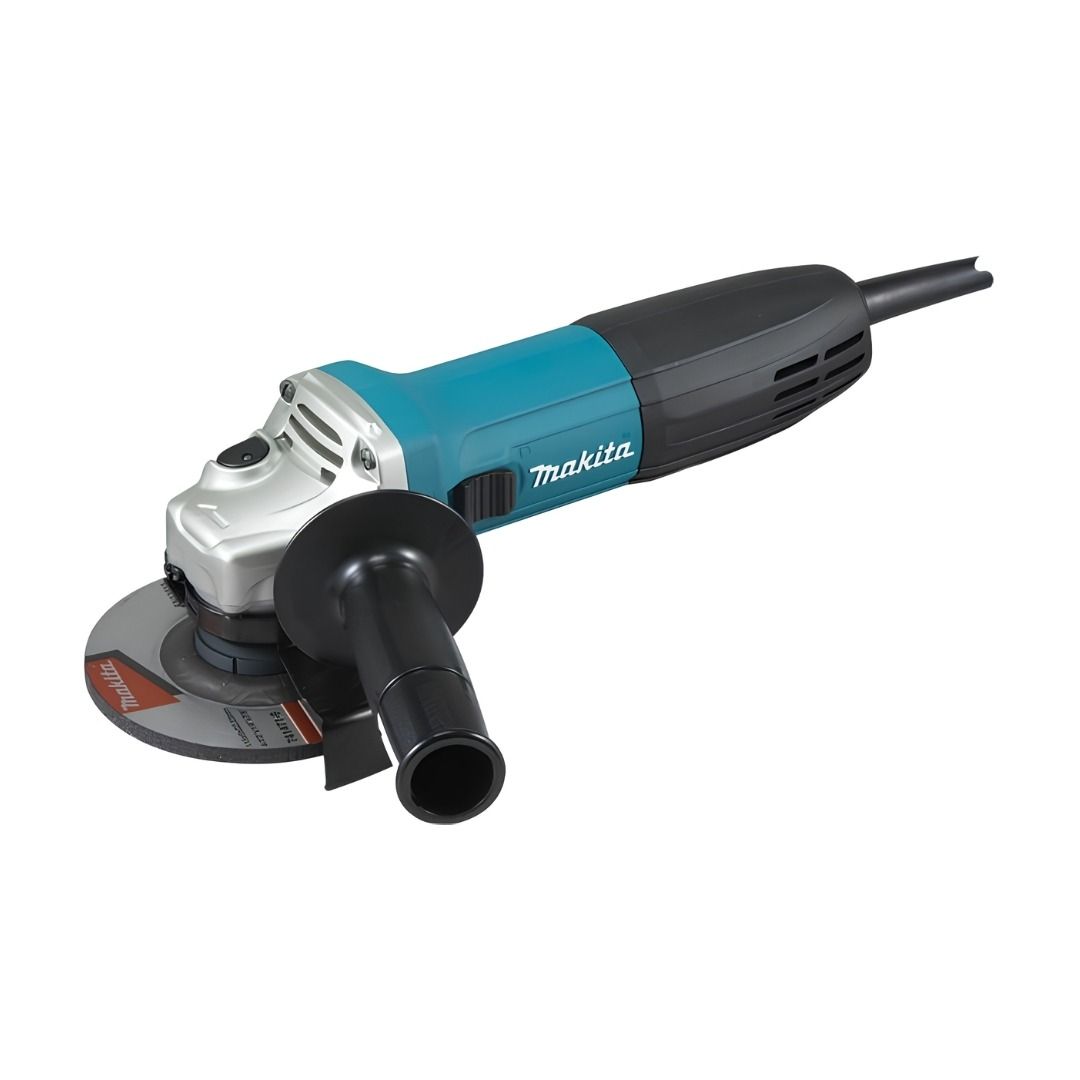

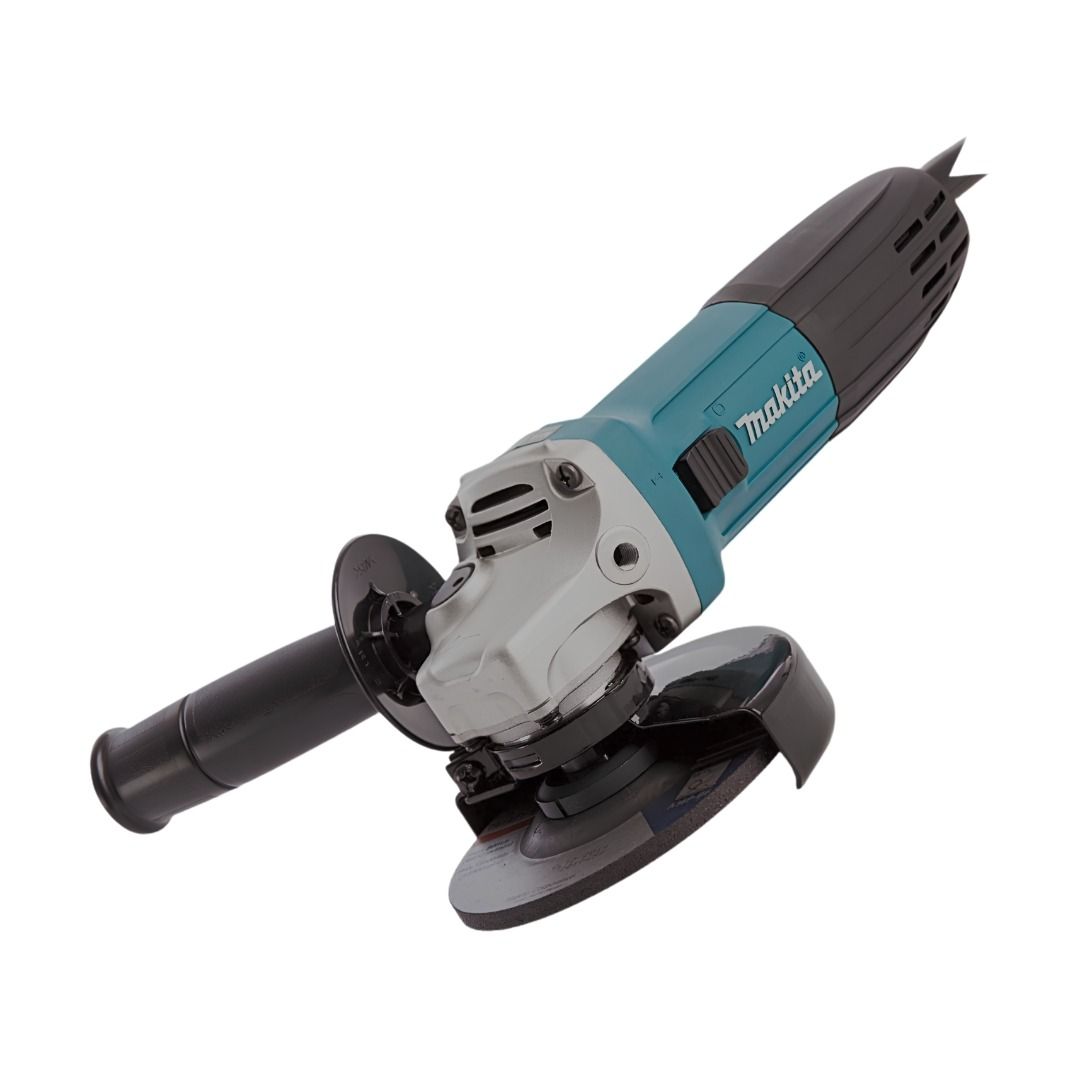

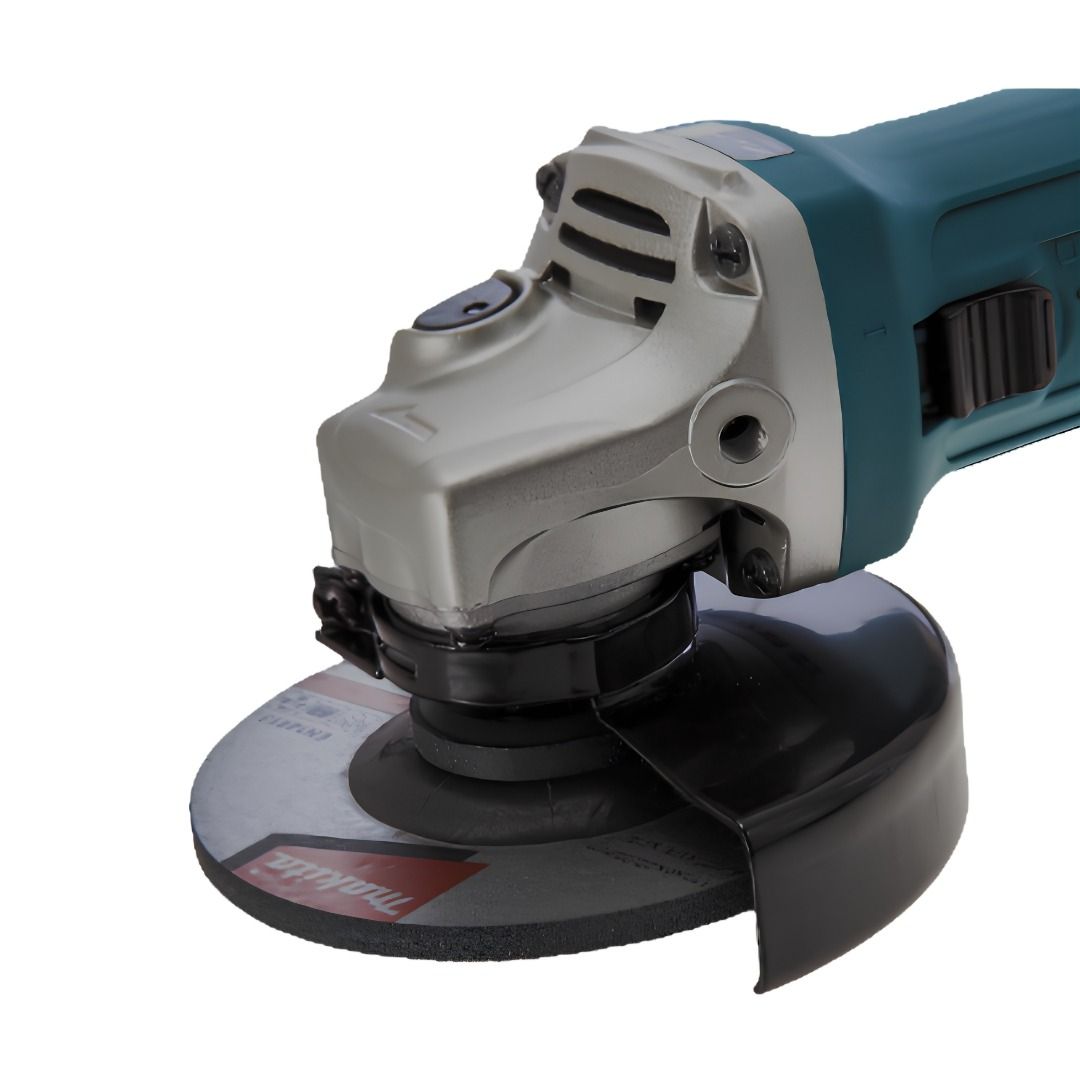

Makita GA4530R/1 110V Angle Grinder 115mm (4.5")

Who is this for

This angle grinder is used by site operatives, steel fabricators, groundworkers, and maintenance engineers on UK construction sites and fabrication workshops requiring 110V reduced low-voltage tooling. It is suited to trades carrying out sustained cutting, grinding, and surface preparation work where continuous operation and operator safety are both primary concerns. Site managers and procurement teams specifying tools under CDM 2015 requirements will find the anti-restart and soft start functions directly relevant to site tool compliance.

Typical applications

• Cutting steel sections, bar, and sheet metal during structural fabrication and site fit-out work.

• Dressing welds and removing weld spatter on structural steelwork prior to inspection or coating.

• Grinding back protruding fixings, bolts, and metalwork flush with surrounding surfaces during finishing work.

• Cutting masonry, brick, and block using an appropriate diamond or segmented cutting disc during construction and renovation work.

• Surface preparation of metal components prior to painting, priming, or protective coating application.

• Removing rust, corrosion, and old coating from steel sections using a wire wheel or flap disc attachment.

• Cutting plastic pipe, conduit, and duct during utilities installation and maintenance work.

• General site metalwork trimming and adjustment during civil engineering and groundwork projects.

How to use

Step 1: Confirm the power supply is 110V site supply or CTE transformer output before connecting. This machine must not be connected to a standard 230V domestic socket.

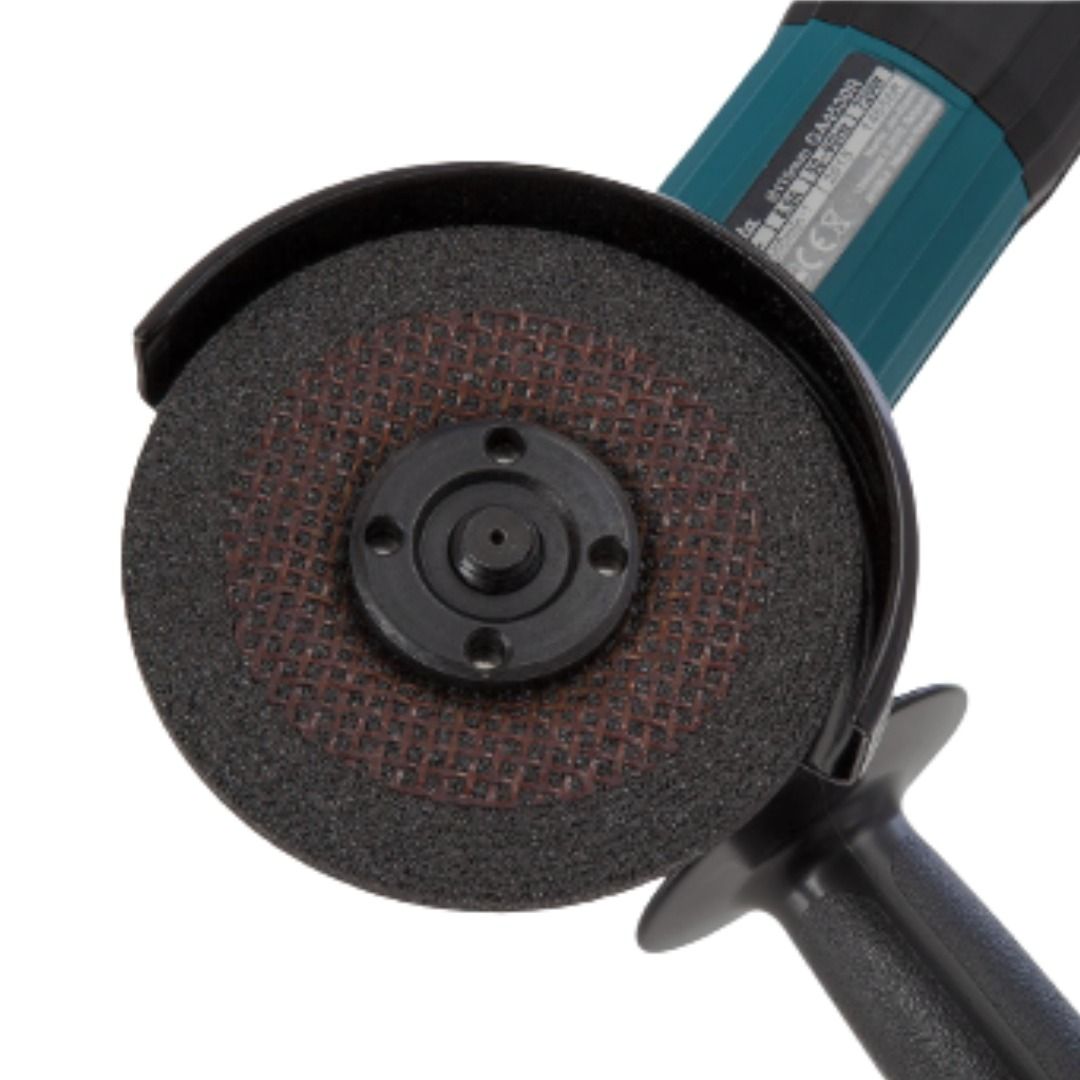

Step 2: Fit the correct disc for the task. Check the disc is rated for a minimum of 11,000rpm and is no larger than 115mm (4.5") in diameter with a 22.23mm bore. Secure using the supplied spanner and locking flange. Do not overtighten.

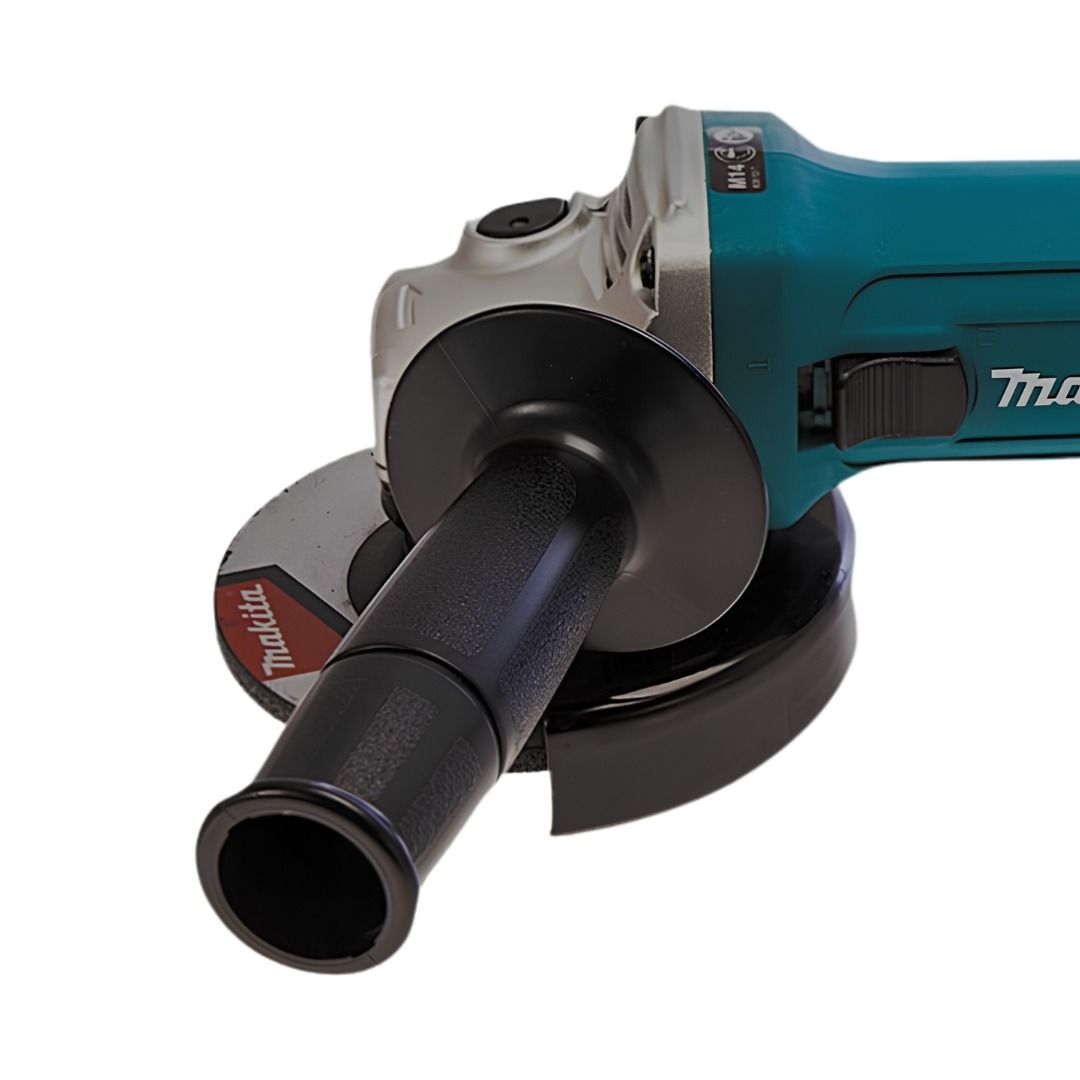

Step 3: Fit the side handle into the gear housing at the 20-degree ergonomic position. Always use the side handle, never operate the grinder one-handed without it fitted.

Step 4: Connect to the 110V supply. Press and release the switch before beginning work to confirm the anti-restart function is active and the soft start ramp-up operates correctly.

Step 5: Engage the lock-on switch for sustained cutting or grinding runs. Release the lock-on before setting the tool down at any point during use.

Step 6: Inspect the disc before each use for cracks, chips, or delamination. A damaged disc must be replaced before the machine is operated.

Step 7: Disconnect from the power supply before changing discs. Use the spindle lock and supplied spanner, never use the motor to hold the spindle.

Common mistakes

• Connecting to 230V supply: The GA4530R/1 operates on 110V only. Connecting to a standard 230V domestic socket will damage the motor immediately and voids the warranty. A yellow 110V industrial plug is fitted as standard.

• Using a disc rated below 11,000rpm: The no-load speed is 11,000rpm. A disc rated below this speed will fail structurally under load, creating a serious ejection hazard.

• Operating without the side handle: The side handle is not optional. Without it, start-up torque and disc contact forces cannot be controlled safely, increasing the risk of disc breakage and hand injury.

• Leaving the lock-on engaged when setting the tool down: A grinder set down with the lock-on active will continue spinning freely on the workbench. Always disengage before releasing the tool.

• Continuing to use a cracked or chipped disc: A damaged abrasive disc can shatter at operating speed. Inspect before every use and replace at the first sign of damage.

Safety

The GA4530R/1 operates at 11,000rpm no-load speed. All discs and wheels fitted must be rated at or above this speed and must not exceed 115mm (4.5") diameter. Appropriate PPE is mandatory: safety glasses or a full face shield, hearing protection, a dust mask rated for the material being cut, and cut-resistant gloves. The anti-restart function is a safety feature, not a substitute for correct isolation procedure, always disconnect from supply before changing discs or leaving the tool unattended. Operate in accordance with PUWER 1998 and any site-specific tool control requirements under CDM 2015. Vibration exposure is 7.5 m/sec² (K factor 1.5 m/sec²), monitor daily exposure against the EAV and ELV limits set under the Control of Vibration at Work Regulations 2005.

Maintenance

Blow out the ventilation slots and gear housing vents with dry compressed air after each shift to prevent grinding dust build-up in the motor. Inspect the power lead and plug for damage before each use, replace if the cable sheath is cut, abraded, or the plug is cracked. Check the gear housing and spindle for play or roughness periodically; any change in running noise or vibration pattern indicates internal wear requiring service. Store in a dry location away from moisture and abrasive dust.
