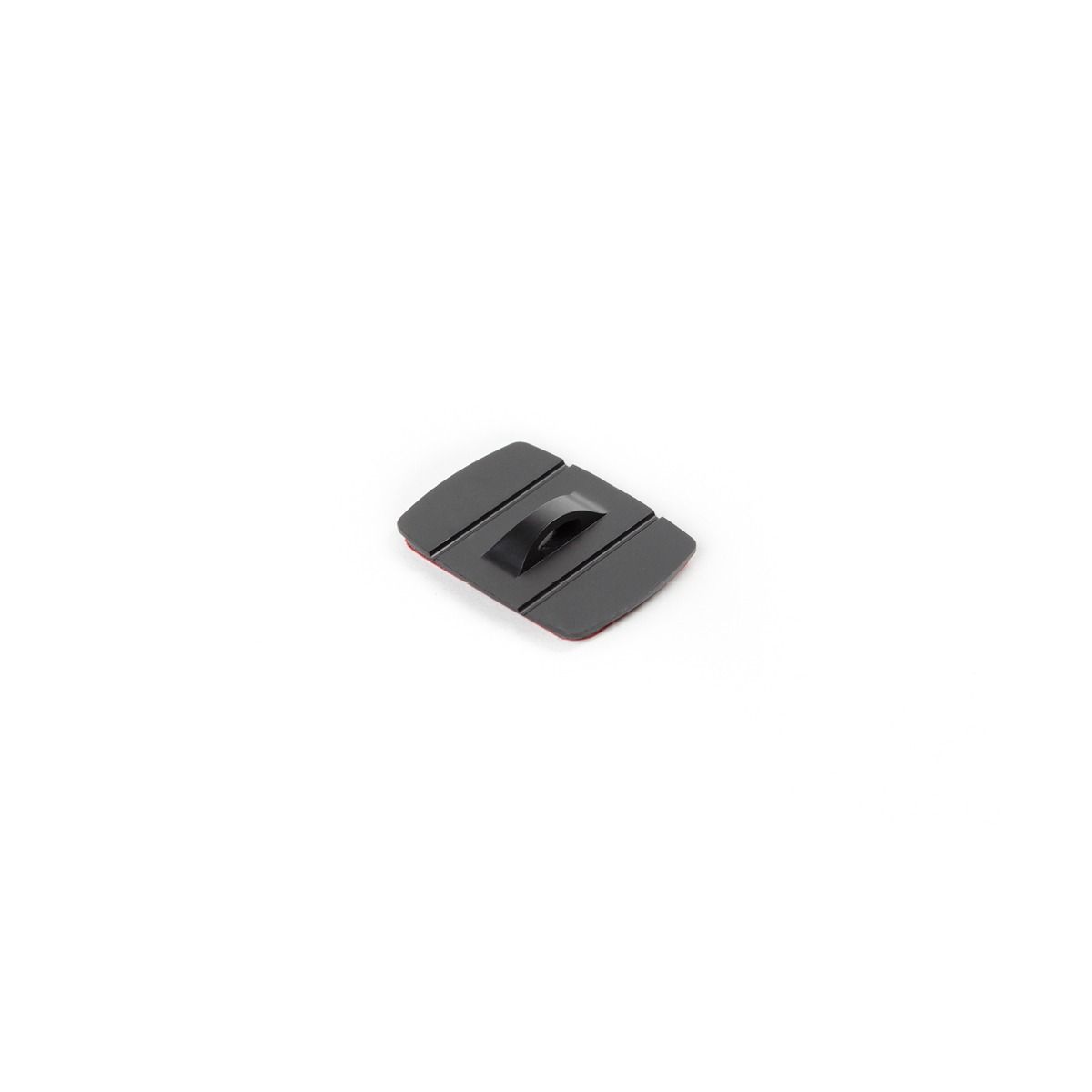

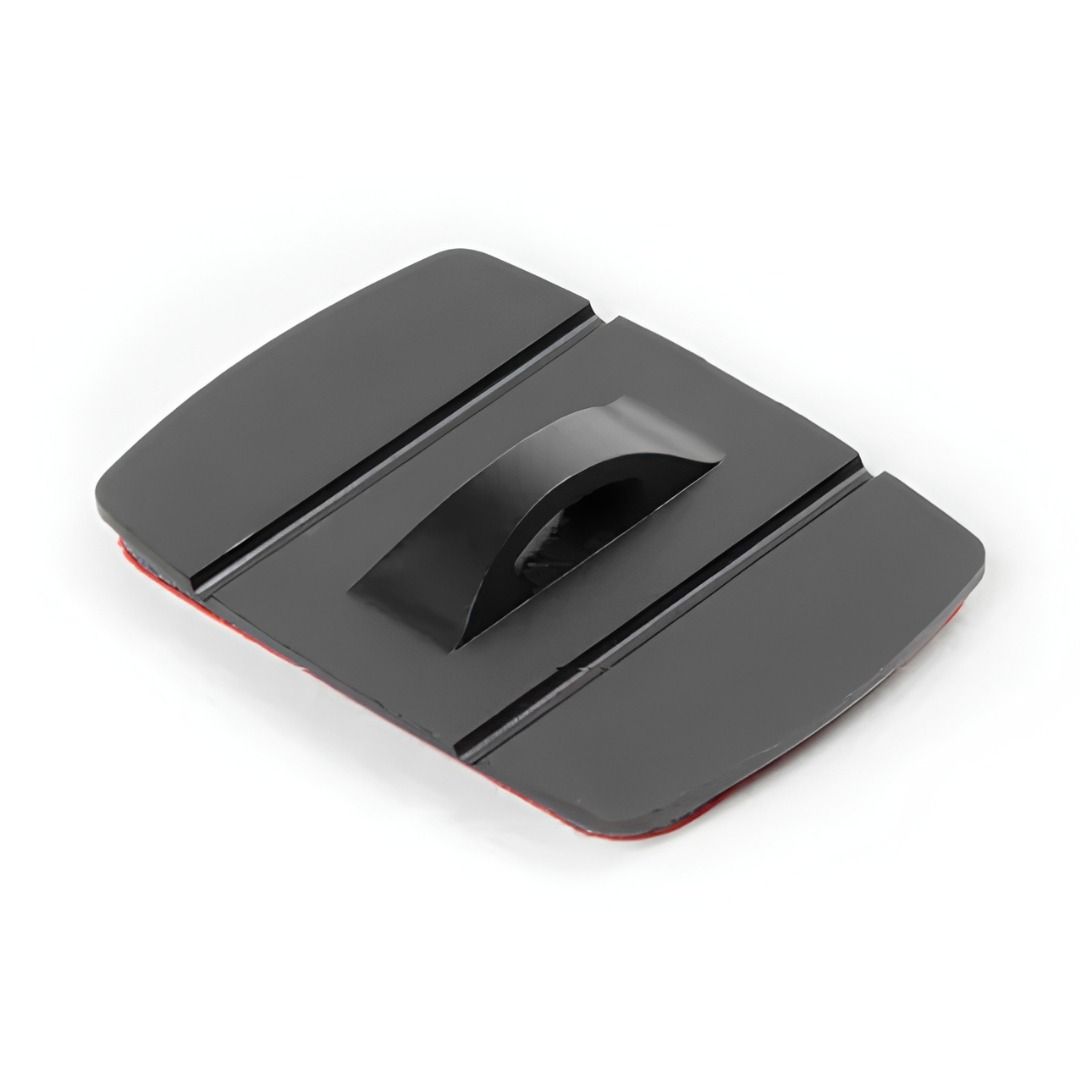

NLG mini adhesive D ring black 30mm x 20mm angled view showing D-ring loop and 3M VHB adhesive backing | CMT Group UK

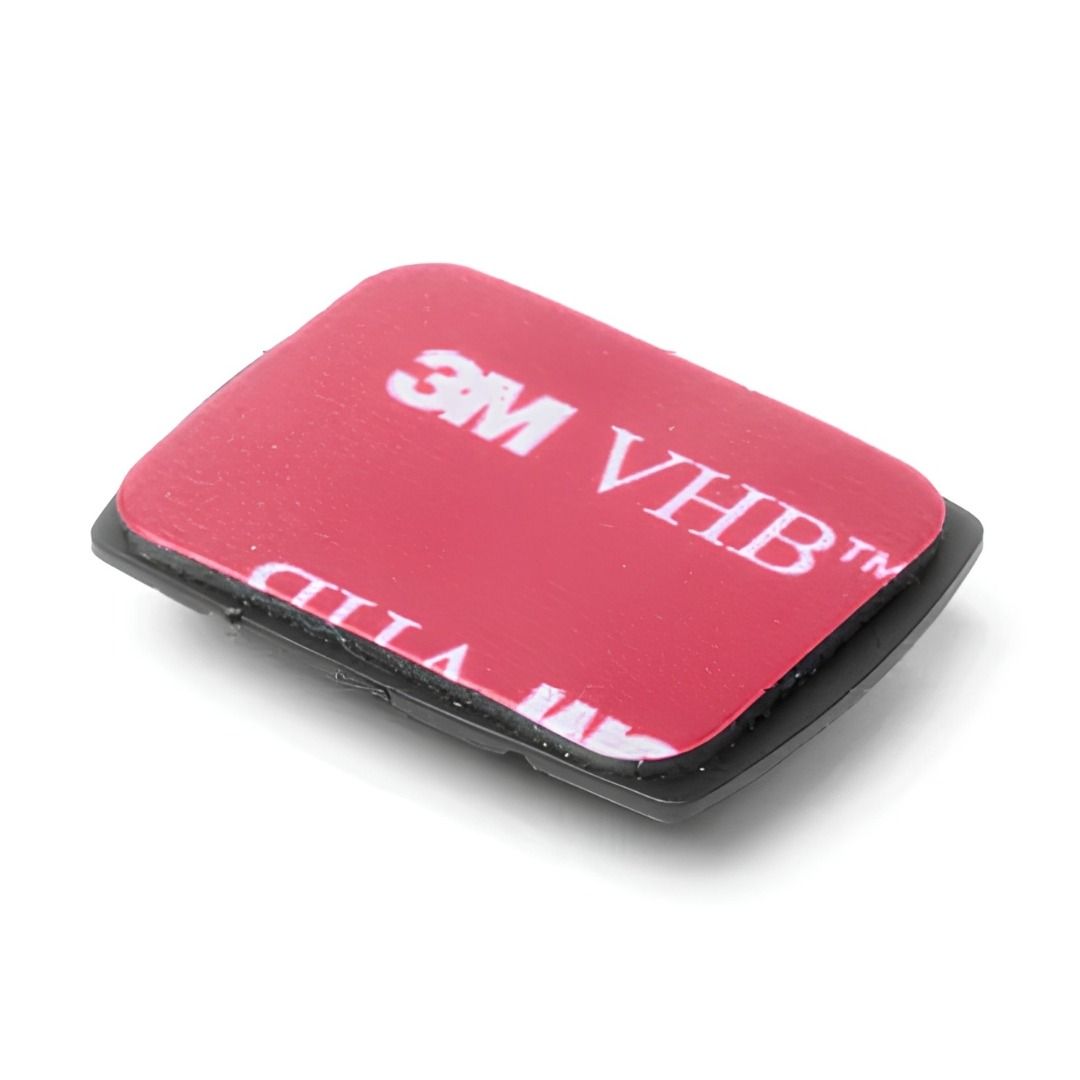

NLG mini adhesive D ring reverse view showing red 3M VHB adhesive pad ready for bonding to tool surface | CMT Group UK

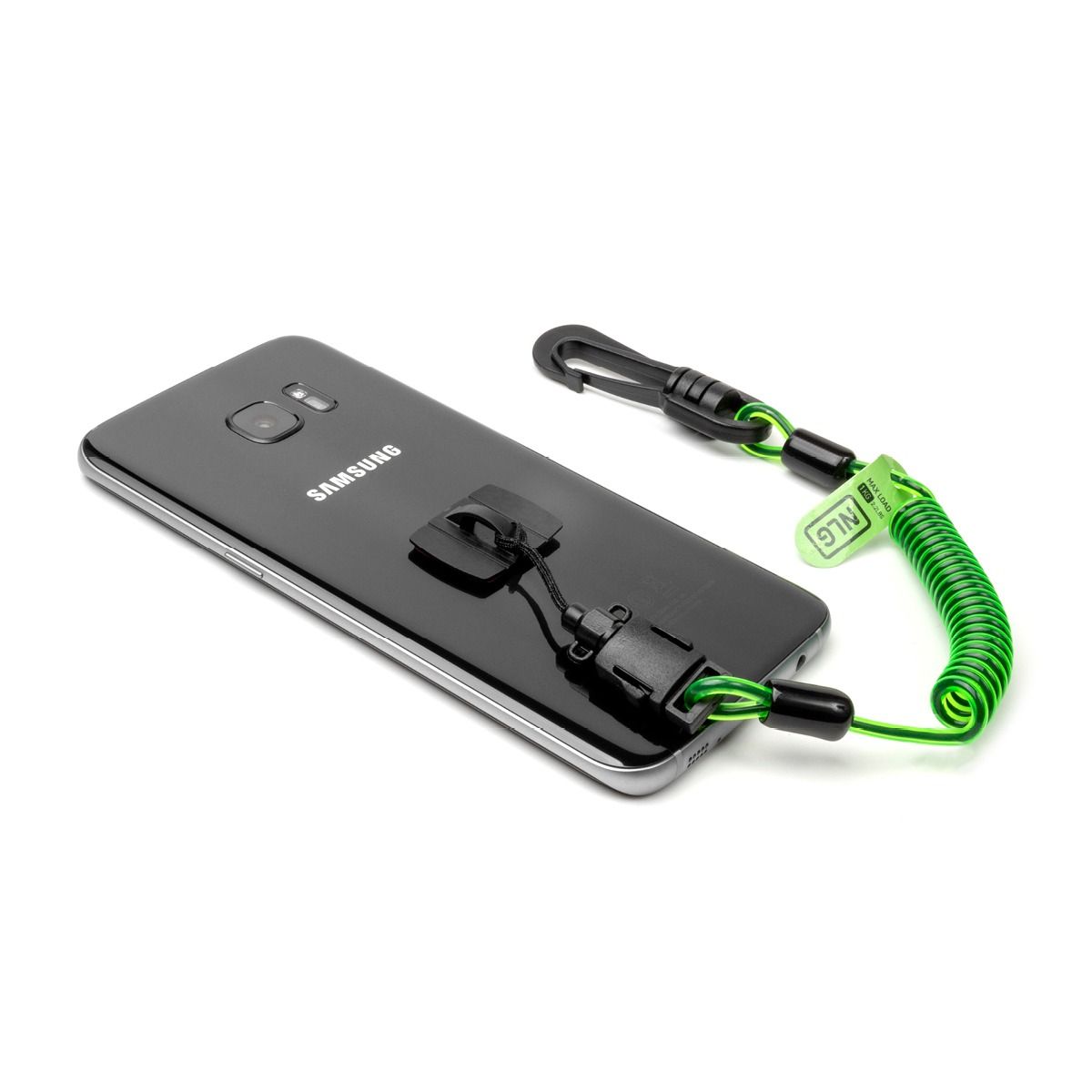

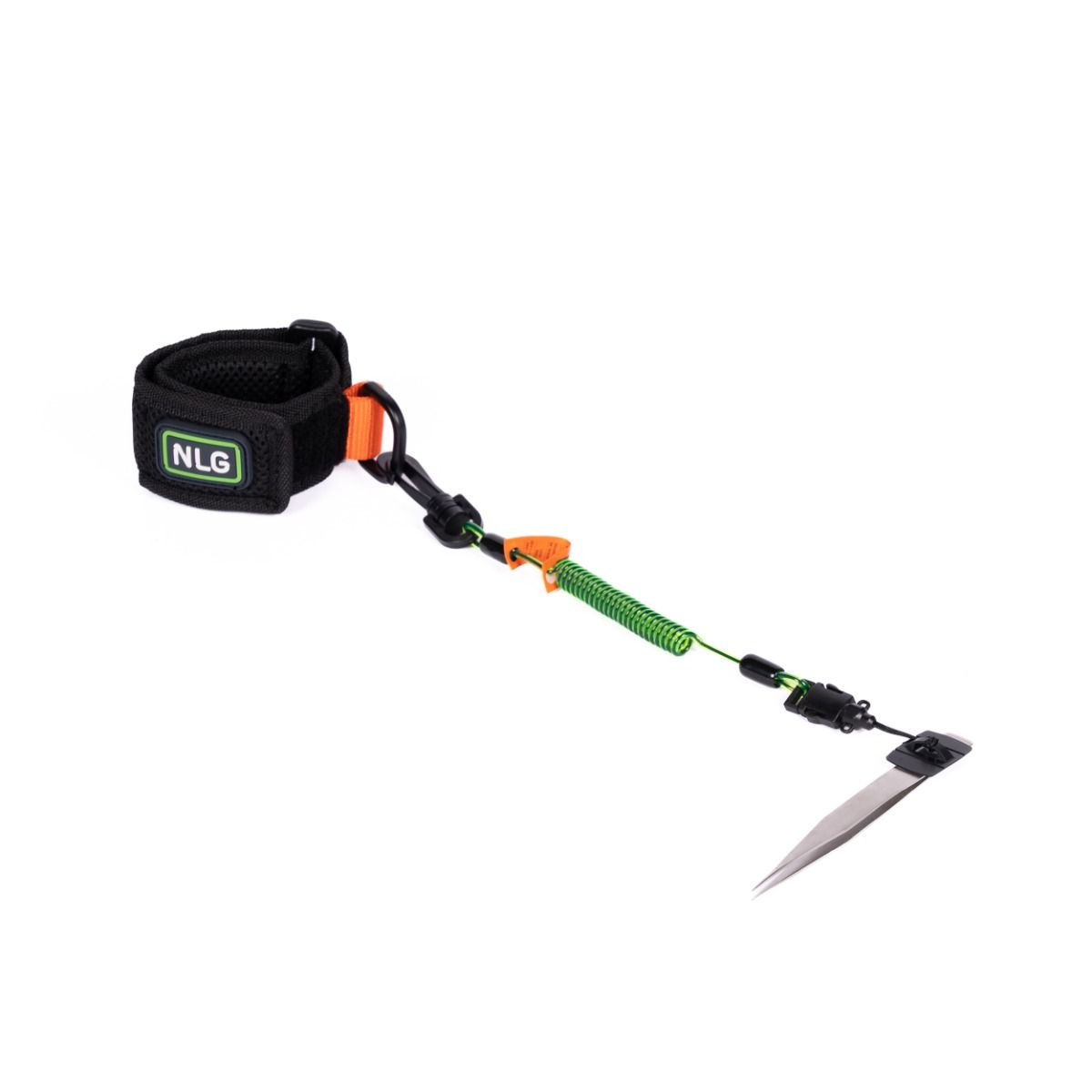

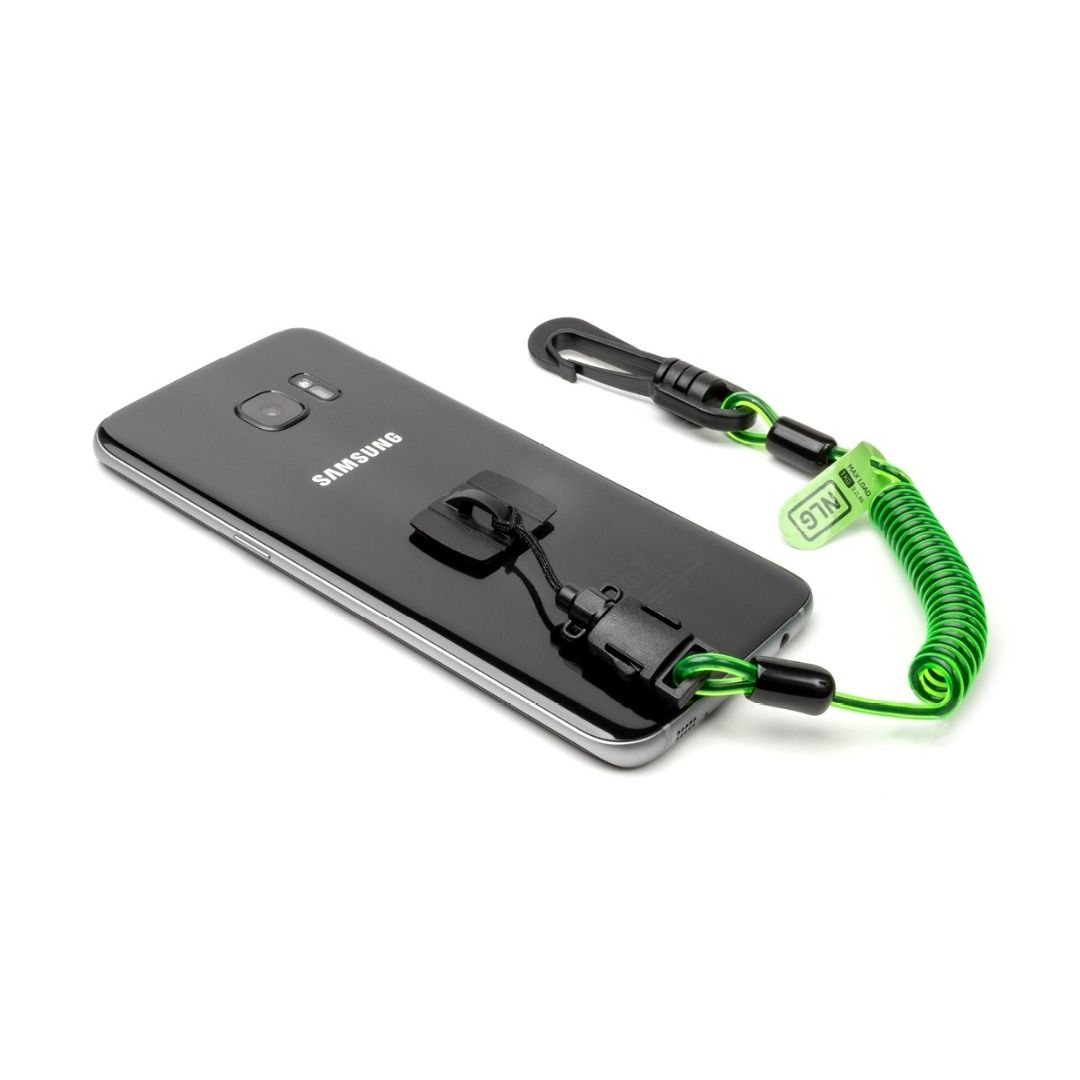

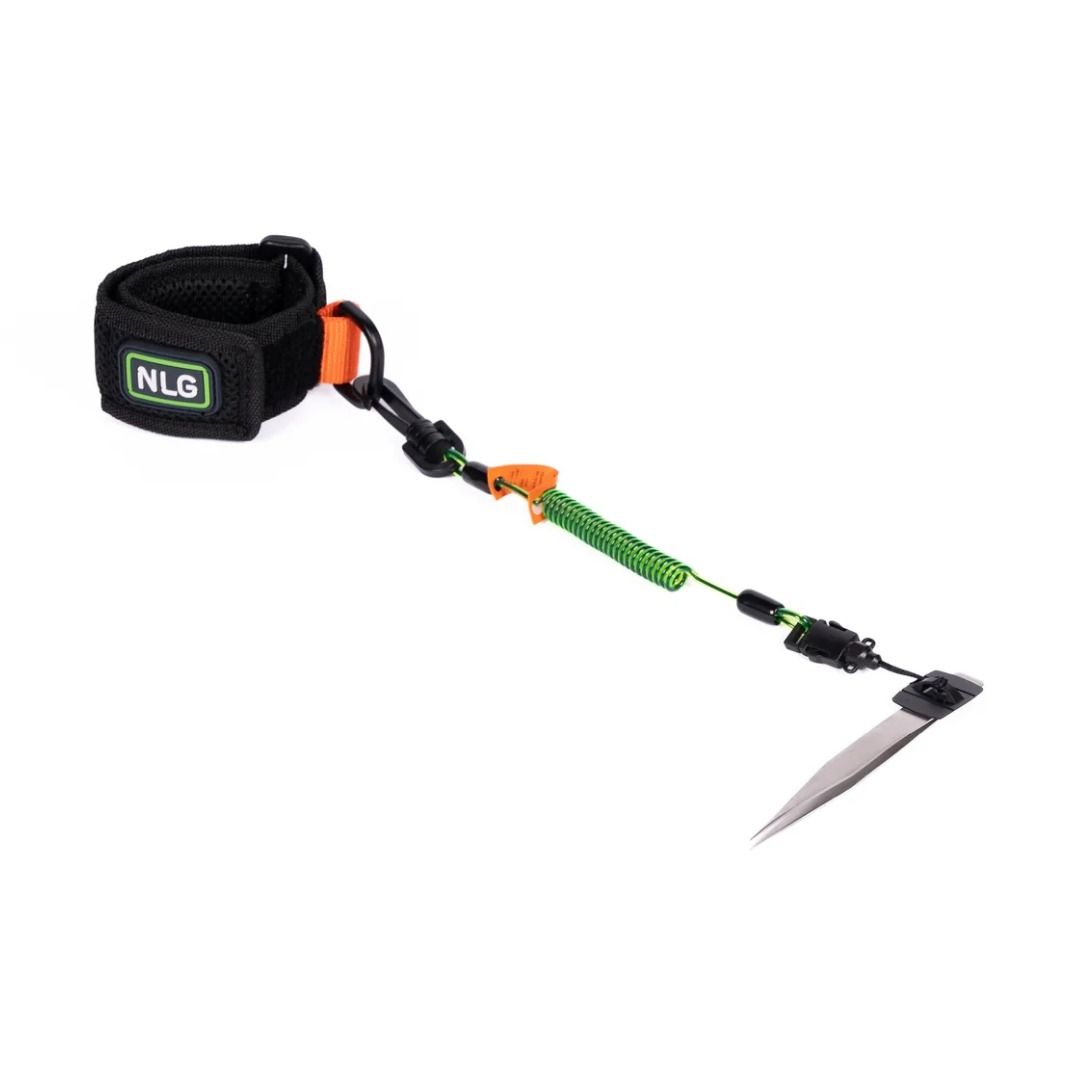

NLG mini adhesive D ring in use bonded to inspection tool attached via coil lanyard to NLG wrist anchor | CMT Group UK

NLG Mini Adhesive D Ring 1kg 3M | CMT Group UK

Mini adhesive D-ring rated to 1kg for creating a permanent certified tether point on phones, devices, and tools without a captive hole.

3M VHB adhesive, bonds to smooth and mildly curved surfaces
1kg rated, dynamic load tested, 2:1 safety factor
For phones, cameras, radios, and small tools without tether points
Allow 24 hours for full bond strength before putting into service at height
ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA
Max lanyard length 120cm,
pairs with NLG Mini Coil Lanyard (NLG101371)
30mm x 20mm, 1g

NLG Mini Adhesive D Ring - 1kg 3M Adhesive Tool Tether Point

Code

NLG101481

4 In Stock

Mini adhesive D-ring rated to 1kg for creating a permanent certified tether point on phones, devices, and tools without a captive hole.

3M VHB adhesive, bonds to smooth and mildly curved surfaces
1kg rated, dynamic load tested, 2:1 safety factor
For phones, cameras, radios, and small tools without tether points
Allow 24 hours for full bond strength before putting into service at height
ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA
Max lanyard length 120cm,
pairs with NLG Mini Coil Lanyard (NLG101371)
30mm x 20mm, 1g

£5.69 £4.74

Buy 10 for £4.96 £4.13 each and save 13%
Buy 20 for £4.24 £3.53 each and save 26%

BULK DISCOUNT	10	20
Price	£4.13 £4.96	£3.53 £4.24

Order 1x to earn 4 FASTPoints

Order to earn 4 FASTPoints

4 In Stock

Product Details

NLG Mini Adhesive D Ring

Adhesive tool tether points solve the problem that every other anchor in the NLG range cannot: creating a certified D-ring on a device that has no captive hole, no tether slot, and no surface that a clip or wrap can grip reliably. The NLG Mini Adhesive D Ring bonds permanently to the back of a phone, the casing of a site radio, or the body of a camera using 3M VHB industrial adhesive, providing a 1kg-rated certified tether point that a lanyard can connect to directly. Certified to ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA, dynamically load tested at a 2:1 safety factor, and requiring a 24-hour cure before service use.

How 3M VHB adhesive creates a certified tether point on surfaces that conventional anchors cannot reach

Phones, site radios, cameras, and small electronic instruments have smooth moulded casings with no built-in tether point and no surface geometry that belt loops, Velcro anchors, or carabiners can grip. Operatives carrying these devices at height either go without a tether, accepting the dropped object risk, or improvise with cable ties and rubber bands that carry no load rating and no certification. The 3M VHB adhesive system bonds to smooth flat and mildly curved surfaces at the molecular level, creating a connection that holds under the sudden dynamic forces of a dropped device with a certified 1kg load rating and a 2:1 safety factor verified by an independent laboratory.

Key Features

3M VHB adhesive backing: Very High Bond industrial adhesive technology from 3M creates a permanent attachment to smooth flat and mildly curved surfaces on tools and devices. The same adhesive family used in industrial manufacturing and structural bonding applications.
1kg rated D-ring: Certified tether point rated to 1kg dynamic load and tested at 2kg under the 2:1 safety factor requirement. Provides a D-ring attachment for any compatible lanyard up to 120cm length.
Works on curved profiles: The flexible backing allows the adhesive pad to conform to mildly curved surfaces such as radio casings and phone backs, maintaining contact across the full pad area for maximum bond strength.
Permanent bond: Once bonded and fully cured at 24 hours, the D-ring creates a fixed tether point that does not shift, peel, or reposition during tool use. Not designed for repositioning after bonding.
Compact footprint: At 30mm x 20mm and 1g, the D-ring adds minimal bulk to any device or tool. Compatible with most standard cases and device surfaces.
ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA: Triple certified, dynamically load tested at a 2:1 safety factor, suitable for inclusion in formal dropped object prevention programmes.

Who is this for

Trades and roles:

Electricians carrying site phones and instruments at height
Maintenance engineers with radios and test equipment
Surveyors and inspectors using cameras and data loggers at height
Rope access technicians tethering compact devices and instruments
Site managers and MEWP operators carrying phones on elevated platforms
Any operative needing to tether a device with no factory-fitted anchor point

Industries:

Electrical and instrumentation contracting
Construction and site management
Oil, gas, and petrochemical maintenance
Telecoms and broadcast infrastructure
Industrial inspection and surveying
Facilities management

Specifications

Specification	Detail
Product Name	NLG Mini Adhesive D Ring - 1kg 3M Adhesive Tool Tether Point
SKU	NLG101481
Product Type	Adhesive tool tether point
Max Load	1kg (2.2lbs)
Adhesive Technology	3M VHB (Very High Bond) industrial adhesive
Compatible Surfaces	Smooth flat and mildly curved surfaces, clean and grease-free
Bond Cure Time	24 hours for full bond strength before service use
Max Lanyard Length	120cm (48 inches)
Dimensions	30mm (L) x 20mm (W)
Safety Standards	ANSI/ISEA 121-2023, NS 9611:2022+AC
Compliance Marking	CE and UKCA
Load Testing	Dynamic, 2:1 safety factor, third-party certified
Compatible Lanyard	NLG Mini Coil Lanyard (NLG101371)
Unit Weight	1g

Compatibility

Application or Surface	Status
Smooth flat surfaces on phones, cameras, and devices (clean, grease-free)	Compatible
Mildly curved surfaces on site radios and handheld instruments	Compatible
Smooth plastic or metal tool casings without captive holes	Compatible
Lanyards up to 120cm length via D-ring attachment	Compatible
NLG Mini Coil Lanyard (101371)	Compatible
Battery compartment doors or removable panels	Not recommended
Oily, dusty, or contaminated surfaces without thorough cleaning	Not recommended
Silicone, rubber, or powder-coated surfaces (reduced adhesion)	Not recommended
Tools or devices exceeding 1kg	Not recommended
Personal fall arrest, restraint, or work positioning	Not recommended

Who is this for

The NLG Mini Adhesive D Ring is used by electricians, maintenance engineers, surveyors, and site operatives who carry phones, radios, cameras, and instruments at height and need a certified tether point on a device that has no factory-fitted anchor. At 1kg rated load, it covers the majority of modern smartphones, site radios, compact cameras, laser levels, and similar electronic instruments. It is the solution for the gap that every other anchor in the NLG range leaves open: the tool or device itself has nowhere for a clip, wrap, or loop to attach, and the adhesive D-ring creates that connection point permanently.

Typical applications

Bonding a certified tether point to the back of a site smartphone for connection to a wrist anchor or belt clip, preventing phone drops from scaffold platforms and elevated working positions.
Creating a permanent D-ring tether point on a two-way site radio or walkie-talkie for tethering to a belt lanyard during elevated maintenance and inspection work.
Attaching a tether point to a laser level or digital measuring instrument for connection to a belt or harness lanyard during overhead survey and setting-out work at height.
Bonding to a compact inspection camera or borescope for tethering to a body anchor during confined access inspection above ground level.
Creating a tether point on a pocket torch or pen-type instrument for connection to a wrist anchor during confined space entry and inspection at height.
Providing a D-ring tether attachment on a compact data logger or handheld analyser used during instrumentation maintenance on elevated industrial plant.

How to use

Step 1: Select a clean, flat or mildly curved surface on the tool or device. Do not apply to battery compartment doors or any removable panel, as these can detach from the device.

Step 2: Clean the surface thoroughly with a suitable cleaner and allow to dry completely. Remove all grease, dust, and residue. The adhesive will not bond reliably to a contaminated surface.

Step 3: Remove the white side of the 3M pad and press it firmly to the underside of the Mini D Ring.

Step 4: Remove the red protective backing from the 3M pad to expose the adhesive face.

Step 5: Press the Mini D Ring firmly onto the chosen surface on the tool or device. Smooth the pad down firmly across the full contact area.

Step 6: Allow 24 hours for the adhesive to reach full bond strength before putting the tool into service at height.

Step 7: Test the tether point by applying firm hand pressure before use. Only put the tool into height service once the bond is confirmed secure.

Common mistakes

Not allowing the full 24-hour cure time: the 3M VHB adhesive reaches full bond strength after 24 hours. Putting the tool into service at height before the cure is complete risks adhesive failure under dynamic load.
Applying to a contaminated surface: any grease, dust, or residue on the bonding surface will prevent the adhesive from making full contact with the substrate. Surface preparation is the single most important step in successful application.
Applying to a battery door or removable panel: removable panels detach under load regardless of how well the adhesive bonds to them. The adhesive bonds to the panel, not the device, if the panel comes off, the tether point goes with it.
Using with a lanyard longer than 120cm: the D-ring is rated for lanyards up to 120cm. Using a longer lanyard generates a higher swing arc and greater dynamic force at the anchor in a drop event, exceeding the design specification.
Assuming the bond can be reversed or repositioned: the 3M VHB adhesive creates a permanent bond intended for fixed service. Attempting to remove the D-ring may damage the device surface or leave adhesive residue that prevents re-bonding.

Safety

Certified to ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA, dynamically load tested at a 2:1 safety factor. Maximum load is 1kg (2.2lbs). This is a tool retention tether point only. It must not be used as a personal fall arrest anchor, fall restraint anchor, or work positioning anchor. Maximum compatible lanyard length is 120cm. Allow 24 hours cure before service use. Test before putting into height service. Do not apply to battery compartment doors or removable panels.

Maintenance

Inspect the D-ring and adhesive bond before every use. Press the D-ring gently and check that the bond shows no signs of peeling, lifting, or movement at the adhesive pad edges. If any lifting is visible, remove from service. The D-ring itself has no moving parts to wear. Keep the D-ring surface clean by wiping with a damp cloth. If the device is cleaned with chemical solvents or degreasers, confirm these do not reach the adhesive pad edge, as some solvents will degrade the adhesive bond over time.

Frequently Asked Questions

Q: What surfaces does the 3M adhesive bond to reliably?
A: The 3M VHB adhesive bonds reliably to smooth, clean, flat or mildly curved surfaces including glass, polished plastic, painted metal, and smooth ABS casings on phones, cameras, and electronic instruments. It does not bond reliably to silicone, rubber, powder-coated finishes, or any surface that is oily, dusty, or contaminated. Different surface materials affect bond strength, the instruction document specifically recommends testing before putting into service at height.

Q: Why does it need 24 hours before use?
A: 3M VHB adhesive forms its maximum bond strength through a chemical cross-linking process that takes approximately 24 hours at room temperature. In the first hours after application, the adhesive has partial strength only. Applying dynamic load, such as a tool drop, before the bond fully cures risks adhesive failure at a significantly lower load than the rated 1kg. The 24-hour cure is not optional for height work.

Q: What certifications does this carry?
A: Certified to ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA. Dynamically load tested at a 2:1 safety factor, tested to 2kg under a simulated drop event.

Q: What is this not suitable for?
A: It must not be applied to battery compartment doors or any removable panel, as these can detach from the device. It is not suitable for tools or devices exceeding 1kg, for lanyards longer than 120cm, or for any personal fall protection application. It must not be applied to silicone, rubber, or surfaces that cannot be cleaned to a grease-free condition before bonding.

Q: How is this different from the belt loop, BiLock, and TriLock anchors?
A: The belt loop, BiLock, and TriLock anchors all create tether points on the operative's body or on structures, they are body-worn or structural anchors for the lanyard anchor end. The Mini Adhesive D Ring creates a tether point on the tool or device itself, the tool end of the tethering system. It is used when the tool has no factory-fitted captive hole, tether loop, or D-ring. The two types of anchor work together in a complete tethering system: an operative anchor (belt, wrist, or structure) connected via a lanyard to a tool-side anchor (this D-ring).

Q: What is the maximum lanyard length and why does it matter?
A: The maximum compatible lanyard length is 120cm. A longer lanyard creates a greater swing arc in a drop event, generating higher dynamic force at the D-ring anchor on impact. The 1kg rating is calculated for lanyards within the 120cm specification. Using a longer lanyard with a 1kg device can generate forces that exceed the anchor's rated dynamic load capacity during a drop. For devices needing more reach, use a higher-rated anchor method rather than extending the lanyard beyond the specification.

Q: Can I remove and reapply the D-ring to a different surface?
A: The 3M VHB adhesive is designed for permanent bonding. While it may be possible to remove the D-ring by applying careful lateral force, doing so will likely leave adhesive residue on the device surface and may damage the original adhesive pad to a point where it cannot be reapplied with reliable bond strength. The D-ring should be treated as a permanent installation on the device it is bonded to.
