Who is this for

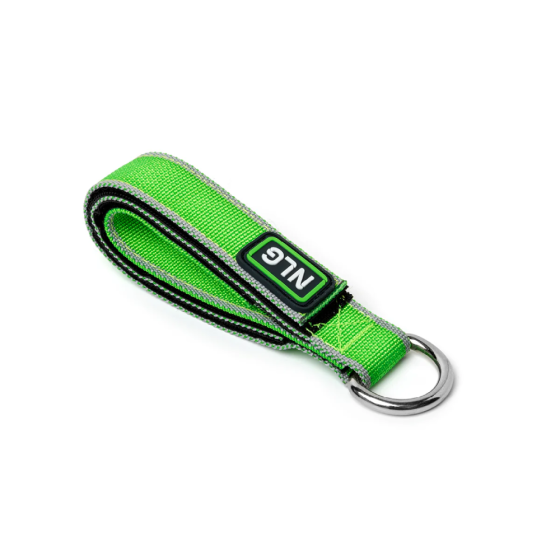

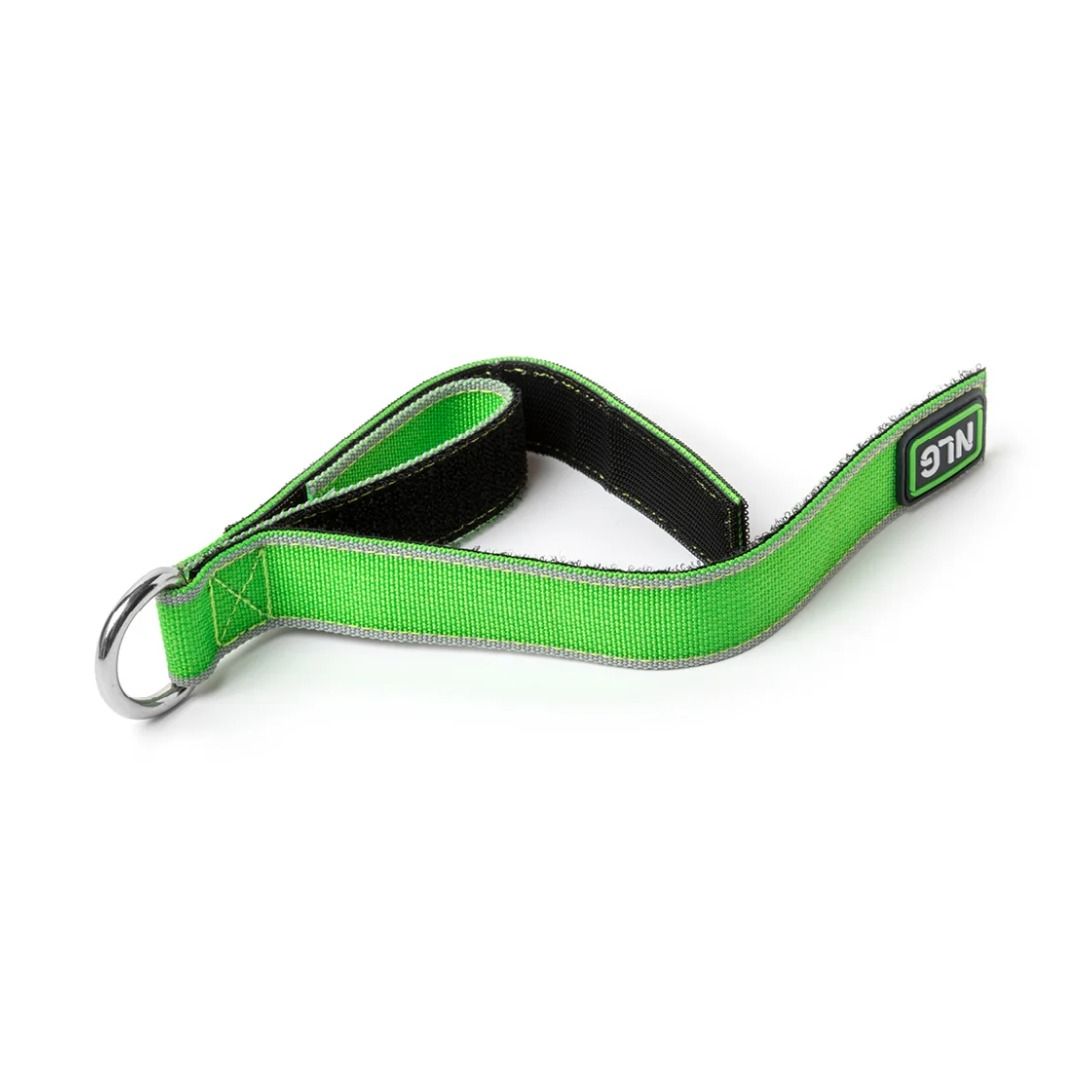

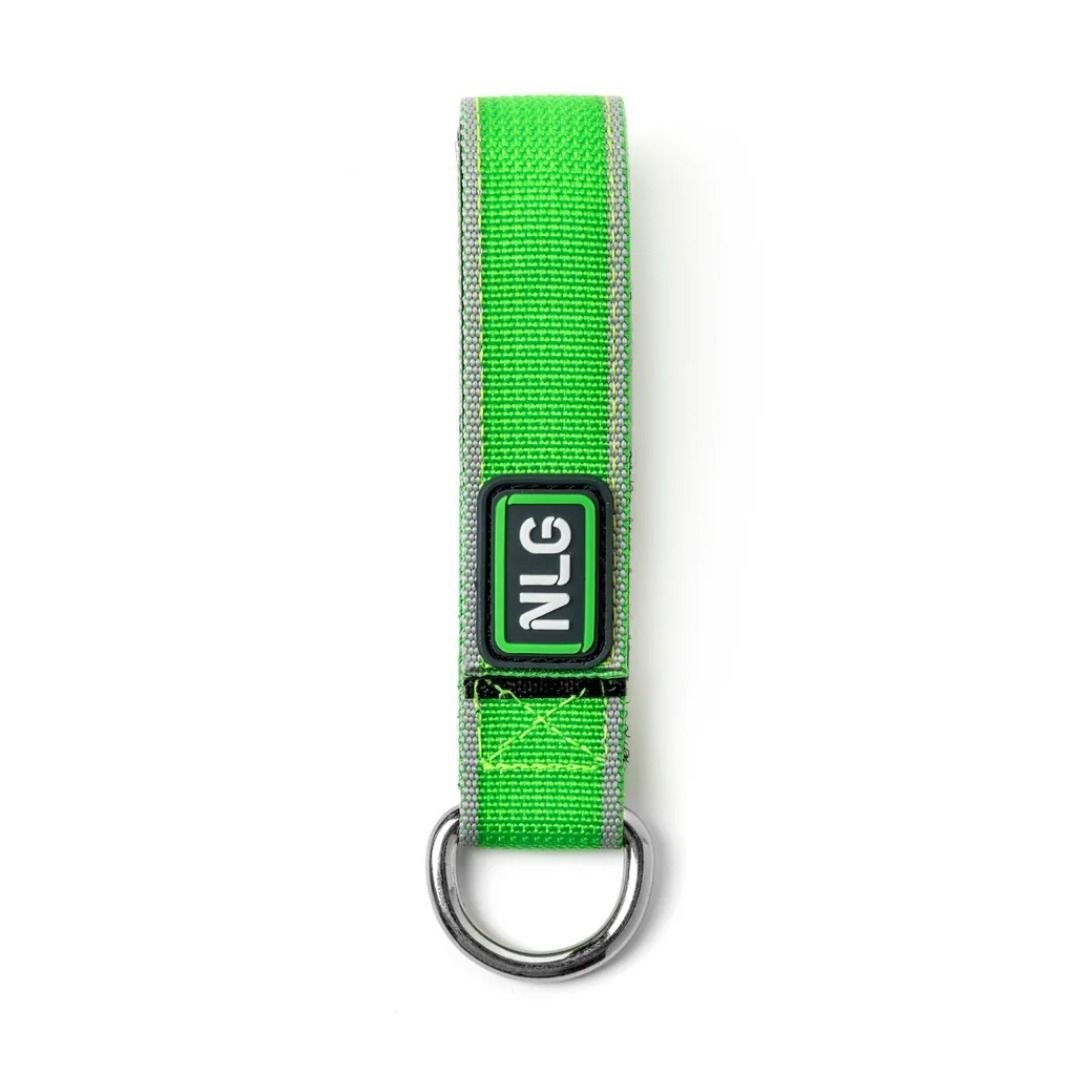

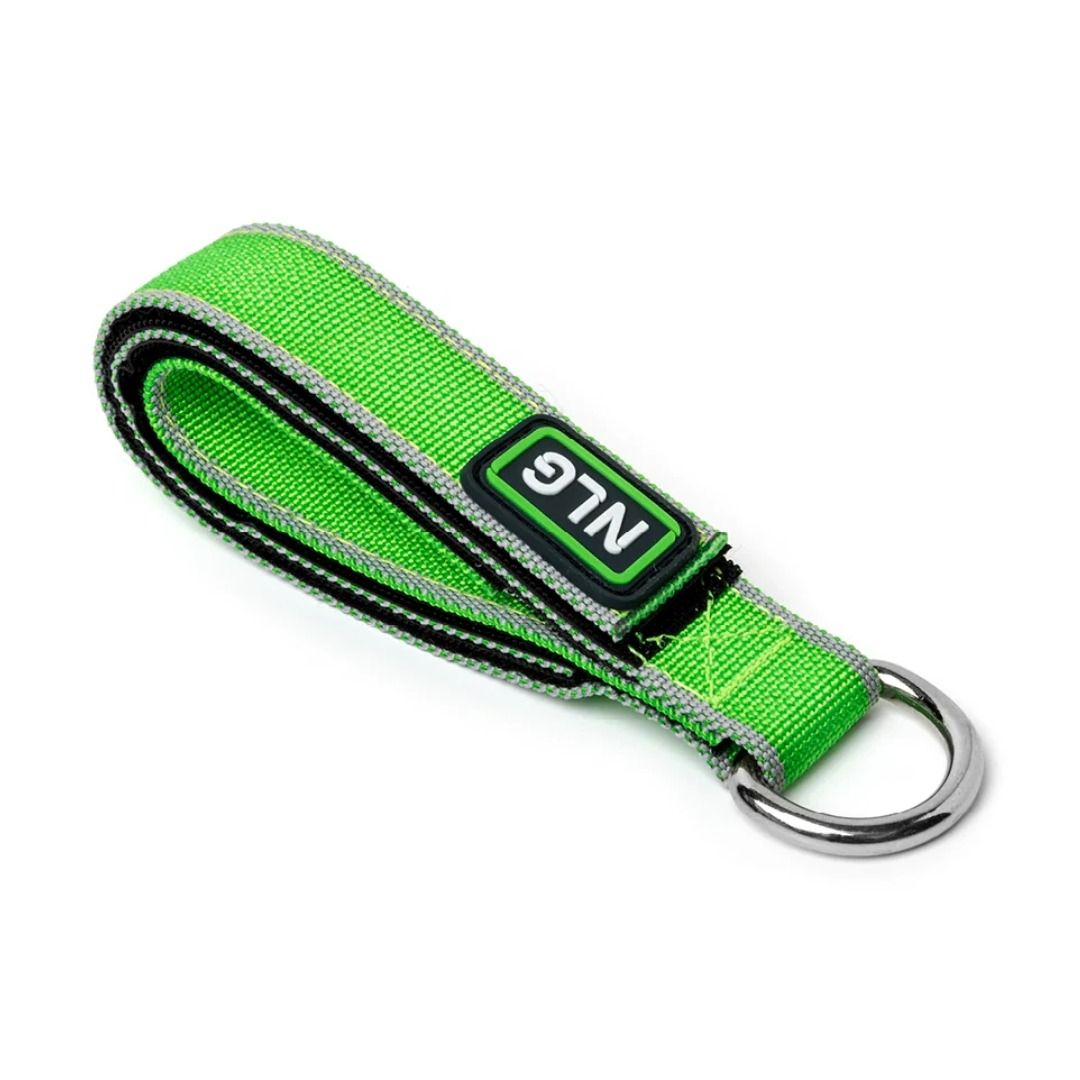

The NLG TriLock Velcro Anchor is used by scaffolders, construction operatives, and maintenance engineers who need a certified 10kg-rated anchor point on scaffold rails or poles, and by any operative who carries heavy tools without captive holes at height, flogging spanners, heavy wrenches, angle grinders, and large cordless power tools, where no other anchor method is available. At 10kg structural rating, it handles the majority of heavy hand tools and power tools that the 3kg BiLock and Belt Loop anchors cannot accommodate. Where the anchor is attached to the body rather than a structure, the tool weight limit remains 3kg regardless of the anchor's structural capacity.
Typical applications
-
Wrapping around a scaffold pole up to 50mm diameter to create a certified 10kg D-ring anchor point for a tethered angle grinder or heavy power tool during elevated installation work.
-
Attaching directly around the barrel or body of a flogging spanner or heavy wrench where no captive hole exists, creating a certified tether point on the tool itself before connecting it to a lanyard.
-
Creating a structural anchor on a scaffold handrail for a heavy cordless drill or impact driver where the operative needs the anchor point at structure level rather than body level.
-
Wrapping around the casing of a large power tool during elevated maintenance to create a tether point on tools that have no factory-fitted tether attachment.
-
Providing a certified 10kg rail anchor point for operatives working alongside a scaffold structure who need tools tethered to the scaffold rather than to their body.
-
Creating a tether point on a pipe wrench or adjustable spanner during overhead pipework installation where the tool's handle cross-section allows a secure TriLock wrap.
-
Attaching to handrails on elevated platforms during industrial shutdown maintenance, providing structural anchor points for heavy equipment without harness D-ring reliance.
How to use
Step 1: Inspect before every use. Check all three Velcro bands for delamination, contamination, or loss of grip. Check the welded D-ring for deformation. Check the contrast stitching for fraying. Retire immediately if any defect is found.
Step 2: Confirm the attachment surface is within the rated diameter (scaffold poles up to 50mm) or is a suitable Velcro-engaging textile surface. Confirm the tool weight does not exceed 10kg for structural use or 3kg for body-worn use.
Step 3: Peel open all three Velcro bands fully.
Step 4: Wrap the innermost band around the attachment poin, scaffold pole, rail, harness, or tool body, with the D-ring positioned at the bottom.
Step 5: Wrap the second band over the first in the opposite direction. Press the Velcro firmly into full engagement.
Step 6: Wrap the outer band over the second band in the opposite direction. Press firmly. All three bands must be fully engaged. Tug the anchor firmly to confirm it does not shift or peel before attaching any tool.
Step 7: Attach the rated lanyard to the D-ring. Confirm the connector is fully engaged before beginning work.
Common mistakes
-
Using the 10kg structural rating for body-worn attachment: when the TriLock is on a belt or harness, the tool weight limit is 3kg. The 10kg rating applies only to structural anchors such as scaffold rails. Confirm the configuration and apply the correct load limit before tethering.
-
Engaging only one or two of the three Velcro bands: all three bands must be wrapped and embedded for the TriLock mechanism to hold at rated capacity. Partial engagement produces a significantly lower holding strength.
-
Attaching to scaffold poles larger than 50mm diameter: the Velcro bands cannot wrap fully around a pole that exceeds the rated diameter, and partial contact significantly reduces holding strength.
-
Attaching to smooth or non-textile surfaces: Velcro requires a gripping surface. Bare metal poles, smooth plastic casings, and painted surfaces will not engage reliably, the attachment surface must carry sufficient texture or fibre for hook-and-loop engagement.
-
Exceeding the 10kg structural load limit: confirm the actual tool weight before selecting this anchor. For tools exceeding 10kg, a bolted or clamp-type structural anchor is required.
Safety
Certified to ANSI/ISEA 121-2023, NS 9611:2022+AC, CE and UKCA, dynamically load tested at a 2:1 safety factor. Two separate load limits apply: 10kg (22lbs) maximum when anchored to a structural surface such as a scaffold rail or pole; 3kg (6.6lbs) maximum when anchored to the body via belt or harness. These limits are not interchangeable, confirm the configuration before tethering any tool. This is a tool retention anchor only. It must not be used as a personal fall arrest anchor, fall restraint anchor, or work positioning anchor. After any dynamic load event, remove from service for formal inspection before reuse.
Maintenance
Check all three Velcro bands before every use. Remove debris, concrete dust, or fibre contamination using a stiff brush, contaminated Velcro loses grip significantly. Wipe the webbing and D-ring with a damp cloth. Do not expose to solvents. Store away from direct sunlight and heat. Test the Velcro hold on the intended surface before using at height. Record formal inspections against the serial number.
